bluetooth Citroen C4 DAG 2011.5 2.G Owner's Guide

297
05
1
2
5
3
4
6
USING THE TELEPHONE










PAIRING A TELEPHONE


The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.
Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function.

Press MENU
.
A window is displayed " Search in progress…
".

Select the telephone to be connected
from the list. Only one telephone can
be connected at a time.
Select " Search for a device
".
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary and the ignition on.

Select " Bluetooth connection
" and
confi rm.

298
05
7
8
Saisir code authentification
01
OK Del23456789 _
9
10
USING THE TELEPHONE


A virtual keypad is displayed on the
screen: enter a code with at least
4 digits and conform with OK
.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the
connection.

Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.

If pairing fails, try agin; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone may appear
instead of the name of the telephone.

299

05
1
2
4
3
USING THE TELEPHONE


To see the telephone status, press
MENU
.

Select " Telephone
" and confi rm.

Select " Telephone management
"
confi rm.
Select " Telephone status
" and confi rm.







TELEPHONE STATUS


The screen displays: the name of the telephone, the name of the
network, network signal strength, confi rmation of the Bluetooth
connection and the streaming connection.

300


1
2
3
4
05
5
USING THE TELEPHONE


The telephone connection automatically includes hands-free
operation and audio streaming.

Press MENU
.

Select " Bluetooth connection
" and
confi rm. Indicates connection of the audio steaming profi le.


MANAGING CONNECTIONS


Select " Connections management
"
and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection of the hands-free profi le.

Then select and confi rm:


- " Connect telephone
"/" Disconnect
telephone
": to connect/disconnect
the telephone or the hands-free
connection only.

- " Connect media player
"/
" Disconnect media player
": to
connect/disconnect only streaming.

- " Connect telephone + media
player
"/" Disconnect telephone +
media player
": to connect/disconnect
the telephone (hands-free and
streaming).

- " Delete connection
": to delete the
pairing.


Indicates that a device is connected.

303

1
2a2c
2b
05 USING THE TELEPHONE


During a call, press OK
to display the
contextual menu.

Hang up

In the contextual menu:


- select " Telephone mode
" to
transfer the call to the telephone.

- deselect " Telephone mode
" to
transfer the call to the vehicle.

In the contextual menu:


- select " Micro OFF
" to switch off the
microphone.

- deselect " Micro OFF
" to switch the
microphone on.


In certain cases, the combined mode has to activated from the
telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).

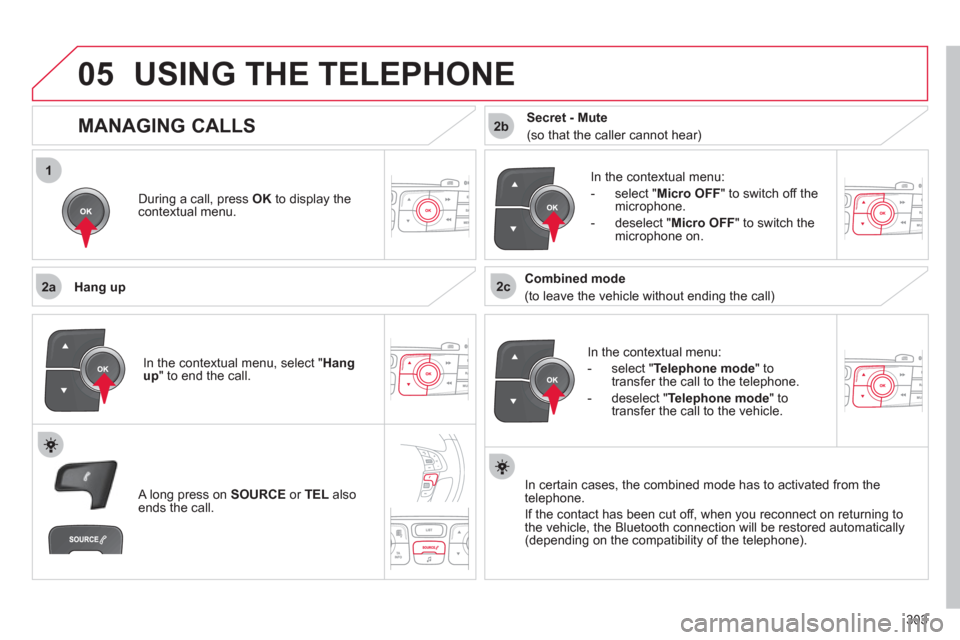

MANAGING CALLS


A long press on SOURCE
or TEL
also
ends the call. In the contextual menu, select " Hang
up
" to end the call.
Secret - Mute
(so that the caller cannot hear)

Combined mode
(to leave the vehicle without ending the call)

305


2
3
1
05 USING THE TELEPHONE

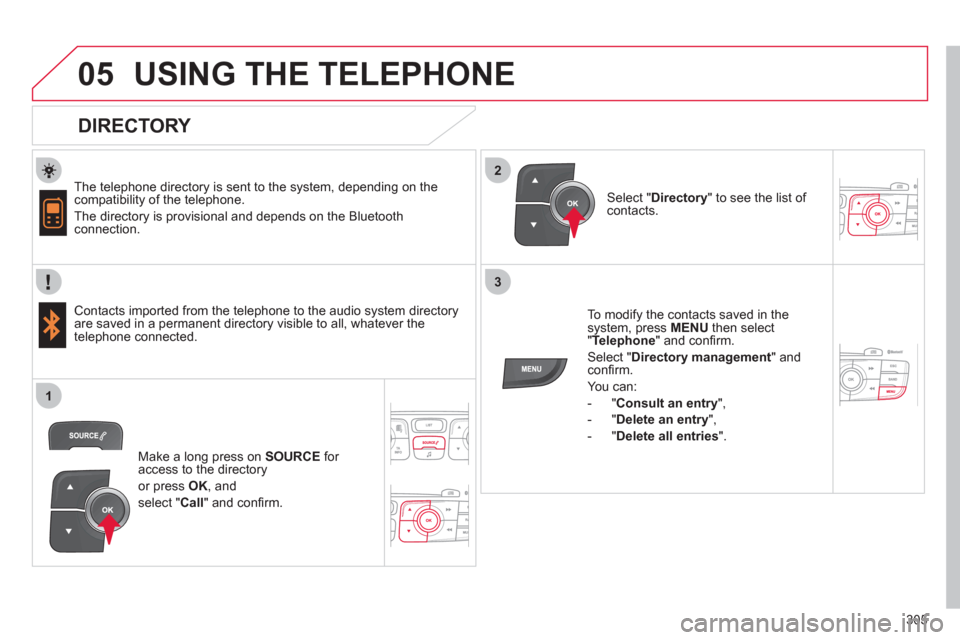

DIRECTORY


The telephone directory is sent to the system, depending on the
compatibility of the telephone.
The directory is provisional and depends on the Bluetooth
connection.

Contacts imported from the telephone to the audio system directory
are saved in a permanent directory visible to all, whatever the
telephone connected.
To modify the contacts saved in the
system, press MENU
then select
" Telephone
" and confi rm.
Select " Directory management
" and
confi rm.
You can:


- " Consult an entry
",

- " Delete an entry
",

- " Delete all entries
".


Select " Directory
" to see the list of
contacts.

Make a long press on SOURCE
for
access to the directory
or press OK
, and
select " Call
" and confi rm.

311

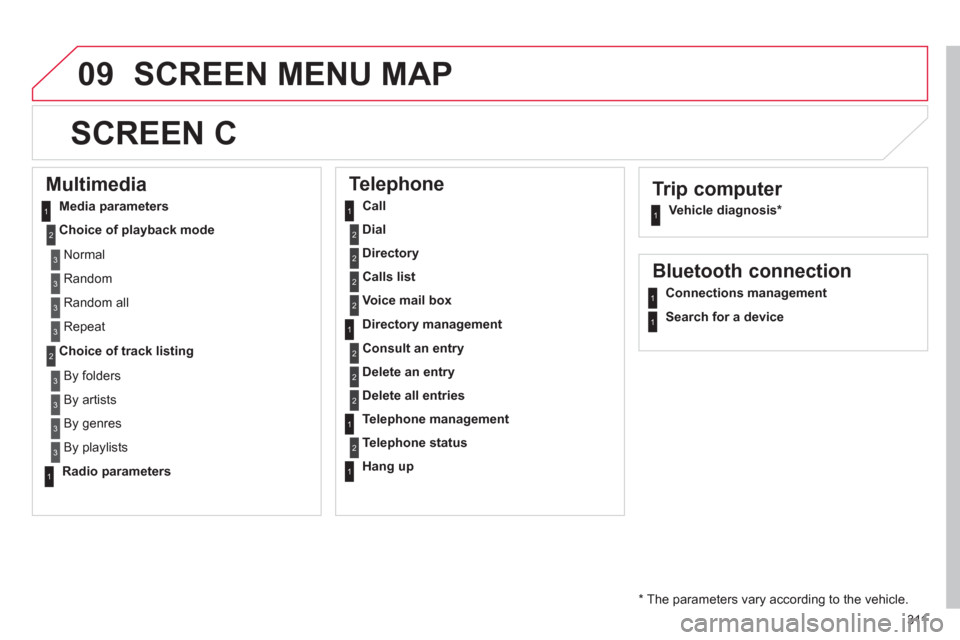

09 SCREEN MENU MAP


Trip computer


Vehicle diagnosis *







SCREEN C


Multimedia


Media parameters

Choice of playback mode


Choice of track listing



Telephone


Call

Dial


Directory


Calls list


Voice mail box



Directory management

Consult an entry


Delete an entry


Delete all entries



Telephone management

Telephone status



Hang up



Bluetooth connection


Connections management

Search for a device
Normal
Random
Random all
Repeat
By folders
By artists
By genres
By playlists

Radio parameters



* The parameters vary according to the vehicle.
11
2
2
1
2
2
2
2
1
2
2
2
1
2
1
1
1
3
3
3
3
3
3
3
3
1

315

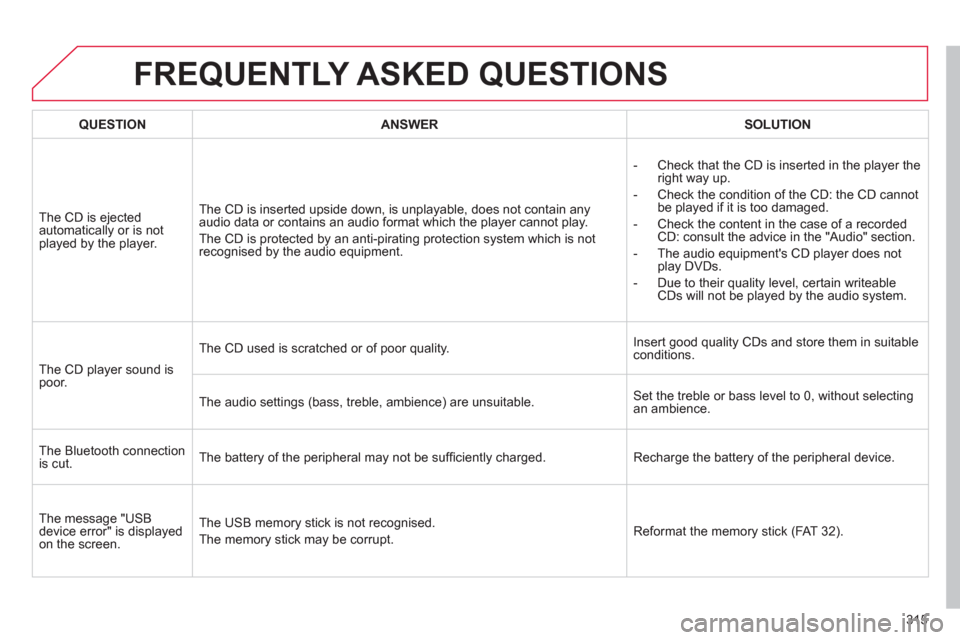

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor.

The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The message "USB
device error" is displayed
on the screen. The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick (FAT 32).

321
ALPHABETICAL INDEX
A ABS and EBFD systems ............137
Accessories ................................215
Accessory socket,
12 V .................. 115, 116, 119, 123
Adjusting headlamps ..................105
Adjusting head restraints ..............73
Adjusting seat belt height ...140, 141
Adjusting the steering wheel ........79
Airbags, curtain ..................145, 146
Airbags, front ......................143, 146
Airbags, lateral ...................145, 146
Air conditioning .............................26
Air conditioning, digital ...........64, 67
Air conditioning, manual .........64, 65
Air fi lter .......................................186
Air fl ow .........................................26
Air vents .......................................63
Alarm ............................................89
Anti-lock braking system (ABS) ...137
Anti-pinch .....................................93
Anti-theft .......................................83
Armrest, front ..................... 117, 118
Armrest, rear ..............................121
Ashtray, portable ........................ 114
Assistance call ...................139, 230
Audible warning ..........................135
Audio streaming
(Bluetooth) ........................270, 296
Audio system ..................51, 53, 283
Automatic illumination
of headlamps ....................100, 103
Automatic operation
of hazard warning lamps ..........135
Automatic rain sensitive
windscreen wipers ............108, 109
Auxiliary socket ..................271, 295
Auxiliary sockets ........................ 115B Battery ................................186, 207
Battery, charging ........................207
Battery, remote control ............84-86
Black panel ...................................49
Blind spot sensors ......................167
Bluetooth (hands-free) .......254, 297
Bluetooth (telephone) .................254
Bonnet ........................................180
Bonnet stay ................................180
Boot ..............................................92
Boot lamp ........................... 112, 124
Brake discs .................................187
Brake lamps ...............................201
Brake pads .................................187
Brakes ........................................187
Braking assistance system .........137
C Capacity, fuel tank ........................96
CD ..............................................290
CD MP3 ..............................291, 292
Central locking .......................82, 87
Centre console ........................... 116
Changing a bulb .................197, 201
Changing a fuse .........................203
Changing a wheel ......................193
Changing a wiper blade ..... 110, 209
Changing the date ..............273, 308
Changing the remote
control battery ......................84, 85
Changing the time ........48, 273, 308
CHECK ...................................31, 47
Checking levels ..................184, 185
Checking the engine oil level .......44
Checking tyre pressures
(using the kit) ............................188
Checks ...............182, 183, 186, 187
Child lock ....................................134C Children ......................129, 132, 133
Child seats ................. 126, 128-130
Cigar lighter ................................ 115
Clock ............................................48
Closing the boot .....................82, 92
Closing the doors ...................82, 91
Cold climate screen ....................210
Connectors, audio ...... 115, 293, 295
Coolant level ..............................184
Courtesy lamps .................. 104, 111
Courtesy mirror .......................... 114
Cruise control .....................170, 173
Cup holder .................................. 116
D Date (setting) ..............................273
Daytime running
lamps ........................100, 197, 199
Deactivating
the passenger airbag ...............143
Defrosting .....................................70
Diesel additive level ...................185
Dimensions ................................227
Dipped beam ................99, 197, 199
Dipstick .................................44, 184
Directional lighting ..............106, 107
Direction
indicators ...102, 135, 197, 198, 201
Doors ............................................91
Doors emergency control .............88
Door trays ................................... 113
Driving positions (memorising) .....75
Dynamic emergency
braking .............................147, 150
E EBA (Emergency braking
assistance) ...............................137
Eco-driving ...................................26
