ACCESS
89
Operating fault
When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a fault with the system.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.

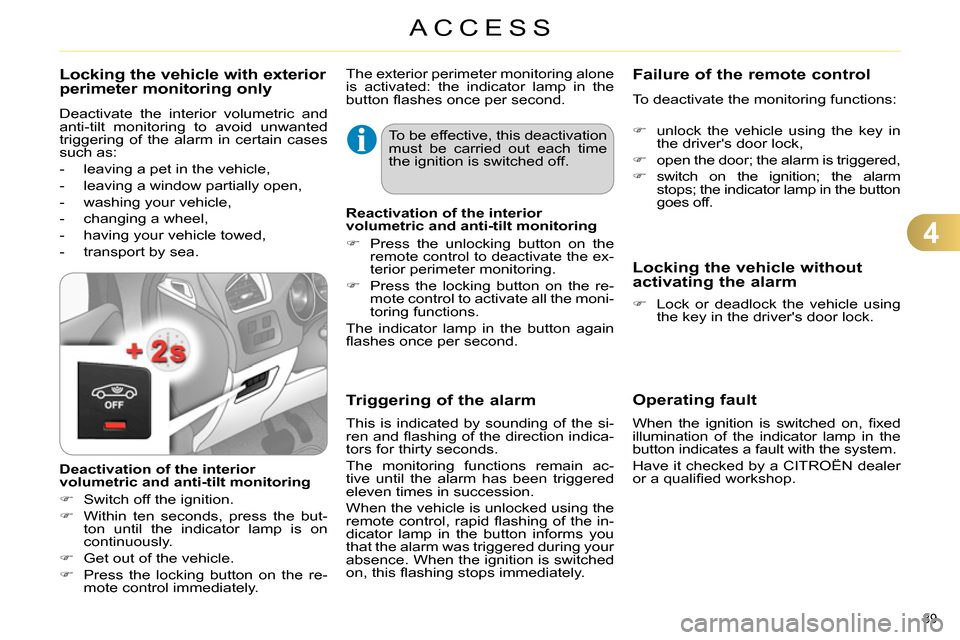

Locking the vehicle with exterior
perimeter monitoring only
Deactivate the interior volumetric and
anti-tilt monitoring to avoid unwanted
triggering of the alarm in certain cases
such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transport by sea.
Deactivation of the interior
volumetric and anti-tilt monitoring
Switch off the ignition.
Within ten seconds, press the but-
ton until the indicator lamp is on
continuously.
Get out of the vehicle.
Press the locking button on the re-
mote control immediately. The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.
To be effective, this deactivation
must be carried out each time
the ignition is switched off.
Reactivation of the interior
volumetric and anti-tilt monitoring
Press the unlocking button on the
remote control to deactivate the ex-
terior perimeter monitoring.
Press the locking button on the re-
mote control to activate all the moni-
toring functions.
The indicator lamp in the button again
fl ashes once per second.
Triggering of the alarm
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for thirty seconds.
The monitoring functions remain ac-
tive until the alarm has been triggered
eleven times in succession.
When the vehicle is unlocked using the
remote control, rapid fl ashing of the in-
dicator lamp in the button informs you
that the alarm was triggered during your
absence. When the ignition is switched
on, this fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
unlock the vehicle using the key in
the driver's door lock,
open the door; the alarm is triggered,
switch on the ignition; the alarm
stops; the indicator lamp in the button
goes off.
Locking the vehicle without
activating the alarm
Lock or deadlock the vehicle using
the key in the driver's door lock.
Page 92 of 340
4
ACCESS
90

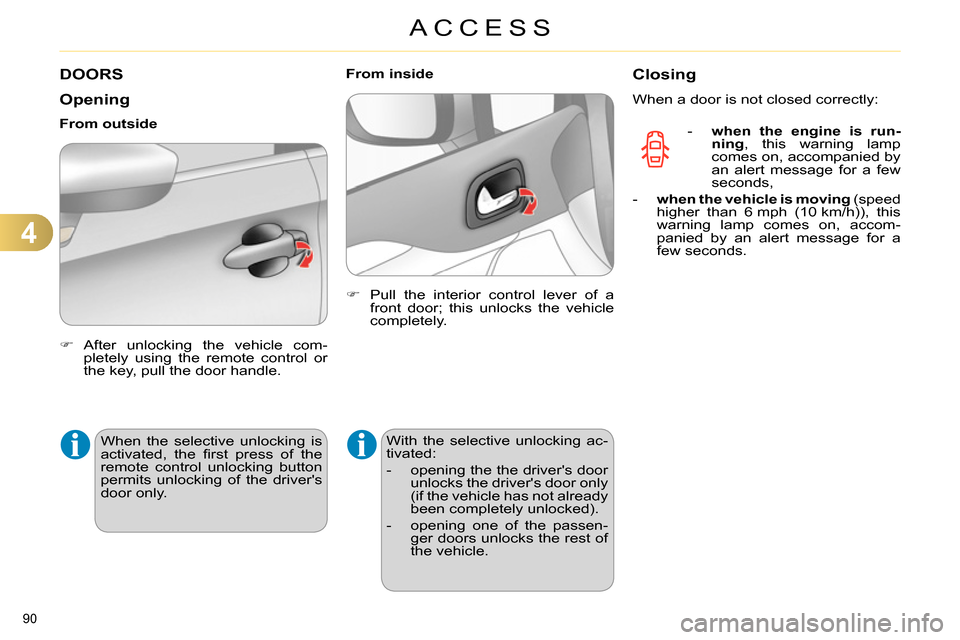

DOORS
Opening
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle.
From outside
When the selective unlocking is
activated, the fi rst press of the
remote control unlocking button
permits unlocking of the driver's
door only.
Pull the interior control lever of a
front door; this unlocks the vehicle
completely.
From inside
With the selective unlocking ac-
tivated:
- opening the the driver's door
unlocks the driver's door only
(if the vehicle has not already
been completely unlocked).
- opening one of the passen-
ger doors unlocks the rest of
the vehicle.
Closing
When a door is not closed correctly:
- when the engine is run-
ning
, this warning lamp
comes on, accompanied by
an alert message for a few
seconds,
- when the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accom-
panied by an alert message for a
few seconds.
Page 93 of 340
4
ACCESS
91

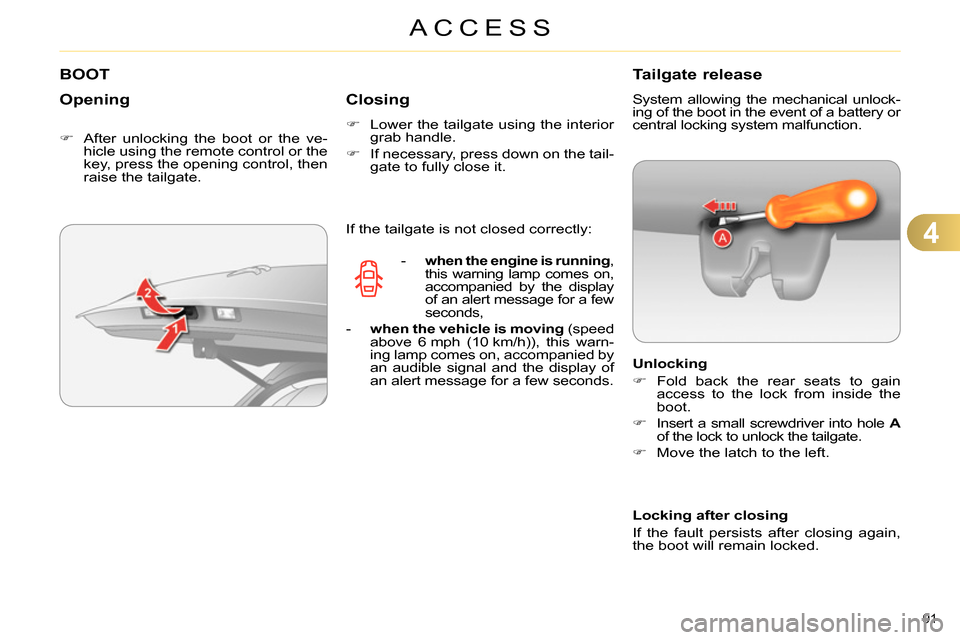

BOOT
Opening
After unlocking the boot or the ve-
hicle using the remote control or the
key, press the opening control, then
raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle.
If necessary, press down on the tail-
gate to fully close it.
Tailgate release
System allowing the mechanical unlock-
ing of the boot in the event of a battery or
central locking system malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Move the latch to the left.
If the tailgate is not closed correctly:
- when the engine is running
,
this warning lamp comes on,
accompanied by the display
of an alert message for a few
seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by
an audible signal and the display of
an alert message for a few seconds.
Locking after closing
If the fault persists after closing again,
the boot will remain locked.
Page 94 of 340
4
ACCESS
92

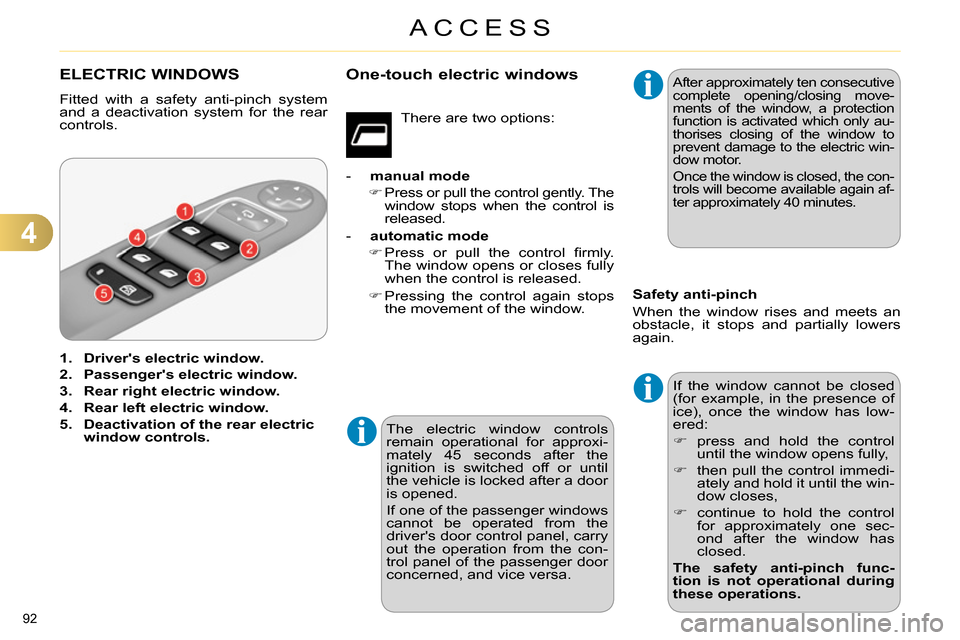

ELECTRIC WINDOWS
Fitted with a safety anti-pinch system
and a deactivation system for the rear
controls.
1.
Driver's electric window.
2.
Passenger's electric window.
3.
Rear right electric window.
4.
Rear left electric window.
5.
Deactivation of the rear electric
window controls.
The electric window controls
remain operational for approxi-
mately 45 seconds after the
i gnition is switched off or until
the vehicle is locked after a door
is opened.
If one of the passenger windows
cannot be operated from the
driver's door control panel, carry
out the operation from the con-
trol panel of the passenger door
concerned, and vice versa.
After approximately ten consecutive
complete opening/closing move-
ments of the window, a protection
function is activated which only au-
thorises closing of the window to
prevent damage to the electric win-
dow motor.
Once the window is closed, the con-
trols will become available again af-
ter approximately 40 minutes.
If the window cannot be closed
(for example, in the presence of
ice), once the window has low-
ered:
press and hold the control
until the window opens fully,
then pull the control immedi-
ately and hold it until the win-
dow closes,
continue to hold the control
for approximately one sec-
ond after the window has
closed.
The safety anti-pinch func-
tion is not operational during
these operations.
There are two options:
- manual mode
Press or pull the control gently. The
window stops when the control is
released.
- automatic mode
Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.
Pressing the control again stops
the movement of the window.
Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
One-touch electric windows
Page 95 of 340
4
ACCESS
93

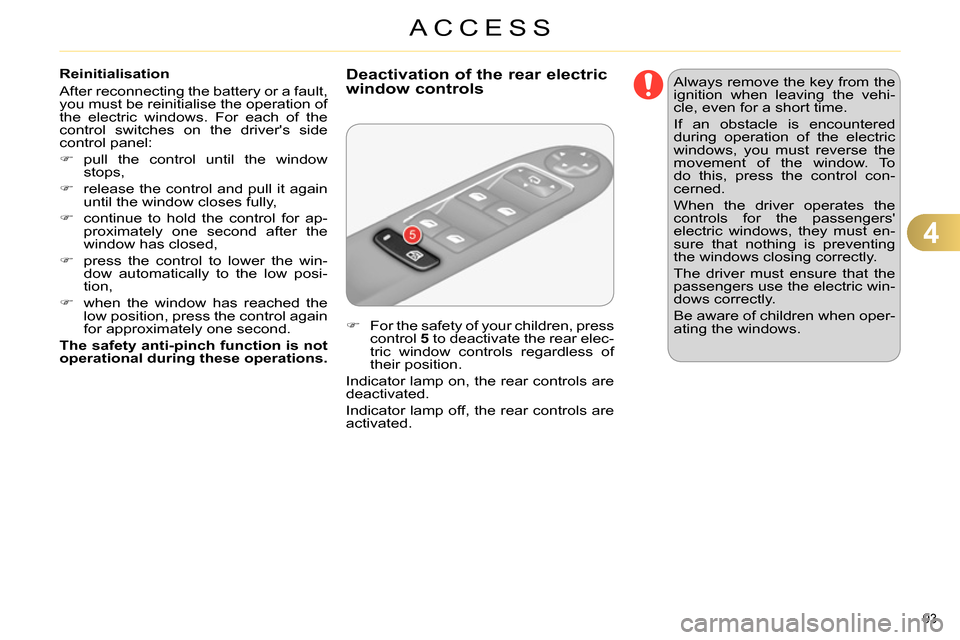

Reinitialisation
After reconnecting the battery or a fault,
you must be reinitialise the operation of
the electric windows. For each of the
control switches on the driver's side
control panel:
pull the control until the window
stops,
release the control and pull it again
until the window closes fully,
continue to hold the control for ap-
proximately one second after the
window has closed,
press the control to lower the win-
dow automatically to the low posi-
tion,
when the window has reached the
low position, press the control again
for approximately one second.
The safety anti-pinch function is not
operational during these operations.
For the safety of your children, press
control 5
to deactivate the rear elec-
tric window controls regardless of
their position.
Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.
Deactivation of the rear electric
window controls
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If an obstacle is encountered
during operation of the electric
windows, you must reverse the
movement of the window. To
do this, press the control con-
cerned.
When the driver operates the
controls for the passengers'
electric windows, they must en-
sure that nothing is preventing
the windows closing correctly.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.
Page 96 of 340
4
ACCESS
94

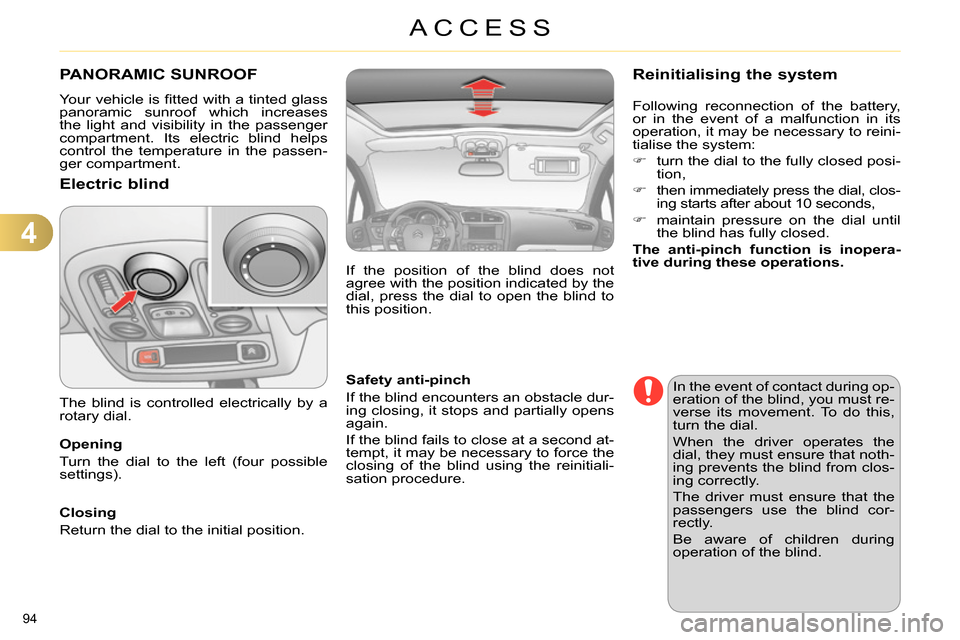

PANORAMIC SUNROOF
Your vehicle is fi tted with a tinted glass
panoramic sunroof which increases
the light and visibility in the passenger
compartment. Its electric blind helps
control the temperature in the passen-
ger compartment.
Electric blind
Opening
Turn the dial to the left (four possible
settings).
Closing
Return the dial to the initial position.
Safety anti-pinch
If the blind encounters an obstacle dur-
ing closing, it stops and partially opens
again.
If the blind fails to close at a second at-
tempt, it may be necessary to force the
closing of the blind using the reinitiali-
sation procedure.
The blind is controlled electrically by a
rotary dial.
In the event of contact during op-
eration of the blind, you must re-
verse its movement. To do this,
turn the dial.
When the driver operates the
dial, they must ensure that noth-
ing prevents the blind from clos-
ing correctly.
The driver must ensure that the
passengers use the blind cor-
rectly.
Be aware of children during
operation of the blind.
Reinitialising the system
Following reconnection of the battery,
or in the event of a malfunction in its
operation, it may be necessary to reini-
tialise the system:
turn the dial to the fully closed posi-
tion,
then immediately press the dial, clos-
ing starts after about 10 seconds,
maintain pressure on the dial until
the blind has fully closed.
The anti-pinch function is inopera-
tive during these operations.
If the position of the blind does not
agree with the position indicated by the
dial, press the dial to open the blind to
this position.
Page 97 of 340
4
ACCESS
95

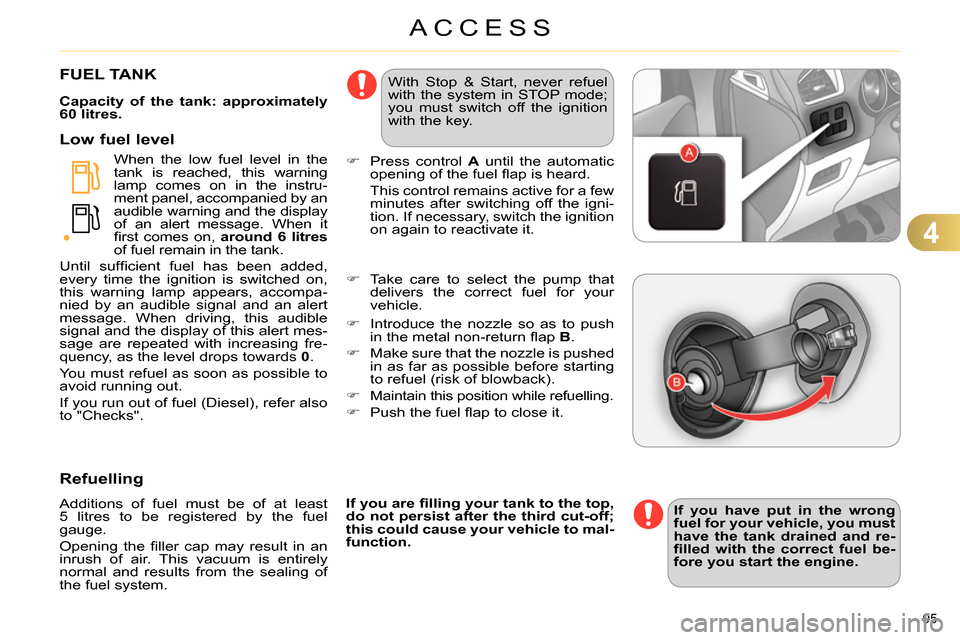

FUEL TANK
Capacity of the tank: approximately
60 litres.
When the low fuel level in the
tank is reached, this warning
lamp comes on in the instru-
ment panel, accompanied by an
audible warning and the display
of an alert message. When it
fi rst comes on, around 6 litres
of fuel remain in the tank.
Until suffi cient fuel has been added,
every time the ignition is switched on,
this warning lamp appears, accompa-
nied by an audible signal and an alert
message. When driving, this audible
signal and the display of this alert mes-
sage are repeated with increasing fre-
quency, as the level drops towards 0
.
You must refuel as soon as possible to
avoid running out.
If you run out of fuel (Diesel), refer also
to "Checks".
Low fuel level
Refuelling
Additions of fuel must be of at least
5 litres to be registered by the fuel
gauge.
Opening the fi ller cap may result in an
inrush of air. This vacuum is entirely
normal and results from the sealing of
the fuel system.
If you have put in the wrong
fuel for your vehicle, you must
have
the tank drained and re-
fi lled with the correct fuel be-
fore you start the engine.
Press control A
until the automatic
opening of the fuel fl ap is heard.
This control remains active for a few
minutes after switching off the igni-
tion. If necessary, switch the ignition
on again to reactivate it.
If you are fi lling your tank to the top,
do not persist after the third cut-off;
this could cause your vehicle to mal-
function.
Take care to select the pump that
delivers the correct fuel for your
vehicle.
With Stop & Start, never refuel
with the system in STOP mode;
you must switch off the ignition
with the key.
Introduce the nozzle so as to push
in the metal non-return fl ap B.
Make sure that the nozzle is pushed
in as far as possible before starting
to refuel (risk of blowback).
Maintain this position while refuelling.
Push the fuel fl ap to close it.
Page 98 of 340
4
ACCESS
96

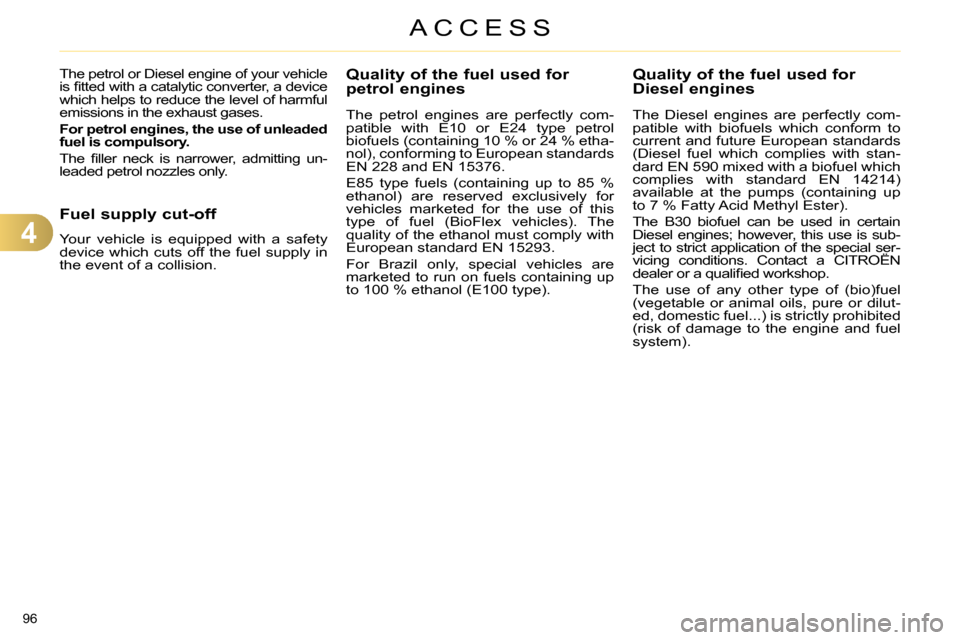

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 or E24 type petrol
biofuels (containing 10 % or 24 % etha-
nol), conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use is sub-
ject to strict application of the special ser-
vicing conditions. Contact a CITROËN
dealer or a qualifi ed workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
The petrol or Diesel engine of your vehicle
is fi tted with a catalytic converter, a device
which helps to reduce the level of harmful
emissions in the exhaust gases.
For petrol engines, the use of unleaded
fuel is compulsory.
The fi ller neck is narrower, admitting un-
leaded petrol nozzles only.
Fuel supply cut-off
Your vehicle is equipped with a safety
device which cuts off the fuel supply in
the event of a collision.
Page 99 of 340
4
ACCESS
97
MISFUEL PREVENTION
(DIESEL) *
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
Operation
When a petrol fi ller nozzle is introduced
into the fuel fi ller neck of your Diesel
vehicle, it comes into contact with the
fl ap. The system remains closed and
prevents fi lling.
Do not persist but introduce a Diesel
type fi ller nozzle.
It remains possible to use a fuel
can to fi ll the tank.
In order to ensure a good fl ow of
fuel, do not place the nozzle of
the fuel can in direct contact with
the fl ap of the misfuel prevention
device and pour slowly.
* According to country of sale.
Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries,
the presence of the misfuel pre-
vention device may make refuel-
ling impossible.
Before travelling abroad, we
recommend that you check with
the CITROËN dealer network,
whether your vehicle is suitable
for the fuel pumps in the country
in which you want to travel.
Page 100 of 340
5
VISIBILITY
98
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to the
climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clear-
ly when the road is clear.
Additional lighting
Other lamps are provided to meet the
requirements of particular driving con-
ditions:
- rear foglamps,
- front foglamps with cornering lighting,
- directional headlamps for improved
visibility when cornering,
- daytime running lamps to be more
visible during the day,
- guide-me-home and welcome light-
ing to facilitate access to the vehicle,
- parking lamps as vehicle position
markers.
Programming
The setting of some functions can be
adjusted:
- daytime running lamps,
- automatic illumination of headlamps,
- guide-me-home lighting,
- welcome lighting,
- directional lighting.
In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the inter-
nal surface of the glass of the
headlamps and rear lamps is nor-
mal; it disappears after the lamps
have been on for a few minutes.
