Page 71 of 266
IISITUATIONCONSEQUENCES
1Electronic parking brake fault and display of message “ P a r k i n g b r a k e f a u l t y” and the following warning lamps :
If the electronic parking brake fault warning lamp and the serv-ice warning lamp light up, position the vehicle in a safe loca- t i o n ( o n fl a t g r o u n d , w i t h a g e a r e n g a g e d ) .
2Display of message “ P a r k i n g b r a k e f a u l t y”and the following warning lamps :- The automatic functions are deactivated.
- The hill start assist is unavailable.
- The electronic parking brake is only available manually.
3Display of message “ P a r k i n g b r a k e f a u l t y”and the following warning lamps :- The manual unlocking of the electronic parking brake is una-vailable.
- The hill start assist is unavailable.
- The automatic functions and manual application are still available.
E L E C T R O N I C P A R K I N G B R A K EO P E R A T I N G A N O M A L I E S
If any of these instances arises, contact a CITROËN dealer as soo n as possible.
Page 72 of 266
II
73If any of these instances arises, contact a CITROËN dealer as soon as possible.
E L E C T R O N I C P A R K I N G B R A K EO P E R A T I N G A N O M A L I E S
SITUATIONCONSEQUENCES
4Display of message “ P a r k i n g b r a k e f a u l t y”and the following warning lamps :
a n d / o r fl a s h i n g fl a s h i n g fl a s h i n g a n d / o r a n d / o r
- The automatic functions are deactivated.
- The hill start assist is unavailable.
To apply the electronic parking brake :
1. Immobilise the vehicle and switch off the ignition.
2. Pull the control lever for at least 5 seconds or until maximum application.
3. Switch on the ignition and check that the electronic parking brake warning lamps are on.
Note : - Application may take longer than in normal operation.
- If warning lamp P fl a s h e s o r i f t h e w a r n i n g l a m p s d o n o t come on when the ignition is switched on, this method does not work. Contact a CITROËN dealer. come on when the ignition is switched on, this switched
To release the electronic parking brake :
1. Switch on the ignition.
2. Pull the control lever and hold it for approximately 3 seconds.
5Display of message “ P a r k i n g b r a k e c o n - t r o l f a u l t y – a u t o m a t i c m o d e a c t i v a t e d ”and the following warning lamps :
a n d / o r fl a s h i n g fl a s h i n g fl a s h i n g a n d / o r a n d / o r
- Only the functions for automatic application on switching o ff the engine and automatic release on acceleration are avail-able.
- M a n u a l a p p l i c a t i o n / r e l e a s e o f t h e e l e c t r o n i c p a r k i n g b r a k e and dynamic emergency braking are unavailable.
6Battery fault- Lighting of the battery warning lamp makes it essential to s t o p t h e v e h i c l e a s s o o n a s t r a f fi c a l l o w s . S t o p a n d i m m o b i -lise your vehicle.
- Apply the electronic parking brake before switching off the engine.
Page 73 of 266
II

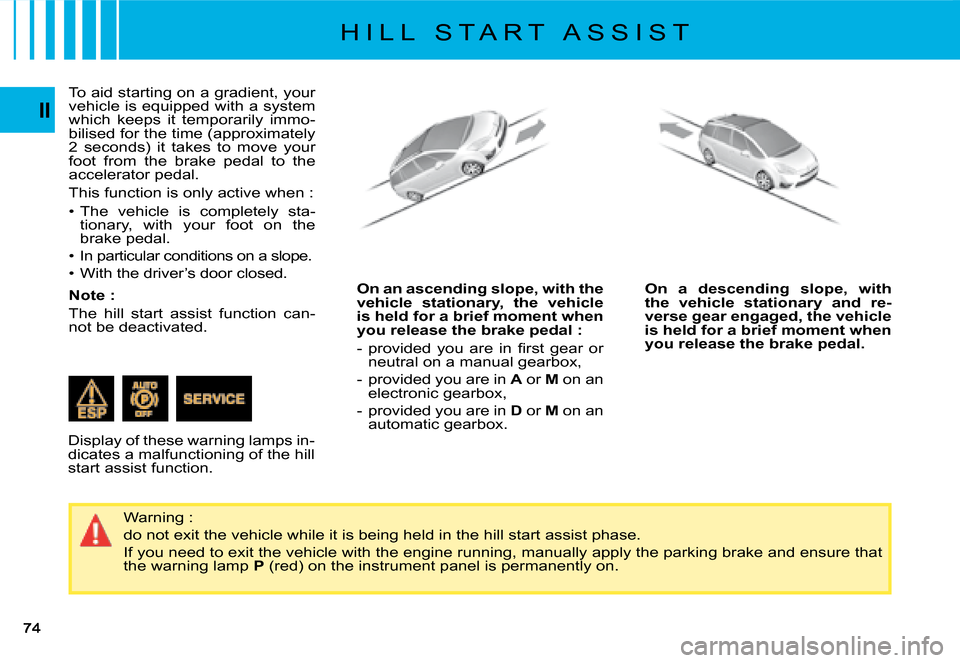

To aid starting on a gradient, your vehicle is equipped with a system which keeps it temporarily immo-bilised for the time (approximately 2 seconds) it takes to move your foot from the brake pedal to the accelerator pedal.
This function is only active when :
Page 74 of 266
AII
75
You can select the “parking space sensor” function by pressing button A . T h e fi x e d l i g h t i n g o f t h e w a r n i n g lamp indicates that the function is selected.
Parking space sensor warning lamp
This warning lamp can have three different statuses :
- off : the function is not selected.
- o n fi x e d : the function is selected but the conditions for mea
suring are not yet met (direction indicator not operating, speed too high) or the measuring phase is terminate d.
- fl a s h i n g : the measuring is in progress or the message is being displayed.
T h e p a r k i n g s p a c e s e n s o r f u n c t i o n a s s i s t s y o u i n fi n d i n g a p a r k i n g s p a c e . it measures the size of the space and gives you information on :
- t h e p o s s i b i l i t y o f fi t t i n g i n t o a f r e e s p a c e , d e p e n d i n g o n t h e d i m e n s i o n s o f your vehicle and the distances necessary for your manœuvring,
- t h e l e v e l o f d i f fi c u l t y o f t h e m a n œ u v r e t o b e p e r f o r m e d .
Note : The system does not measure spaces which are clearly much smaller or larger than the size of the vehicle.
P A R K I N G S P A C E S E N S O R
Page 75 of 266
76
II
If there is a malfunction, have the system checked by a CITROËN dealer.
The function displays the following types of message :Operation :
Y o u h a v e i d e n t i fi e d a p a r k i n g s p a c e :
1. Press button A to select the function.
2. Activate the direction indicator on the side where the space is to be measured.
3. During the measuring, go for-ward the length of the space, at a speed less than 20 km/h (approx. 12 mph), to prepare for your manœuvre.
The system then measures the size of the space.
4. The system informs you of t h e l e v e l o f d i f fi c u l t y o f t h e manœuvre via a message on the multifunction screen ac-companied by a gong.
5. Depending on the message is-sued by the system, you may or may not be able to perform the manœuvre.
Parking possible
P a r k i n g d i f fi c u l t
Parking not advised
Note : The function deselects itself automatically :
- when you engage reverse gear,
- when you switch off the ignition,
- if measuring is not requested,
- w i t h i n fi v e m i n u t e s o f s e l e c t i o n of the function,
- if the vehicle speed exceeds the threshold of 70 km/h (approx. 45 mph) for one minute.
Warning : if the lateral distance be-tween your vehicle and the parking space is too large, the system may not be able the measure the space.
Notes :
- The function remains available after each measurement and thus can measure more than one space during your search.
- In bad weather conditions or in winter, make sure that the sen-sors are not covered by dirt, or by ice or snow.
- The parking space sensor func-tion deactivates the front park-ing assistance during the space measuring phase when you are in forward gear.
P A R K I N G S P A C E S E N S O R
Page 76 of 266
A
II
77
SAFETY RECOMMENDATIONS
The ESP system offers increased driving safety but is not in place to encourage the driver to take addi-tional risks or to drive at excessive speeds.
The functioning of this system is subject to compliance with the manufacturer’s recommendations on wheels (tyres and rims), brake parts and electronic components, as well as with CITROËN’s as-parts and electronic components, components,
sembly and repair procedures.
After any collision, have this system checked by a CITROËN dealer.After any collision, have this system , have t
Electronic stability programme (ESP) and traction control (ASR)
These systems are closely connected to the ABS and additional to it. In the event of a loss of control of the vehicle by the driver, the ESP system acts automatically on one or more brakes and also on the engine to bring the vehicle back on trajectory. The ASR system optimises traction and prevents wheel spin by acting on the brakes of the driving wheels, as well as on the engine. It also improves steering stability during acceleration.
Operation :
When either the ESP or ASR system is in operation, the ESP/ASR warning l a m p fl a s h e s.
Deactivation
In exceptional conditions (vehicle stuck in snow, soft ground, e tc.) it may prove useful to deactivate the ESP/ASR system to allow the wheels to spin and thus regain traction.
- Press on control A, the ESP/ASR warning lamp and the control light up. The ESP/ASR systems are no longer active.
The ESP/ASR systems will activate again :
- Automatically after the ignition has been switched off.
- Automatically above a speed of 50 km/h (30 mph).
- Manually with a new press on control A.
Operational anomaly
If the systems malfunction, the ESP/ASR warning lamp comes on, ac-companied by a sound signal and a message on the multifunction display. Contact a CITROËN dealer to have the system checked.companied by a sound signal and a message on the multifunction by a sound
E L E C T R O N I C S T A B I L I T Y P R O G R A M M E
Page 77 of 266
78
II
Direction indicators
Left : downwards.
Right : upwards.
For a change of direction, operate the control stalk to go beyond the “tight spot”. It will revert automati-cally to its initial position with the return of the steering wheel.
H e a d l a m p fl a s h
Pull the control stalk towards you.
T h e h e a d l a m p fl a s h i s p o s s i b l e even with the ignition switched off.
Horn
P r e s s a t t h e l o w e r p a r t o f t h e fi x e d centred controls steering wheel.
Emergency activation of the hazard warning lamps
A heavy deceleration of the vehi-cle will cause the hazard lamps to activate automatically.
They will cease automatically on reacceleration of the vehicle or manually if you press on the hazard lamps button on the dashboard.
Driving with the hazard lamps activated renders the direction indicators inoperational.
Distress signal
The distress signal operates all the direction indicators simultaneously.
Only make use of this in a situa-tion of danger, for an emergency s t o p o r i f y o u fi n d y o u r s e l f d r i v i n g i n exceptional weather conditions.
The distress signal will operate even with the ignition switched off.
S I G N A L L I N G
Sound signal for vehicle lamps left on
With the ignition switched off, the signal will activate when the driv-er’s door is opened, to indicate that lamps have been left on.
It will cease when the door is closed, the lamps switched off, or the ignition switched on again.
This signal is inactive if the auto-matic lighting of headlamps and /or the guide-me-home lighting are activated.
Page 78 of 266
4
3
A
2 1II
79
All lamps off
LIGHTING CONTROL
1 Stop
2 Automatic lighting
3 Sidelamps
4 Dipped beams / Main beams
Sidelamps on
Dipped beams / main beams on
Turn the ring A forwards.
Turn the ring A forwards.
Automatic lighting of headlamps
The sidelamps and dipped beams come on automatically when the a m b i e n t l i g h t i s i n s u f fi c i e n t o r i f t h e windscreen wipers are in continu-ous operation.
Pull the control stalk fully towards you to swap between dipped beams and main beams.
EXTERIOR SIDE LIGHTERS
These illuminate :
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front doors.
I l l u m i n a t i o n / e x t i n c t i o n
The side lighters come on :
- when you unlock the vehicle or press on the lighting button on the remote control.
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control to locate your vehicle.
They are timed to go out automati-cally.
They go out as soon as the light is a g a i n s u f fi c i e n t o r a p p r o x . 5 m i n u t e s after the windscreen wipers have ceased.
To activate this function, place the control A on position 2.
Do not cover the sunlight sen-sor which is located behind the interior rear view mirror and visible from outside the wind-screen.
Turn the ring A forwards.
S I G N A L L I N G
Page 79 of 266
4
3
A
2 1II
79
All lamps off
LIGHTING CONTROL
1 Stop
2 Automatic lighting
3 Sidelamps
4 Dipped beams / Main beams
Sidelamps on
Dipped beams / main beams on
Turn the ring A forwards.
Turn the ring A forwards.
Automatic lighting of headlamps
The sidelamps and dipped beams come on automatically when the a m b i e n t l i g h t i s i n s u f fi c i e n t o r i f t h e windscreen wipers are in continu-ous operation.
Pull the control stalk fully towards you to swap between dipped beams and main beams.
EXTERIOR SIDE LIGHTERS
These illuminate :
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front doors.
I l l u m i n a t i o n / e x t i n c t i o n
The side lighters come on :
- when you unlock the vehicle or press on the lighting button on the remote control.
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control to locate your vehicle.
They are timed to go out automati-cally.
They go out as soon as the light is a g a i n s u f fi c i e n t o r a p p r o x . 5 m i n u t e s after the windscreen wipers have ceased.
To activate this function, place the control A on position 2.
Do not cover the sunlight sen-sor which is located behind the interior rear view mirror and visible from outside the wind-screen.
Turn the ring A forwards.
S I G N A L L I N G
Page 80 of 266
A
80
II
FRONT AND REAR FOGLAMPS (Ring A)
In foggy conditions, if the ambient brightness is not such as to activate the automatic lighting, it is up to you to switch on your dipped beams manually, along with your foglamps as necessary.
These operate in conjunction with the sidelamps, the dipped beams or the main beams.
Headlamps adjustment
Depending on the vehicle load, it is recommended that you correct the height of your headlamp beams.
On the dashboard beside the driver :
0 Unladen
1 Partial load
2 Medium load
3 Full load.
Note : Vehicles equipped with Xenon dual-function directional headlamps have an automatic adjustment of headlamps depending on load.
For a vehicle equipped with rear foglamps :
- 1st turn forwards : lighting of rear foglamps.
- 1st turn rearwards: extinction of rear foglamps.
For a vehicle equipped with front and rear foglamps:
- 1st turn forwards: lighting of front foglamps.
- 2nd turn forwards: lighting of rear foglamps.
- 1st turn rearwards: extinction of rear foglamps.
- 2nd turn rearwards: extinction of front foglamps.
Note : Foglamps should be used only in conditions of fog or snowfall.
GUIDE-ME-HOME LIGHTING
With the ignition off, this func-tion temporarily switches on your headlamps to give you exterior lighting when you are leaving your vehicle.
This function is activated :
