L A Y O U T

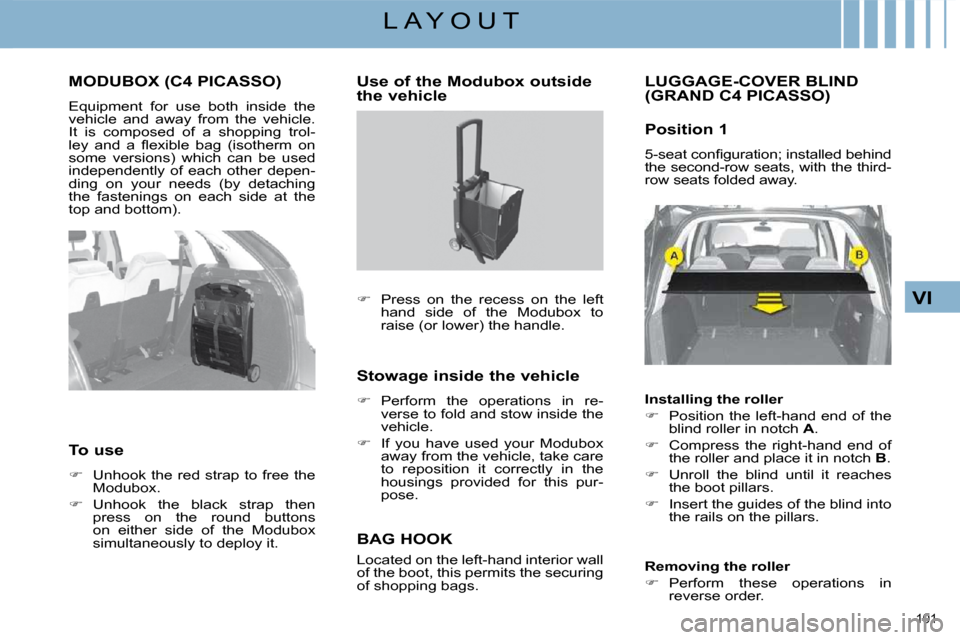

MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
l e y a n d a fl e x i b l e b a g ( i s o t h e r m o n
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle
Perform the operations in re-
verse to fold and stow inside the
vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE-COVER BLIND (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the second-row seats, with the third-
row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller
Position the left-hand end of the
blind roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Unroll the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Perform these operations in
reverse order.
Page 132 of 330
101
VI
L A Y O U T
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
l e y a n d a fl e x i b l e b a g ( i s o t h e r m o n
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle
Perform the operations in re-
verse to fold and stow inside the
vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE-COVER BLIND (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the second-row seats, with the third-
row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller
Position the left-hand end of the
blind roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Unroll the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Perform these operations in
reverse order.
Page 133 of 330
102
VI
L A Y O U T

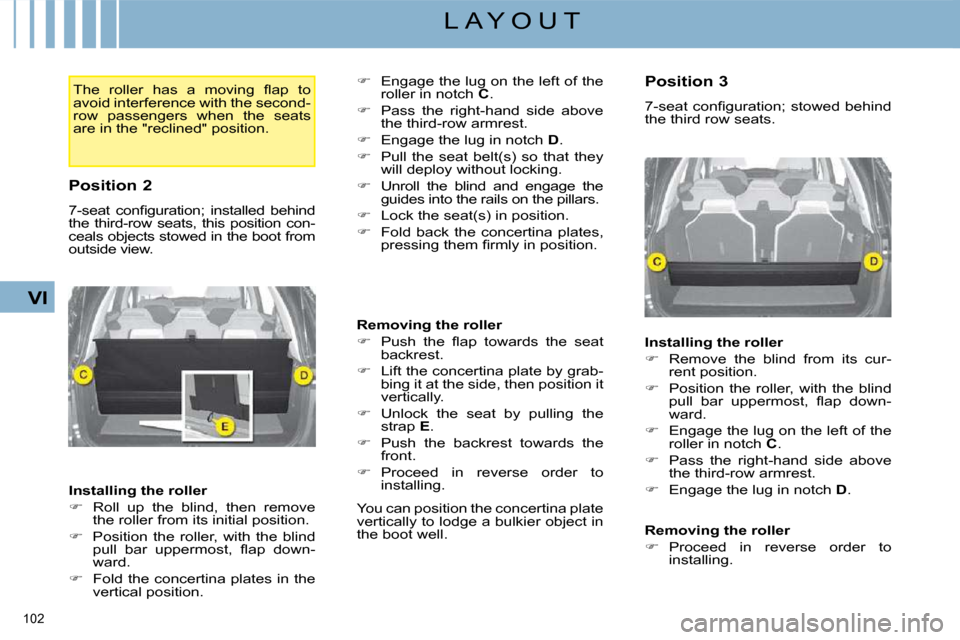

T h e r o l l e r h a s a m o v i n g fl a p t o
avoid interference with the second-
row passengers when the seats
are in the "reclined" position.
Engage the lug on the left of the
roller in notch C .
Pass the right-hand side above
the third-row armrest.
Engage the lug in notch D .
Pull the seat belt(s) so that they
will deploy without locking.
Unroll the blind and engage the
guides into the rails on the pillars.
Lock the seat(s) in position.
Fold back the concertina plates,
p r e s s i n g t h e m fi r m l y i n p o s i t i o n .
Installing the roller
Roll up the blind, then remove
the roller from its initial position.
Position the roller, with the blind
p u l l b a r u p p e r m o s t , fl a p d o w n -
ward.
Fold the concertina plates in the
vertical position.
Removing the roller
P u s h t h e fl a p t o w a r d s t h e s e a t
backrest.
Lift the concertina plate by grab-
bing it at the side, then position it
vertically.
Unlock the seat by pulling the
strap E .
Push the backrest towards the
front.
Proceed in reverse order to
installing. Position 3
7 - s e a t c o n fi g u r a t i o n ; s t o w e d b e h i n d
the third row seats.
Installing the roller
Remove the blind from its cur-
rent position.
Position the roller, with the blind
p u l l b a r u p p e r m o s t , fl a p d o w n -
ward.
Engage the lug on the left of the
roller in notch C .
Pass the right-hand side above
the third-row armrest.
Engage the lug in notch D .
Removing the roller
Proceed in reverse order to
installing.
Position 2
7 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the third-row seats, this position con-
ceals objects stowed in the boot from
outside view.
You can position the concertina plate
vertically to lodge a bulkier object in
the boot well.
Page 134 of 330
103
VI
L A Y O U T

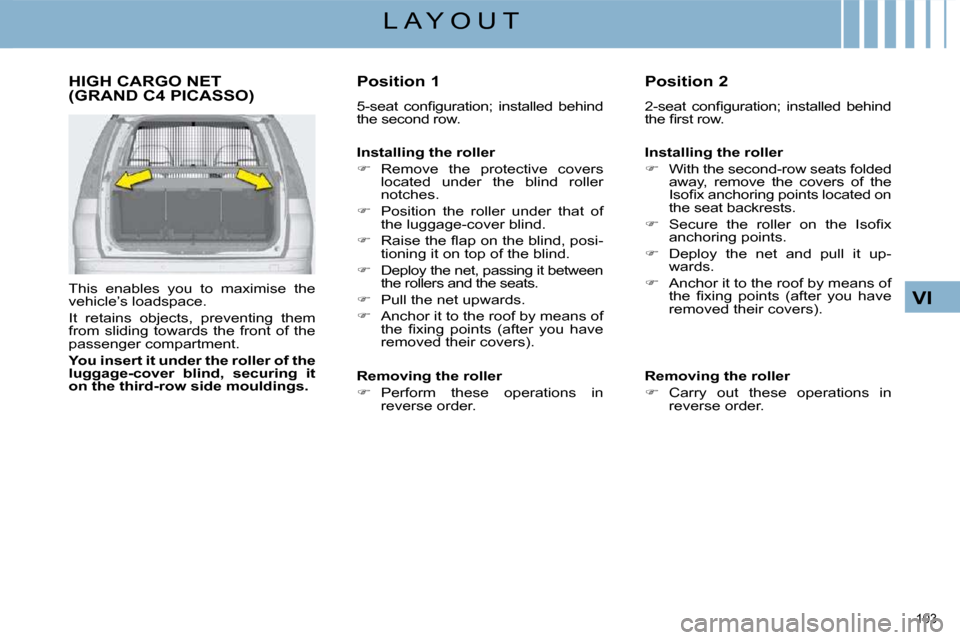

HIGH CARGO NET (GRAND C4 PICASSO)
This enables you to maximise the
vehicle’s loadspace.
It retains objects, preventing them
from sliding towards the front of the
passenger compartment.
You insert it under the roller of the
luggage-cover blind, securing it
on the third-row side mouldings. Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the second row.
Installing the roller
Remove the protective covers
located under the blind roller
notches.
Position the roller under that of
the luggage-cover blind.
R a i s e t h e fl a p o n t h e b l i n d , p o s i -
tioning it on top of the blind.
Deploy the net, passing it between
the rollers and the seats.
Pull the net upwards.
Anchor it to the roof by means of
t h e fi x i n g p o i n t s ( a f t e r y o u h a v e
removed their covers).
Removing the roller
Perform these operations in
reverse order. Position 2
2 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
t h e fi r s t r o w .
Removing the roller
Carry out these operations in
reverse order.
Installing the roller
With the second-row seats folded
away, remove the covers of the
I s o fi x a n c h o r i n g p o i n t s l o c a t e d o n
the seat backrests.
S e c u r e t h e r o l l e r o n t h e I s o fi x
anchoring points.
Deploy the net and pull it up-
wards.
Anchor it to the roof by means of
t h e fi x i n g p o i n t s ( a f t e r y o u h a v e
removed their covers).
Page 135 of 330
104
VI
L A Y O U T

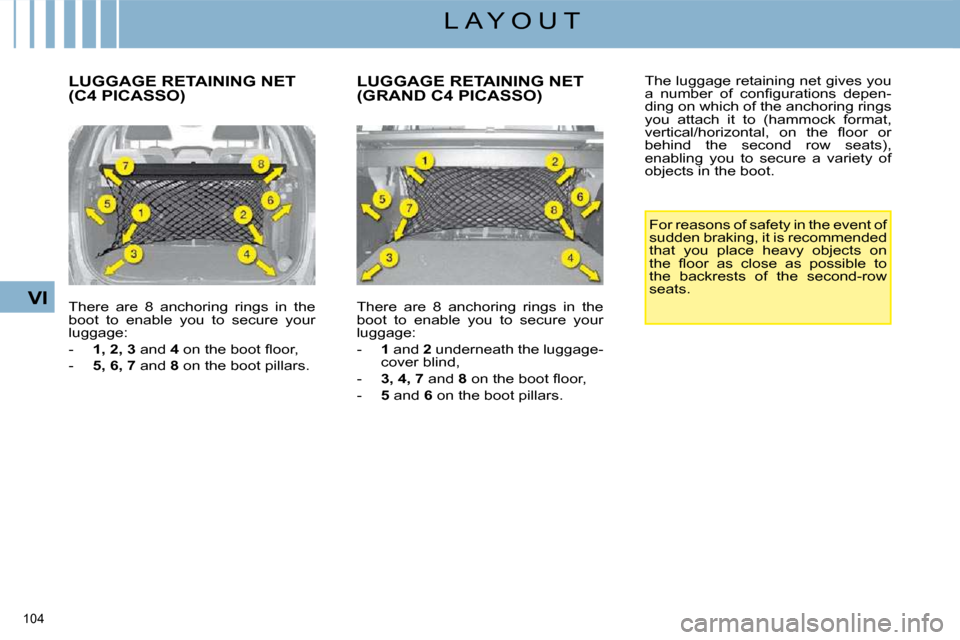

LUGGAGE RETAINING NET (C4 PICASSO)
There are 8 anchoring rings in the
boot to enable you to secure your
luggage:
- 1, 2, 3 and 4 o n t h e b o o t fl o o r ,
- 5, 6, 7 and 8 on the boot pillars.
LUGGAGE RETAINING NET (GRAND C4 PICASSO)
There are 8 anchoring rings in the
boot to enable you to secure your
luggage:
- 1 and 2 underneath the luggage-
cover blind,
- 3, 4, 7 and 8 o n t h e b o o t fl o o r ,
- 5 and 6 on the boot pillars. For reasons of safety in the event of
sudden braking, it is recommended
that you place heavy objects on
t h e fl o o r a s c l o s e a s p o s s i b l e t o
the backrests of the second-row
seats.
The luggage retaining net gives you
a n u m b e r o f c o n fi g u r a t i o n s d e p e n -
ding on which of the anchoring rings
you attach it to (hammock format,
v e r t i c a l / h o r i z o n t a l , o n t h e fl o o r o r
behind the second row seats),
enabling you to secure a variety of
objects in the boot.
Page 136 of 330
105
VI
L A Y O U T
TORCH
This is a removable light, incorpo-
rated in the boot wall, which can be
used to light the boot or as a torch.
Grand C4 Picasso
C4 Picasso Boot lighting
The boot light
A comes on automati-
cally when the boot is opened and
switches off automatically when the
boot is closed.
Various lighting durations are avai-
lable:
- ignition off, approximately ten min- utes,
- in energy economy mode, approxi- mately thirty seconds,
- engine running, no limit.
Operation of the torch
This torch operates with NiMH type
power packs.
It has an operating autonomy of
approximately 45 minutes and
charges while you are driving.
Extract the torch from its location
pulling it upwards, as indicated
by the arrow.
Press the switch B , located on
the back, to switch the torch on
or off.
Unfold the support C , located on
the back, to set down and raise
the torch; for example, when
changing a wheel.
Storing the torch
Put the torch back in place in its
location starting with the lower
part.
If you have forgotten to switch off the torch, this switches it off
automatically.
O b s e r v e t h e p o l a r i t i e s w h e n fi t t i n g
the accumulators.
Never replace the power packs
with batteries.
It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.
Using the torch
Page 137 of 330
106
VII
C H I L D S A F E T Y
* The rules for transporting chil- d r e n a r e s p e c i fi c t o e a c h c o u n t r y .
Consult the current legislation in
y o u r c o u n t r y .

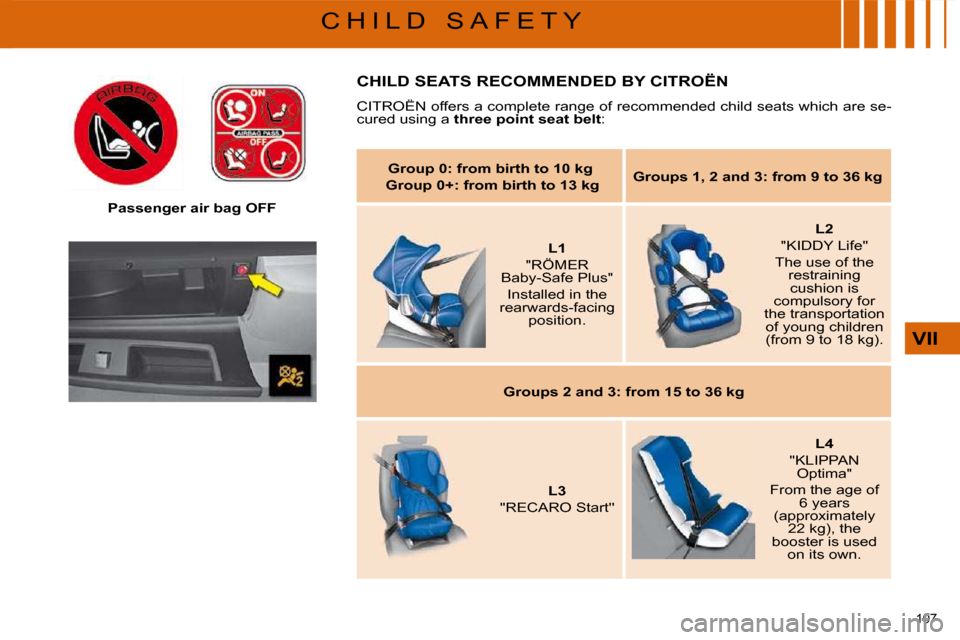

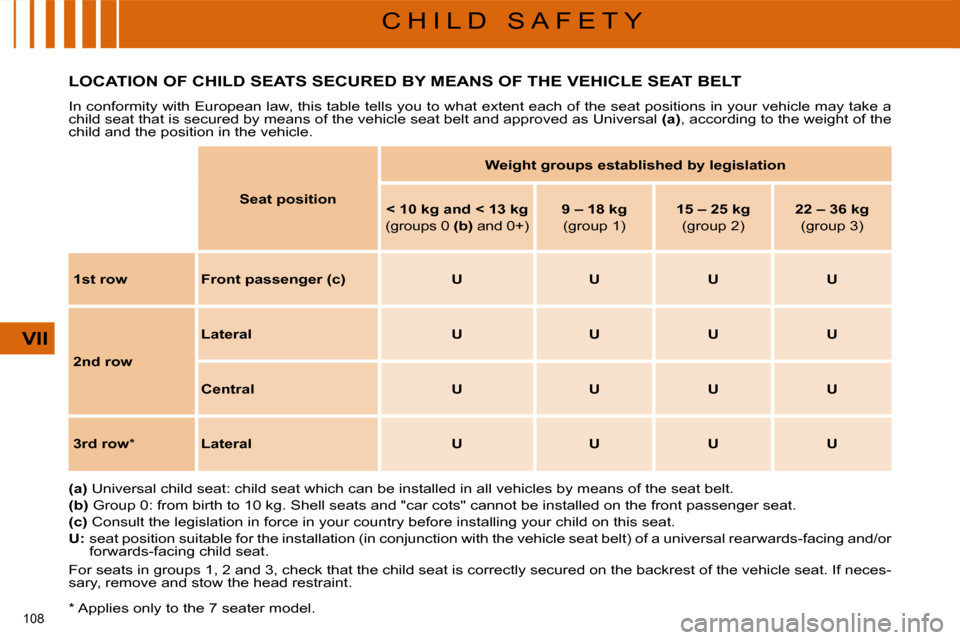

GENERAL POINTS RELATING TO CHILD SEATS
Although one of CITROËN’s main
c r i t e r i a w h e n d e s i g n i n g y o u r v e h i c l e ,
t h e s a f e t y o f y o u r c h i l d r e n a l s o d e -
p e n d s o n y o u .
F o r m a x i m u m s a f e t y , p l e a s e f o l l o w
these precautions:
- in accordance with European r e g u l a t i o n s , all children under
the age of 12 or less than one
m e t r e fi f t y t a l l m u s t t r a v e l i n
a p p r o v e d c h i l d s e a t s s u i t e d t o
their weight , o n s e a t s fi t t e d w i t h
a s e a t b e l t o r I S O F I X m o u n t i n g s * ,
- s t a t i s t i c a l l y , t h e s a f e s t s e a t s i n
y o u r v e h i c l e f o r t h e t r a n s p o r -
tation of children are the rear
s e a t s ,
- a child weighing less than 9 kg
m u s t t r a v e l i n t h e " r e a r w a r d s -
f a c i n g " p o s i t i o n b o t h i n t h e
front and in the rear.
CITROËN recommends that chil-
d r e n s h o u l d t r a v e l i n t h e rear seats
o f y o u r v e h i c l e :
- " r e a r w a r d s - f a c i n g " up to the
a g e o f 2 ,
- " f o r w a r d s - f a c i n g " o v e r t h e

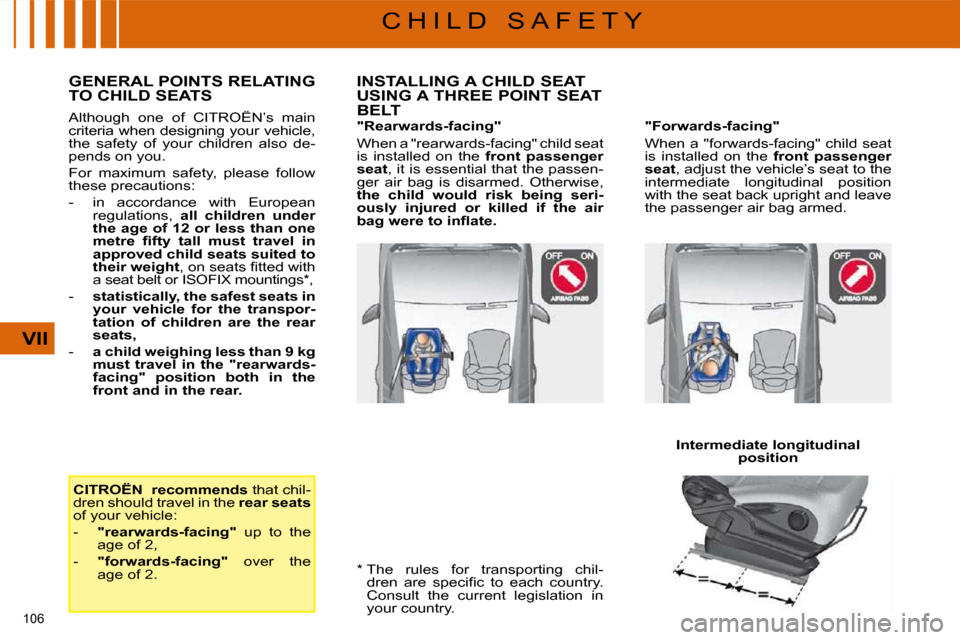

a g e o f 2 . INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
" R e a r w a r d s - f a c i n g "
When a "rearwards-facing" child seat
is installed on the
front passenger
seat , i t i s e s s e n t i a l t h a t t h e p a s s e n -
g e r a i r b a g i s d i s a r m e d . O t h e r w i s e ,
t h e c h i l d w o u l d r i s k b e i n g s e r i -
o u s l y i n j u r e d o r k i l l e d i f t h e a i r
b a g w e r e t o i n fl a t e . " F o r w a r d s - f a c i n g "
When a "forwards-facing" child seat
is installed on the
front passenger
seat , a d j u s t t h e v e h i c l e ’ s s e a t t o t h e
intermediate longitudinal position
w i t h t h e s e a t b a c k u p r i g h t a n d l e a v e
t h e p a s s e n g e r a i r b a g a r m e d .
Intermediate longitudinal position
Page 138 of 330
107
VII
C H I L D S A F E T Y
P a s s e n g e r a i r b a g O F F
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are se-
cured using a t h r e e p o i n t s e a t b e l t :
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L1
"RÖMER
B a b y - S a f e P l u s "
Installed in the
rearwards-facing p o s i t i o n .
L2
"KIDDY Life"
The use of the restrainingcushion is
c o m p u l s o r y f o r
the transportation o f y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L 3
"RECARO Start''
L4
" K L I P P A N Optima"
From the age of 6 y e a r s
( a p p r o x i m a t e l y 2 2 k g ) , t h e
booster is used o n i t s o w n .
Page 139 of 330
107
VII
C H I L D S A F E T Y
P a s s e n g e r a i r b a g O F F
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are se-
cured using a t h r e e p o i n t s e a t b e l t :
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L1
"RÖMER
B a b y - S a f e P l u s "
Installed in the
rearwards-facing p o s i t i o n .
L2
"KIDDY Life"
The use of the restrainingcushion is
c o m p u l s o r y f o r
the transportation o f y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L 3
"RECARO Start''
L4
" K L I P P A N Optima"
From the age of 6 y e a r s
( a p p r o x i m a t e l y 2 2 k g ) , t h e
booster is used o n i t s o w n .
Page 140 of 330
108
VII
C H I L D S A F E T Y
* A p p l i e s o n l y t o t h e 7 s e a t e r m o d e l .
L O C A T I O N O F C H I L D S E A T S S E C U R E D B Y M E A N S O F T H E V E H I C L E S E A T B E L T
I n c o n f o r m i t y w i t h E u r o p e a n l a w , t h i s t a b l e t e l l s y o u t o w h a t e x t e n t e a c h o f t h e s e a t p o s i t i o n s i n y o u r v e h i c l e m a y t a k e a
c h i l d s e a t t h a t i s s e c u r e d b y m e a n s o f t h e v e h i c l e s e a t b e l t a n d a p p r o v e d a s U n i v e r s a l (a) , a c c o r d i n g t o t h e w e i g h t o f t h e
c h i l d a n d t h e p o s i t i o n i n t h e v e h i c l e .
(a) U n i v e r s a l c h i l d s e a t : c h i l d s e a t w h i c h c a n b e i n s t a l l e d i n a l l v e h i c l e s b y m e a n s o f t h e s e a t b e l t .
( b ) G r o u p 0 : f r o m b i r t h t o 1 0 k g . S h e l l s e a t s a n d " c a r c o t s " c a n n o t b e i n s t a l l e d o n t h e f r o n t p a s s e n g e r s e a t .
(c) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U
: s e a t p o s i t i o n s u i t a b l e f o r t h e i n s t a l l a t i o n ( i n c o n j u n c t i o n w i t h t h e v e h i c l e s e a t b e l t ) o f a u n i v e r s a l r e a r w a r d s - f a c i n g a n d / o r
f o r w a r d s - f a c i n g c h i l d s e a t .
F o r s e a t s i n g r o u p s 1 , 2 a n d 3 , c h e c k t h a t t h e c h i l d s e a t i s c o r r e c t l y s e c u r e d o n t h e b a c k r e s t o f t h e v e h i c l e s e a t . I f n e c e s -
s a r y , r e m o v e a n d s t o w t h e h e a d r e s t r a i n t .
Seat position
W e i g h t g r o u p s e s t a b l i s h e d b y l e g i s l a t i o n
< 1 0 k g a n d < 1 3 k g
(groups 0 ( b ) and 0+)
9 – 18 kg
(group 1)
1 5 – 2 5 k g
(group 2)
2 2 – 3 6 k g
( g r o u p 3 )
1 st row F r o n t p a s s e n g e r (c) U U U U
2 nd row
Lateral U U U U
Central U U U U
3 r d r o w * Lateral U U U U
