Page 164 of 330
130
IX
D R I V I N G
Emergency unlocking In the event of the electronic parking
brake malfunctioning or the battery
r u n n i n g fl a t , a n e m e r g e n c y m a n u a l
device can unlock the parking brake.
Immobilise the vehicle, with the
e n g i n e r u n n i n g , b y e n g a g i n g fi r s t
gear (manual gearbox), position
P (automatic gearbox) or M or
R (6-speed electronic gearbox),
then switch off the engine.
If it is impossible to immobilise the vehicle, do not action the
control and urgently contact a
CITROËN dealer.
Fetch the vehicle blocks and the
unlocking device (braided cable)
from the toolbox.
Immobilise the vehicle by plac-
ing blocks at the front and at the
rear of one of the rear wheels.
Slide the front left-hand seat
back as far as possible.
L i f t u p t h e fl o o r p l u g B in the car-
pet under the seat.
Pierce the tab C on the tube D
with the unlocking device.
Place the unlocking device in the
tube D .
Turn the unlocking device clock-
wise. For safety reasons
, it is
essential to continue turning the
device as far as it will go or until
you hear a knocking noise. The
parking brake is released.
Remove the unlocking device
and store it with the blocks in the
toolbox.
- The operation of the parking brake reinitialises when the ig-
nition is switched off then on
again. If the reinitialisation of the
parking brake proves impossi-
ble, contact a CITROËN dealer.
- The subsequent time required for application may be longer
than during normal operation.
For safety reasons, after this manoeuvre it is essential to cont act a CITROËN dealer urgently to have the plug
replaced.
Following an emergency unlocking, immobilisation of the vehi cle is no longer guaranteed once the manual emer-
gency unlocking has been deployed and the manual control doe s not allow the re-application of your parking
brake.
Take no action, either on control A , or stopping starting the engine while the unlocking de vice is engaged.
Take care not to allow moisture or dust in the proximity of th e plug.
Page 166 of 330
132
IX
D R I V I N G
4
SITUATION
CONSEQUENCES
5 Display of message
"
Parking brake faulty
"
and the following warning lamps:
a n d / o r fl a s h i n g - The automatic functions are deactivated.
- The hill start assist is unavailable.
To apply the electronic parking brake:
Immobilise the vehicle and switch off the ignition
Pull the control lever for at least 5 seconds or until maximum
application.
Switch on the ignition and check that the electronic parkin g
brake warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P fl a s h e s o r i f t h e w a r n i n g l a m p s d o n o t c o m e
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer.
To release the electronic parking brake:
Switch on the ignition.
Pull the control lever and hold it for approximately 3 second s.
Display of message "
Parking brake control
faulty – automatic mode activated" and
the following warning lamps:
a n d / o r fl a s h i n g - Only the functions for automatic application on switchi
ng off
the engine and automatic release on acceleration are avail-
able.
- Manual application/release of the electronic parking brake and
dynamic emergency braking are unavailable.
6 Battery fault - Lighting of the battery warning lamp ma
kes it essential to stop
t h e v e h i c l e a s s o o n a s t r a f fi c a l l o w s . S t o p a n d i m m o b i l i s e y o u r
vehicle.
- Apply the electronic parking brake before switching off the
engine.
Page 190 of 330
155
IX
D R I V I N G
Loading/unloading
assistance
Grand C4
Picasso
C4 Picasso
The pneumatic suspension has an
additional function associated with
it : the possibility to raise or lower
the height of the rear of the vehicle
when stationary, in order to facilitate
loading/unloading of the boot. Increasing the height of the boot
sill
Press continuously at the top of
the control A , which is located in
the boot, on the left-hand side.
This action will be accompanied by
a sound signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the nominal height
P r e s s b r i e fl y t w i c e a t t h e b o t t o m
of the control A .
Decreasing the height of the boot
sill
Press continuously at the bottom
of the control A .
This action will be accompanied by
a sound signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the nominal height
P r e s s b r i e fl y t w i c e a t t h e t o p o f
the control A .
Driving with the boot sill in
a low position may damage
the components located un-
der the bodyshell.
Special features
- If you start the vehicle without having returned it to the nominal
height, the automatic correction
will activate as soon as the ve-
hicle starts to move. During the
correction, the service warning
lamp lights up and a message
on the screen reminds you not to
exceed 10 km/h (6 mph).
-
The loading assistance does not
function in the following instances:
- If the button B is lit up,
- in power economy mode,
- w h e n y o u fi r s t u s e t h e f u n c t i o n , press for two seconds on the
control A to initialise the system.
All subsequent actions will be
followed immediately by the de-
sired results.
Page 300 of 330
42

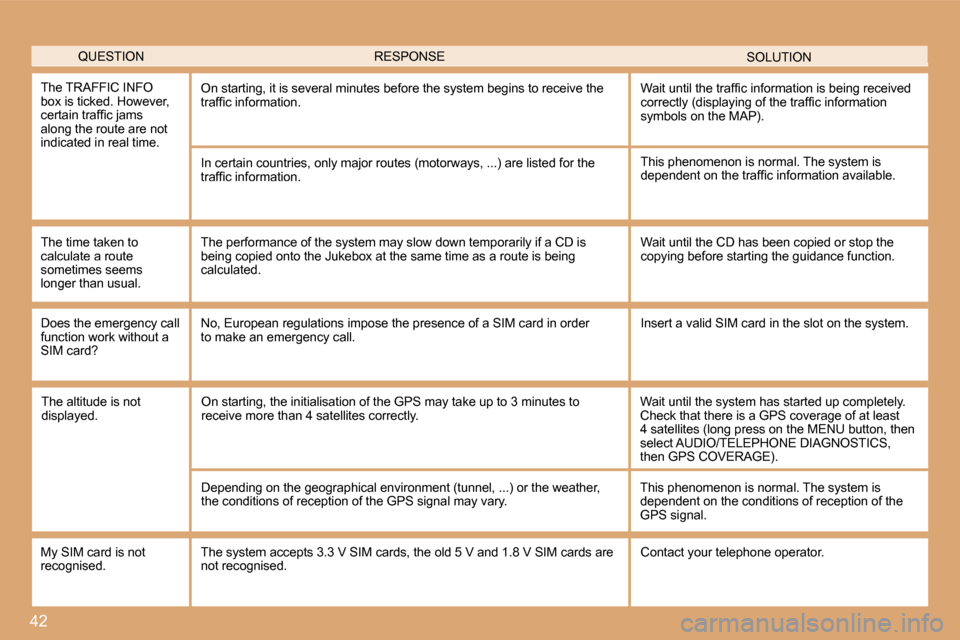

QUESTION SOLUTION RESPONSE
The TRAFFIC INFO box is ticked. However, c e r t a i n t r a f fi c j a m s a l o n g t h e r o u t e a r e n o t indicated in real time.
O n s t a r t i n g , i t i s s e v e r a l m i n u t e s b e f o r e t h e s y s t e m b e g i n s t o r e c e i v e t h e t r a f fi c i n f o r m a t i o n . W a i t u n t i l t h e t r a f fi c i n f o r m a t i o n i s b e i n g r e c e i v e d c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f fi c i n f o r m a t i o n s y m b o l s o n t h e M A P ) .
I n c e r t a i n c o u n t r i e s , o n l y m a j o r r o u t e s ( m o t o r w a y s , . . . ) a r e l i s t e d f o r t h e t r a f fi c i n f o r m a t i o n .
The time taken to calculate a route sometimes seems l o n g e r t h a n u s u a l .
This phenomenon is normal. The system is d e p e n d e n t o n t h e t r a f fi c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempor arily if a CD is b e i n g c o p i e d o n t o t h e J u k e b o x a t t h e s a m e t i m e a s a r o u t e i s b e i n g calculated.
Wait until the CD has been copied or stop the c o p y i n g b e f o r e s t a r t i n g t h e g u i d a n c e f u n c t i o n .
D o e s t h e e m e r g e n c y c a l l function work without a S I M c a r d ?
N o , E u r o p e a n r e g u l a t i o n s i m p o s e t h e p r e s e n c e o f a S I M c a r d i n o r d e r t o m a k e a n e m e r g e n c y c a l l . Insert a valid SIM card in the slot on the system.
My SIM card is not r e c o g n i s e d . The system accepts 3.3 V SIM cards, the old 5 V an d 1.8 V SIM cards are n o t r e c o g n i s e d . Contact your telephone operator.
The altitude is not displayed. O n s t a r t i n g , t h e i n i t i a l i s a t i o n o f t h e G P S m a y t a k e u p t o 3 m i n u t e s t o receive more than 4 satellites correctly. Wait until the system has started up completely. C h e c k t h a t t h e r e i s a G P S c o v e r a g e o f a t l e a s t 4 s a t e l l i t e s ( l o n g p r e s s o n t h e M E N U b u t t o n , t h e n select AUDIO/TELEPHONE DIAGNOSTICS, t h e n G P S C O V E R A G E ) .
D e p e n d i n g o n t h e g e o g r a p h i c a l e n v i r o n m e n t ( t u n n e l , . . . ) o r t h e w e a t h e r , t h e c o n d i t i o n s o f r e c e p t i o n o f t h e G P S s i g n a l m a y v a r y . This phenomenon is normal. The system is dependent on the conditions of reception of the G P S s i g n a l .
Page 330 of 330
2929
QUESTION SOLUTIONRESPONSE
The TRAFFIC INFO box is ticked. However, c e r t a i n t r a f fi c j a m s along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the t r a f fi c i n f o r m a t i o n . W a i t u n t i l t h e t r a f fi c i n f o r m a t i o n i s b e i n g r e c e i v e d c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f fi c i n f o r m a t i o n symbols on the map).
I n c e r t a i n c o u n t r i e s , o n l y m a j o r r o u t e s ( m o t o r w a y s , . . . ) a r e l i s t e d f o r t h e t r a f fi c i n f o r m a t i o n .
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is d e p e n d e n t o n t h e t r a f fi c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempor arily if a CD/DVD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD/DVD has been copied or stop the copying before starting the guidance function.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 4 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
The route calculation is not successful. T h e e x c l u s i o n c r i t e r i a m a y c o n fl i c t w i t h t h e c u r r e n t l o c a t i o n ( e x c l u s i o n o f toll roads on a toll motorway). Check the exclusion criteria.
There is a long waiting time after inserting a CD or SD card.
When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be deactiva ted or the equipment may not be visible. - Check that your telephone's Bluetooth function is activated. - Check that your telephone is visible.
