MONO - TONE INSTRUMENT PANEL

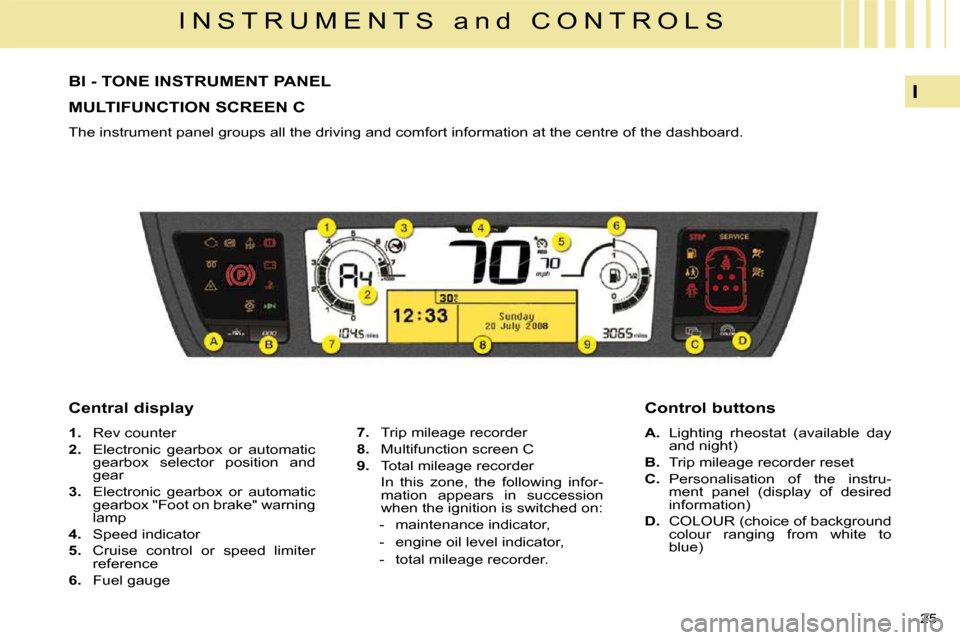

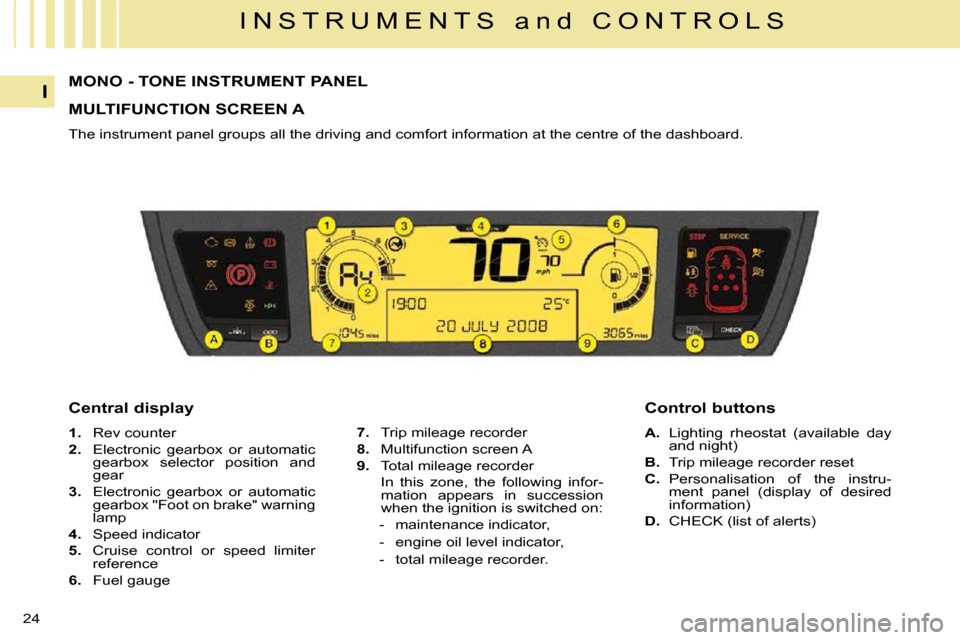

MULTIFUNCTION SCREEN A
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Central display
1. Rev counter
2. Electronic gearbox or automatic
gearbox selector position and
gear
3. Electronic gearbox or automatic
gearbox "Foot on brake" warning
lamp
4. Speed indicator
5. Cruise control or speed limiter
reference
6. Fuel gauge
7. Trip mileage recorder
8. Multifunction screen A
9. Total mileage recorder
In this zone, the following infor- mation appears in succession
when the ignition is switched on:

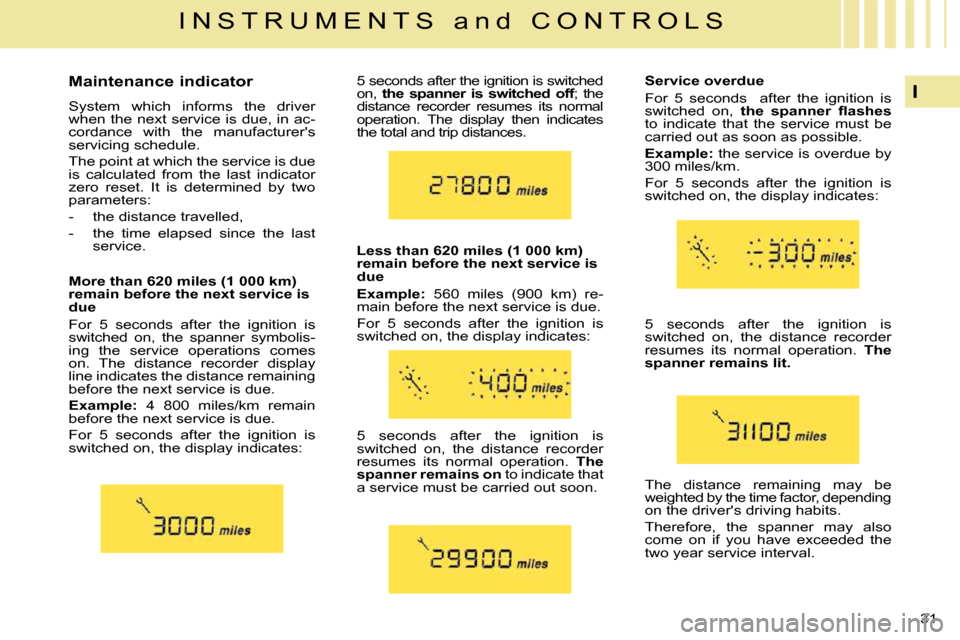

- maintenance indicator,
- engine oil level indicator,
- total mileage recorder. Control buttons
A. Lighting rheostat (available day
and night)
B. Trip mileage recorder reset
C. Personalisation of the instru-
ment panel (display of desired
information)
D. CHECK (list of alerts)
Page 22 of 330
25
I
I N S T R U M E N T S a n d C O N T R O L S
BI - TONE INSTRUMENT PANEL

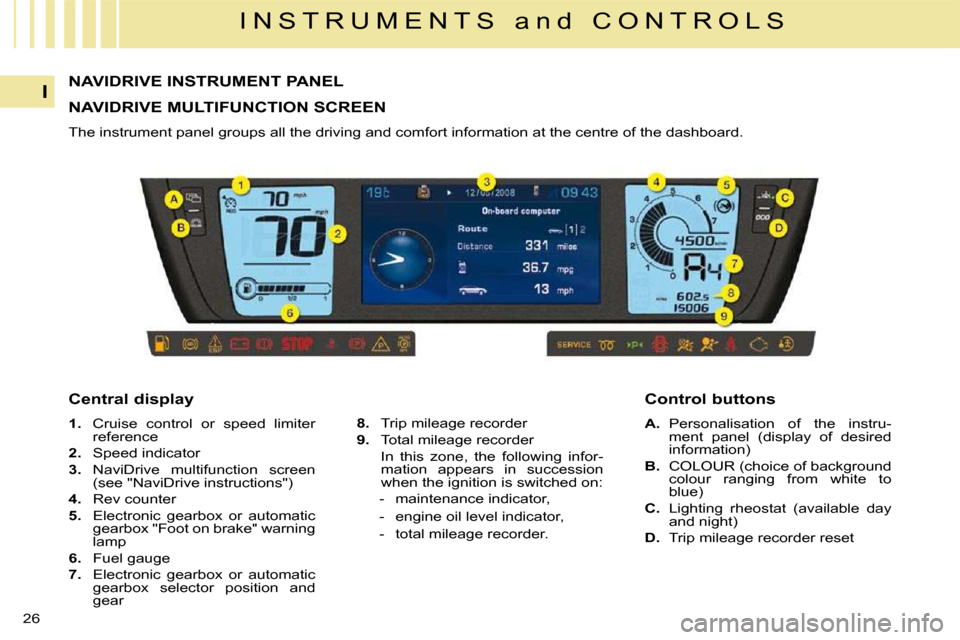

MULTIFUNCTION SCREEN C
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Central display
1. Rev counter
2. Electronic gearbox or automatic
gearbox selector position and
gear
3. Electronic gearbox or automatic
gearbox "Foot on brake" warning
lamp
4. Speed indicator
5. Cruise control or speed limiter
reference
6. Fuel gauge
7. Trip mileage recorder
8. Multifunction screen C
9. Total mileage recorder
In this zone, the following infor- mation appears in succession
when the ignition is switched on:
- maintenance indicator,
- engine oil level indicator,
- total mileage recorder. Control buttons
A. Lighting rheostat (available day
and night)
B. Trip mileage recorder reset
C. Personalisation of the instru-
ment panel (display of desired
information)
D. COLOUR (choice of background
colour ranging from white to
blue)
Page 23 of 330
26
I
I N S T R U M E N T S a n d C O N T R O L S
NAVIDRIVE INSTRUMENT PANEL
NAVIDRIVE MULTIFUNCTION SCREEN
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Central display
1. Cruise control or speed limiter
reference
2. Speed indicator
3. NaviDrive multifunction screen
(see "NaviDrive instructions")
4. Rev counter
5. Electronic gearbox or automatic
gearbox "Foot on brake" warning
lamp
6. Fuel gauge
7. Electronic gearbox or automatic
gearbox selector position and
gear
8. Trip mileage recorder
9. Total mileage recorder
In this zone, the following infor- mation appears in succession
when the ignition is switched on:
- maintenance indicator,
- engine oil level indicator,
- total mileage recorder. Control buttons
A. Personalisation of the instru-
ment panel (display of desired
information)
B. COLOUR (choice of background
colour ranging from white to
blue)
C. Lighting rheostat (available day
and night)
D. Trip mileage recorder reset
Page 24 of 330
27
I
I N S T R U M E N T S a n d C O N T R O L S

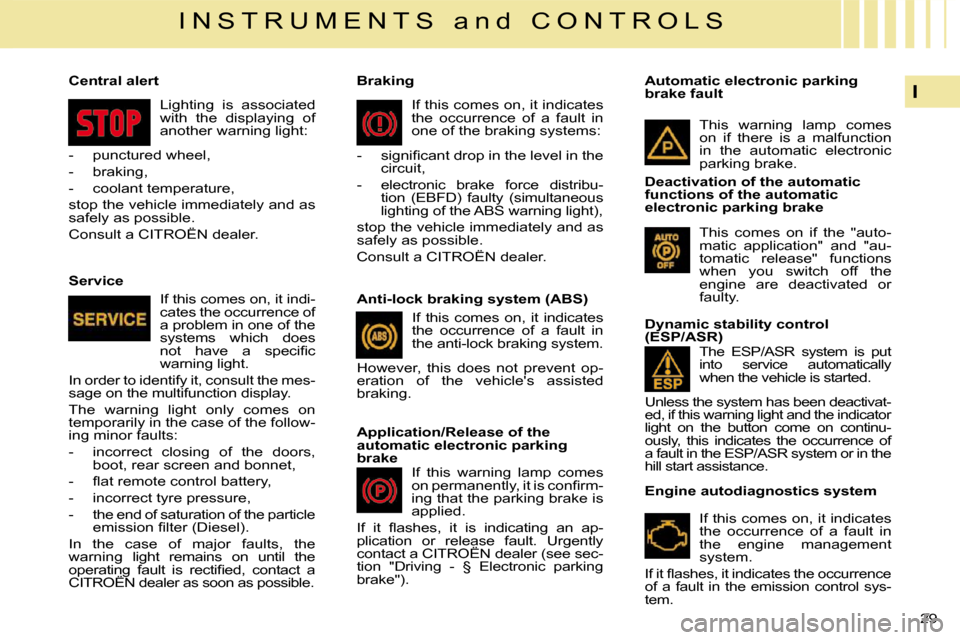

Indicator and warning lights
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle’s ignition
is switched on.
When the engine is started, these
warning lights should switch off.
If they remain on, before moving off,
consult the warning light concerned. Associated warnings
The switching on of certain warning
lights may be accompanied by an
audible signal and a message on
the multifunction display.
The warning lights may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lights may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situa-
tion is normal or whether a fault has
occurred. Operation indicator lights
If one of the following indicator lights comes
o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g
system has come into operation
.
Front fog lamps.
Left-hand direction
indicator.
Side lights.
Main beam headlamps.
Dipped headlamps.
Right-hand direction
indicator.
Rear fog lamp.
Visual indicators informing the
driver that a system is in operation
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning light).
Page 25 of 330
28
I
I N S T R U M E N T S a n d C O N T R O L S

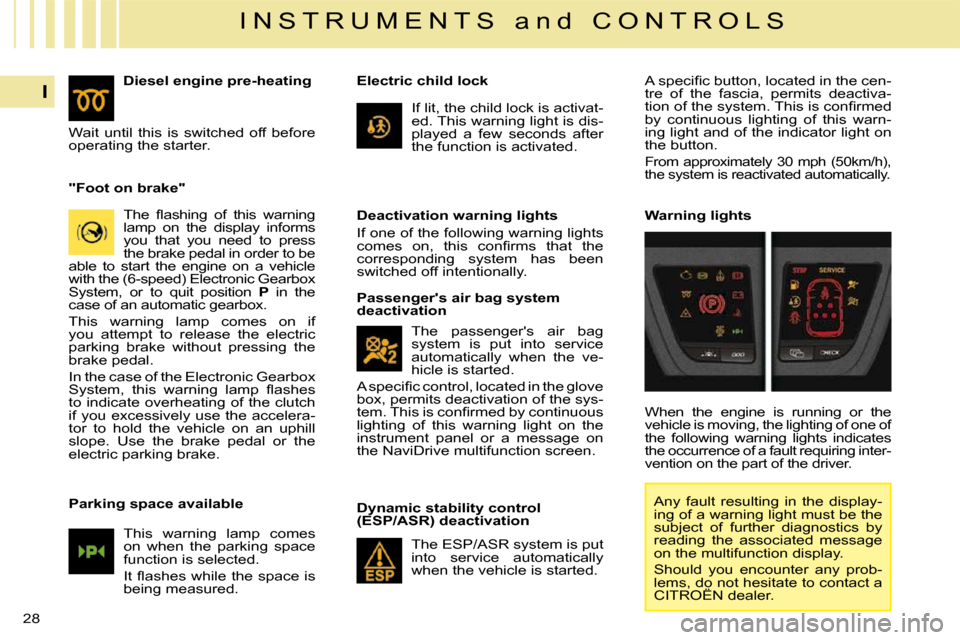

"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to be
able to start the engine on a vehicle
with the (6-speed) Electronic Gearbox
System, or to quit position P in the
case of an automatic gearbox.
This warning lamp comes on if
you attempt to release the electric
parking brake without pressing the
brake pedal.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s
to indicate overheating of the clutch
if you excessively use the accelera-
tor to hold the vehicle on an uphill
slope. Use the brake pedal or the
electric parking brake.
Parking space available
This warning lamp comes
on when the parking space
function is selected.
I t fl a s h e s w h i l e t h e s p a c e i s
being measured. Electric child lock
If lit, the child lock is activat-
ed. This warning light is dis-
played a few seconds after
the function is activated.
Deactivation warning lights
If one of the following warning lights
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation The ESP/ASR system is put
into service automatically
when the vehicle is started. Warning lights
Diesel engine pre-heating
Wait until this is switched off before
operating the starter.
The passenger's air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning light on the
instrument panel or a message on
the NaviDrive multifunction screen. A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the fascia, permits deactiva-
t i o n o f t h e s y s t e m . T h i s i s c o n fi r m e d
by continuous lighting of this warn-
ing light and of the indicator light on
the button.
From approximately 30 mph (50km/h),
the system is reactivated automatically.
When the engine is running or the
vehicle is moving, the lighting of one of
the following warning lights indicates
the occurrence of a fault requiring inter-
vention on the part of the driver.
Any fault resulting in the display-
ing of a warning light must be the
subject of further diagnostics by
reading the associated message
on the multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 26 of 330
28
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to be
able to start the engine on a vehicle
with the (6-speed) Electronic Gearbox
System, or to quit position P in the
case of an automatic gearbox.
This warning lamp comes on if
you attempt to release the electric
parking brake without pressing the
brake pedal.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s
to indicate overheating of the clutch
if you excessively use the accelera-
tor to hold the vehicle on an uphill
slope. Use the brake pedal or the
electric parking brake.
Parking space available
This warning lamp comes
on when the parking space
function is selected.
I t fl a s h e s w h i l e t h e s p a c e i s
being measured. Electric child lock
If lit, the child lock is activat-
ed. This warning light is dis-
played a few seconds after
the function is activated.
Deactivation warning lights
If one of the following warning lights
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation The ESP/ASR system is put
into service automatically
when the vehicle is started. Warning lights
Diesel engine pre-heating
Wait until this is switched off before
operating the starter.
The passenger's air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning light on the
instrument panel or a message on
the NaviDrive multifunction screen. A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the fascia, permits deactiva-
t i o n o f t h e s y s t e m . T h i s i s c o n fi r m e d
by continuous lighting of this warn-
ing light and of the indicator light on
the button.
From approximately 30 mph (50km/h),
the system is reactivated automatically.
When the engine is running or the
vehicle is moving, the lighting of one of
the following warning lights indicates
the occurrence of a fault requiring inter-
vention on the part of the driver.
Any fault resulting in the display-
ing of a warning light must be the
subject of further diagnostics by
reading the associated message
on the multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 27 of 330
28
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to be
able to start the engine on a vehicle
with the (6-speed) Electronic Gearbox
System, or to quit position P in the
case of an automatic gearbox.
This warning lamp comes on if
you attempt to release the electric
parking brake without pressing the
brake pedal.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s
to indicate overheating of the clutch
if you excessively use the accelera-
tor to hold the vehicle on an uphill
slope. Use the brake pedal or the
electric parking brake.
Parking space available
This warning lamp comes
on when the parking space
function is selected.
I t fl a s h e s w h i l e t h e s p a c e i s
being measured. Electric child lock
If lit, the child lock is activat-
ed. This warning light is dis-
played a few seconds after
the function is activated.
Deactivation warning lights
If one of the following warning lights
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation The ESP/ASR system is put
into service automatically
when the vehicle is started. Warning lights
Diesel engine pre-heating
Wait until this is switched off before
operating the starter.
The passenger's air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning light on the
instrument panel or a message on
the NaviDrive multifunction screen. A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the fascia, permits deactiva-
t i o n o f t h e s y s t e m . T h i s i s c o n fi r m e d
by continuous lighting of this warn-
ing light and of the indicator light on
the button.
From approximately 30 mph (50km/h),
the system is reactivated automatically.
When the engine is running or the
vehicle is moving, the lighting of one of
the following warning lights indicates
the occurrence of a fault requiring inter-
vention on the part of the driver.
Any fault resulting in the display-
ing of a warning light must be the
subject of further diagnostics by
reading the associated message
on the multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 28 of 330
29
I
I N S T R U M E N T S a n d C O N T R O L S
Lighting is associated
with the displaying of
another warning light:
Service If this comes on, it indi-
cates the occurrence of
a problem in one of the
systems which does
n o t h a v e a s p e c i fi c
warning light.
In order to identify it, consult the mes-
sage on the multifunction display.
The warning light only comes on
temporarily in the case of the follow-
ing minor faults:
- incorrect closing of the doors, boot, rear screen and bonnet,
- fl a t r e m o t e c o n t r o l b a t t e r y ,
- incorrect tyre pressure,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) .
In the case of major faults, the
warning light remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d , c o n t a c t a
CITROËN dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultaneous
lighting of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Application/Release of the
automatic electronic parking
brake
If this warning lamp comes
o n p e r m a n e n t l y , i t i s c o n fi r m -
ing that the parking brake is
applied.
I f i t fl a s h e s , i t i s i n d i c a t i n g a n a p -
plication or release fault. Urgently
contact a CITROËN dealer (see sec-
tion "Driving - § Electronic parking
brake"). Automatic electronic parking
brake fault
This warning lamp comes
on if there is a malfunction
in the automatic electronic
parking brake.
Deactivation of the automatic
functions of the automatic
electronic parking brake
This comes on if the "auto-
matic application" and "au-
tomatic release" functions
when you switch off the
engine are deactivated or
faulty.
Dynamic stability control
(ESP/ASR) The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been deactivat-
ed, if this warning light and the indicator
light on the button come on continu-
ously, this indicates the occurrence of
a fault in the ESP/ASR system or in the
hill start assistance.
Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e
of a fault in the emission control sys-
tem.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's assisted
braking.
Page 29 of 330
30
I
I N S T R U M E N T S a n d C O N T R O L S Air bags If this comes on, it indicates
the occurrence of a fault in
one of the air bag or seat
belt pretensioner systems.
Maximum coolant temperature
If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle immediately
and as safely as possible.
Low fuel level When the tank is full, all the
bars are lit up.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are ap-
proximately 7 litres of fuel remaining
i n t h e t a n k a n d 2 o r 3 b a r s fl a s h i n
the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel
remaining in the tank.
A control located on the panel to the
right of the steering wheel allows
y o u t o o p e n t h e f u e l fl a p f r o m i n s i d e
the vehicle.
Battery charge
If this comes on, it indicates
the occurrence of a fault in
the battery charging circuit
(dirty or loose terminals, slack
or cut alternator belt, ...). Door open
A door, the boot or the rear
screen is open:
-
if the speed is below 6 mph (10 km/h), this
warning light comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning light comes on continuously,
accompanied by an audible signal.
Seat belt not fastened/
unfastened
This warning lamp informs
you if the driver’s or front
passenger’s seat belt is
not fastened (depending
on model), and if the front
passenger’s (depending on
model) or the second row
passengers’ seat belts are
unfastened. The lit up positions rep-
resent those whose seat belts are
not fastened/unfastened. Seat belts unfastened during the
journey:
- the point corresponding to the
seat position with seat belt un-
fastened lights up between 0 and
20 km/h. Above 20 km/h (approx.
1 2 m p h ) , i t fl a s h e s a c c o m p a n i e d
by a sound signal for around
120 seconds. The sound signal
stops when the ignition is switched
off or if a door is opened.
Depending on model, the front pas-
s e n g e r s e a t m a y b e fi t t e d w i t h a
presence sensor; the correspond-
ing warning lamp will only come on
if the seat is occupied and the seat
belt not fastened.
Driver’s or front passenger’s seat belt
not fastened with presence sensor:
-
the warning lamp lights up between
0 and 20 km/h. Above 20 km/h
( a p p r o x . 1 2 m p h ) , i t fl a s h e s a c c o m -
panied by a message on the multi-
function screen and a sound signal
for around 120 seconds
.
Rear passengers’ or front passen-
ger’s seat belt not fastened without
presence sensor:
-
when the ignition is switched on, the
points corresponding to the seat po-
sitions with seat belts not fastened
remain lit up for 30 seconds.
Page 30 of 330
31
I
I N S T R U M E N T S a n d C O N T R O L S
Maintenance indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last service. 5 seconds after the ignition is switched
on,
the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 620 miles (1 000 km)
remain before the next service is
due
Example: 560 miles (900 km) re-
main before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates: Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s
to indicate that the service must be
carried out as soon as possible.
Example: the service is overdue by
300 miles/km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation. The
spanner remains on to indicate that
a service must be carried out soon. 5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation.
The
spanner remains lit
.
More than 620 miles (1 000 km)
remain before the next service is
due
For 5 seconds after the ignition is
switched on, the spanner symbolis-
ing the service operations comes
on. The distance recorder display
line indicates the distance remaining
before the next service is due.
Example: 4 800 miles/km remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
The distance remaining may be
weighted by the time factor, depending
on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
