Page 151 of 330
119
VIII
S A F E T Y
Rear central seat belt
Installation of the seat belt
(C4 Picasso)
Open the cover A .
Remove the belt tongues from
their housing.
Bring the belt tongues up to the
relay ring B .
Insert the attachment, then pass
the tongues through the ring.
Reclose the cover A . Make sure
that the belt is correctly posi-
tioned in the recess in the cover
provided for this purpose. Stowage of the belt tongues
(C4 Picasso)
Operate in reverse order to stow
the belt tongues.
You may opt to leave the seat belt in
the relay ring even if not using it.
Routing of the seat belt
(C4 Picasso and C4 Grand Picasso)
Insert the tongue C into the buck-
le on the right, then insert the
second tongue D into the buckle
on the left.
Unfastening the seat belt
(C4 Picasso and Grand C4
Picasso)
Release the tongue C , then the
tongue D and guide the seat belt
to its stowing position.
Before use
For safety reasons, it is essential
that the seat belt passes through
the relay ring.
To prevent any damage to seat
belts and in order not to get them
jammed, take care to stow them on
the sides of the backrests.
Page 152 of 330
120
VIII
S A F E T Y
Third row rear seat belts
(Grand C4 Picasso)
Requirements for the third-row
passenger seat belts
Take care to attach the third-row
passenger seat belts securely on
the rings provided for this purpose.
Do not attach the belts on the an-
choring points marked with a red
cross, as shown on the illustration.
Stowing the tongue of the third-
row seat belt
Secure the tongue in the place
provided on the rear pillar trim.
The third-row passenger seat belts
that are not being used can be
stowed in order to free up loadspace
and facilitate use of the luggage
cover.
Before use:
To avoid damaging or jamming the
seat belts, take care to stow them
on the sides of the backrests.
Page 157 of 330
124
VIII
S A F E T Y
* According to country.
Side air bags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
the risk of injury to the chest.
Each side air bag is incorporated
in the front seat back frame, on the
door side.
Activation
It is triggered unilaterally in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain air bags *
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p t i o n
of the rear centre passenger) in the
event of a serious side impact in or-
der to limit the risk of head injuries.
Each curtain air bag is incorporated
in the pillars and the upper part of
the passenger compartment. Activation
It is triggered at the same time as
the corresponding side air bag in the
event of a serious side impact applied
to all or part of the side impact zone
B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the ve-
hicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
The air bag is not triggered in the
event of a rear or front collision.
Operating fault If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on
the multifunction display, contact a
CITROËN dealer to have the sys-
tem checked. The air bags may no
longer be triggered in the event of a
serious impact.
Page 160 of 330
127
IX
D R I V I N G
Release
The electronic parking brake releas-
es automatically and progressive-
ly when you press the accelerator:
with a manual gearbox ( fi r s t
gear or reverse gear engaged) ,
press down fully on the clutch
pedal then press on the accel-
erator pedal and move off.
with an automatic gearbox , ac-
celerate with the selector in posi-
tion D , M or R .
with an electronic gearbox , ac-
celerate with the selector in posi-
tion A , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen. Activation/Deactivation of the
automatic functions
The automatic application when the en-
gine is switched off and the automatic
release when you press the accelerator
can be deactivated. Activation/deactiva-
t i o n i s p e r f o r m e d u s i n g t h e c o n fi g u r a t i o n
menu of the multifunction screen. To do
s o , s e l e c t " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n /
D e fi n e t h e V e h i c l e p a r a m e t e r s / D r i v i n g
assistance/Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions deacti-
vated, the application and release of
the parking brake are done manually.
The deactivation of the auto-
matic functions is recommend-
ed in particularly cold condi-
tions (ice) and during towing
(breakdown, caravan...)
Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off, pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warning lamp on control A and of
warning lamp P on the in-
strument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is
opened with the engine
running, a beep is heard
and a message displayed
if the parking brake has not been
applied.
Page 161 of 330
127
IX
D R I V I N G
Release
The electronic parking brake releas-
es automatically and progressive-
ly when you press the accelerator:
with a manual gearbox ( fi r s t
gear or reverse gear engaged) ,
press down fully on the clutch
pedal then press on the accel-
erator pedal and move off.
with an automatic gearbox , ac-
celerate with the selector in posi-
tion D , M or R .
with an electronic gearbox , ac-
celerate with the selector in posi-
tion A , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen. Activation/Deactivation of the
automatic functions
The automatic application when the en-
gine is switched off and the automatic
release when you press the accelerator
can be deactivated. Activation/deactiva-
t i o n i s p e r f o r m e d u s i n g t h e c o n fi g u r a t i o n
menu of the multifunction screen. To do
s o , s e l e c t " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n /
D e fi n e t h e V e h i c l e p a r a m e t e r s / D r i v i n g
assistance/Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions deacti-
vated, the application and release of
the parking brake are done manually.
The deactivation of the auto-
matic functions is recommend-
ed in particularly cold condi-
tions (ice) and during towing
(breakdown, caravan...)
Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off, pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warning lamp on control A and of
warning lamp P on the in-
strument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is
opened with the engine
running, a beep is heard
and a message displayed
if the parking brake has not been
applied.
Page 162 of 330
128
IX
D R I V I N G
Release
With the ignition on or the engine run-
ning, to release the parking brake,
press on the brake pedal, pull then
release control A .
The full application of the parking
b r a k e i s c o n fi r m e d b y : - the extinction of the warn-ing lamp on control A and
of warning lamp P on the
instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
If you pull control A without pressing
the brake pedal, the parking brake
will not be released and the "Foot on
brake" warning lamp will light up on
the instrument panel.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may release
the parking brake. Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer. Particular situations
In certain situations (e.g. starting
the engine), the parking brake can
automatically alter its force. This is
normal operation.
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the park-
ing brake
by pulling then releasing
control A .
The full release of the parking brake
i s c o n fi r m e d b y t h e e x t i n c t i o n o f
warning lamp P (red) on the instru-
ment panel and the display of a
message "parking brake released"
on the multifunction screen.
If the parking brake malfunctions
while applied or if the battery runs
fl a t , a n e m e r g e n c y r e l e a s e i s a l w a y s
possible.
Page 175 of 330
140
IX
D R I V I N G
To start the engine, the selector
has to be in position P or N .
Action the starter.
When the engine is running,
place the selector on R , D or M
as required.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and ac-
celerate.
If the selector is not in position P ,
a message "place automatic
gear-box in position P " appears
on the multifunction screen, ac-
companied by a beep and the
fl a s h i n g o f P on the instrument
panel.
Moving off
To avoid incoherence between
the position of the selector and
the actual position of the gear-
box, always exit from position P
when you switch on the ignition
and press the brake pedal.
Otherwise, when the ignition is on or
the engine is running:
reposition the selector in posi-
tion P ,
put your foot on the brake pedal
and then select the gear you
want.
Park
To select position P, move the
selector back to the highest po-
sition (towards R ), then push it
forwards and then to the left.
To exit position P , move the se-
lector to the right and then to the
position you want.
Only engage this position when
the vehicle is completely sta-
tionary. In this position, the front
wheels are locked. Make sure
that the selector is correctly posi-
tioned. Reverse gear
Neutral
Only engage this position
when the vehicle is station-
ary. To prevent snatching,
do not accelerate too soon
after selection.
Never select position
N if
the vehicle is moving.
Never select positions P or
R if the vehicle is not sta-
tionary.
If, while the vehicle is moving, po-
sition N is engaged inadvertently,
allow the engine to idle before en-
gaging position D or M .
This position of the selector
is used to prevent the vehi-
cle from moving when you
are stationary.
Page 188 of 330
153
IX
D R I V I N G In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
Press button A again, the warn-
ing light switches off, the system
is reactivated.
Reactivation
Deactivation
Press button A , the warning light
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN). Operating fault
If an operating fault occurs, this warn-
ing light is displayed on the instrument
panel and/or a message appears on
the multifunction display, accompa-
nied by an audible signal (short beep),
when reverse gear is engaged.
Consult a CITROËN dealer.
Page 192 of 330
158
X
C H E C K S

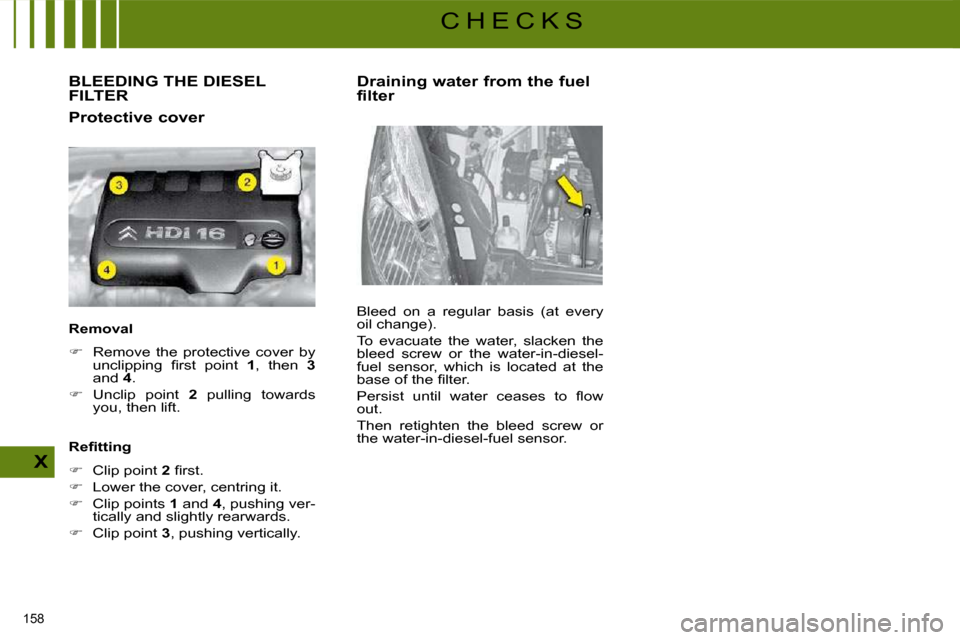

BLEEDING THE DIESEL FILTER
Protective cover
Removal
Remove the protective cover by
u n c l i p p i n g fi r s t p o i n t 1 , then 3
and 4 .
Unclip point 2 pulling towards
you, then lift.
R e fi t t i n g
Clip point 2 fi r s t .
Lower the cover, centring it.
Clip points 1 and 4 , pushing ver-
tically and slightly rearwards.
Clip point 3 , pushing vertically. Draining water from the fuel
filter
Bleed on a regular basis (at every
oil change).
To evacuate the water, slacken the
bleed screw or the water-in-diesel-
fuel sensor, which is located at the
b a s e o f t h e fi l t e r .
P e r s i s t u n t i l w a t e r c e a s e s t o fl o w
out.
Then retighten the bleed screw or
the water-in-diesel-fuel sensor.
Page 199 of 330
165
C H E C K S
Brake pads Brake wear depends on
the style of driving, par-
ticularly in the case of
vehicles used in town, over
short distances. It may be
necessary to have the condition of
the brakes checked, even between
vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Manual gearbox
The gearbox does not
require any maintenance
(no oil change).
6-speed electronic gearbox
system
The gearbox does not require any
maintenance (no oil change).
Automatic gearbox
The gearbox does not require any
maintenance (no oil change). Brake disc wear status
For information relating to
checking the brake disc
wear status, contact a
CITROËN dealer.
Handbrake
If the handbrake travel is too long
or if a loss of effectiveness of this
system is noticed, the handbrake
must be adjusted, even between
two services.
This system must be checked by a
CITROËN dealer. Only use products recom-
mended by CITROËN or
products of equivalent quality
a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and
o f f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Refer to the servicing booklet for the
details of the level checking interval
for this component.
Refer to the servicing booklet for
details of the checking interval for
this component.
Refer to the servicing booklet for
details of the checking interval for
this component.
