157
X
C H E C K S
BONNET
P r o t e c t s t h e c o m p o n e n t s o f t h e
engine and provides access for
checking levels.
Opening
P u s h t h e e x t e r i o r c o n t r o l B to the
left and raise the bonnet.
Unclip the strut C from its housing.
Fix the strut in the notch to hold
the bonnet open. Closing
Take the strut out of the support
notch.
Clip the strut in its housing.
Lower the bonnet then slam it
fi r m l y a t t h e e n d o f i t s t r a v e l .
P u l l o n t h e b o n n e t t o c h e c k t h a t
it is secured correctly.
The location of the interior control
prevents opening of the bonnet
while the driver’s door is closed.
This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.
Open the driver’s door.
P u l l t h e i n t e r i o r c o n t r o l A , located
at the bottom of the door frame.
Page 193 of 330
159
X
C H E C K S

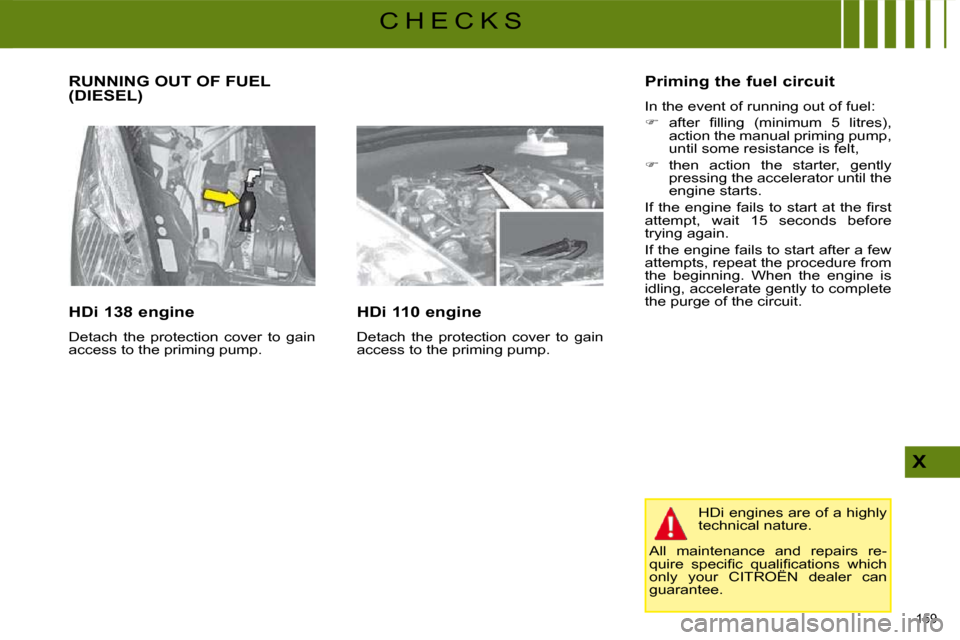

RUNNING OUT OF FUEL (DIESEL)
HDi 138 engine
Detach the protection cover to gain
access to the priming pump. HDi 110 engine
Detach the protection cover to gain
access to the priming pump. Priming the fuel circuit
In the event of running out of fuel:
a f t e r fi l l i n g ( m i n i m u m 5 l i t r e s ) ,
action the manual priming pump,
until some resistance is felt,
then action the starter, gently
pressing the accelerator until the
engine starts.
I f t h e e n g i n e f a i l s t o s t a r t a t t h e fi r s t
attempt, wait 15 seconds before
trying again.
If the engine fails to start after a few
attempts, repeat the procedure from
the beginning. When the engine is
idling, accelerate gently to complete
the purge of the circuit.
HDi engines are of a highly
technical nature.
All maintenance and repairs re-
q u i r e s p e c i fi c q u a l i fi c a t i o n s w h i c h
only your CITROËN dealer can
guarantee.
Page 194 of 330
160
X
C H E C K S
PETROL ENGINES
T h e y a l l o w y o u a c c e s s f o r c h e c k i n g t h e l e v e l o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Screenwash and headlamp
wash reservoir.
2. Coolant reservoir.
3. B r a k e fl u i d r e s e r v o i r .
4. Battery/Fuses.
5. Fuse box.
6. Dipstick.
7. E n g i n e o i l fi l l e r c a p .
Page 195 of 330
161
X
C H E C K S * According to engine.
DIESEL ENGINES
T h e y a l l o w y o u a c c e s s f o r c h e c k i n g t h e l e v e l o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d f o r r e p r i m i n g t h e f u e l .
1. Screenwash and headlamp
wash reservoir.
2. Coolant reservoir.
3. B r a k e fl u i d r e s e r v o i r .
4. Battery/Fuses.
5. Fuse box.
6. Dipstick.
7. E n g i n e o i l fi l l e r c a p .
8. Repriming pump * .
9. Degas screw * . As the diesel circuit is pres-
surised, any work on this
circuit is prohibited.
Page 196 of 330
162
C H E C K S
CHECKING LEVELS
Check all of these levels regularly
and top them up if necessary, unless
otherwise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
CITROËN dealer.
Oil level
Draining the engine
Refer to the servicing booklet for
details of the interval for this opera-
tion. O i l s p e c i fi c a t i o n
The oil must correspond to your
engine and conform to the manufac-
turer's recommendations.
Brake fluid level
Draining the circuit
Refer to the servicing booklet for
details of the interval for this opera-
tion.
T h i s fl u i d m u s t b e c h a n g e d r e g u l a r l y .
Fluid which has been used exces-
sively may cause a loss of braking
e f fi c i e n c y .
F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations
a n d f u l fi l t h e D O T 4 s t a n d a r d s .
Coolant level
Draining the circuit
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the
manufacturer's recommendations.
The reading will only be
correct if the vehicle is on
level ground and the engine
has been off for more than
15 minutes.
The check is carried out either when
the ignition is switched on using the
oil level indicator on the instrument
panel, or using the dipstick.
Between two oil changes, the con-
sumption should not exceed 0.5 litre
per 600 miles (approx. 1 000 km).
Check this level also between each
scheduled service and before long
journeys. T h e b r a k e fl u i d l e v e l s h o u l d
be close to the "MAX" mark.
If it is not, check the brake
pad wear.
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tem-
perature of the coolant is regulated
by the fan. This can operate with the
ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h
a p a r t i c l e e m i s s i o n fi l t e r , t h e f a n
may operate after the vehicle has
b e e n s w i t c h e d o f f , e v e n i f t h e
engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour
after switching off the engine before
carrying out any work.
To avoid any risk of scalding,
unscrew the cap by two turns to
allow the pressure to drop. When
the pressure has dropped, remove
the cap and top up the level.
In order to maintain the
reliability of the engine and
emission control system,
the use of additives in the engine
oil is prohibited.
Page 197 of 330
163
X
C H E C K S
Screenwash and headlamp
wash fluid
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e
topped up or replaced with water.
Reservoir capacities:
- screenwash: approximately 3 litres,
- screenwash and headlamp wash: approximately 6 litres. Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by
lighting of the service warning light,
accompanied by an audible warning
and a message on the multifunction
display.
Topping up
This additive must be topped up by
a CITROËN dealer without delay.
Used products
Avoid prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e
skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
Do not discard used oil or
fl u i d s i n t o s e w e r s o r o n t o
the ground.
Empty used oil into the containers
provided for this purpose in the
CITROËN network.
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, the
m i n i m u m l e v e l o f t h i s fl u i d i s
indicated by an audible signal
and a message on the multifunction
display.
Top up the level when you stop the
vehicle.
Page 198 of 330
164
X
C H E C K S
CHECKS
Unless otherwise indicated, check
these components in accordance
with the servicing booklet and in
relation to your engine.
Otherwise, have them checked by a
CITROËN dealer.
Battery The battery does not
require any maintenance.
However, check that the
terminals are clean and
correctly tightened, parti-
cularly in summer and winter.
When carrying out work on the bat-
t e r y , r e f e r t o t h e " P r a c t i c a l i n f o r -
mation" section for details of the
precautions to be taken before dis-
connecting the battery and following
its reconnection.
Air filter and passenger compartment filter
Refer to the servicing
booklet for details of the
replacement intervals for
these components.
Depending on the environment (e.g.
dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary
(refer to the "Engines" paragraph).
A clogged passenger compartment
fi l t e r m a y h a v e a n a d v e r s e e f f e c t o n
the performance of the air condi-
tioning system and generate unde-
sirable odours.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h
time the engine oil is
changed. Particulate filter system
(Diesel)
Complementary to the catalytic con-
v e r t e r , t h i s fi l t e r m a k e s a n a c t i v e
contribution to the preservation of air
quality by the retaining of the unburnt
pollutant particles. Black exhaust
fumes are thus no longer emitted.
After prolonged idling or driving at very low speeds, you may occasionally
notice water vapour being emitted
from the exhaust when accelerat-
ing. This is of no consequence to
the running of the vehicle or to the
environment.
If there is risk of clogging, a mes-
sage appears on the multifunction
screen, accompanied by a sound
signal and lighting of the service
warning lamp.
This alert tells you that the particle
fi l t e r i s s t a r t i n g t o fi l l u p ( i n c o n d i t i o n s
of urban driving of exceptionally long
d u r a t i o n : l o w s p e e d s , t r a f fi c j a m s
etc.)
T o r e g e n e r a t e t h e fi l t e r , i t i s a d v i s e d
to drive as soon as possible, when
t r a f fi c c o n d i t i o n s p e r m i t , a t a s p e e d
of 40 mph (around 60 km/h) or
m o r e f o r a t l e a s t fi v e m i n u t e s ( u n t i l
the alert message disappears).
If this alert persists, consult a
CITROËN dealer.
Refer to the servicing booklet for
details of the replacement interval
for this component.
Page 199 of 330
165
C H E C K S

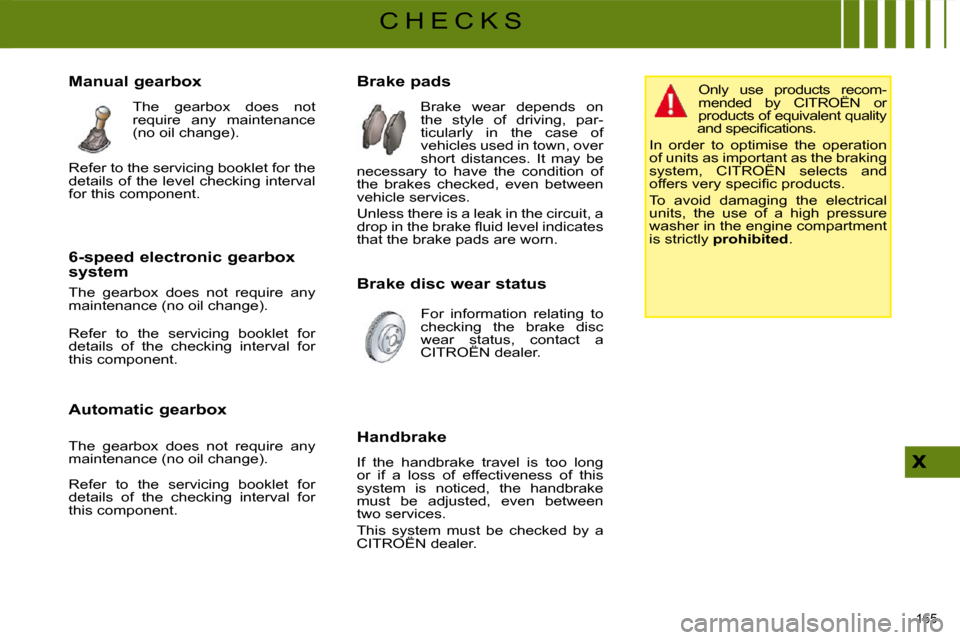

Brake pads Brake wear depends on
the style of driving, par-
ticularly in the case of
vehicles used in town, over
short distances. It may be
necessary to have the condition of
the brakes checked, even between
vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Manual gearbox
The gearbox does not
require any maintenance
(no oil change).
6-speed electronic gearbox
system
The gearbox does not require any
maintenance (no oil change).
Automatic gearbox
The gearbox does not require any
maintenance (no oil change). Brake disc wear status
For information relating to
checking the brake disc
wear status, contact a
CITROËN dealer.
Handbrake
If the handbrake travel is too long
or if a loss of effectiveness of this
system is noticed, the handbrake
must be adjusted, even between
two services.
This system must be checked by a
CITROËN dealer. Only use products recom-
mended by CITROËN or
products of equivalent quality
a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and
o f f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Refer to the servicing booklet for the
details of the level checking interval
for this component.
Refer to the servicing booklet for
details of the checking interval for
this component.
Refer to the servicing booklet for
details of the checking interval for
this component.
Page 220 of 330
183
XI
P R A C T I C A L I N F O R M A T I O N

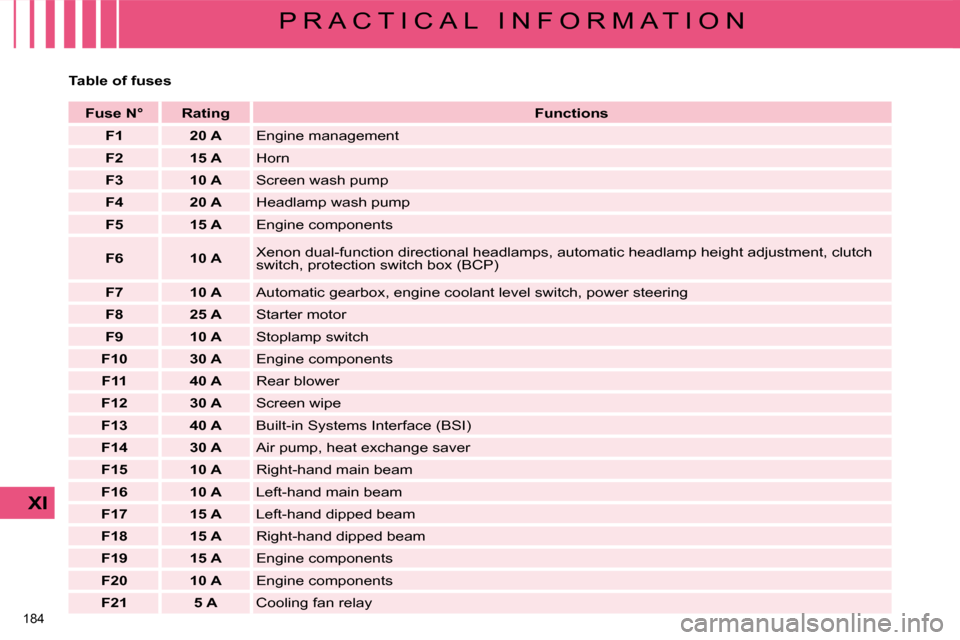

Fuses in the engine
compartment
Access to the fuses
D e t a c h a n d r e m o v e t h e c o v e r .
After any operation, carefully re-
close the cover. If the cover is not
correctly positioned or not proper-
ly closed, this could cause serious
problems on your vehicle. For the
same reason, take care not to spill
any liquid in the fusebox.
A l l w o r k o n t h e m a x i - f u s e s ,
w h i c h a r e l o c a t e d i n t h e s e
f u s e b o x e s a n d w h i c h g i v e
e x t r a p r o t e c t i o n , m u s t b e c a r r i e d
o u t b y C I T R O Ë N t e c h n i c i a n s .
Page 221 of 330
1 8 4
XI
P R A C T I C A L I N F O R M A T I O N
Table of fuses
Fuse N° Rating
Functions
F1 20 A Engine management
F2 15 A Horn
F3 10 A S c r e e n w a s h p u m p
F4 20 A H e a d l a m p w a s h p u m p
F5 15 A Engine components
F6 10 A X e n o n d u a l - f u n c t i o n d i r e c t i o n a l h e a d l a m p s , a u t o m a t i c h e a d l a
m p h e i g h t a d j u s t m e n t , c l u t c h
s w i t c h , p r o t e c t i o n s w i t c h b o x ( B C P )
F7 10 A A u t o m a t i c g e a r b o x , e n g i n e c o o l a n t l e v e l s w i t c h , p o w e r s t e e r i n g
F8 25 A Starter motor
F9 10 A S t o p l a m p s w i t c h
F10 30 A Engine components
F11 40 A R e a r b l o w e r
F12 30 A S c r e e n w i p e
F13 40 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I )
F14 30 A A i r p u m p , h e a t e x c h a n g e s a v e r
F15 10 A R i g h t - h a n d m a i n b e a m
F16 10 A L e f t - h a n d m a i n b e a m
F17 15 A L e f t - h a n d d i p p e d b e a m
F18 15 A R i g h t - h a n d d i p p e d b e a m
F19 15 A Engine components
F20 10 A Engine components
F21 5 A C o o l i n g f a n r e l a y
