Page 2 of 330
5
F A M I L I A R I S A T I O N
A. Central locking
B. Unlocking
C. Guide-me-home lighting
D. Key release/storage
Press on control A , located on the
control panel to the right of the dash-
b o a r d . T h e f u e l fl a p a u t o m a t i c a l l y o p e n s
up fully.
Insert the nozzle so as to push in the
metallic gate valve B .
P u s h t h e f u e l fl a p t o r e c l o s e i t .
After switching off the ignition, con-
trol A is only active for a few minutes.
If necessary, switch on the ignition
again to reactivate it.
Bonnet stay: detach the stay and
pivot it upwards to insert it into the
notch.
69 Bonnet opening/closing
To unlock, pull the control located on the
right-hand side under the dashboard
towards you.
157
83
Opening
Using the multifunction screen, you can
choose from the following options when
opening your vehicle with the remote
control:
- either all of the doors and the tail-
gate,
- o r t h e d r i v e r ’ s d o o r w i t h a fi r s t p r e s s , then all of the other doors with a
second press.
To close: move the stay back to
its initial position, lower the bon-
net, then allow it to slam shut at
the end of its travel.
Remote control key Fuel tank
Capacity: approximately 60 litres.
Page 72 of 330
67
III
C O M F O R T
MIRRORS
Exterior mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
permitting the lateral rearward vision
necessary for overtaking or parking.
They can also be folded for parking
i n c o n fi n e d s p a c e s .
Adjustment
With the ignition on:
move control A to the right or to
the left to select the correspond-
ing mirror,
move control B in all four direc-
tions to adjust,
return control A to the central
position. The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Folding
from outside; lock the vehicle
using the remote control or the
key.
from inside; with the ignition on,
pull control A rearwards.
If the mirrors are folded using
control A , they will not unfold when
the vehicle is unlocked. Control A
must be pulled again.
Unfolding
from outside; unlock the vehicle
using the remote control or the
key.
from inside; with the ignition on,
pull control A rearwards.
The folding and unfolding of the exte-
rior mirrors using the remote control
can be deactivated by a CITROËN
dealer. Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immedi-
ately.
Switching off
Exit reverse gear and wait twenty
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Switching on
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The de-icing/demisting of the exte-
rior mirrors is associated with that of
the rear screen.
Page 74 of 330
69
IV
A C C E S S
REMOTE CONTROL KEY
System which permits central un-
locking or locking of the vehicle us-
ing the lock or from a distance. It is
also used to locate the vehicle, acti-
vate the guide-me-home lighting and
start the engine, as well as providing
protection against theft.
Unlocking the vehicle
Complete unlocking using the
remote control
Unfolding the key
First press button A to unfold the
key.
Press the open padlock
to unlock the vehicle. Complete unlocking using
the key
Turn the key to the left in the
driver's door lock to unlock the
vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds.
According to version, the exterior
mirrors unfold at the same time.
This also triggers the timed switching
on of the welcome lighting, courtesy
lights and exterior side lights for ap-
proximately thirty seconds.
Selective unlocking using
the remote control
Press the open padlock
once to unlock the driver's
door only.
Press the open padlock
again to unlock the other
doors and the boot. According to version, the exterior
mirrors unfold at the same time as
t h e fi r s t u n l o c k i n g a c t i o n .
It also triggers the timed switching on
of the welcome lighting, the courtesy
lights and the exterior side lights for
approximately thirty seconds.
The complete or selec-
tive unlocking parameter
is set via the multifunc-
t i o n d i s p l a y c o n fi g u r a -
tion menu.
Complete unlocking is activated by
default.
E a c h u n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
approximately two seconds. Selective unlocking is not available
using the key.
Page 75 of 330
70
IV
A C C E S S
Normal locking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the exterior
mirrors fold at the same time.
It also triggers the timed switching
on of the exterior lateral lights and
the follow-me-home lighting, if this is
activated. If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
To permit the transportation of
bulky objects, the vehicle can be
locked from the inside, using the
centralised control on the fascia,
even if the tailgate or rear screen
is open.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
When closing the windows and/or
glass panoramic roof shutter using
the remote control, you must en-
sure that no one prevents them
from closing correctly.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Deadlocking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
the glass panoramic roof
shutter automatically in
addition to locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Locking the vehicle
Normal locking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely.
Press the closed padlock for
more than two seconds to close
the windows and the glass pano-
ramic roof shutter automatically
in addition to locking.
Page 78 of 330
73
IV
A C C E S S
Remote control problem
Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote
control.
If the problem persists, contact
a CITROËN dealer as soon as
possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2
(Ignition) .
Press the closed padlock imme-
diately for a few seconds.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.
I f t h e b a t t e r y i s fl a t ,
you are informed by
lighting of this warning
light, an audible signal
and a message on the
multifunction display.
Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its
location observing the original
direction.
Clip the casing.
Reinitialise the remote control.
Changing the battery
Page 79 of 330
74
IV
A C C E S S

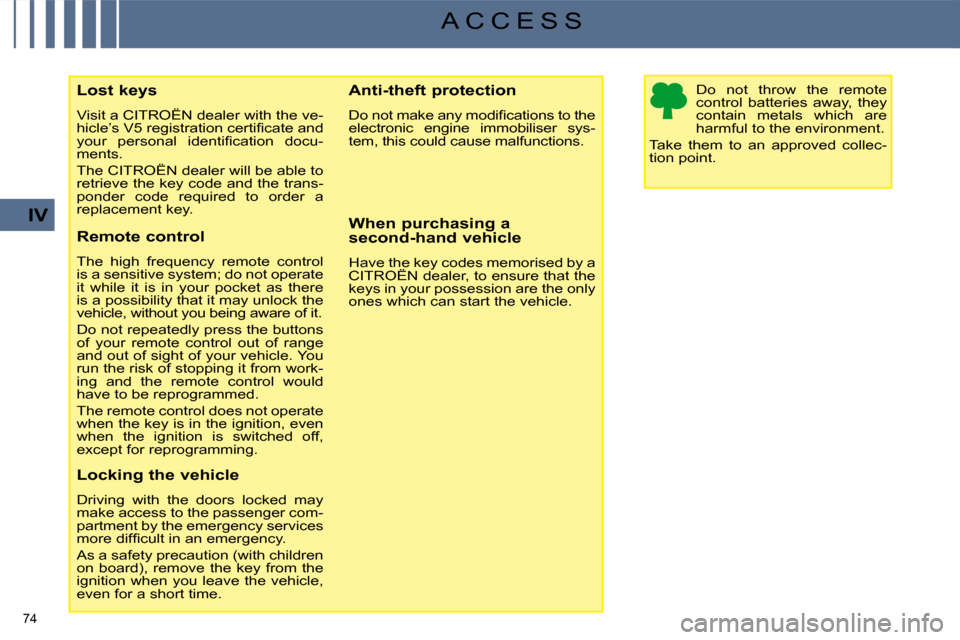

Lost keys
Visit a CITROËN dealer with the ve-
h i c l e ’ s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u -
ments.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a
replacement key.
Remote control
The high frequency remote control
is a sensitive system; do not operate
it while it is in your pocket as there
is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem, this could cause malfunctions.
When purchasing a
second-hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collec-
tion point.
Page 81 of 330
74
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the ve-
h i c l e ’ s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u -
ments.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a
replacement key.
Remote control
The high frequency remote control
is a sensitive system; do not operate
it while it is in your pocket as there
is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem, this could cause malfunctions.
When purchasing a
second-hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collec-
tion point.
Page 83 of 330
73
IV
A C C E S S
Remote control problem
Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote
control.
If the problem persists, contact
a CITROËN dealer as soon as
possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2
(Ignition) .
Press the closed padlock imme-
diately for a few seconds.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.
I f t h e b a t t e r y i s fl a t ,
you are informed by
lighting of this warning
light, an audible signal
and a message on the
multifunction display.
Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its
location observing the original
direction.
Clip the casing.
Reinitialise the remote control.
Changing the battery
Page 84 of 330
75
IV
A C C E S S
ALARM
System which protects and provides
a deterrent against the theft of your
vehicle. It provides two types of pro-
tection, exterior and interior, as well
as an anti-tamper function.
Exterior protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries
to enter the vehicle by forcing a door,
the boot or the bonnet.
Interior protection
The system detects any variation in
the volume in the passenger com-
partment.
The alarm is triggered if anyone
breaks a window or moves inside
the vehicle.
If you wish to leave a pet in the vehi-
cle or a window partially open, deac-
tivate the interior protection.
Anti-tamper function
The system detects the putting out
of service of its components.
The alarm is triggered if anyone
tries to put the wires of the siren, the
central control or the battery out of
service.
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. Locking the vehicle with full
alarm
Activation
Switch off the ignition and get out
of the vehicle.
Lock or deadlock the vehicle us-
ing the locking button on the re-
mote control.
The alarm is activated; the indicator
light on button A fl a s h e s o n c e p e r
second.
Deactivation
Unlock the vehicle using the
unlocking button on the remote
control.
The alarm is deactivated; the indica-
tor light on button A switches off. Locking the vehicle with
exterior protection alarm only
Deactivation of the interior
protection
Switch off the ignition.
Within ten seconds, press but-
ton A until the indicator light is lit
continuously.
Get out of the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone
remains activated; the indicator light
on button A fl a s h e s o n c e p e r s e c o n d .
In order to be taken into account,
this deactivation must be car-
ried out each time the ignition is
switched off.
Reactivation of the interior
protection
Unlock the vehicle using the
unlocking button on the remote
control.
Relock the vehicle using the re-
mote control.
The alarm is activated again with
both types of protection; the indicator
light on button A switches off.
Page 85 of 330
76
IV
A C C E S S
Triggering
This is indicated by sounding of the
s i r e n a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for approximately thirty
seconds.
After it has been triggered, the alarm
is again operational.
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive. If the indicator light on button A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s t h a t
the alarm was triggered during
your absence. When the ignition is
s w i t c h e d o n , t h i s fl a s h i n g s t o p s i m -
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control
Unlock the vehicle using the key
in the driver's door lock.
Open the door; the alarm is
triggered.
Switch on the ignition; the alarm
stops.
Locking the vehicle without
alarm
Lock or deadlock the vehicle
using the key in the driver's door
lock.
* According to country.
Malfunction
When the ignition is switched on,
lighting of the indicator light on
button
A for ten seconds indicates
a siren fault.
Have it checked by a CITROËN
dealer. Automatic operation *
Depending on the legislation in force
in your country, one of these cases
may occur:
- 45 seconds after the vehicle is
locked using the remote control,
the alarm is activated, regard-
less of the status of the doors
and boot.
- 2 minutes after the last door or the boot is closed, the alarm is
activated.
To avoid triggering the alarm
o n e n t e r i n g t h e v e h i c l e , fi r s t
press the unlocking button on
the remote control.
