Page 134 of 337
103
VI
L A Y O U T
LUGGAGE RETAINING NET (C4 PICASSO)
There are 8 anchoring rings in the
boot to enable you to secure your
luggage:
- 1, 2, 3 and 4 o n t h e b o o t fl o o r ,
- 5, 6, 7 and 8 on the boot pillars.
LUGGAGE RETAINING NET (GRAND C4 PICASSO)
There are 8 anchoring rings in the
boot to enable you to secure your
luggage:
- 1 and 2 underneath the luggage-
cover blind,
- 3, 4, 7 and 8 o n t h e b o o t fl o o r ,
- 5 and 6 on the boot pillars. For reasons of safety in the event of
sudden braking, it is recommended
that you place heavy objects on the
fl o o r a s c l o s e a s p o s s i b l e t o t h e
backrests of the second-row seats.
The luggage retaining net gives you a
n u m b e r o f c o n fi g u r a t i o n s d e p e n - d i n g
on which of the anchoring rings you
a t t a c h i t t o ( h a m m o c k f o r m a t , v e r t i c a l /
h o r i z o n t a l , o n t h e fl o o r o r b e h i n d t h e
second row seats), enabling you to
secure a variety of objects in the boot.
Page 137 of 337
106
VII
C H I L D S A F E T Y
Passenger air bag OFF

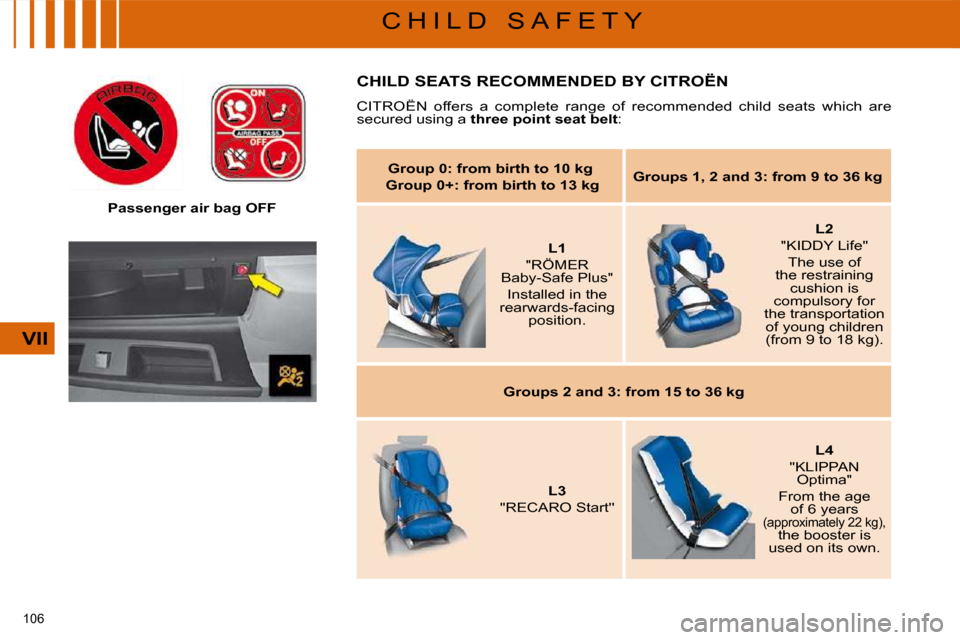

CHILD SEATS RECOMMENDED BY CITROËN
C I T R O Ë N o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h a r e
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R
B a b y - S a f e P l u s "
Installed in the
r e a r w a r d s - f a c i n g p o s i t i o n .
L2
"KIDDY Life"
The use of
the restraining cushion is
c o m p u l s o r y f o r
the transportation o f y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
" K L I P P A N O p t i m a "
F r o m t h e a g e o f 6 y e a r s
( a p p r o x i m a t e l y 2 2 k g ) ,
t h e b o o s t e r i s
u s e d o n i t s o w n .
Page 138 of 337
106
VII
C H I L D S A F E T Y
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY CITROËN
C I T R O Ë N o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h a r e
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R
B a b y - S a f e P l u s "
Installed in the
r e a r w a r d s - f a c i n g p o s i t i o n .
L2
"KIDDY Life"
The use of
the restraining cushion is
c o m p u l s o r y f o r
the transportation o f y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
" K L I P P A N O p t i m a "
F r o m t h e a g e o f 6 y e a r s
( a p p r o x i m a t e l y 2 2 k g ) ,
t h e b o o s t e r i s
u s e d o n i t s o w n .
Page 139 of 337
107
VII
C H I L D S A F E T Y
* A p p l i e s o n l y t o t h e 7 s e a t e r m o d e l .

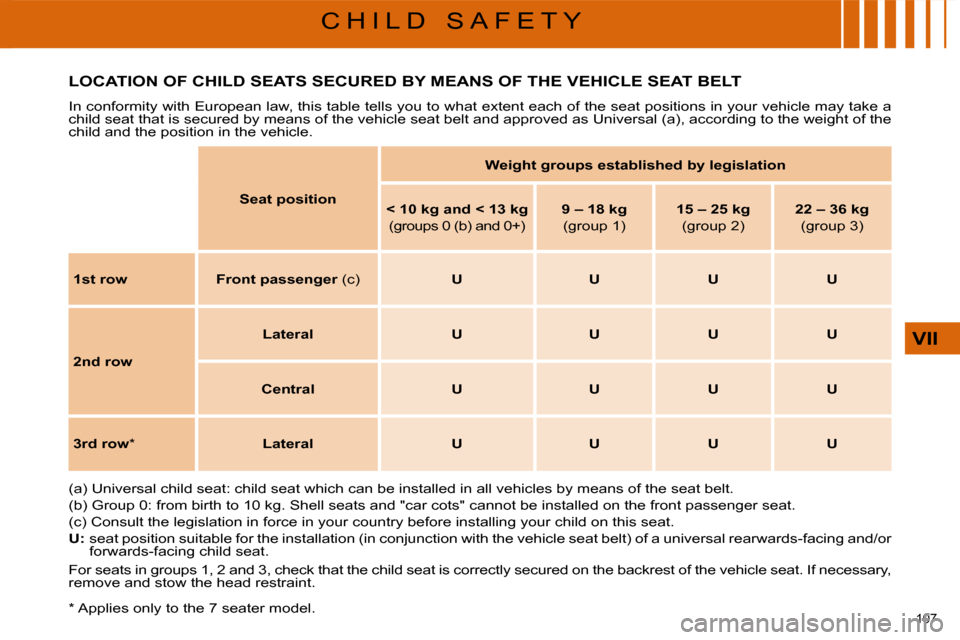

LOCATION OF CHILD SEATS SECURED BY MEANS OF THE VEHI CLE SEAT BELT
I n c o n f o r m i t y w i t h E u r o p e a n l a w , t h i s t a b l e t e l l s y o u t o w h a t e x t e n t e a c h o f t h e s e a t p o s i t i o n s i n y o u r v e h i c l e m a y t a k e a
c h i l d s e a t t h a t i s s e c u r e d b y m e a n s o f t h e v e h i c l e s e a t b e l t a n d a p p r o v e d a s U n i v e r s a l ( a ) , a c c o r d i n g t o t h e w e i g h t o f t h e
c h i l d a n d t h e p o s i t i o n i n t h e v e h i c l e .
( a ) U n i v e r s a l c h i l d s e a t : c h i l d s e a t w h i c h c a n b e i n s t a l l e d i n a l l v e h i c l e s b y m e a n s o f t h e s e a t b e l t .
( b ) G r o u p 0 : f r o m b i r t h t o 1 0 k g . S h e l l s e a t s a n d " c a r c o t s " c a n n o t b e i n s t a l l e d o n t h e f r o n t p a s s e n g e r s e a t .
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U : s e a t p o s i t i o n s u i t a b l e f o r t h e i n s t a l l a t i o n ( i n c o n j u n c t i o n w i t h t h e v e h i c l e s e a t b e l t ) o f a u n i v e r s a l r e a r w a r d s - f a c i n g a n d / o r
f o r w a r d s - f a c i n g c h i l d s e a t .
F o r s e a t s i n g r o u p s 1 , 2 a n d 3 , c h e c k t h a t t h e c h i l d s e a t i s c o r r e c t l y s e c u r e d o n t h e b a c k r e s t o f t h e v e h i c l e s e a t . I f n e c e s s a r y ,
r e m o v e a n d s t o w t h e h e a d r e s t r a i n t .
Seat position
Weight groups established by legislation
< 10 kg and < 13 kg
( g r o u p s 0 ( b ) a n d 0 + )
9 – 18 kg
( g r o u p 1 )
15 – 25 kg
( g r o u p 2 )
22 – 36 kg
( g r o u p 3 )
1 st row Front passenger ( c )
U U U U
2 nd row
Lateral U U U U
Central U U U U
3 rd row * Lateral U U U U
Page 140 of 337
1 0 8
VII
C H I L D S A F E T Y *
A c c o r d i n g t o c o u n t r y a n d c u r r e n t
l o c a l l e g i s l a t i o n .
ADVICE ON CHILD SEATS
Installing a booster seat
T h e c h e s t p a r t o f t h e s e a t b e l t m u s t
b e p o s i t i o n e d o n t h e c h i l d ' s s h o u l d e r
w i t h o u t t o u c h i n g t h e n e c k .
Ensure that the lap part of the
s e a t b e l t p a s s e s c o r r e c t l y o v e r t h e
c h i l d ' s t h i g h s .
C I T R O Ë N r e c o m m e n d s t h e u s e o f
a b o o s t e r s e a t w h i c h h a s a b a c k ,
fi t t e d w i t h a s e a t b e l t g u i d e a t
s h o u l d e r l e v e l .
A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- o n e o r m o r e c h i l d r e n a l o n e a n d u n s u p e r v i s e d i n a v e h i c l e ,
- a c h i l d o r a n a n i m a l i n a v e h i c l e w h i c h i s e x p o s e d t o t h e s u n , w i t h
t h e w i n d o w s c l o s e d ,
- t h e k e y s w i t h i n r e a c h o f c h i l d r e n i n s i d e t h e v e h i c l e .
T o p r e v e n t a c c i d e n t a l o p e n i n g o f t h e
d o o r s , u s e t h e " C h i l d l o c k " .
T a k e c a r e n o t t o o p e n t h e r e a r w i n d o w s b y m o r e t h a n o n e t h i r d .
T o p r o t e c t y o u n g c h i l d r e n f r o m t h e
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
r e a r w i n d o w s .
The incorrect installation of a child
s e a t i n a v e h i c l e c o m p r o m i s e s t h e
c h i l d ' s p r o t e c t i o n i n t h e e v e n t o f a n
a c c i d e n t .
When installing a child seat using the
s e a t b e l t , c h e c k t h a t t h e s e a t b e l t i s
t i g h t e n e d c o r r e c t l y o n t h e c h i l d s e a t
and that it secures the child seat
fi r m l y o n t h e s e a t o f y o u r v e h i c l e .
R e m e m b e r t o f a s t e n t h e s e a t b e l t s
or the child seat harnesses
keeping
the slack i n r e l a t i o n t o t h e c h i l d ' s
b o d y t o a m i n i m u m , e v e n f o r s h o r t
j o u r n e y s .
F o r o p t i m u m i n s t a l l a t i o n o f t h e " f o r -
w a r d s - f a c i n g " c h i l d s e a t , e n s u r e t h a t
t h e b a c k o f t h e c h i l d s e a t i s i n c o n -
t a c t w i t h t h e b a c k o f t h e v e h i c l e ' s
seat and that the head restraint does
n o t c a u s e a n y d i s c o m f o r t .
I f t h e h e a d r e s t r a i n t h a s t o b e r e -
m o v e d , e n s u r e t h a t i t i s s t o r e d o r
a t t a c h e d s e c u r e l y t o p r e v e n t i t f r o m
b e i n g t h r o w n a r o u n d t h e v e h i c l e i n
t h e e v e n t o f s h a r p b r a k i n g . C h i l d r e n u n d e r t h e a g e o f 1 0 m u s t
n o t t r a v e l i n t h e " f o r w a r d s - f a c i n g "
p o s i t i o n o n t h e f r o n t p a s s e n g e r s e a t ,
u n l e s s t h e r e a r s e a t s a r e a l r e a d y o c -
c u p i e d b y o t h e r c h i l d r e n , c a n n o t b e
u s e d o r a r e a b s e n t .
D e a c t i v a t e t h e p a s s e n g e r a i r b a g *
w h e n a " r e a r w a r d s - f a c i n g " c h i l d s e a t i s
i n s t a l l e d o n t h e f r o n t s e a t . O t h e r w i s e ,
t h e c h i l d w o u l d r i s k b e i n g s e r i o u s l y
i n j u r e d o r k i l l e d i f t h e a i r b a g w e r e t o
i n fl a t e .
Page 149 of 337
117
VIII
S A F E T Y

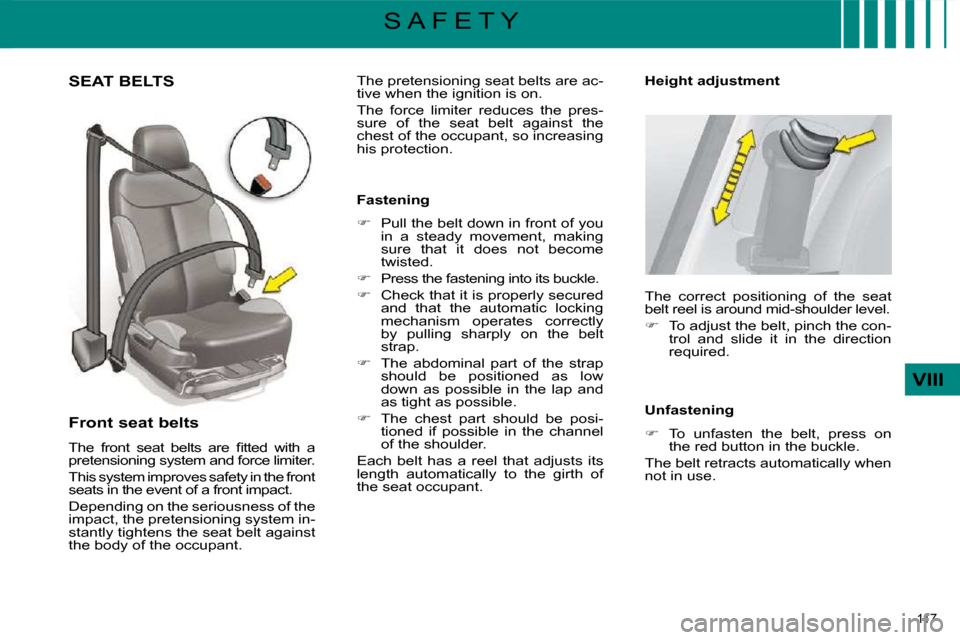

SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a
pretensioning system and force limiter.
This system improves safety in the front
seats in the event of a front impact.
Depending on the seriousness of the
impact, the pretensioning system in-
stantly tightens the seat belt against
the body of the occupant. Fastening
Pull the belt down in front of you
in a steady movement, making
sure that it does not become
twisted.
Press the fastening into its buckle.
Check that it is properly secured
and that the automatic locking
mechanism operates correctly
by pulling sharply on the belt
strap.
The abdominal part of the strap
should be positioned as low
down as possible in the lap and
as tight as possible.
The chest part should be posi-
tioned if possible in the channel
of the shoulder.
Each belt has a reel that adjusts its
length automatically to the girth of
the seat occupant. Height adjustment
The pretensioning seat belts are ac-
tive when the ignition is on.
The force limiter reduces the pres-
sure of the seat belt against the
chest of the occupant, so increasing
his protection.
The correct positioning of the seat
belt reel is around mid-shoulder level.
To adjust the belt, pinch the con-
trol and slide it in the direction
required.
Unfastening
To unfasten the belt, press on
the red button in the buckle.
The belt retracts automatically when
not in use.
Page 151 of 337
119
VIII
S A F E T Y
Third row rear seat belts
(Grand C4 Picasso)
Requirements for the third-row
passenger seat belts
Take care to attach the third-row
passenger seat belts securely on
the rings provided for this purpose.
Do not attach the belts on the an-
choring points marked with a red
cross, as shown on the illustration. Stowing the tongue of the third-
row seat belt
Secure the tongue in the place
provided on the rear pillar trim.
The third-row passenger seat belts
that are not being used can be
stowed in order to free up loadspace
and facilitate use of the luggage
cover.
Before use:
To avoid damaging or jamming the
seat belts, take care to stow them
on the sides of the backrests.
Page 152 of 337
120
VIII
S A F E T Y
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a CITROËN dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the
airbags. Triggering of the pre-ten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.
Page 155 of 337
124
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 157 of 337
124
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
