1 . Monitor positioning handles.
2 . Folding and pivoting TFT/LCD screen.
3 . Infra-red cell.
4 . DVD/CD player opening provided for the disc.
5 . On/Off. DVD/CD eject.
6 . LED: Lit in green: player in operation. Flashing: receiving information or ejecting the disc.
7 . AV1 AUDIO input.
8 . AV2 AUDIO input.
9 . VIDEO input.
F I R S T S T E P S
1 . 2 channel stereo.
2 . On/Off.
3 . Volume adjustment.
The headphones are supplied with the video pack. The presence of an object between the infra-red cell on the monitor and the headphones may result in a reduction in the sound quality.
Supply: 2 batteries R03/AAA 1.5 V.
M O N I T O R S A N D D V D / C D P L A Y E R I N F R A - R E D H E A D P H O N E S
The monitors are located in the top of the front seats.
The DVD/CD player is located on the centre console.
Page 332 of 337
297
0 1
9 9
77 8 8
1 1 1 1 1 0 1 0 1 2 1 2
1 3 1 3
1 4 1 4
1 5 1 5 5 5
4 4 1 6 1 6
2 2
1 1 1 8 1 8
1 7 1 7 3 3
6 6
R E M O T E C O N T R O L
F I R S T S T E P S
Numeric keypad
1 . Power On/Off, Eject.
2 . Selection of the source from DVD, audio CD and AUX.
3 . Change screen.
4 . DVD screen adjustments (brightness, contrast, …).
5 . S e l e c t i o n c o n fi r m a t i o n .
6 . Fast forward/backward. In the menus: move the cursor left/right, up/down.
7 . Volume increase/decrease.
8 . Play/Pause.
9 . Next chapter.
1 0 . SHIFT: activation of the yellow buttons.
1 1 . Selection of the audio language. With SHIFT: selection of the subtitle language.
1 2 . Change chapter. With SHIFT: change title.
1 3 . Previous chapter.
1 4 . Stop play.
1 5 . RETURN: Short press: return to the previous menu. Long press: return to the main menu.
1 6 . Display the main DVD menu.
1 7 . ZOOM: Selection of different image formats.
1 8 . Display/mask the screen.
Power : 2 batteries R03/AAA 1.5 V.
Page 333 of 337
298
0 2
1
2 2
3 3
4 4
3 3
2 2
1 1
5 5
SETUP MENU
SETUP
Press the SETUP button.
The SETTINGS menu appears on the screen: VIDEO SETTINGS, LANGUAGES, USERS, DEFAULT SETTINGS.
Select the options using the and buttons.
Press the OK button to validate your choice.
Select the input required usingthe buttons.
The VIDEO SETTINGS menu appears on the screen: BRIGHTNESS, CONTRAST, COLOUR, BACK-LIGHTING.
Select the VIDEO SETTINGS menu using the and buttons.
Press the SETUP button. The SETTINGS menu appears on the screen.
P r e s s t h e O K b u t t o n t o c o n fi r m y o u r choice. The setting is saved.
VIDEO SETTINGS
Page 334 of 337
299
1 1
2 2
3 3
0 3 B A S I C F U N C T I O N S

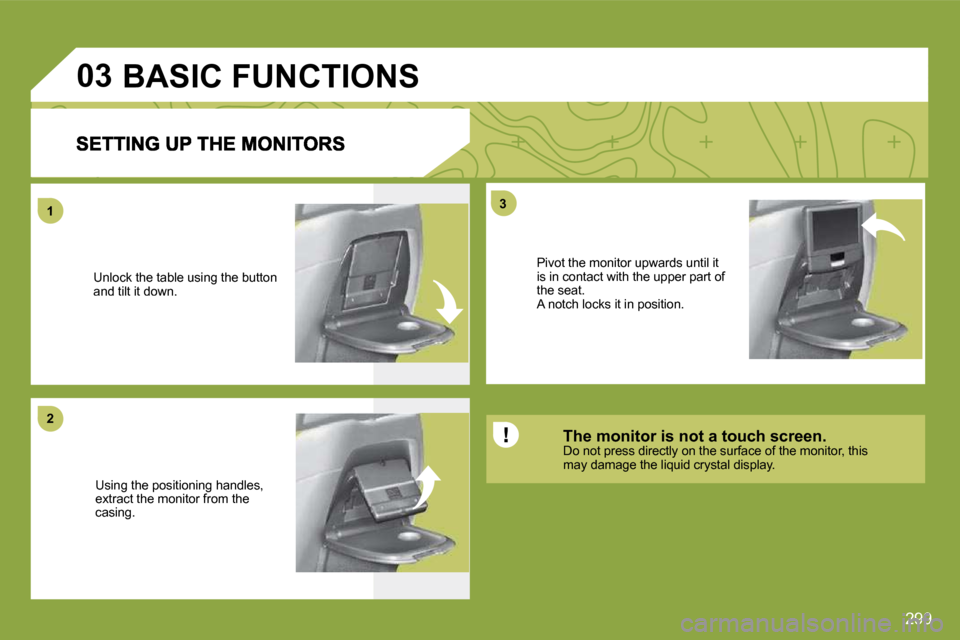

Unlock the table using the button and tilt it down.
Using the positioning handles, extract the monitor from the casing.
Pivot the monitor upwards until it is in contact with the upper part of the seat. A notch locks it in position.
T h e m o n i t o r i s n o t a t o u c h s c r e e n . Do not press directly on the surface of the monitor, this may damage the liquid crystal display.
Page 335 of 337
300
1 1
2 2
1 1
2 2
1 1
2 2
0 3
V I D E O P A C K O N / O F F
B A S I C F U N C T I O N S
To switch on the system, switch on the vehicle's ignition.
Press the POWER/EJECT button on the DVD/CD player or on the remote control.
Play begins automatically.
To load a disc, insert it gently, printed face uppermost, until it is fully inserted.
Press the POWER/EJECT button on the DVD/CD player or remote control.
Remove the disc gently.
L O A D I N G / E J E C T I N G A D V D / C D
When the ignition is off, the video pack will switch off automatically after approximately ten minutes to avoid dischargin g the battery.
Page 336 of 337
301
0 4
1
2
3
3
1
2
2
2
2
11
2
2
2
1
2
2
2

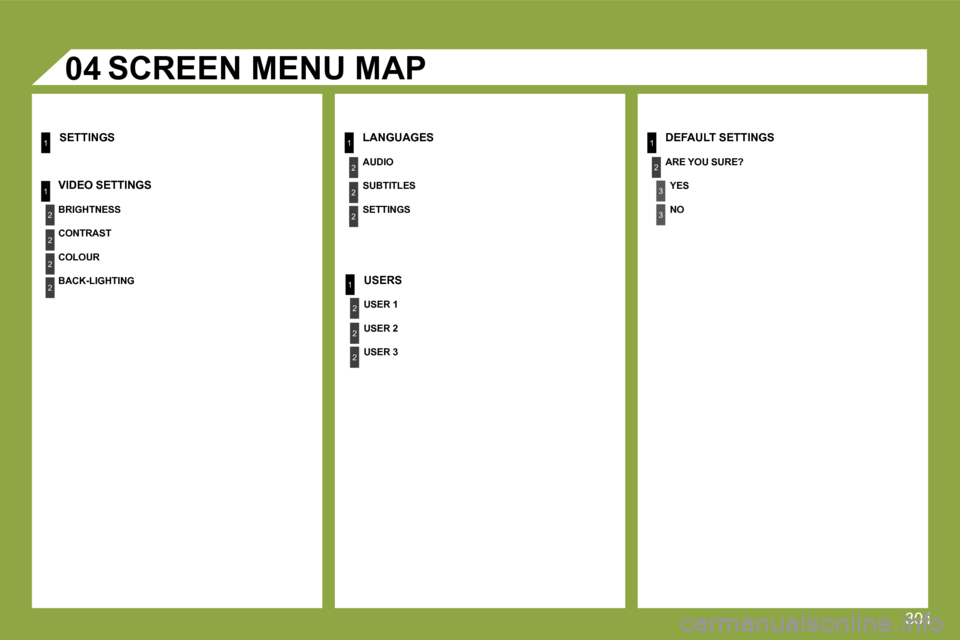

S C R E E N M E N U M A P
SETTINGS L A N G U A G E S
AUDIO
S U B T I T L E S
SETTINGS
U S E R S
U S E R 1
U S E R 2
U S E R 3
D E F A U L T S E T T I N G S
A R E Y O U S U R E ?
Y E S
NO
VIDEO SETTINGS
B R I G H T N E S S
C O N T R A S T
C O L O U R
B A C K - L I G H T I N G
Page 337 of 337
302
0 5
The table below groups together the answers to the most frequently asked questions concerning the vi deo pack.
F R E Q U E N T L Y A S K E D Q U E S T I O N S
QUESTION SOLUTION
The player does not start. - Check the vehicle's fuses.
The player does not react to pressing of the remote control buttons. - T h e r e m o t e c o n t r o l b a t t e r i e s a r e fl a t . R e p l a c e t h e m . - The remote control sensor is hampered by objec ts or is dirty. Remove all objects on the remote control receiver or clean the surface using a damp cloth. - The video pack has overheated. Let it cool for a few minutes.
Image or sound interference while playing a DVD. The image remains frozen during play. The player cannot read the disc. The disc may be d amaged or dirty.
The player does not play the disc inserted. - T h e f o r m a t o f t h e d i s c d o e s n o t c o r r e s p o n d t o t h e s p e c i fi c a t i o n s o f t h e p l a y e r . - If it is cold, condensation may have formed on the laser. Wait approximately 5 minutes to allow t he humidity to evaporate.
When a DVD/VCD/SVCD is played, the image is of poor quality. - Remove the disc. - Using the SETUP button , adjust the brightness and insert the disc again.
No image is displayed on the monitor. - Press the SOURCE button until the image appea rs. - Press the SCREEN ON/OFF button.
There is no sound in the audio headphones. - Increase the volume using the VOLUME +/- buttons on the remote control or using the dial on the headphones. - Check that the correct channel is selected on the headphones. - Press the SOURCE button until the sound arrive s. - Replace the headphone batteries.
The start-up screen does not appear following ejection of the disc. - Insert another disc. - Switch the system off and then on again.
