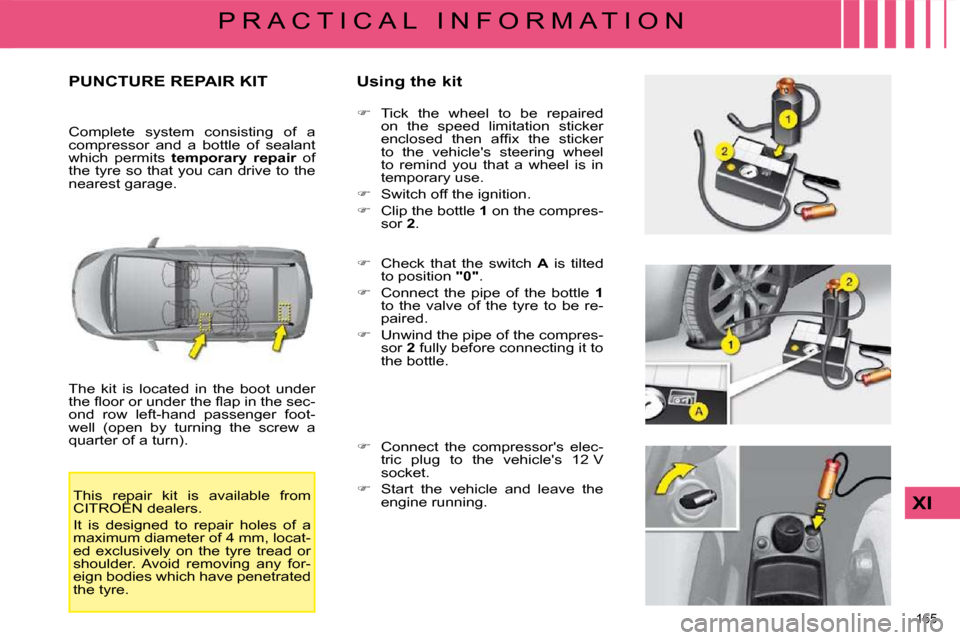

PUNCTURE REPAIR KIT Using the kit
The kit is located in the boot under
the fl oor or under the fl ap in the sec-
ond row left-hand passenger foot-
well (open by turning the screw a
quarter of a turn).
 Tick the wheel to be repaired
on the speed limitation sticker
enclosed then affi x the sticker
to the vehicle's steering wheel
to remind you that a wheel is in
temporary use.

 Switch off the ignition.

 Clip the bottle 1 on the compres-
sor 2 .

 Check that the switch A is tilted
to position "0" .

 Connect the pipe of the bottle 1
to the valve of the tyre to be re-
paired.

 Unwind the pipe of the compres-
sor 2 fully before connecting it to
the bottle.

 Connect the compressor's elec-
tric plug to the vehicle's 12 V
socket.

 Start the vehicle and leave the
engine running.
Complete system consisting of a
compressor and a bottle of sealant
which permits
temporary repair of
the tyre so that you can drive to the
nearest garage.
This repair kit is available from
CITROËN dealers.
It is designed to repair holes of a
maximum diameter of 4 mm, locat-
ed exclusively on the tyre tread or
shoulder. Avoid removing any for-
eign bodies which have penetrated
the tyre.

167
XI
P R A C T I C A L I N F O R M A T I O N

 Connect the compressor's elec-
tric plug to the vehicle's 12 V
socket again.

 Start the vehicle again and leave
the engine running.

 Adjust the pressure using the
compressor (to infl ate: switch

A in position "1" ; to defl ate:
switch A in position "0" and
press button B ), in accordance
with the vehicle's tyre pressure
label (located on the door aper-
ture on the driver's side), then re-
member to check that the leak is
plugged correctly (no further loss
of pressure after several miles
[kilometres]).

 Remove the compressor, then
store the whole kit.

 Drive at reduced speed (50 mph
[80 km/h]).

 Visit a CITROËN dealer as soon
as possible to have the tyre re-
paired or replaced by a techni-
cian. Take care, the bottle of seal-
ant contains ethylene-gly-
col. This product is harmful
if swallowed and causes irritation
to the eyes. Keep it out of reach of
children.
The expiry date of the sealant is in-
dicated on the base of the bottle.
The bottle is designed for a sin-
gle use; even if only partly used, it
must be replaced.
After use, do not discard the bot-
tle into the environment, take it to
a CITROËN dealer or to an author-
ised waste disposal site.
Do not forget to obtain a new
bottle of sealant, available from
CITROËN dealers.
If the vehicle is fi tted with tyre
under-infl ation detection, the tyre
under-infl ation warning light will re-
main on after the wheel has been
repaired until the system is reini-
tialised by a CITROËN dealer.

172
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of
any tools.
Headlamps
Model with halogen headlamps

1. Dipped beams (H7-55 W)

2. Main beams (H1-55 W)

3. Sidelamps (H6 W-6 W)

4. Direction indicators
(H21-21 W) In some climatic conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
The headlamps are fi tted
with polycarbonate glass
with a protective coating:

 do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,

 use a sponge and soapy water,

 when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not
to damage their coating and
their seals.

 Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
minutes (risk of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp. Dipped beam headlamps

 Remove the rubber cover.

 Rotate the bulb-holder a quarter
turn anti-clockwise and remove it
from its housing.

 Replace the faulty bulb.

 Reposition the bulb-holder by
pushing it in, tightening it by a
quarter turn clockwise.

 Refi t the rubber cover.

186
XI
P R A C T I C A L I N F O R M A T I O N

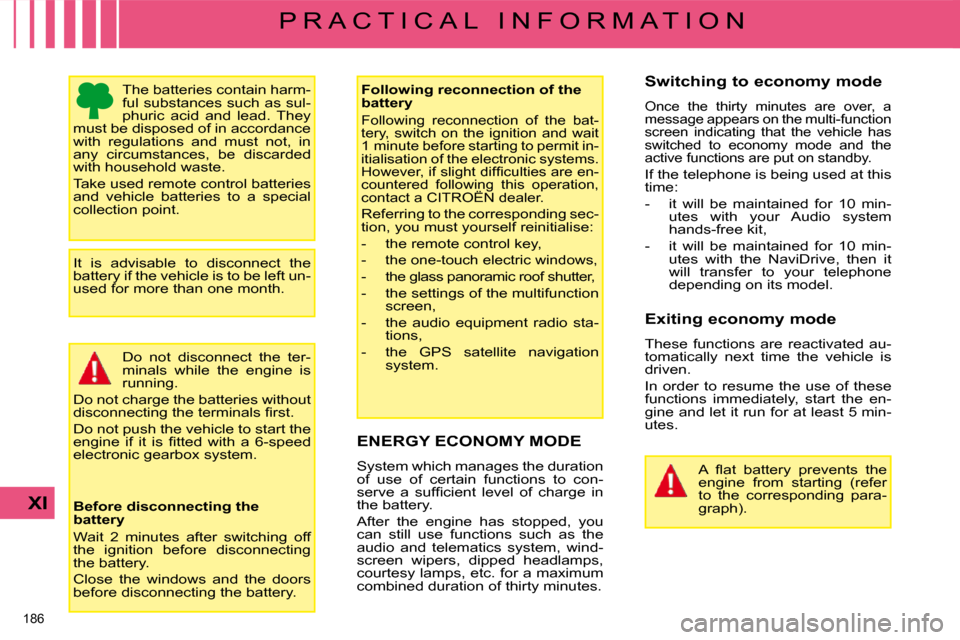

The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in
any circumstances, be discarded
with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.
Do not disconnect the ter-
minals while the engine is
running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with a 6-speed
electronic gearbox system. Following reconnection of the
battery

Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
However, if slight diffi culties are en-
countered following this operation,
contact a CITROËN dealer.

Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
-
the one-touch electric windows,
- the glass panoramic roof shutter,
- the settings of the multifunction screen,
- the audio equipment radio sta- tions,
- the GPS satellite navigation system.
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to con-
serve a suffi cient level of charge in
the battery.
After the engine has stopped, you
can still use functions such as the
audio and telematics system, wind-
screen wipers, dipped headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes. Switching to economy mode

Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.

If the telephone is being used at this
time:
- it will be maintained for 10 min- utes with your Audio system
hands-free kit,
- it will be maintained for 10 min- utes with the NaviDrive, then it
will transfer to your telephone
depending on its model.
Exiting economy mode
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for at least 5 min-
utes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).

186
XI
P R A C T I C A L I N F O R M A T I O N
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in
any circumstances, be discarded
with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.
Do not disconnect the ter-
minals while the engine is
running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with a 6-speed
electronic gearbox system. Following reconnection of the
battery

Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
However, if slight diffi culties are en-
countered following this operation,
contact a CITROËN dealer.

Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
-
the one-touch electric windows,
- the glass panoramic roof shutter,
- the settings of the multifunction screen,
- the audio equipment radio sta- tions,
- the GPS satellite navigation system.
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to con-
serve a suffi cient level of charge in
the battery.
After the engine has stopped, you
can still use functions such as the
audio and telematics system, wind-
screen wipers, dipped headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes. Switching to economy mode

Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.

If the telephone is being used at this
time:
- it will be maintained for 10 min- utes with your Audio system
hands-free kit,
- it will be maintained for 10 min- utes with the NaviDrive, then it
will transfer to your telephone
depending on its model.
Exiting economy mode
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for at least 5 min-
utes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).

213
03
11
22
33
44
55
66
77
44

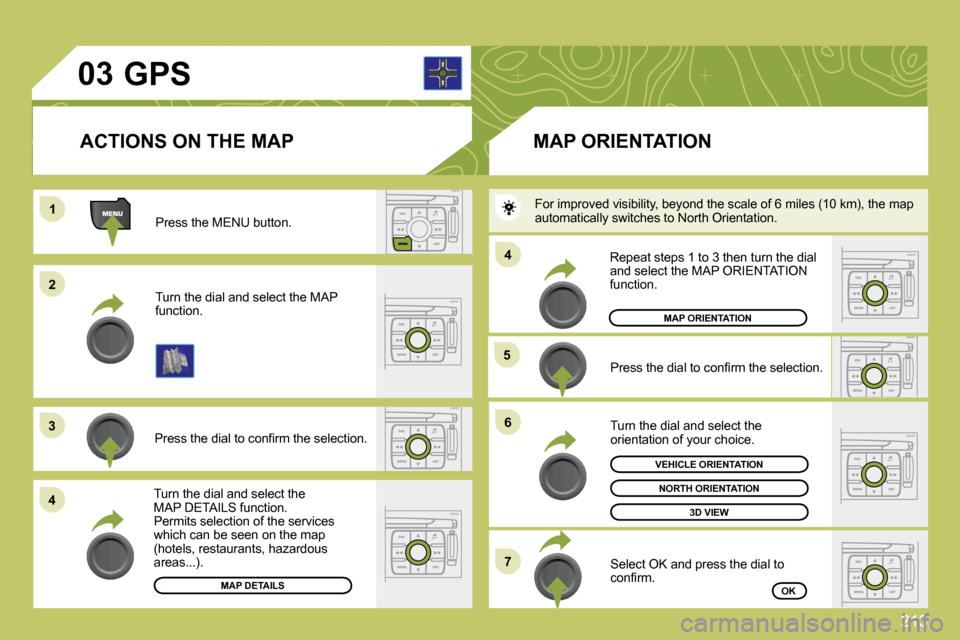

Press the MENU button.
Turn the dial and select the MAP function.
Press the dial to confi rm the selection.
Turn the dial and select theMAP DETAILS function. Permits selection of the services which can be seen on the map (hotels, restaurants, hazardous areas...).
ACTIONS ON THE MAP
MAP DETAILS
GPS
Press the dial to confi rm the selection.
Turn the dial and select the orientation of your choice.
Select OK and press the dial to confi rm.
Repeat steps 1 to 3 then turn the dial and select the MAP ORIENTATION function.
MAP ORIENTATION
MAP ORIENTATION
3D VIEW
OK
NORTH ORIENTATION
VEHICLE ORIENTATION
For improved visibility, beyond the scale of 6 miles (10 km), the map automatically switches to North Orientation.

243

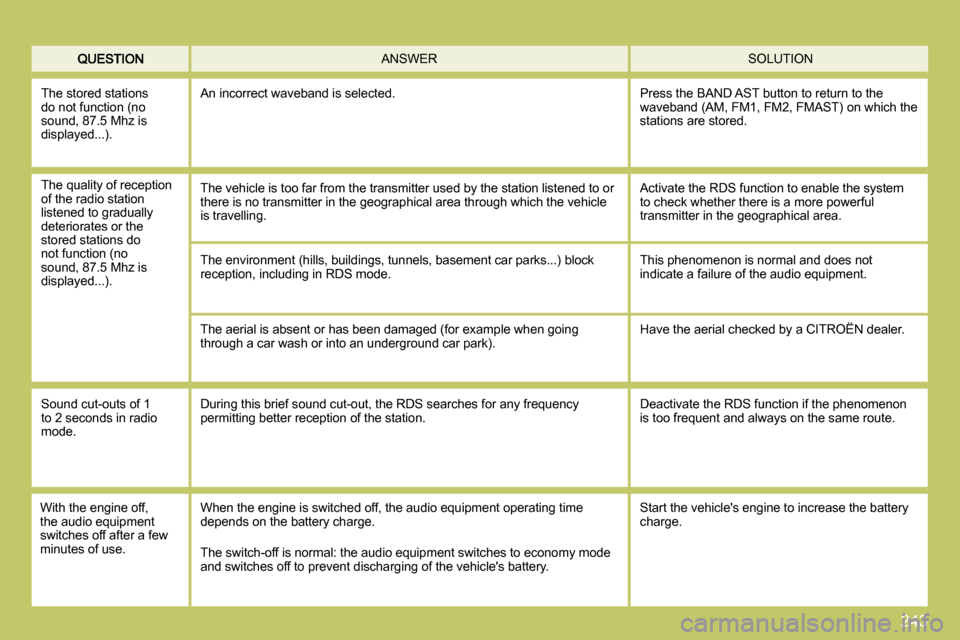

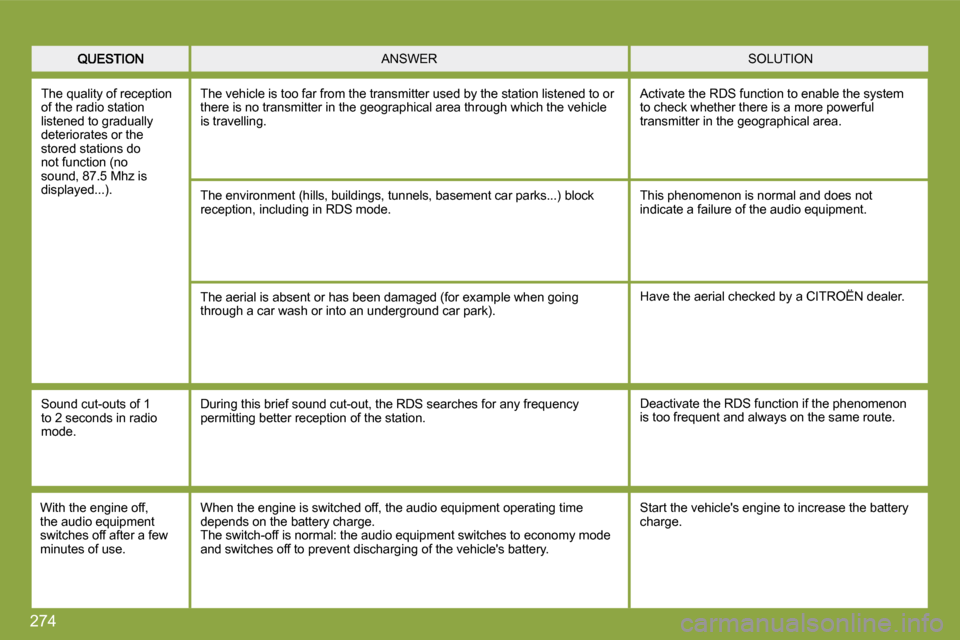

SOLUTION ANSWER
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
Start the vehicle's engine to increase the battery charge.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.

245
QUESTION SOLUTION ANSWER
The route is not calculated successfully. The exclusion criteria may confl ict with the current location (exclusion of toll roads on a motorway with tolls). Check the exclusion criteria.
There is a long wait after inserting a CD. When a new medium is inserted, the system reads a certain amount of data (folder, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the equipment may not be visible. - Check that your telephone's Bluetooth function is switched on. - Check that your telephone is visible.

274274
SOLUTION ANSWER
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.

293
QUESTION SOLUTION ANSWER
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
Tune to a radio station which broadcasts traffi c information. The radio station is not part of the regional traffi c information network.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.
