REFRIGERATED STORAGE CENTRE CONSOLE
The centre console contains:
- two cup-holders,
- two storage compartments,
- either a 12 V accessories socket (Maximum power: 120 W); this is
operational when the ignition is on.
There may be an additional 12 V accessories socket in the boot.
- or a USB socket.
For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a lighter and
a removable ashtray.
These are located on the centre
console. The removable ashtray can
be stored in a can holder.
To use the lighter, press it in and
wait a few seconds until it pops
out automatically.
Vehicles with an
electronic gearbox
or an automatic gearbox possess
an additional refrigerated storage
compartment, situated at the centre
of the dashboard.
To open, pull the handle and
lower the lid.
The refrigerated storage has auto-
matic lighting.
It can accommodate for example
a 1.5 litre bottle and two 0.5 litre
bottles.
Two cup-holders are available when
the lid is open. The refrigerated storage has a venti-
lation duct. It is directly linked to the
vehicle’s air conditioning system,
and is supplied with fresh air what-
ever the requirements of the pas-
senger compartment.
The refrigeration of this storage area
only operates when the engine is run-
ning and the air conditioning is on.
Page 114 of 337
96
VI
L A Y O U T
MATS
Removable component which pro-
tects the carpet against exterior dirt.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e , u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
u n c l i p t h e fi x i n g s ,
remove the mat.
Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured
correctly. To avoid any risk of jamming of the
pedals:
- only use mats which are suited
t o t h e fi x i n g s a l r e a d y p r e s e n t i n
the vehicle; it is imperative that
these are used,
- n e v e r fi t o n e m a t o n t o p o f a n - other.
Front door
The front door pockets can hold objects
equivalent in volume to a 1.5 litre bottle.
They may have their own lighting,
coming on automatically when your
hand approaches.
This lighting goes out automatically
after a few moments when your
hand is taken away.
Rear door
The rear door pockets can hold objects
equivalent in volume to a 0.5 litre bottle.
USB BOX
This connection box, consisting of
a JACK socket and a USB port, is
located on the centre console.
It permits the connection of portable
equipment, such as a digital audio
player of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s w h i c h
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
When it is in use, the portable equip-
ment charges automatically.
For further details concerning the
use of this equipment, refer to the
"Audio and Telematics" section.
Page 119 of 337
95
VI
L A Y O U T
REFRIGERATED STORAGE CENTRE CONSOLE
The centre console contains:
- two cup-holders,
- two storage compartments,
- either a 12 V accessories socket (Maximum power: 120 W); this is
operational when the ignition is on.
There may be an additional 12 V accessories socket in the boot.
- or a USB socket.
For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a lighter and
a removable ashtray.
These are located on the centre
console. The removable ashtray can
be stored in a can holder.
To use the lighter, press it in and
wait a few seconds until it pops
out automatically.
Vehicles with an
electronic gearbox
or an automatic gearbox possess
an additional refrigerated storage
compartment, situated at the centre
of the dashboard.
To open, pull the handle and
lower the lid.
The refrigerated storage has auto-
matic lighting.
It can accommodate for example
a 1.5 litre bottle and two 0.5 litre
bottles.
Two cup-holders are available when
the lid is open. The refrigerated storage has a venti-
lation duct. It is directly linked to the
vehicle’s air conditioning system,
and is supplied with fresh air what-
ever the requirements of the pas-
senger compartment.
The refrigeration of this storage area
only operates when the engine is run-
ning and the air conditioning is on.
Page 120 of 337
96
VI
L A Y O U T
MATS
Removable component which pro-
tects the carpet against exterior dirt.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e , u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
u n c l i p t h e fi x i n g s ,
remove the mat.
Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured
correctly. To avoid any risk of jamming of the
pedals:
- only use mats which are suited
t o t h e fi x i n g s a l r e a d y p r e s e n t i n
the vehicle; it is imperative that
these are used,
- n e v e r fi t o n e m a t o n t o p o f a n - other.
Front door
The front door pockets can hold objects
equivalent in volume to a 1.5 litre bottle.
They may have their own lighting,
coming on automatically when your
hand approaches.
This lighting goes out automatically
after a few moments when your
hand is taken away.
Rear door
The rear door pockets can hold objects
equivalent in volume to a 0.5 litre bottle.
USB BOX
This connection box, consisting of
a JACK socket and a USB port, is
located on the centre console.
It permits the connection of portable
equipment, such as a digital audio
player of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s w h i c h
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
When it is in use, the portable equip-
ment charges automatically.
For further details concerning the
use of this equipment, refer to the
"Audio and Telematics" section.
Page 242 of 337
204
2
8
1 6
1 8 1 7 711 1 4 3
5 9 4
1 5 1 2
1 3
61
10
01
FIRST STEPS

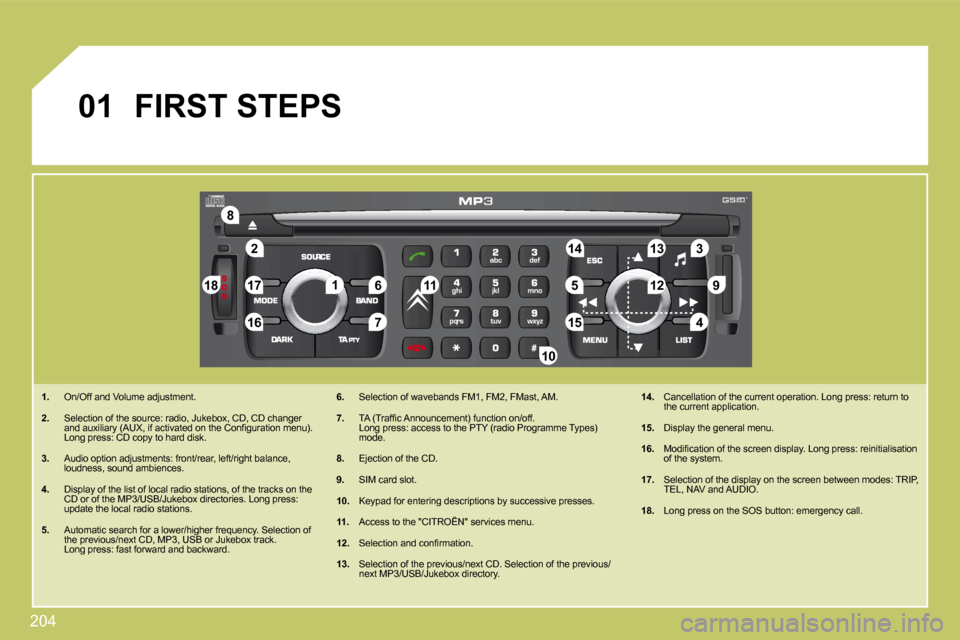

1 . On/Off and Volume adjustment.
