Page 3 of 338
6

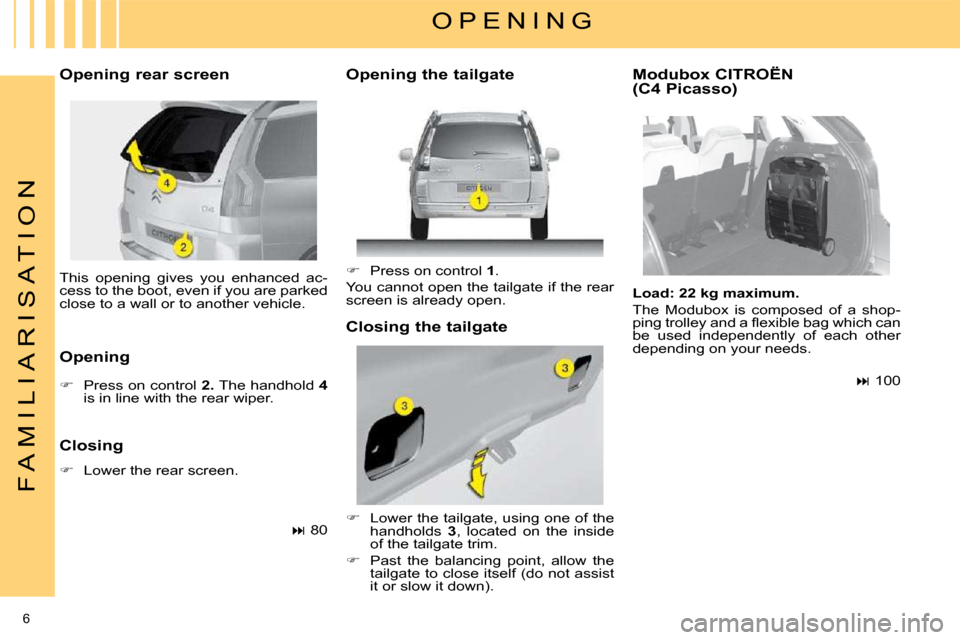

F A M I L I A R I S A T I O N
This opening gives you enhanced ac-
cess to the boot, even if you are parked
close to a wall or to another vehicle.
Opening rear screen
Opening
Press on control 2. The handhold 4
is in line with the rear wiper.
Closing
Lower the rear screen.
80
Press on control 1 .
You cannot open the tailgate if the rear
screen is already open.
Lower the tailgate, using one of the
handholds 3 , located on the inside
of the tailgate trim.
Past the balancing point, allow the
tailgate to close itself (do not assist
it or slow it down).
Load: 22 kg maximum.
The Modubox is composed of a shop-
p i n g t r o l l e y a n d a fl e x i b l e b a g w h i c h c a n
be used independently of each other
depending on your needs.
100
O P E N I N G
Opening the tailgate
Closing the tailgate Modubox CITROËN
(C4 Picasso)
Page 75 of 338
69
IV
A C C E S S
Normal locking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
proximately two seconds.
According to version, the exterior
mirrors fold at the same time.
It also triggers the timed switching
on of the exterior side spotlamps
and the guide-me-home lighting, if
this is activated. If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
To permit the transportation of
bulky objects, the vehicle can be
locked from the inside, using the
centralised control on the dash-
board, even if the tailgate or rear
screen is open.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
When closing the windows and/or
glass panoramic roof shutter us-
ing the remote control, you must
ensure that no one prevents them
from closing correctly.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Deadlocking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
the glass panoramic
roof blind automatically
in addition to locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Locking the vehicle
Normal locking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely.
Press the closed padlock for
more than two seconds to close
the windows and the glass pano-
ramic roof blind automatically in
addition to locking.
Page 90 of 338
80
A C C E S S
BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the handle 1 and
raise the tailgate.
Lower the tailgate using one of
the two handholds 3 , located on
the interior boot trim. -
when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the
multifunction screen for a
few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion screen for a few seconds.
If the tailgate is not closed correctly:
REAR SCREEN
This opening gives easy access
to the boot, even if you are parked
close to a wall or another vehicle. Closing
Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed
correctly: - when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the
multifunction screen for a
few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open, you
can access the boot by raising the
rear shelf using its tab (C4 Picasso).
After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.
Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing
Page 91 of 338
81
IV
A C C E S S
Emergency tailgate release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Push the white part, located in-
side the lock, to the left to unlock
the boot.
PANORAMIC GLASS ROOF
System which consists of a pano-
ramic tinted glass surface to increase
the light and visibility in the passenger
compartment.
Fitted with an electric blind in several
sections to improve thermal and
aural comfort.
Opening the roof blind
Rotate the control B to slide the
roof blind to the position desired
(positions 1 to 9 ). Closing the roof blind
Rotate the control B to position 0
to close the roof blind.
Recommendations
- Pressing the locking button on the remote control for more than
two seconds will close the blind
(practical when, for example,
you leave your vehicle on a sunlit
car park).
- On returning to your vehicle, a press on the button B reposi-
tions the blind to the last position
selected.
Anti-pinch
The blind has an anti-pinch function.
At the end of its travel, when the blind
encounters an obstacle on closing, it
stops and moves back slightly.
Following a fault or after a battery
disconnection during the movement
of the blind or after it has stopped,
you have to re-initialise the anti-
pinch function:
place the blind in the closed
position,
press button B for approximately
two seconds.
Page 92 of 338
81
IV
A C C E S S
Emergency tailgate release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Push the white part, located in-
side the lock, to the left to unlock
the boot.
PANORAMIC GLASS ROOF
System which consists of a pano-
ramic tinted glass surface to increase
the light and visibility in the passenger
compartment.
Fitted with an electric blind in several
sections to improve thermal and
aural comfort.
Opening the roof blind
Rotate the control B to slide the
roof blind to the position desired
(positions 1 to 9 ). Closing the roof blind
Rotate the control B to position 0
to close the roof blind.
Recommendations
- Pressing the locking button on the remote control for more than
two seconds will close the blind
(practical when, for example,
you leave your vehicle on a sunlit
car park).
- On returning to your vehicle, a press on the button B reposi-
tions the blind to the last position
selected.
Anti-pinch
The blind has an anti-pinch function.
At the end of its travel, when the blind
encounters an obstacle on closing, it
stops and moves back slightly.
Following a fault or after a battery
disconnection during the movement
of the blind or after it has stopped,
you have to re-initialise the anti-
pinch function:
place the blind in the closed
position,
press button B for approximately
two seconds.
Page 105 of 338
89
V I S I B I L I T Y
V
WIPER CONTROLS
System for selection and control of
the various front and rear wiping
modes for the elimination of rain and
cleaning.
The vehicle's front and rear wipers
are designed to improve the driver's
visibility progressively according to
the climatic conditions.
Programming
Various automatic wiper control
modes are also available according
to the following options:
- automatic wiping for the wind-screen wipers,
- rear wiping on engaging reverse gear. Manual controls
The wiper commands are issued di-
rectly by the driver by means of the
stalk
A and the ring B . Rear wiper
B. rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to
t h e s p e e d o f t h e v e h i c l e ) ,
automatic, then
single wipe (see
n e x t p a g e ) .
park,
single wipe (press down-
w a r d s ) ,
Windscreen wipers
A. wiping speed selection stalk:
or I f a s i g n i fi c a n t a c c u m u l a t i o n o f s n o w
or ice is present, or when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
m u l t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu.
Page 123 of 338
99
VI
F I T T I N G S
LUGGAGE COVER (C4 PICASSO)
This is in two parts.
Rear shelf
Removal
Unhook the cords.
Push upwards, then lift on each
side of the luggage cover. Front shelf
Removal
First remove the rear shelf.
Push upwards, then lift on each side.
Fitting
Move the luggage cover to its
s l o t s a n d p u s h fi r m l y d o w n .
So that the luggage cover will rise
with the tailgate, take the cords
and attach them on the tailgate.
R e fi t t i n g
D i r e c t t h e fl a p d o w n w a r d s .
Offer the luggage cover to its
m o u n t i n g s a n d p u s h fi r m l y d o w n .
Page 129 of 338
99
VI
F I T T I N G S
LUGGAGE COVER (C4 PICASSO)
This is in two parts.
Rear shelf
Removal
Unhook the cords.
Push upwards, then lift on each
side of the luggage cover. Front shelf
Removal
First remove the rear shelf.
Push upwards, then lift on each side.
Fitting
Move the luggage cover to its
s l o t s a n d p u s h fi r m l y d o w n .
So that the luggage cover will rise
with the tailgate, take the cords
and attach them on the tailgate.
R e fi t t i n g
D i r e c t t h e fl a p d o w n w a r d s .
Offer the luggage cover to its
m o u n t i n g s a n d p u s h fi r m l y d o w n .
Page 212 of 338
178
XI
P R A C T I C A L I N F O R M A T I O N
Rear lamps (C4 Picasso)
1. Direction indicators (PY 21 W)
2. Stoplamps/sidelamps
(P21/5 W)
3. Reversing lamp
(P21 W )
I d e n t i f y t h e f a u l t y b u l b .
W i t h t h e b o o t o p e n , p r e s s o n t h e
p l a s t i c c o v e r A , l o c a t e d c l o s e
t o t h e l e n s , t o r e l e a s e i t f r o m i t s
h o u s i n g .
Undo the two screws B on the
side of the lens and detach the
l a m p b y p u l l i n g i t r e a r w a r d s .
D i s c o n n e c t t h e c o n n e c t o r l i n k i n g
t h e l e n s u n i t w i t h t h e t a i l g a t e .
R e m o v e t h e b u l b - h o l d e r .
R e p l a c e t h e b u l b s .
T o r e m o v e a b u l b , r o t a t e i t a quarter turn.
T o r e fi t t h e b u l b , r o t a t e i t a q u a r - ter turn in the other direction.
R e p o s i t i o n t h e b u l b - h o l d e r .
Reconnect the connector to the
lens unit.
Lamps mounted on the
bodywork
I d e n t i f y t h e f a u l t y b u l b .
W i t h t h e b o o t o p e n , r e m o v e t h e
p l a s t i c c o v e r o n t h e t a i l g a t e .
R e m o v e t h e b u l b - h o l d e r f r o m i t s
h o u s i n g .
R e p l a c e t h e b u l b .
T o r e m o v e a b u l b , r o t a t e i t a quarter turn.
T o r e fi t t h e b u l b , r o t a t e i t a q u a r - ter turn in the other direction.
R e p o s i t i o n t h e b u l b - h o l d e r .
R e fi t t h e p l a s t i c c o v e r .
Lamps mounted on the tailgate
R e fi t t h e l a m p u n i t o n t h e b o d y
a n d d o u p t h e t w o s c r e w s .
R e p o s i t i o n t h e p l a s t i c c o v e r b y
p r e s s i n g o n i t .
