Page 4 of 338
7
F A M I L I A R I S A T I O N
CITROËN Grand C4 Picasso

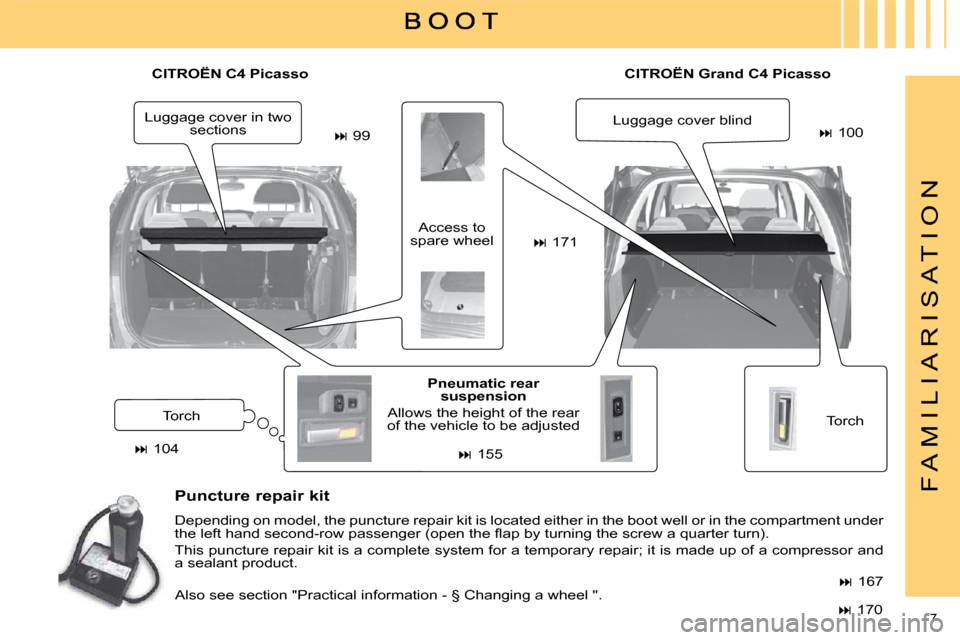

Torch
Pneumatic rear
suspension
Allows the height of the rear
of the vehicle to be adjusted Access to
spare wheel
Puncture repair kit
Depending on model, the puncture repair kit is located eit her in the boot well or in the compartment under
t h e l e f t h a n d s e c o n d - r o w p a s s e n g e r ( o p e n t h e fl a p b y t u r n i n g t h e s c r e w a q u a r t e r t u r n ) .
This puncture repair kit is a complete system for a temporary repair; it is made up of a compressor and
a sealant product. Luggage cover blind
Luggage cover in two
sections
Torch
99
100
171
155
167
104
CITROËN C4 Picasso
Also see section "Practical information - § Changing a wheel ".
170
Page 5 of 338
8
F A M I L I A R I S A T I O N
6-speed electronic gearbox
This offers a fully automatic mode, a
m a n u a l m o d e a n d a n a u t o - s e q u e n t i a l
mode which combines the advan-
tages of the automatic and manual
modes, via the levers on the steering
wheel.
134
Speed limiter/Cruise control
These functions control the speed of
the vehicle in relation to the value that
you have programmed.
145, 147
Electric parking brake
This permits automatic or manual
control of the stopping and starting of
the vehicle by means of its control.
126
Scented air freshener
This diffuses the fragrance that you
have chosen throughout the passen-
ger compartment from its location in
the ventilation system.
55
Ambiance lighting
This soft lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
92
I N T E R I O R
Page 10 of 338
13
F A M I L I A R I S A T I O N
15. Right hand upper storage
16. Direction indicator warning lamps
17. Driver’s front airbag
18. Controls for multifunction screen
(on steering wheel)
19. Selector for automatic gearbox or
electronic gearbox system
20. Controls:
Page 12 of 338
15
F A M I L I A R I S A T I O N
Adjusting the steering wheel
The steering wheel can be adjusted in
terms of height and reach.
Unlock the steering wheel by pulling
control A towards you.
Adjust the position of the steering
wheel then lock it pushing the control
back fully.
67 T h i s m o d i fi e s i t s r o l e a u t o m a t i c a l l y a n d
progressively between day use and
night use.
This operates with the ignition switched
on.
From the driver’s seat, select the rear
view mirror by moving control
1 to the
left or right, then adjust the rear view
m i r r o r a s r e q u i r e d i n t h e 1 d i r e c t i o n s u s -
ing control 2 .
Demisting-defrosting of the rear view
mirrors is linked to that of the rear
screen.
93
66
For safety reasons, these adjust-
ments must not be carried out whilst
driving. Child monitoring mirror
This device
1 allows you to monitor the
rear passengers. It can be folded away
to eliminate dazzle.
Rear view mirrors foldback
When the vehicle is parked, the rear
view mirrors can be folded back either
manually or automatically. Automatic photochromatic
interior rear view mirror Rear view mirrors adjustment
67
Page 14 of 338
17
F A M I L I A R I S A T I O N
Ring B Ring D: rear screen wipe Stop.
Intermittent.
Timed wash and wipe. Fixed central controls steering
wheel
Lighting stalk
Ring A
85 Stalk C: windscreen wipe
89
D R I V I N G
1. Off
2. Automatic lighting
3. Sidelamps
4. Dipped beam/Main beam
Front foglamps
Rear foglamp Wiper control
1. Optional function controls
2. Cruise control/speed limiter and
parking space sensor
3. Audio system controls
4. Multifunction screen controls
143
5. Horn
113
6. Warning lamps for direction indica-
tors and vehicle lamps
27
84 Switching on "AUTO" mode
Press the control down and release it.
Switching off "AUTO" mode
Press the control up and return it to
position "0" .
The automatic wipe must be reactivated
each time the vehicle is started.
In certain climatic conditions (low
temperature, humidity), the presence
of condensation on the interior of the
healamps and rear lamps is not a
fault; it will disappear a few minutes
after switching on the lamps.
174
Page 28 of 338
29
I
I N S T R U M E N T S a n d C O N T R O L S
Lighting is associated
with the display of an-
other warning lamp :
Service If this comes on, it in-
dicates the occurrence
of a problem in one
of the systems which
d o e s n o t h a v e a s p e c i fi c w a r n i n g
lamp.
In order to identify it, consult the mes-
sage on the multifunction screen.
The warning lamp only comes on
temporarily in the case of the follow-
ing minor faults:
- incorrect closing of the doors, boot, rear screen and bonnet,
- fl a t r e m o t e c o n t r o l b a t t e r y ,
- incorrect tyre pressure,
- the end of saturation of the parti- c l e e m i s s i o n fi l t e r ( D i e s e l ) .
In the case of major faults, the
warning lamp remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d , c o n t a c t
a CITROËN dealer as soon as
possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
lamp),
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Application/Release of the
automatic electric parking brake
If this warning lamp comes
o n p e r m a n e n t l y , i t i s c o n fi r m -
ing that the parking brake is
applied.
I f i t fl a s h e s , i t i s i n d i c a t i n g a n a p -
plication or release fault. Contact
a CITROËN dealer urgently (see
section "Driving - § Electric parking
brake"). Automatic electric parking brake
fault
This warning lamp comes
on if there is a malfunction in
the automatic electric park-
ing brake.
Deactivation of the automatic
functions of the automatic
electric parking brake
This comes on if the "auto-
matic application" and "auto-
matic release" functions
when you switch off the
engine are deactivated * or
faulty.
Dynamic stability control
(ESP/ASR) The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been
deactivated, if this warning lamp
and the indicator lamp on the button
come on continuously, this indicates
the occurrence of a fault in the ESP/
ASR system or in the hill start assist
system.
Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c -
currence of a fault in the emission
control system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking sys-
tem.
However, this does not prevent op-
eration of the vehicle’s assisted
braking.
* According to country.
Page 29 of 338
30
I
I N S T R U M E N T S a n d C O N T R O L S Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Maximum coolant temperature
If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit up.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
i n g i n t h e t a n k a n d 2 o r 3 b a r s fl a s h
in the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Top up with fuel as soon as possible
to avoid running out.
This warning lamp comes on each
time the ignition is switched on, until
s u f fi c i e n t f u e l i s a d d e d .
A control located on the panel to the
right of the steering wheel allows
y o u t o o p e n t h e f u e l fl a p f r o m i n s i d e
the vehicle.
Do not continue driving until you run
out of fuel as this may cause dam-
age to the emisions control and fuel
injection systems. Battery charge
If this comes on, it indi-
cates the occurrence of a
fault in the battery charging
circuit (dirty or loose termi-
nals, slack or cut alternator
belt, ...).
Door open A door, the boot or the rear
screen is open:
- if the speed is below 6 mph (10 km/h), this warning lamp comes on continuously,
-
if the speed is higher than 6 mph (10 km/h),
this warning lamp comes on continuously,
accompanied by an audible signal.
Seat belt not fastened/
unfastened
This warning lamp informs
you if the driver’s or front
passenger’s seat belt is
not fastened (depending
on model), and if the front
passenger’s (depending on
model) or the second row
passengers’ seat belts are
unfastened. The lit up positions repre-
sent those whose seat belts are not
fastened/unfastened. Seat belts unfastened during the
journey:
- the point corresponding to the
seat position with seat belt un-
fastened lights up between 0 and
approximately 12 mph (20 km/h).
A b o v e 1 2 m p h ( 2 0 k m / h ) , i t fl a s h -
es accompanied by an audible
signal for around 120 seconds.
The audible signal stops when
the ignition is switched off or if a
door is opened.
Depending on model, the front pas-
s e n g e r s e a t m a y b e fi t t e d w i t h a
presence sensor; the correspond-
ing warning lamp will only come on
if the seat is occupied and the seat
belt not fastened.
Driver’s or front passenger’s seat belt
not fastened with presence sensor:
- the warning lamp lights up be-
tween 0 and approximately
12 mph (20 km/h). Above 12 mph
( 2 0 k m / h ) , i t fl a s h e s a c c o m p a -
nied by a message on the mul-
tifunction screen and an audible
signal for around 120 seconds.
Second row rear passengers’ or
front passenger’s seat belt not fas-
tened without presence sensor:
- when the ignition is switched on, the points corresponding to the seat po-
sitions with seat belts not fastened
remain lit up for 30 seconds.
Page 53 of 338
51
III
C O M F O R T
5. Air recirculation
Press on button 5 to close off the
entry of air from outside and to ac-
tivate recycling of the air in the cab-
in. the warning lamp comes on.
Whilst retaining the other adjust-
ments, this position enables the
driver at any time to exclude any dis-
agreeable odours or fumes coming
from outside the vehicle. It should
be cancelled as soon as possible to
permit renewal of cabin air and to
prevent misting.
Press again on button 5 to allow
entry of air from the outside. The
warning lamp goes out.
The air recirculation can also be ac-
cessed by means of a press on the
control, located on the lower left of
the steering wheel (see "§ Fixed
centred controls steering wheel"). 6. Adjustment mode for the
rear passengers
This button decides whether
or not the rear passengers
may use their adjustment
controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the
rear passenger con-
trols
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their con-
venience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode:
black panel function
This function turns the dis-
plays and panel backlighting
on or off.
- Function activated, a press on any button will light up the screen
temporarily.
- press on button 7 deactivates
the function, lighting of buttons
and screen is again permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting of the rear screen
This can only operate when the en-
gine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
exterior rear view mirrors. The
warning lamp lights up and the
symbol appears on the display.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recir-
culation of air within the pas-
senger compartment and also
has an automatic function.
Page 56 of 338
51
III
C O M F O R T
5. Air recirculation
Press on button 5 to close off the
entry of air from outside and to ac-
tivate recycling of the air in the cab-
in. the warning lamp comes on.
Whilst retaining the other adjust-
ments, this position enables the
driver at any time to exclude any dis-
agreeable odours or fumes coming
from outside the vehicle. It should
be cancelled as soon as possible to
permit renewal of cabin air and to
prevent misting.
Press again on button 5 to allow
entry of air from the outside. The
warning lamp goes out.
The air recirculation can also be ac-
cessed by means of a press on the
control, located on the lower left of
the steering wheel (see "§ Fixed
centred controls steering wheel"). 6. Adjustment mode for the
rear passengers
This button decides whether
or not the rear passengers
may use their adjustment
controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the
rear passenger con-
trols
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their con-
venience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode:
black panel function
This function turns the dis-
plays and panel backlighting
on or off.
- Function activated, a press on any button will light up the screen
temporarily.
- press on button 7 deactivates
the function, lighting of buttons
and screen is again permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting of the rear screen
This can only operate when the en-
gine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
exterior rear view mirrors. The
warning lamp lights up and the
symbol appears on the display.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recir-
culation of air within the pas-
senger compartment and also
has an automatic function.
Page 63 of 338
58
III
C O M F O R T
FRONT SEATS
1. Adjustment of the
seat height and angle,
forwards-backwards 2.
Adjustment of backrest
angle and lumbar support
The seats can also be adjusted elec-
trically for a short period:
- on opening one of the front doors,
- after switching off the ignition. Heated seats control
ELECTRIC ADJUSTMENTS
Raise or lower the front of
control
1 to raise or lower
the front of the seat base
(on driver’s seat).
Raise or lower the rear of
control 1 to raise or lower
the seat.
Action control 1 forwards or
rearwards to slide the seat
forwards/backwards. Push the top of control
2
forwards or rearwards to ad-
just the backrest angle.
Raise or lower control 2 to
increase or decrease the
lumbar support.
With the engine running, the front
seats can be heated separately.
Use the corresponding adjust-
ment wheel, placed on the inner
side of each front seat, to switch
on and select the level of heating
required:
0: Off.
1: Low.
2: Medium.
3: High.
