F A M I L I A R I S A T I O N
I N T E R I O R
Folding the seats
From the boot - whilst loading,
for example (CITROËN Grand
C4 Picasso)
SECOND ROW SEATS
From outside

 Pull fi rmly upwards on strap C , as
indicated by the red arrow, to unlock
the seat; keep pulling until the seat
is fully folded.

 Slide latch A of the panel down-
wards, to unlock it.

 Return the panel to the upright posi-
tion, then slide latch A upwards to
lock it.
Before deploying the rigid panels, check
that the second row seats are in their
fully rear position.

 71
Having fi rstly folded the third-row
seats.

 Pull on strap D to unlock the re-
quired seat. Repositioning the seats
Return the rigid panels of the second-
row seats to their initial (upright) position
and lock them in position (CITROËN
Grand C4 Picasso).
Raise the backrest and push it back-
wards until it locks in position.
Rigid panel (CITROËN Grand
C4 Picasso)
A rigid panel is attached to each sec-
ond-row seat backrest.
Unlocking/Locking the rigid panel

III
71
C O M F O R T
SECOND ROW REAR SEATS (GRAND C4 PICASSO)
Each seat can be folded onto the
fl oor to form a fl at surface, thus en-
abling you to adapt your vehicle’s
interior space.
Folding a seat
From the outside

 Pull fi rmly upwards on strap C ,
as indicated by the red arrow, to
unlock the seat; keep pulling un-
til the seat is fully folded.
Push the seat backrest gently forwards so that the backrest
folds onto the seat cushion. The
assembly lowers onto the fl oor. From the boot (when loading, for
example)
You can fold the second-row seat(s)
from the boot, having fi rst folded the
third-row seats.

 Pull on the strap D to unlock the
chosen seat, push the backrest
gently forwards.
To prevent any damage to the mechanism, the strap D unclips
under excessive force. Simply
clip it back in place to render the
system operational.
Repositioning a seat

 Return the second-row seat rigid
panels to their initial position and
lock them in position.

 Raise the backrest and push it
rearwards until it locks in posi-
tion.
Before moving the third-row seats,
return the second-row rigid panels
to their initial position and lock them
in place.
Never allow children to operate the
seats without supervision. Rigid panel
Each second-row seat backrest has
a rigid panel attached.
This panel enables you:
- to have a continuous load sur-
face in the boot, whatever the
positions of the seats,
- to avoid having objects sliding under the second-row seats.
Unlocking/Locking the rigid
panel

 Slide the latch 1 on the panel
downwards, to unlock.


Return the panel to the upright
position, then slide the latch 1
upwards, to lock.
Before positioning the rigid panels,
check that the second-row seats are
in the fully back position.
5-seater confi gurations do not have
these rigid panels.

IV
90
A C C E S S

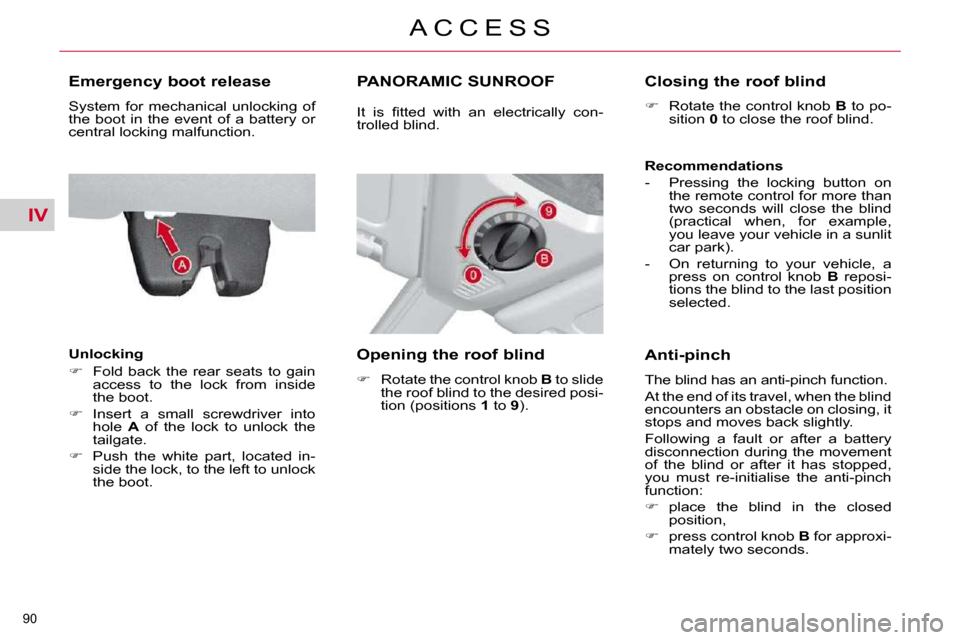

Emergency boot release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside
the boot.

 Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.

 Push the white part, located in-
side the lock, to the left to unlock
the boot.
PANORAMIC SUNROOF
It is fi tted with an electrically con-
trolled blind.
Opening the roof blind

 Rotate the control knob B to slide
the roof blind to the desired posi-
tion (positions 1 to 9 ). Closing the roof blind

 Rotate the control knob B to po-
sition 0 to close the roof blind.

Recommendations
- Pressing the locking button on the remote control for more than
two seconds will close the blind
(practical when, for example,
you leave your vehicle in a sunlit
car park).
- On returning to your vehicle, a press on control knob B reposi-
tions the blind to the last position
selected.
Anti-pinch
The blind has an anti-pinch function.
At the end of its travel, when the blind
encounters an obstacle on closing, it
stops and moves back slightly.
Following a fault or after a battery
disconnection during the movement
of the blind or after it has stopped,
you must re-initialise the anti-pinch
function:

 place the blind in the closed
position,

 press control knob B for approxi-
mately two seconds.

IV
90
A C C E S S
Emergency boot release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside
the boot.

 Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.

 Push the white part, located in-
side the lock, to the left to unlock
the boot.
PANORAMIC SUNROOF
It is fi tted with an electrically con-
trolled blind.
Opening the roof blind

 Rotate the control knob B to slide
the roof blind to the desired posi-
tion (positions 1 to 9 ). Closing the roof blind

 Rotate the control knob B to po-
sition 0 to close the roof blind.

Recommendations
- Pressing the locking button on the remote control for more than
two seconds will close the blind
(practical when, for example,
you leave your vehicle in a sunlit
car park).
- On returning to your vehicle, a press on control knob B reposi-
tions the blind to the last position
selected.
Anti-pinch
The blind has an anti-pinch function.
At the end of its travel, when the blind
encounters an obstacle on closing, it
stops and moves back slightly.
Following a fault or after a battery
disconnection during the movement
of the blind or after it has stopped,
you must re-initialise the anti-pinch
function:

 place the blind in the closed
position,

 press control knob B for approxi-
mately two seconds.

VI
114
F I T T I N G S
TORCH
This is a portable lamp, fi tted in the
boot wall, which can be used to illu-
minate the boot or as a torch.
Grand C4 Picasso

C4 Picasso Boot lamp
The boot lamp
A comes on automat-
ically when the boot is opened and
switches off automatically when the
boot is closed.
Various lighting durations are avail-
able:
- ignition off, approximately ten minutes,
- in energy economy mode, approxi- mately thirty seconds,
- engine running, no limit.
Operation of the torch
This torch operates with NiMH re-
chargeable batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
 Extract the torch from its location
pulling it upwards, as indicated
by the arrow.

 Press the switch B , located on
the back, to switch the torch on
or off.

 Unfold the support C , located on
the back, to set down and raise
the torch; for example, when
changing a wheel.
Stowing the torch

 Put the torch back in place in its
location, starting at the bottom.
If you have forgotten to switch off the torch, this switches it off auto-
matically.
Observe the polarities when fi tting
the batteries.
Never replace the rechargeable
batteries with normal single-use
batteries.
For replacement of the batteries,
see the "Practical information -
Changing a bulb" section
It the torch is not engaged correct-
ly, it may not charge and may not
come on when the boot is opened.
Using the torch

VI
114
F I T T I N G S
TORCH
This is a portable lamp, fi tted in the
boot wall, which can be used to illu-
minate the boot or as a torch.
Grand C4 Picasso

C4 Picasso Boot lamp
The boot lamp
A comes on automat-
ically when the boot is opened and
switches off automatically when the
boot is closed.
Various lighting durations are avail-
able:
- ignition off, approximately ten minutes,
- in energy economy mode, approxi- mately thirty seconds,
- engine running, no limit.
Operation of the torch
This torch operates with NiMH re-
chargeable batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
 Extract the torch from its location
pulling it upwards, as indicated
by the arrow.

 Press the switch B , located on
the back, to switch the torch on
or off.

 Unfold the support C , located on
the back, to set down and raise
the torch; for example, when
changing a wheel.
Stowing the torch

 Put the torch back in place in its
location, starting at the bottom.
If you have forgotten to switch off the torch, this switches it off auto-
matically.
Observe the polarities when fi tting
the batteries.
Never replace the rechargeable
batteries with normal single-use
batteries.
For replacement of the batteries,
see the "Practical information -
Changing a bulb" section
It the torch is not engaged correct-
ly, it may not charge and may not
come on when the boot is opened.
Using the torch

IX
169
D R I V I N G
Loading/unloading
assistance
Grand
C4 Picasso
C4 Picasso
The pneumatic suspension has an
additional function: the possibility to
raise or lower the height of the rear
of the vehicle when stationary, in or-
der to facilitate loading/unloading of
the boot. Increasing the height of the boot
fl oor

 Press continuously the top con-
trol A , which is located in the
boot, on the left-hand side.
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 beeps will confi rm that the move-
ment has gone as far as it can.

Returning to the normal height

 Press briefl y the bottom of con-
trol A twice.
Decreasing the height of the boot
fl oor

 Press continuously the bottom of
control A .
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 beeps will confi rm that the move-
ment has gone as far as it can.
Returning to the normal height

 Press briefl y the top of control A
twice.
Driving with the boot in a
low position may damage
underbody components.

Particular points
- If you start the vehicle without having returned it to the normal
height, automatic correction will
activate as soon as the vehi-
cle starts to move. During the
correction, the service warning
lamp comes on and a message
on the screen reminds you not to
exceed 6 mph (10 km/h).
- Loading assistance does not function in the following circum-
stances:
- If button B is illuminated,
- in power economy mode,
- when you fi rst use the function, press control A for two seconds
to initialise the system. The sys-
tem will respond normally to sub-
sequent operation of the control.

XI
193
P R A C T I C A L I N F O R M A T I O N
Third brake lamp with bulb
(W 5 W)

 With the boot open, detach the
interior trim.

 Undo the nuts.

 Using a thin screwdriver, detach
the 3 retaining lugs.

 Remove the lamp via the exterior
of the tailgate.

 Remove the bulb-holder.

 Change the faulty bulb(s).
To refi t, carry out these operations in
reverse order.
Third brake lamp (LEDs)
For the replacement of this type
of LED lamp, contact a CITROËN
dealer. Interior lighting
Interior lamp (1/W5W)
Detach the cover of the interior lamp
1 with a thin screwdriver, close to the
button, to access the faulty bulb.
Map reading lamps (2/W5W)
Detach the cover of the interior lamp.
To access the faulty bulb, detach
the partition for the reading lamp 2
concerned, as necessary. Boot lamps (W5W)
Detach the unit by pushing it rear-
wards.
Torch (Krypton 3.6 V)

 Open the tab.

 Push with a fl at screwdriver in
the hole under the tab and re-
cover the bulb unit.

 Open the bulb unit fully to change
the bulb.

XI
193
P R A C T I C A L I N F O R M A T I O N
Third brake lamp with bulb
(W 5 W)

 With the boot open, detach the
interior trim.

 Undo the nuts.

 Using a thin screwdriver, detach
the 3 retaining lugs.

 Remove the lamp via the exterior
of the tailgate.

 Remove the bulb-holder.

 Change the faulty bulb(s).
To refi t, carry out these operations in
reverse order.
Third brake lamp (LEDs)
For the replacement of this type
of LED lamp, contact a CITROËN
dealer. Interior lighting
Interior lamp (1/W5W)
Detach the cover of the interior lamp
1 with a thin screwdriver, close to the
button, to access the faulty bulb.
Map reading lamps (2/W5W)
Detach the cover of the interior lamp.
To access the faulty bulb, detach
the partition for the reading lamp 2
concerned, as necessary. Boot lamps (W5W)
Detach the unit by pushing it rear-
wards.
Torch (Krypton 3.6 V)

 Open the tab.

 Push with a fl at screwdriver in
the hole under the tab and re-
cover the bulb unit.

 Open the bulb unit fully to change
the bulb.
