Downloaded from www.Manualslib.com manuals search engine CONTENTS
2
Monochrome screen A 45Monochrome screen C 47Colour screen (MyWay) 50NaviDrive colour screen 52Trip computer 53
■■■■■
II - MULTIFUNCTIONSCREENS45 Î55
Ventilation 56Manual air conditioning 58Digital air conditioning 60Scented air freshener 65Front seats 67Rear seats 70Seat modularity 75Mirrors 76Steering wheel adjustment 77
■■■■■■■■■
III - COMFORT 56Î77
Remote control key 78Starting the engine 81Alarm 84
Electric windows 86Doors 88Boot 90Opening rear screen 90Panoramic sunroof 91Fuel tank 92
■■■■■■■■■
IV - ACCESS 78Î93
Lighting controls 94LED lamps 96Daytime running lamps 96Automatic illumination of headlamps97Headlamp adjustment 98Directional lighting 99Wiper controls 100Automatic rain sensitive wipers 101Courtesy lamps 103Interior mood lighting 104
■■■■■■■■■■
V - VISIBILITY 94 Î 104
Interior fi ttings 105Glove box 106Mats 108Boot fi ttings 111Luggage retaining net 115Torch 116
■■■■■■
VI-FITTINGS 105 Î 116
Instrument panels 31Indicator and warning lamps 33Indicators 42
■■■
FAMILIARISATION 4 Î30
I - MONITORING 31 Î44
Child seats 117ISOFIX child seats 122Child lock 125
■■■
VII - CHILDSAFETY 117 Î 125
Eco-driving 29■

Downloaded from www.Manualslib.com manuals search engine CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Seat belts 131Airbags 135
■■■■■■■■■
VIII-SAFETY 126Î138
Electric parking brake 139Hill start assist 146Manual gearbox 147Gear shift indicator 1486-speed electronic gearbox system 149Stop & Start 153Automatic gearbox 156Fixed centred controlssteering wheel 160Speed limiter 162Cruise control 164Parking space sensors 166Lane departure warning system 168Parking sensors 169Pneumatic suspension 171
■■■■■
■■■
■■■■■■
IX - DRIVING 139Î172
Bonnet 174Running out of fuel (Diesel) 176Petrol engines 177Diesel engines 178Checking levels 179Checks 181
■■■■■■
X - CHECKS 173Î 182
Temporary puncture repair kit 183Changing a wheel 186Changing a bulb 190Changing a fuse 19712 V battery 203Energy economy mode 206Towing the vehicle 207Towing a trailer 209Roof bars 210Very cold climate screen 210Accessories 211
■■■■■■■■■■■
XI - PRACTICALINFORMATION 183Î 212
Petrol engines 213Petrol weights 214Diesel engines 215Diesel weights 217Petrol/Diesel weights - commercial
versions 221Dimensions 223Identifi cation markings 226
■■■■■
■■
XII - TECHNICALDATA 213Î226
Emergency or assistance 227NaviDrive 231MyWay 275Audio system 307Video pack 329
■■■■■
AUDIO andTELEMATICS 227 Î336
VISUALSEARCH 337 Î 341
ALPHABETICALINDEX 342 Î 348

Downloaded from www.Manualslib.com manuals search engine 4
FAMILIARISATION

Xenon directional headlamps

This system allows the light beams
to follow the direction of the road
ahead.



99
Front/rear parking sensors

Sensors, located in the bumpers, de-
tect obstacles.



169

Parking space sensor

This system measures the size of a
parking space available between two
vehicles or obstacles.



166
EXTERIOR


Stop & Start

This system puts the engine tempo-
rarily into standby during stops in the
traffi c (red lights, traffi c jams, etc...).
The engine restarts automatically as
soon as you want to move off.
Stop & Start reduces fuel consump-
tion, exhaust emissions and noise
when stationary.



153

Downloaded from www.Manualslib.com manuals search engine 5
FAMILIARISATION

Panoramic sunroof




91

Opening rear screen




90

Pneumatic rear suspension

This enhances driving comfort and
maintains a constant body height,
whatever the vehicle load.



171

Exterior side spotlamps

These light up the zones facing the
driver’s and passenger’s doors.



98
Door mirrors

With electric foldback.
Automatically tilts in reverse gear.



76
EXTERIOR

Downloaded from www.Manualslib.com manuals search engine 6
FAMILIARISATION

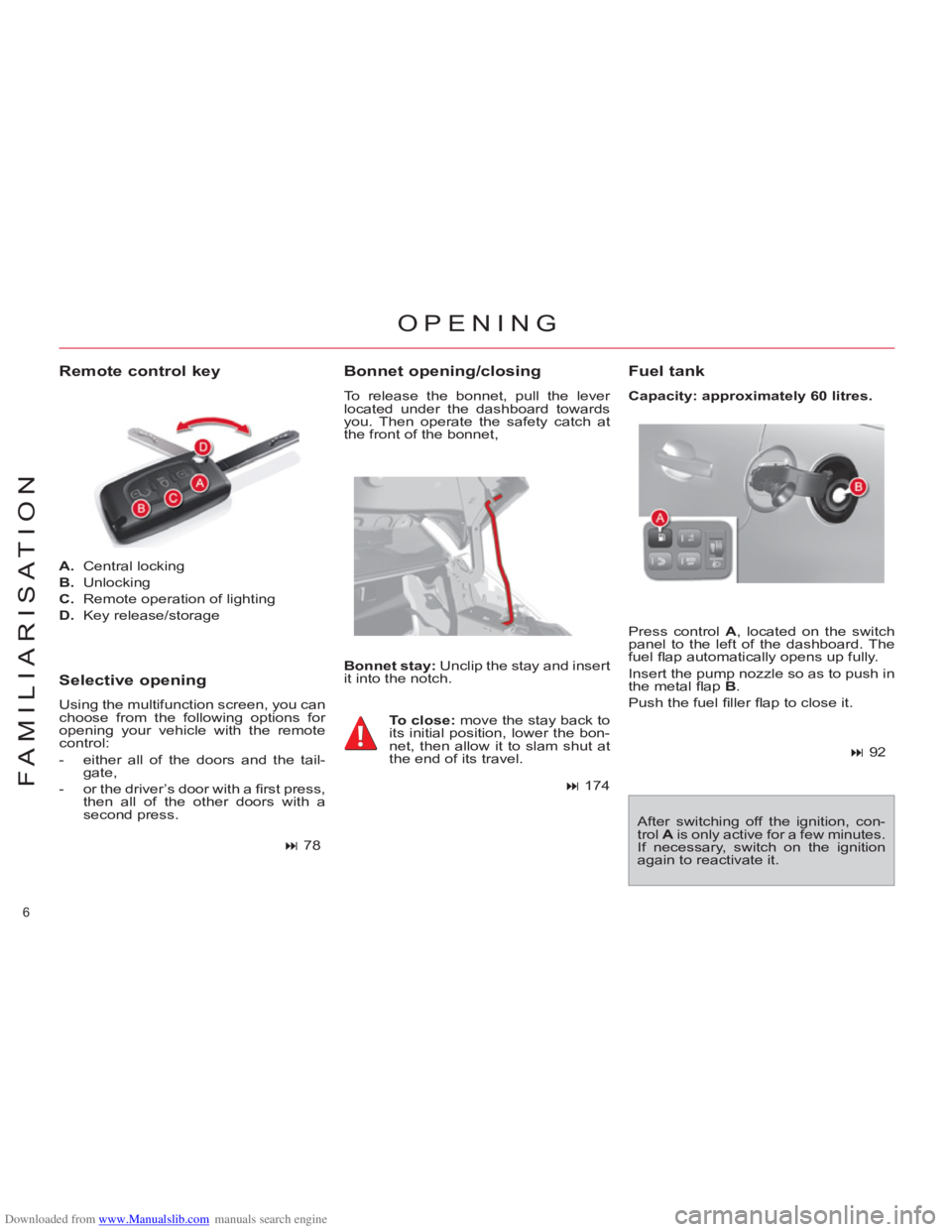

A.
Central locking

B.
Unlocking

C.
Remote operation of lighting

D.
Key release/storage

Press control A
, located on the switch
panel to the left of the dashboard. The
fuel fl ap automatically opens up fully.
Insert the pump nozzle so as to push in
the metal fl ap B
.
Push the fuel fi ller fl ap to close it.

After switching off the ignition, con-
trol A
is only active for a few minutes.
If necessary, switch on the ignition
again to reactivate it.
Bonnet stay:
Unclip the stay and insert
it into the notch.



78



Bonnet opening/closing

To release the bonnet, pull the lever
located under the dashboard towards
you. Then operate the safety catch at
the front of the bonnet,



174



92



Selective opening

Using the multifunction screen, you can
choose from the following options for
opening your vehicle with the remote
control:


- either all of the doors and the tail-
gate,

- or the driver’s door with a fi rst press,
then all of the other doors with a
second press.
To close:
move the stay back to
its initial position, lower the bon-
net, then allow it to slam shut at
the end of its travel.
OPENING

Remote control key
Fuel tank


Capacity: approximately 60 litres.

Downloaded from www.Manualslib.com manuals search engine 7
FAMILIARISATION
This opening gives easy access to the
boot, even if you are parked close to a
wall or to another vehicle.


Opening rear screen

Opening



)
Press control 2. The grip 4
is in line
with the rear wiper.


Closing



)
Lower the rear screen.



90


)
Press control 1
.
You cannot open the tailgate if the rear
screen is already open.


)
Lower the tailgate, using one of the
grips 3
, located on the interior tail-
gate trim.

)
Past the balancing point, allow the
tailgate to close itself (do not assist
it or slow it down).

Load: 22 kg maximum.

The Modubox is composed of a shop-
ping trolley and a fl exible bag which can
be used independently of each other
depending on your needs.



112

OPENING


Opening the tailgate

Closing the tailgate
Modubox (CITROËN
C4 Picasso)

Downloaded from www.Manualslib.com manuals search engine 8
FAMILIARISATION

CITROËN
Grand C4 Picasso

Torch
Pneumatic rear
suspension

Allows the height of the rear
of the vehicle to be adjusted Access to
spare wheel

Temporary puncture repair kit

Depending on model, the kit is located either in the boot well or in the compartment under the left hand
second-row passenger (open the fl ap by turning the screw a quarter turn).
This kit is a complete system for a temporary repair; it is made up of a compressor and a sealant car-
tridge. Luggage cover blind Luggage cover in two
sections
Torch


111


11 2



187



171



183


116
CITROËN
C4 Picasso


BOOT

Refer also to the section "Practical information - § Changing a wheel".



186
