190
PRACTICAL INFORMATION
CHANGING A BULB
The headlamps are fi tted
with polycarbonate glass
with a protective coating:
)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks, do
not keep the lance directed to-
wards the lamps or their edges
for too long, so as not to dam-
age their protective coating and
seals.
)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
of serious burns).
It is imperative to use only anti-ul-
traviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
Front lamps
1.
Dipped beam headlamps
(H7-55 W)
2.
Main beam headlamps
(H1-55 W)
3.
Sidelamps (H6W-6 W
)
Daytime running lamps/
sidelamps (LEDs)
4.
Direction indicators
(H21-21 W)
Model with halogen headlamps
Model with Xenon headlamps
and directional headlamps
1.
Dual-function Xenon
headlamps (dipped/main
beam)
2.
Additional main beams
(H7-55W)
3.
Sidelamps (H6W-6W)
Daytime running lamps/
sidelamps (LEDs
)
4.
Direction indicators (H21-21W)
Page 193 of 352
Downloaded from www.Manualslib.com manuals search engine XI
191
PRACTICAL INFORMATION
Main beam headlamps
)
Remove the rubber cover.
)
Detach the clips by lowering
them on each side of the bulb.
)
Pull on the bulb-holder to remove it.
)
Replace the faulty bulb.
)
Push the bulb-holder back into
its housing.
)
Reattach the clips.
)
Refi t the rubber cover.
Dual-function Xenon headlamps
(dipped/main beam)
Additional main beam headlamps
)
Remove the rubber cover.
)
Rotate the bulb-holder a quarter
turn anti-clockwise and remove it
from its housing.
)
Replace the faulty bulb.
)
Reposition the bulb-holder by
pushing it in, tightening it by a
quarter turn clockwise.
)
Refi t the rubber cover.
If the headlamp bears this
symbol, any operation to
change the Xenon dual-
function directional head-
lamp (D1S-35 W) must be carried
out by professionals (risk of elec-
trocution).
Contact a CITROËN dealer or a
qualifi ed workshop.
It is recommended to change both
bulbs at the same time if one of
them is faulty.
Dipped beam headlamps
)
Remove the rubber cover.
)
Rotate the bulb-holder a quarter
turn anti-clockwise and remove it
from its housing.
)
Replace the faulty bulb.
)
Reposition the bulb-holder by
pushing it in, tightening it by a
quarter turn clockwise.
)
Refi t the rubber cover.
Page 200 of 352
Downloaded from www.Manualslib.com manuals search engine XI
198
PRACTICAL INFORMATION
Fuses under the dashboard
Access to the fuses
)
Undo the screw by a quarter turn
and pivot the housing.
Table of fuses
Fuse N°
Rating
Functions
F1
15 A
Rear screen wipe
F2
30 A
Locking and unlocking earth
F3
5 A
Airbags and pretensioners
F4
10 A
Multimedia, photochromatic rear view mirror,
particle fi lter, diagnostic socket, air conditioning,
manual headlamp height adjustment
F5
30 A
Front windows, front door electronic control panel,
panoramic sunroof
F6
30 A
Rear windows
F7
5 A
Interior lamps, cooled glovebox, radio
F8
20 A
Multifunction screen, radio, steering mounted
controls, multimedia, under infl ation detection,
alarm, trailer
F9
30 A
Multimedia, front 12 V sockets, torch, radio
F10
15 A
Height corrector (suspension)
F11
15 A
Brake switch, ignition switch
F12
15 A
Parking sensors, automatic wipers and lighting,
passenger’s electric seat, lane departure warning
system, Hi-Fi amplifi er, trailer
F13
5 A
Engine relay unit (BSM), driver’s electric seat
F14
15 A
Air conditioning, Bluetooth ®
hands-free system, automatic
gearbox selector lever, airbags, instrument panel
F15
30 A
Locking and unlocking
F16
-
SHUNT
F17
40 A
Heated rear screen
Page 203 of 352
Downloaded from www.Manualslib.com manuals search engine XI
201
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F1
20 A
Engine management
F2
15 A
Horn
F3
10 A
Screenwash pump
F4
20 A
Headlamp wash pump
F5
15 A
Engine components
F6
10 A
Xenon dual-function directional headlamps, automatic headlamp height adjustment,
clutch switch, protection switch box (BCP)
F7
10 A
Automatic gearbox, engine coolant level switch, power steering
F8
25 A
Starter motor
F9
10 A
Stop lamp switch
F10
30 A
Engine components
F11
40 A
Rear blower
F12
30 A
Screen wipe
F13
40 A
Built-in Systems Interface (BSI)
F14
30 A
Air pump, heat exchange saver
F15
10 A
Right-hand main beam
F16
10 A
Left-hand main beam
F17
15 A
Left-hand dipped beam
F18
15 A
Right-hand dipped beam
F19
15 A
Engine components
F20
10 A
Engine components
F21
5 A
Cooling fan relay
Table of fuses
Page 208 of 352
Downloaded from www.Manualslib.com manuals search engine XI
206
PRACTICAL INFORMATION

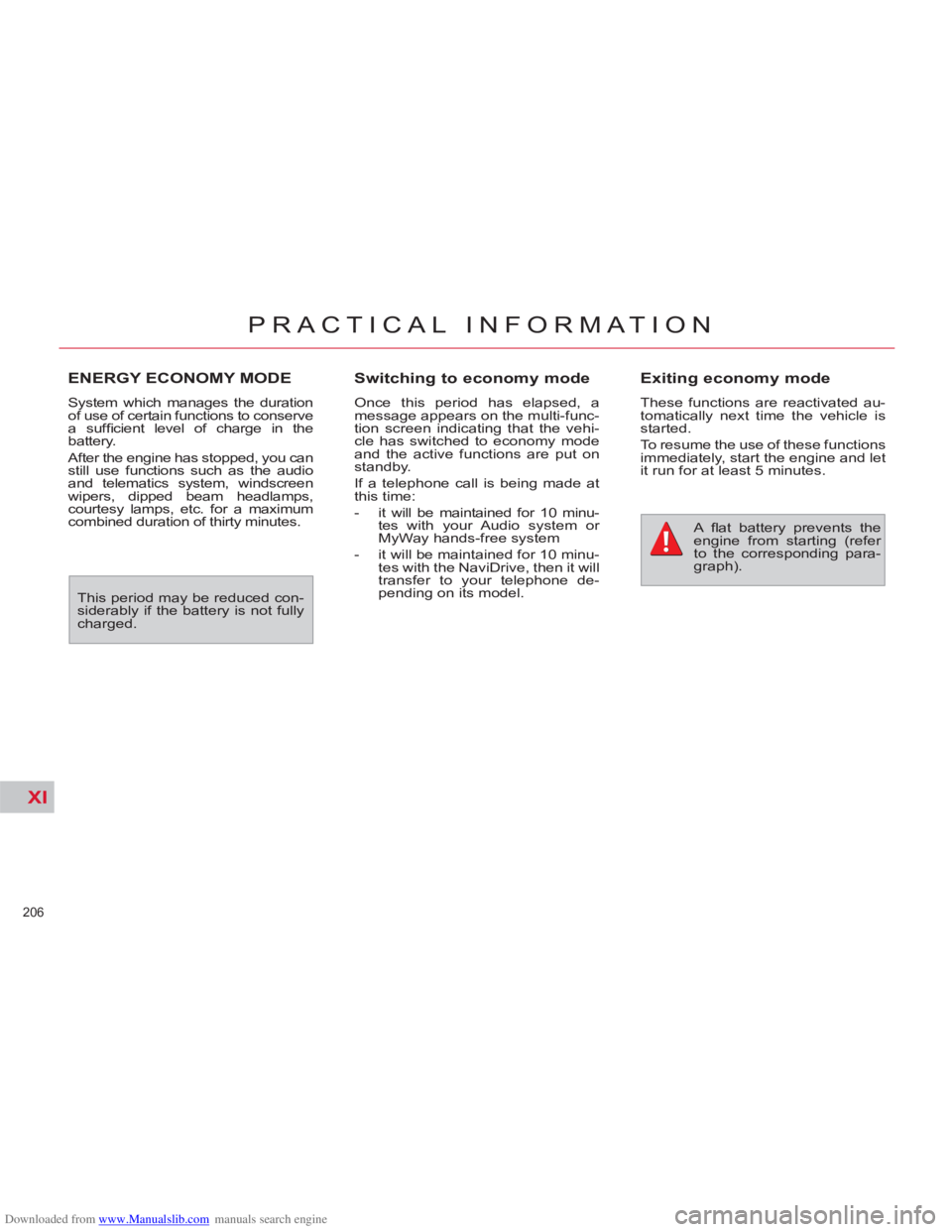

ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to conserve
a suffi cient level of charge in the
battery.
After the engine has stopped, you can
still use functions such as the audio
and telematics system, windscreen
wipers, dipped beam headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes.
Switching to economy mode
Once this period has elapsed, a
message appears on the multi-func-
tion screen indicating that the vehi-
cle has switched to economy mode
and the active functions are put on
standby.
If a telephone call is being made at
this time:
- it will be maintained for 10 minu-
tes with your Audio system or
MyWay hands-free system
- it will be maintained for 10 minu-
tes with the NaviDrive, then it will
transfer to your telephone de-
pending on its model.
Exiting economy mode
These functions are reactivated au-
tomatically next time the vehicle is
started.
To resume the use of these functions
immediately, start the engine and let
it run for at least 5 minutes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).
This period may be reduced con-
siderably if the battery is not fully
charged.
Page 339 of 352
Downloaded from www.Manualslib.com manuals search engine 337
VISUAL SEARCH
EXTERIOR
Remote control key....................... 78-83
- opening/closing
- anti-theft protection
- guide-me-home lighting
- starting
- battery
Very cold climate screen.................. 210
Exterior lighting
controls ...................................... 94-97
Headlamp adjustment........................ 98
Directional lighting ............................. 99
Wipers ............................................. 100
Changing bulbs......................... 190-193
- front lamps
- front foglamps
- side repeaters
Lane departure
warning system............................. 168
Door mirrors ....................................... 76
Side spotlamps .................................. 98
Doors ............................................ 88-89
- opening/closing
- central locking
- emergency control
Child lock ......................................... 125
Electric windows ........................... 86-87
Under-infl ation detection.................. 127
Braking assistance .......................... 128
Trajectory control ............................. 129
Pneumatic suspension ............. 171-172
Tyre pressures ................................. 226
Accessories .............................. 211-212
Panoramic sunroof ............................ 91
Roof bars ......................................... 210
Fuel tank ............................................ 92
Boot ................................................... 90
Temporary puncture
repair kit ................................. 183-185
Changing a wheel ..................... 186-189
- tools
- removing
Opening rear screen .......................... 90
Parking sensors ........................ 169-170
Towbar ............................................. 209
Towing ............................................. 207
Changing bulbs......................... 194-196
- rear lamps
- 3rd brake lamp
- number plate lamp
Page 341 of 352
Downloaded from www.Manualslib.com manuals search engine 339
VISUAL SEARCH
Exterior lighting
controls ...................................... 94-97
Direction indicators .......................... 126
Steering mounted controls........ 160-161
Speed limiter............................. 162-163
Cruise control ........................... 164-165
Parking space sensor ............... 166-167
Alarm ................................................. 84
Headlamp adjustment........................ 98
Stop & Start ..................................... 153
Opening the fuel fi ller fl ap .................. 92
Parking sensors ........................ 169-170
Instrument panels ......................... 31-32
Warning lamps .............................. 33-41
Indicators ...................................... 42-43
Gear shift
indicator ........................................ 148
Mileage recorders .............................. 44
Lighting dimmer ................................. 44
Door mirrors ....................................... 76
Electric windows, deactivating ...... 86-87
Horn ................................................. 126
Steering wheel adjustment ................ 77
Hazard warning lamps ..................... 126
Scented air freshener ................... 65-66
Wiper controls........................... 100-102
Trip computer ............................... 53-55
Interior mood lighting ....................... 104
Multifunction screens .................... 45-53
- Screen A
- Screen C
- MyWay colour screen
- NaviDrive colour screen
INSTRUMENTS AND CONTROLS (CONTINUED)
Page 343 of 352
Downloaded from www.Manualslib.com manuals search engine 341
VISUAL SEARCH
Checking levels ........................ 179-180
- oil
- brake fl uid
- power steering fl uid
- coolant
- screenwash/headlamp wash fl uid
Changing
bulbs ...................................... 190-193
Petrol engines.................................. 213
Petrol weights .................................. 214
Diesel engines .......................... 215-216
Diesel weights .......................... 217-220
Petrol/Diesel weights,
commercial versions .............. 221-222
Dimensions ............................... 223-225
Identifi cation markings ..................... 226
Bleeding the Diesel fuel fi lter ........... 175
Running out of fuel, Diesel .............. 176
Opening the bonnet ......................... 174
Under the bonnet, petrol .................. 177
Under the bonnet, Diesel ................. 178
Checking components .............. 181-182
- battery
- air/passenger compartment fi lter
- oil fi lter
- particle fi lter (Diesel)
- brake pads/discs
Fuses at the battery ......................... 202
Battery ...................................... 203-205
Energy economy mode.................... 206
Engine compartment
fuses ...................................... 200-201
TECHNICAL DATA - MAINTENANCE
Page 344 of 352
Downloaded from www.Manualslib.com manuals search engine 342
ALPHABETICAL INDEX
ABS and EBFD systems ........ 128Accessories...........................211Accessory socket, 12 V .........107Access to the 3rd row..............72Adjusting headlamps...............98Adjusting head restraints...67,70Adjusting seat belt height.......131Adjusting the steering wheel ....77Airbags, curtain..............137,138Airbags, front.........................138Airbags, lateral ...............137,138Air conditioning..................29,56Air conditioning, additional.......60Air conditioning, digital .............60Air conditioning, manual..........58Air distribution adjustment...t58,60Air filter...................................r181Air flow .....................................29Air flow adjustment ..................60Air recirculation..................58,60Air vents...................................56Alarm.......................................84Anti-lock braking system (ABS)...................................128Anti-pinch...........................86,91Anti-theft ..................................80Armrest, front...........................67Ashtray, portable....................107Assistance call ...............130,228Athermic windscreen.............105Audible warning.....................126Audio streaming(Bluetooth)...........................319Audio
system.........307,309, 322,324Automatic illumination
of headlamps ...................94,97
Automatic operation of hazard
warning lamps .....................126Automatic rain sensitivewindscreen wipers .......100, 101Auxiliary sockets ...........258,259,294,314, 316
Centre console ....................... 107Changing a bulb.....190, 194,195Changing a fuse.....................197Changing a wheel..................186Changing a wiper blade .........102Changingthe date................264, 298,321Changing the remote control battery........................82Changingthe time ................264, 298,321Checking levels..............179,180Checking the engineoil level...................................43Checks...........177,178, 181,182Child lock ...............................125Children.................120, 123,124Child seats ....................117,119Child seats, conventional ....... 120Child surveillance mirror........r105Cigar lighter...........................r107CITROËN call button .............229CITROËN services................229Closing the boot .................79,90Closing the doors...............79,88Cold climate screen...............210Cold storage.........................107Concertina boards...................74Connectors, audio.........108, 253,254,294, 314,316Control panel.........................276Coolant level..........................180Courtesy lamps..............103,196Cruise control.........................164Cup holder.............................r107
AAC
BBackup starting ......................203Bag hook ................................112Battery ...........................181, 203Battery, charging ....................203Battery, remote control .......82,83Battery compartmentfuse box ...............................197Blind for panoramic sunroof.....f91Blinds .............................105, 110Bluetooth(hands-free).........295,296, 317Bluetooth(telephone) ..........261,295, 296Bonnet...................................174Bonnet stay ............................174Boot .........................................90Boot lamp.......................116, 196Brake discs ............................182Brake lamps ...................194, 195Brake pads.............................182Brakes....................................182Braking assistance system ....128
Capacity, fuel tank...................92Cargo net..............................114CD MP3 .................252,293, 313Central locking .............79, 88,89
C
Page 345 of 352
Downloaded from www.Manualslib.com manuals search engine 343
ALPHABETICAL INDEX
Halogen headlamps...............190Hands-free kit........295, 296,317Hard disk (copy).............254,255Hazard warning lamps...........126Headlamp adjustment..............98Headlamps, directional......98, 99Headlamp wash.....................101Headlamp wash reservoir......r180Head restraints, front...............67Head restraints, rear................r70Heated seats............................68Heating..............................29, 56Height and reach adjustment,
steering wheel.......................77Hill start assist........................146
Date (setting)........264,298, 320,321Daytime runninglamps .....................96, 190,193Deactivating the passenger airbag................................... 135Deadlocking.............................79Demisting
the rear screen ................58,60Diesel additive level............... 180Dimensions............................ 223Dipped beam ...........94, 190,191Dipstick ............................43,179Directional lighting ...................99Direction indicators....... 126, 190,
192, 194,195Doors.......................................88Doors emergency control.........89Door trays ...................... 104,108Driving positions(memorising) ..........................69DVD player............................r330Dynamic emergencybraking................................. 139
Electronic engine immobiliser......................r80,83Emergency boot release ..........91Emergency braking system ....128Emergency call...... 130,228, 229Emergency warning lamps ....126Energy economy mode..........206Engine, Diesel ..................93, 178Engine, petrol ...................93, 177Engine compartment ......177, 178Engine compartmentfusebox................................197Engine oil levelindicator.........................r43, 179Engines ..........................213, 215Environment .......................29,83ESP/ASR ...............................129
G.P.S...... 239,242,245, 247,281Gearbox, automatic....... 156,182Gearbox,electronic .............149, 153,182Gearbox,manual.........147,148, 153,182Gear efficiency indicator........r148Gear lever................................r29Gear lever, automatic gearbox............... 156Gear lever, electronicgearbox system ................... 149Gear lever, manual gearbox....x147Glove box ............................... 106Guidance...............239, 245,281
DEG
H
EBA (Emergency braking
assistance)..........................128
Eco-driving ..............................29
Eco-driving (advice).................29
Economical driving ..................29
Economy mode ......................206
Electric window controls..........86
Electronic brake force
distribution (EBFD) ..............128
EFillin
g with fuel ...................92,93Fitting a wheel........................188Fitting roof bars ......................210Flashing indicators.................126Foglamps, rear.........................r95Folding the rear seats.....70, 72,74Fragrance cartridge.................65Front foglamps.................95, 193Front seats ..........................67-69Fuel....................................29,93Fuel consumption ....................29Fuel filler cap...........................92Fuel filler flap ...........................92Fuel gauge...............................92Fuel tank..................................92Fusebox, dashboard..............197Fuses.....................................197
F
Identification plates
................226Indicator lamps, status.............39Indicators, direction................126
I
