172
DRIVING
Loading/unloading
assistance
Grand
C4 Picasso
C4 Picasso
The pneumatic suspension has an
additional function: the possibility to
raise or lower the height of the rear
of the vehicle when stationary, in or-
der to facilitate loading/unloading of
the boot.
Increasing the height of the boot
fl oor
)
Press continuously the top con-
trol A
, which is located in the
boot, on the left-hand side.
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 beeps will confi rm that the move-
ment has gone as far as it can.
Returning to the normal height
)
Press briefl y the bottom of con-
trol A
twice.
Decreasing the height of the boot
fl oor
)
Press continuously the bottom of
control A
.
This action will be accompanied by
an audible signal. You can stop the
movement at any time by releasing
the control.
3 beeps will confi rm that the move-
ment has gone as far as it can.
Returning to the normal height
)
Press briefl y the top of control A
twice.
Driving with the boot in a
low position may damage
underbody components.
Particular points
- If you start the vehicle without
having returned it to the normal
height, automatic correction will
activate as soon as the vehicle
starts to move. During the cor-
rection, the service warning
lamp comes on and a message
on the screen reminds you not to
exceed 6 mph (10 km/h).
- Loading assistance does not
function in the following circum-
stances:
- If button B
is illuminated,
- in power economy mode,
- when you fi
rst use the function,
press control A
for two seconds
to initialise the system. The sys-
tem will respond normally to sub-
sequent operation of the control.
Page 176 of 352
Downloaded from www.Manualslib.com manuals search engine X
174
CHECKS

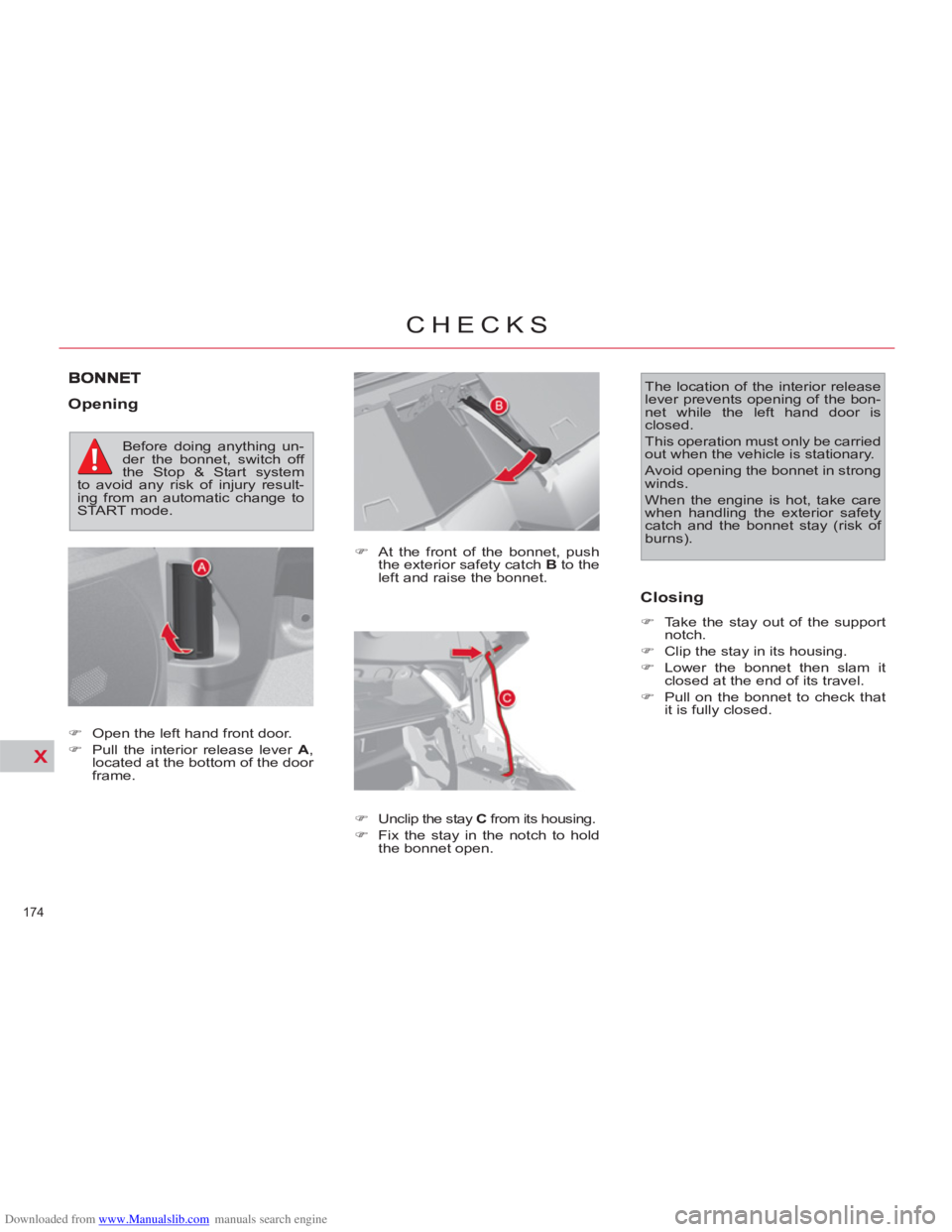

Opening
)
At the front of the bonnet, push
the exterior safety catch B
to the
left and raise the bonnet.
)
Unclip the stay C
from its housing.
)
Fix the stay in the notch to hold
the bonnet open.
Closing
)
Take the stay out of the support
notch.
)
Clip the stay in its housing.
)
Lower the bonnet then slam it
closed at the end of its travel.
)
Pull on the bonnet to check that
it is fully closed.
The location of the interior release
lever prevents opening of the bon-
net while the left hand door is
closed.
This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.
When the engine is hot, take care
when handling the exterior safety
catch and the bonnet stay (risk of
burns).
)
Open the left hand front door.
)
Pull the interior release lever A
,
located at the bottom of the door
frame.
Before doing anything un-
der the bonnet, switch off
the Stop & Start system
to avoid any risk of injury result-
ing from an automatic change to
START mode.
Page 183 of 352
Downloaded from www.Manualslib.com manuals search engine X
181
CHECKS
CHECKS
12 V battery
The battery does not re-
quire any maintenance.
However, check that the
terminals are clean and
correctly tightened, partic-
ularly in summer and winter.
When carrying out work on the bat-
tery, refer to the "Practical information"
section for details of the precautions
to be taken before disconnecting the
battery and following its reconnection.
Particle filter system (Diesel)
Complementary to the catalytic
converter, this fi lter makes an ac-
tive contribution to the preservation
of air quality by the retaining of the
unburnt pollutant particles. Black
exhaust fumes are thus no longer
emitted.
After prolonged idling or driving
at very low speeds, you may oc-
casionally notice water vapour be-
ing emitted from the exhaust when
accelerating. This is of no conse-
quence to the running of the vehicle
or to the environment.
If there is risk of clogging, a mes-
sage appears on the multifunction
screen, accompanied by an audible
signal and lighting of the service
warning lamp.
This alert tells you that the particle
fi lter is starting to fi ll up (in condi-
tions of urban driving of excep-
tionally long duration: low speeds,
traffi c jams etc.)
To regenerate the fi lter, it is advised
to drive as soon as possible, when
traffi c conditions permit, at a speed
of 40 mph (around 60 km/h) or
more for at least fi ve minutes (until
the alert message disappears).
If this alert persists, consult a
CITROËN dealer or a qualifi ed
workshop.
The presence of this label, in par-
ticular with the Stop & Start system,
indicates the use of a specifi c 12 V
lead-acid battery with special tech-
nology and specifi cation, for which
the involvement of a CITROËN
dealer or a qualifi ed workshop is
required when replacing or discon-
necting the battery. Failure to observe this recommen-
dation may shorten the life of the
battery.
Unless otherwise indicated, check
these components in accordance
with the servicing booklet and ac-
cording to your engine.
Otherwise, have them checked by
a CITROËN dealer or a qualifi ed
workshop.
Air filter and passenger
compartment filter
Refer to the servicing
booklet for details of the
replacement intervals for
these components.
Depending on the environ-
ment (e.g. dusty atmosphere) and
the use of the vehicle (e.g. city driv-
ing), replace them twice as often
if necessary
(refer to the "Engines"
section).
A clogged passenger compartment
fi lter may have an adverse effect on
the performance of the air condition-
ing system and generate undesir-
able odours.
Oil filter
Replace the oil fi lter each
time the engine oil is
changed.
Refer to the servicing
booklet for details of the
replacement interval for this compo-
nent.
Page 203 of 352
Downloaded from www.Manualslib.com manuals search engine XI
201
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F1
20 A
Engine management
F2
15 A
Horn
F3
10 A
Screenwash pump
F4
20 A
Headlamp wash pump
F5
15 A
Engine components
F6
10 A
Xenon dual-function directional headlamps, automatic headlamp height adjustment,
clutch switch, protection switch box (BCP)
F7
10 A
Automatic gearbox, engine coolant level switch, power steering
F8
25 A
Starter motor
F9
10 A
Stop lamp switch
F10
30 A
Engine components
F11
40 A
Rear blower
F12
30 A
Screen wipe
F13
40 A
Built-in Systems Interface (BSI)
F14
30 A
Air pump, heat exchange saver
F15
10 A
Right-hand main beam
F16
10 A
Left-hand main beam
F17
15 A
Left-hand dipped beam
F18
15 A
Right-hand dipped beam
F19
15 A
Engine components
F20
10 A
Engine components
F21
5 A
Cooling fan relay
Table of fuses
Page 205 of 352
Downloaded from www.Manualslib.com manuals search engine XI
203
PRACTICAL INFORMATION

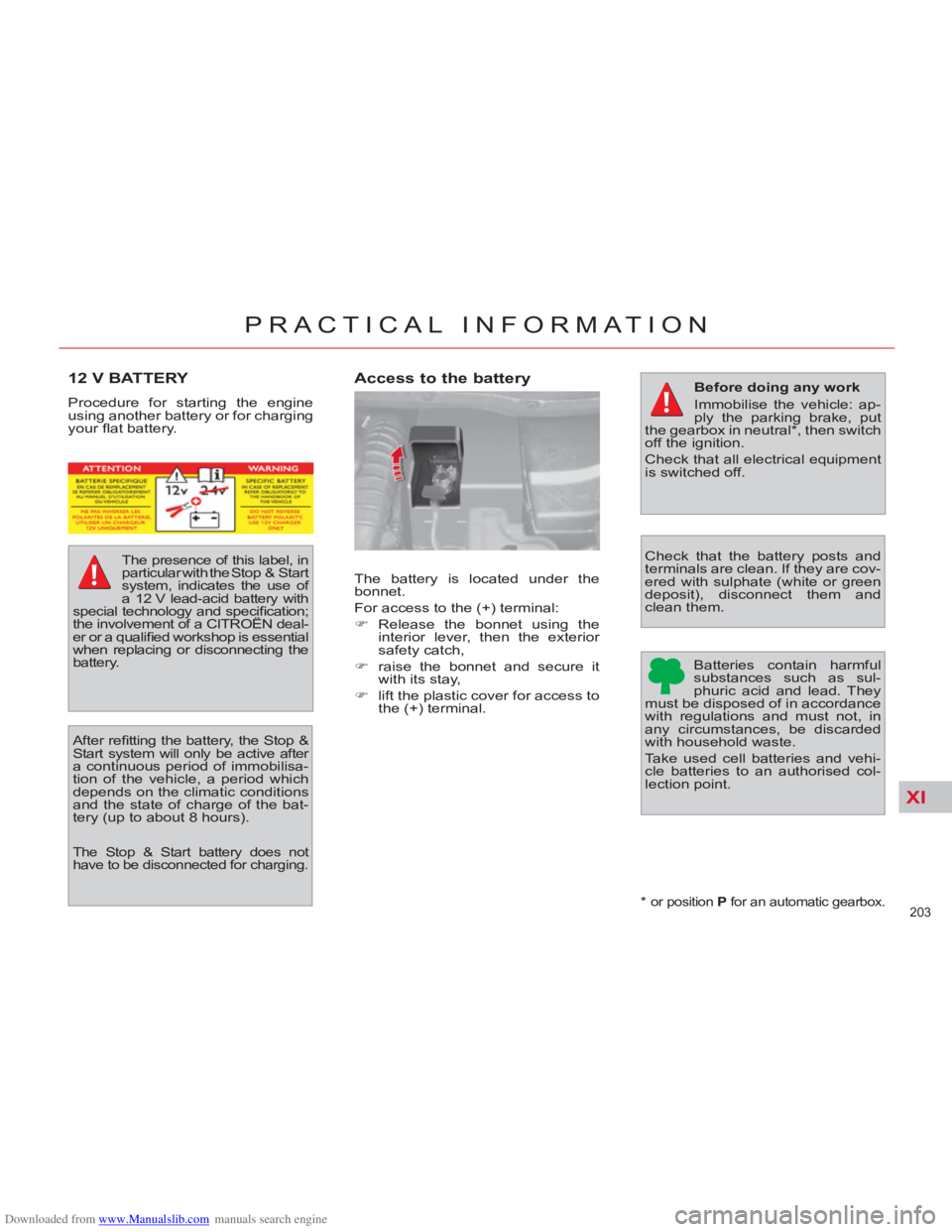

12 V BATTERY
Procedure for starting the engine
using another battery or for charging
your fl at battery.
The Stop & Start battery does not
have to be disconnected for charging.
The presence of this label, in
particular with the Stop & Start
system, indicates the use of
a 12 V lead-acid battery with
special technology and specifi cation;
the involvement of a CITROËN deal-
er or a qualifi ed workshop is essential
when replacing or disconnecting the
battery.
After refi tting the battery, the Stop &
Start system will only be active after
a continuous period of immobilisa-
tion of the vehicle, a period which
depends on the climatic conditions
and the state of charge of the bat-
tery (up to about 8 hours).
*
or position P
for an automatic gearbox.
Access to the battery
Before doing any work
Immobilise the vehicle: ap-
ply the parking brake, put
the gearbox in neutral * , then switch
off the ignition.
Check that all electrical equipment
is switched off.
Check that the battery posts and
terminals are clean. If they are cov-
ered with sulphate (white or green
deposit), disconnect them and
clean them.
Batteries contain harmful
substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in
any circumstances, be discarded
with household waste.
Take used cell batteries and vehi-
cle batteries to an authorised col-
lection point.
The battery is located under the
bonnet.
For access to the (+) terminal:
)
Release the bonnet using the
interior lever, then the exterior
safety catch,
)
raise the bonnet and secure it
with its stay,
)
lift the plastic cover for access to
the (+) terminal.
Page 208 of 352
Downloaded from www.Manualslib.com manuals search engine XI
206
PRACTICAL INFORMATION
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to conserve
a suffi cient level of charge in the
battery.
After the engine has stopped, you can
still use functions such as the audio
and telematics system, windscreen
wipers, dipped beam headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes.
Switching to economy mode
Once this period has elapsed, a
message appears on the multi-func-
tion screen indicating that the vehi-
cle has switched to economy mode
and the active functions are put on
standby.
If a telephone call is being made at
this time:
- it will be maintained for 10 minu-
tes with your Audio system or
MyWay hands-free system
- it will be maintained for 10 minu-
tes with the NaviDrive, then it will
transfer to your telephone de-
pending on its model.
Exiting economy mode
These functions are reactivated au-
tomatically next time the vehicle is
started.
To resume the use of these functions
immediately, start the engine and let
it run for at least 5 minutes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).
This period may be reduced con-
siderably if the battery is not fully
charged.
Page 217 of 352
Downloaded from www.Manualslib.com manuals search engine XII
215
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
UA... UE... UD...
9HZ-C
9HZ-C/
CU1
9HZ-H/P
9HZ-H/
PCU1
9HR-8
9HR-8/
CU1
9HR-8/P
9HR-8/
PCU1
9HR-8/PS
RHJ-H/P
RHJ-H/
PCU1
RHR-J
DIESEL ENGINES
HDi 110
HDi 110
HDi 138
Cubic capacity (cc)
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
85 x 88
EU standard maximum power (kW)
80
82
100
Maximum power engine speed (rpm)
4 000
3 600
4 000
EU standard maximum torque (Nm)
240
270
270
320
Maximum torque engine speed (rpm)
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Ye s
Yes
Yes
Particle emission fi lter (PEF)
Ye s
Yes
Yes
GEARBOXES
Manual
(5-speed)
Electronic
gearbox
system
(6-speed)
Manual
(6-speed)
Electronic
gearbox
system
(6-speed)
Electronic
gearbox
system
(6-speed)
Electronic
gearbox
system
(6-speed)
Automatic
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
3.75
-
-
5.25
5.25
...S:
model fi tted with Stop & Start.
UA...:
CITROËN Grand C4 Picasso (7-seat).
UE...:
CITROËN Grand C4 Picasso (5-seat).
UD...:
CITROËN C4 Picasso (5-seat).
...CU1:
commercial versions.
Page 236 of 352
Downloaded from www.Manualslib.com manuals search engine 234
02
1
2
VOICE COMMANDS
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
DISPLAYING THE LIST AND USING THEM
To display the list o
f available voice commands, press the voice recognition control to start the voice recognition,
then say HELP or the voice recognition command.
For the same operation, press and
hold the MENU button and select the"Voice commands list" function.
Press the voice recognition control tostart the voice recognition.
Say the words one by one and wait for the audible confi rmation signal between each word.
Th
e list which follows is exhaustive.
LEVEL 1LEVEL 2LEVEL 3
radiomemoryautostoreprevious/next
list 1 to
6/*
cd pla
yer
Jukebox (if activated)
USB previous/next track
track number/track scan
random play
directory (CD-MP3 inserted)
list 1 t
o 250/*
previous/next
repeat
help/what can I say/cancel
call/guide to "Pre-recorded descri
ption"
telephone l
ast number
voice box
voice mail
directory "Pre-recorded description"
messagedisplay
read
directory
"Pre-recorded description"
navigation stop/resume
zoom in/out
view *
destination
vehicle
traffi c info display
read
displayaudio
telephone
tr
ip computer
Navigation
a
ir conditioning
previous/next
stop
delete yes/nof
or all level 1 and 2
* help/what can I say/cancelfor all level 1, 2 or *
Voice commands list
Page 257 of 352
Downloaded from www.Manualslib.com manuals search engine 255
06
1
2
4
3
6
5
COPYING A CD ONTO THE HARD DISK
Select "Audio functions" then select
CD and press the dial to confi rm.
Insert an audio
CD or an MP3compilation and press the MENU button.
Select "Copy CD to jukebox" and press
the dial to confi rm.
Select the letters one b
y one and select "OK" to confi rm.
The "Auto creation" tab automaticall
y copies the CD by default into
an album of the type "album n∞...".
The audio or MP3
CD is copied onto the hard disk. Copying
may take up to 20 minutes depending on the length the CD.
While copying is in progress, it is not possible to listen to albums
previously copied to the hard disk or to CDs.
If it is not an MP3 CD, the Jukebox automaticall
y compresses theCD in MP3 format. The compression may take approximately20 minutes depending on the length the CD. During thiscompression phase, it is possible to listen to the CD or to albums
previously copied to the hard disk.
A lon
g press on the SOURCE button starts copying of the CD.
Audiofunctions
OK
Copy CD to jukebox
Select "Complete CD" to copy the entire CD and press the dial to confi rm.
Complete CD
To stop the cop
y, repeat points 2 and 3.Select "Stop copy" and press the dial to confi rm.
Stop copy
It is not possible to copy fi les from the Jukebox to a CD.
The "
Stop the CD copy" action does not delete the fi les which have
already been transferred onto the jukebox hard disk.
Page 274 of 352
Downloaded from www.Manualslib.com manuals search engine 272
QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.
The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
TRAFFIC INFO is selected. However,certain traffi c jams along the route are notindicated in real time.
On starting, it is several minutes before the system begins to receive thetraffi c information.
Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, only major routes (motorways, ...) are listed for thetraffi c information.
This phenomenon is normal. The system isdependent on the traffi c information available.
The time taken to calculate a route sometimes seems longer than usual.
The performance of the system may slow down temporarily if a CD isbeing copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
