Page 5 of 352
Downloaded from www.Manualslib.com manuals search engine CONTENTS
3
Direction indicators 126Hazard warning lamps 126Horn 126Tyre under-infl ation detection 127Braking assistance systems 128Trajectory control systems 129Emergency or assistance call 130Seat belts 131Airbags 135
■■■■■■■■■
VIII-SAFETY 126 Î138
Electric parking brake 139Hill start assist 146Manual gearbox 147Gear shift indicator 1486-speed electronic gearbox system 149Stop & Start 153Automatic gearbox 156Fixed centred controlssteering wheel 160Speed limiter 162Cruise control 164Parking space sensors 166Lane departure warning system 168Parking sensors 169Pneumatic suspension 171
■■■■■
■■■
■■■■■■
IX - DRIVING 139 Î172
Bonnet 174Running out of fuel (Diesel) 176Petrol engines 177Diesel engines 178Checking levels 179Checks 181
■■■■■■
X - CHECKS 173 Î 182
Temporary puncture repair kit 183Changing a wheel 186Changing a bulb 190Changing a fuse 19712 V battery 203Energy economy mode 206Towing the vehicle 207Towing a trailer 209Roof bars 210Very cold climate screen 210Accessories 211
■■■■■■■■■■■
XI - PRACTICALINFORMATION 183 Î 212
Petrol engines 213Petrol weights 214Diesel engines 215Diesel weights 217Petrol/Diesel weights - commercial
versions 221Dimensions 223Identifi cation markings 226
■■■■■
■■
XII - TECHNICALDATA 213 Î226
Emergency or assistance 227NaviDrive 231MyWay 275Audio system 307Video pack 329
■■■■■
AUDIO andTELEMATICS 227 Î336
VISUALSEARCH 337 Î 341
ALPHABETICALINDEX 342 Î 348
Page 129 of 352
Downloaded from www.Manualslib.com manuals search engine VIII
127
SAFETY
TYRE UNDER-INFLATION DETECTION
Sensors fi tted in each valve check
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
Under-infl ated tyre The tyre under-infl ation detection
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver.
Puncture
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen lo-
cating the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The STOP
warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen lo-
cating the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
tured or very defl ated tyre), and
have the tyre pressure checked as
soon as possible.
Sensor(s) not detected or faulty
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen
locating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer or a qualifi ed
workshop. All repairs and changing of tyres
on a wheel fi tted with this system
must be carried out by a CITROËN
dealer or a qualifi ed workshop.
If, when changing a tyre, you in-
stall a wheel which is not detected
by your vehicle (example: fi tting
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer or a qualifi ed workshop.
This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Technical data - Identifi cation
markings" section) to ensure that
the optimum dynamic performance
of the vehicle is maintained and
prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnetic
signals on a frequency close to that
used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
The spare wheel is not fi tted with a
sensor.
Page 191 of 352
Downloaded from www.Manualslib.com manuals search engine XI
189
PRACTICAL INFORMATION
Temporary use spare wheel
If your vehicle is equipped with a
spare wheel for temporary use only,
when fi tting this it is normal to ob-
serve that the wheel bolts do not
come to bear directly on the wheel
rim.
The spare wheel is secured by the
conical tapering of the wheel bolt’s
shaft.
When refi tting the original wheel, en-
sure that the wheel bolts and wash-
ers are clean and in good condition.
Fitting a wheel
)
Position the wheel with the aid of
the centring guide 3
.
)
Do up the 3 bolts by hand, then
remove the centring guide 3
.
Position the 4 th bolt.
)
Pre-tighten the wheel bolts, us-
ing the wheelbrace 4
.
)
Retract the jack 5
and disengage it.
)
Tighten the wheel bolts, using
the wheelbrace 4
.
)
Ensure that the tyre pressure is
correct.
Under-infl ation detection
Wheels with under-infl ation detection
have tyre pressure sensors. Have repairs
to them carried out by a CITROËN dealer
or a qualifi ed workshop. The spare wheel
does not have a sensor.
Security bolts (alloy wheels)
Each wheel may be equipped with
one security bolt (depending on the
country of sale).
To remove it:
)
remove its protective cover us-
ing of the tool for removing the
chrome covers 2
.
)
use the security bolt socket 6
with the wheelbrace 4
.
Spare wheel dimensions
If your spare wheel has dimensions
different from those of the standard
vehicle wheels (identifi ed by a la-
bel), it is imperative to use the spare
wheel only temporarily, to drive
with caution, not to exceed 50 mph
(80 km/h) and to have the tyre re-
paired and the standard wheel refi t-
ted as soon as possible.
Tyre pressures
These are indicated on the label
on the front left-hand door pillar
(see "Technical Data - Identifi cation
markings").
The wheel bolts are specifi c
to each type of wheel.
If new wheels are fi tted, check with
your CITROËN dealer or a qualifi ed
workshop that the wheel bolts are
compatible with the new wheels.
Make a note of the code number on
the head of the security bolt sock-
et. This will enable you to obtain a
replacement security bolt socket
from your dealer.
Page 211 of 352
Downloaded from www.Manualslib.com manuals search engine XI
209
PRACTICAL INFORMATION
Towbar suitable for the attachment
of a trailer with additional lighting
and signalling.
Your vehicle is primarily designed
for transporting people and luggage,
but it may also be used for towing a
trailer.
We recommend the use of genuine
CITROËN towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to
a CITROËN dealer or a qualifi ed
workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is imperative
that it is fi tted in accordance with the
vehicle manufacturer's instructions.
Driving advice
Distribution of loads
)
Distribute the load in the trailer
so that the heaviest items are as
close as possible to the axle and
the nose weight approaches the
maximum permitted without ex-
ceeding it.
Air density decreases with altitude,
thus reducing engine performance.
Above 1 000 metres, the maximum
towed load must be reduced by 10 %
for every 1 000 metres of altitude.
Refer to the "Technical Data" section
for details of the weights and towed
loads which apply to your vehicle.
Side wind
)
Take into account the increased
sensitivity to side wind.
)
To lower the engine speed, re-
duce your speed.
The maximum towed load on a long
incline depends on the gradient and
the ambient temperature.
In all cases, keep a check on the
coolant temperature.
)
If the warning lamp and
the STOP
warning lamp
come on, stop the vehicle
and switch off the engine
as soon as possible.
Braking
Towing a trailer increases the brak-
ing distance.
To avoid overheating of the brakes
on a long mountain type of descent,
the use of engine braking is recom-
mended.
Tyres
)
Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended
pressures.
Lighting
)
Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine CITROËN towbar is used.
Driving with a trailer places greater
demands on the towing vehicle and
the driver must take particular care.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
Page 215 of 352
Downloaded from www.Manualslib.com manuals search engine XII
213
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
UA... UE... UD...
5FS-0
5FS-0/CU1
5FV-8/P
5FV-8/PCU1
RFJ-F
PETROL ENGINES
VTi 120
THP 155
VTi 143
Cubic capacity (cc)
1 598
1 598
1 997
Bore x stroke (mm)
77 x 85.8
77 x 85.8
85 x 88
EU standard maximum power (kW)
88
11 5
103
Maximum power engine speed (rpm)
6 000
6 000
6 000
EU standard maximum torque (Nm)
160
240
200
Maximum torque engine speed (rpm)
4 250
1 400
4 000
Fuel
Unleaded
Unleaded
Unleaded
Catalytic converter
Yes
Yes
Yes
GEARBOXES
Manual
(5-speed)
Electronic gearbox system
(6-speed)
Auto.
(4-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
4.25
-
5
UA...:
CITROËN Grand C4 Picasso (7-seat).
UE...:
CITROËN Grand C4 Picasso (5-seat).
UD...:
CITROËN C4 Picasso (5-seat).
...CU1:
commercial versions.

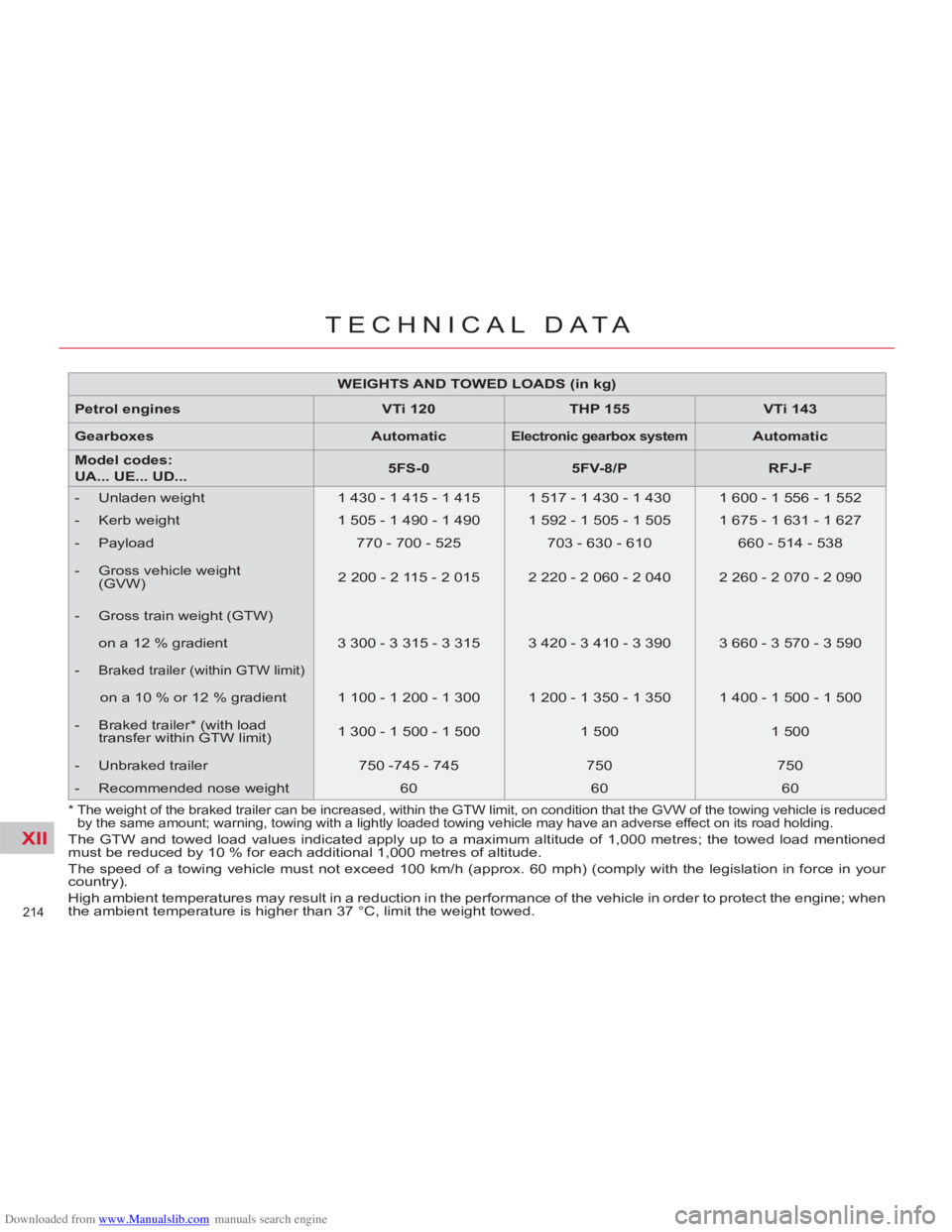

Page 216 of 352
Downloaded from www.Manualslib.com manuals search engine XII
214
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 120
THP 155
VTi 143
Gearboxes
Automatic
Electronic gearbox system
Automatic
Model codes:
UA... UE... UD...
5FS-0
5FV-8/P
RFJ-F
- Unladen weight
1 430 - 1 415 - 1 415
1 517 - 1 430 - 1 430
1 600 - 1 556 - 1 552
- Kerb weight
1 505 - 1 490 - 1 490
1 592 - 1 505 - 1 505
1 675 - 1 631 - 1 627
- Payload
770 - 700 - 525
703 - 630 - 610
660 - 514 - 538
- Gross vehicle weight
(GVW)
2 200 - 2 115 - 2 015
2 220 - 2 060 - 2 040
2 260 - 2 070 - 2 090
- Gross train weight (GTW)
on a 12 % gradient
3 300 - 3 315 - 3 315
3 420 - 3 410 - 3 390
3 660 - 3 570 - 3 590
-
Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 100 - 1 200 - 1 300
1 200 - 1 350 - 1 350
1 400 - 1 500 - 1 500
- Braked trailer * (with load
transfer within GTW limit)
1 300 - 1 500 - 1 500
1 500
1 500
- Unbraked trailer
750 -745 - 745
750
750
- Recommended nose weight
60
60
60
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.
*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 217 of 352
Downloaded from www.Manualslib.com manuals search engine XII
215
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
UA... UE... UD...
9HZ-C
9HZ-C/
CU1
9HZ-H/P
9HZ-H/
PCU1
9HR-8
9HR-8/
CU1
9HR-8/P
9HR-8/
PCU1
9HR-8/PS
RHJ-H/P
RHJ-H/
PCU1
RHR-J
DIESEL ENGINES
HDi 110
HDi 110
HDi 138
Cubic capacity (cc)
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
85 x 88
EU standard maximum power (kW)
80
82
100
Maximum power engine speed (rpm)
4 000
3 600
4 000
EU standard maximum torque (Nm)
240
270
270
320
Maximum torque engine speed (rpm)
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Ye s
Yes
Yes
Particle emission fi lter (PEF)
Ye s
Yes
Yes
GEARBOXES
Manual
(5-speed)
Electronic
gearbox
system
(6-speed)
Manual
(6-speed)
Electronic
gearbox
system
(6-speed)
Electronic
gearbox
system
(6-speed)
Electronic
gearbox
system
(6-speed)
Automatic
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
3.75
-
-
5.25
5.25
...S:
model fi tted with Stop & Start.
UA...:
CITROËN Grand C4 Picasso (7-seat).
UE...:
CITROËN Grand C4 Picasso (5-seat).
UD...:
CITROËN C4 Picasso (5-seat).
...CU1:
commercial versions.
Page 218 of 352
Downloaded from www.Manualslib.com manuals search engine XII
216
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
UA... UE... UD...
RHE-8
RHE-8/CU1
RHE-8/P
RHH-A
DIESEL
ENGINES
HDi 150
HDi 163
Cubic capacity (cc)
1 997
1 997
Bore x stroke (mm)
85 x 88
85 x 88
EU standard maximum power (kW)
110
120
Maximum power engine speed (rpm)
3 750
3 750
EU standard maximum torque (Nm)
340
340
Maximum torque engine speed (rpm)
2 000
2 000
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter (PEF)
Yes
Yes
GEARBOXES
Manual
(6-speed)
Electronic gearbox system
(6-speed)
Automatic
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
5.25
-
5.25
UA...:
CITROËN Grand C4 Picasso (7-seat).
UE...:
CITROËN Grand C4 Picasso (5-seat).
UD...:
CITROËN C4 Picasso (5-seat).
...CU1:
commercial versions.
Page 219 of 352
Downloaded from www.Manualslib.com manuals search engine XII
217
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
HDi 110
Gearboxes
Manual
Electronic gearbox system
Model codes:
UA... UE... UD...
9HZ-C
9HZ-H/P
- Unladen weight
1 530 - 1 484 - 1 489
1 539 - 1 494 - 1 499
- Kerb weight
1 605 - 1 559 - 1 564
1 614 - 1 569 - 1 574
- Payload
720 - 546 - 561
711 - 536 - 561
- Gross vehicle weight (GVW)
2 250 - 2 030 - 2 050
2 250 - 2 030 - 2 060
- Gross train weight (GTW)
on a 12 % gradient
3 130
3 130
-
Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
880 - 1 100 - 1 080
880 - 1 100 - 1 070
- Braked trailer * (with load
transfer within GTW limit)
1 180 - 1 300 - 1 300
1 180 - 1 300 - 1 300
- Unbraked trailer
750
750
- Recommended nose weight
50 - 60 - 60
50 - 60 - 60
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.
*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 220 of 352
Downloaded from www.Manualslib.com manuals search engine XII
218
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.
WEIGHTS AND TOWED LOADS (in kg)
Diesel
engines
HDi 110
Gearboxes
Manual
Electronic gearbox system
Electronic gearbox system
Model codes:
UA... UE... UD...
9HR-8
9HR-8/P
9HR-8/PS
- Unladen weight
1 490 - 1 430 - 1 430
1 510 - 1 470 - 1 420
1 520 - 1 480 - 1 430
- Kerb weight
1 565 - 1 505 - 1 505
1 585 - 1 545 - 1 495
1 595 - 1 555 - 1 505
- Payload
760 - 670 - 620
740 - 630 - 640
730 - 620 - 630
- Gross vehicle weight (GVW)
2 250 - 2 100 - 2 050
2 250 - 2 100 - 2 060
2 250 - 2 100 - 2 060
- Gross train weight (GTW)
on a 12 % gradient
3 130
3 130
3 130
-
Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
880 - 1 030 - 1 080
880 - 1 030 - 1 070
750 - 900 - 940
- Braked trailer * (with load
transfer within GTW limit)
1 180 - 1 330 - 1 380
1 180 - 1 330 - 1 370
1 050 - 1 200 - 1 240
- Unbraked trailer
750
750 - 750 - 745
750
- Recommended nose weight
60
60
60
*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
