The system is deactivated by pressing the control.
The
  system   is   deactivated   automatically:
-

o
n   switching   off   the   ignition,
-

i
f   the   engine   stalls,
-

i
f no manoeuvre is started within 5 minutes
of selection of the type of manoeuvre,
-

a
fter   a   prolonged   stop   of   the   vehicle   during
a

manoeuvre,
-

i
f   the   road   wheel   anti-slip   regulation   (ASR)
i

s
 t
riggered,
-

i
f   the   speed   of   the   vehicle   exceeds   the
s

tated limit,
-

w
hen the driver interrupts movement of the
steering
 w

heel,
-

a
fter 4 manoeuvre cycles,
-

o
n   opening   the   driver's   door,
-

i
f one of the front wheels encounters an
obstacle.
The
  operation   indicator   lamp   goes   off   in   the
i

nstrument   panel   and   a   message   is   displayed
a

ccompanied   by   an   audible   signal.
The
  driver   should   then   take   back   control   of   the
v

ehicle's
 s
teering.
Deactivation
The system is switched off automatically:
-  w hen   towing   a   trailer,   connected
e

lectrically,
-

i
f   the   driver's   door   is   opened,
-

i
f the speed of the vehicle is above 42 mph
(70
  km/h).
To
  switch   the   system   of   for   a   prolonged   period,
c

ontact a CITROËN dealer or a qualified
workshop.
Operating faults
In the event of a fault with the power
steering,   this   warning   lamp   flashes   in
t

he instrument panel, accompanied
by
  a   message.
Contact a CITROËN dealer or a qualified
workshop.
Switching off
If the lateral distance between your
vehicle   and   the   space   is   too   great,   the s

ystem may not be able to measure the
space.
Anything
  projecting   beyond   the   envelope
 o

f the vehicle (a ladder on the roof, for
example)
  is   not   taken   into   account   by   the
 P

ark   Assist   system   during   a   manoeuvre.
In bad weather or in winter, ensure that
the sensors are not covered by road
dirt,
  ice   or   snow.
In the event of a fault, have the system
checked
  by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
If

the

system

is

deactivated

during

a

ma

noeuvre, the drive should reactivate
it

to

repeat

the

measurement. In

the

event

of

a

fault,

this

warning

l

amp flashes for a few seconds,
accompanied

by

an

audible

signal.
If

the

fault

occurs

during

the

use

o

f

the

system,

the

warning

lamp

g

oes off. High pressure jet washing
When
  washing   your   vehicle,   keep   the
l

ance   at   least   30   cm   away   from   the
sen

sors.
4
Driving

200
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Under-inflation detection
The system monitors the pressures in the four
tyres,
  once   the   vehicle   is   moving.
It
  compares   the   information   given   by   the   four
w

heel speed sensors with reference values,
which must be reinitialised ever y time the
tyre pressures are adjusted or a wheel
changed .
The
  system   triggers   an   alert   as   soon   as   it
d

etects a drop in the inflation pressure of one
or
  more   tyres. The under-inflation detection system
does
  not   replace   the   need   for   vigilance
o

n   the   part   of   the   driver.
This system does not avoid the need to
check
  the   tyre   pressures   (including   the
s

pare wheel) every month as well as
before
  a   long   journey.
Driving
  with   under-inflated   tyres   impairs
r

oad   holding,   extends   braking   distances
a

nd causes premature tyre wear,
particularly under arduous conditions
(high
  loading,   high   speed,   long   journey).
System
  which   automatically   checks   the   pressures   of   the   tyres   while   driving.
The inflation pressures defined for
your vehicle can be found on the tyre
pressure
  label.
For more information on the
Identification markings , refer to the
corresponding
 s

ection.
Tyre
  pressures   should   be   checked
w

hen the tyres are "cold" (vehicle
stopped
  for   1   hour   or   after   a   journey   of
l

ess   than   6   miles   (10   km)   at   moderate
s

peeds).
Other wise
  (when   hot),   add   0.3   bar   to
t

he   pressures   shown   on   the   label.
Driving
  with   under-inflated   tyres
i

ncreases   fuel   consumption.
Driving

201
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Under-inflation alertReinitialisation
This is given by fixed illumination of t
his   warning   lamp,   accompanied   by
a

n   audible   signal   and,   depending   on
e

quipment,   the   display   of   a   message. It is necessary to reinitialise the system every
time
  one   or   more   tyre   pressures   are   adjusted,
a

nd   after   changing   one   or   more   wheels.
F

R

educe speed immediately, avoid
excessive
  steering   movements   and   sudden
b

raking.
F

S

top the vehicle as soon as it is safe
to

do

so. F
I n the event of a puncture, use the
temporary
  puncture   repair   kit   or   the   spare
w

heel   (depending   on   equipment),
or
F

i
f you have a compressor, such as the one
in
  the   temporary   puncture   repair   kit,   check
t

he pressures of the four tyres when cold,
or
F

i
f   it   is   not   possible   to   make   this   check
i

mmediately, drive carefully at reduced
speed.
The loss of pressure detected does not
always
  cause   visible   bulging   of   the   tyre.
D

o

not   satisfy   yourself   with   just   a   visual
c

heck. The alert is maintained until the system
is
 r

einitialised.
Snow chains
The system does not have to be
reinitialised  after   fitting   or   removing
sn

ow
 c
hains.
Before
  reinitialising   the   system,   ensure
t

hat the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the
tyre   pressure   label.
The under-inflation alert can only
be relied on if the reinitialisation of
the system has been done with the
pressures in the four tyres correctly
adjusted.
The under-inflation detection system
does   not   give   a   warning   if   a   pressure   is
i

ncorrect   at   the   time   of   reinitialisation.
4
Driving

202
C4-Picasso-II_en_Chap04_conduite_ed01-2016
Reinitialisation of the system is done in the
touch  screen   tablet,   with   the   ignition   on   and   the
v

ehicle   stationary.
F

I
n the Driving menu, select the " Driving
assistance " tab then "Under-inflation
initialisation".
F

C
onfirm   the   instruction   by   pressing   "Ye s ",
an
  audible   signal   and   a   message   confirm
th

e
 r
einitialisation.
The
  new   pressure   settings   registered   are
c

onsidered to be reference values by the
system.
Operating fault
The flashing and then fixed illumination of the u nder-inflation w arning lam p a ccompanied b

y   illumination   of   the   Service   warning   lamp
i

ndicates   a   fault   with   the   system.
A
  message   appears,   accompanied   by   an
a

udible
 s
ignal.
Before
  doing   anything   to   the   system,
t

he pressures of the four tyres must be
checked
  and   the   system   reinitialised.
The under-inflation alert can only be
relied on if reinitialisation of the system
is done with the four tyre pressures
correctly

set. In
  this   case,   under-inflation   monitoring   of   the
t

yres   is   no   longer   assured.
Have
  the   system   checked   by   a   CITROËN
d

ealer   or   a   qualified   workshop.
Driving

203
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed01-2016

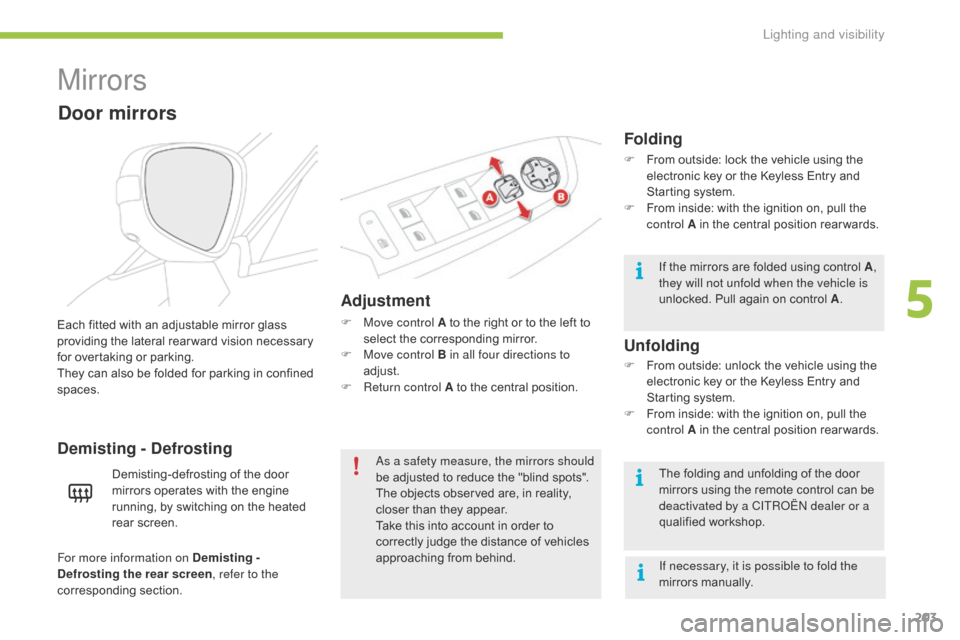

Mirrors
Adjustment
F Move control A  to   the   right   or   to   the   left   to  s
elect   the   corresponding   mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A   to   the   central   position.
Each

fitted

with

an

adjustable

mirror

glass

p

roviding

the

lateral

rear ward

vision

necessary

f

or

overtaking

or

parking.
They

can

also

be

folded

for

parking

in

confined

spa

ces.
Demisting - Defrosting
Door mirrors
Demisting-defrosting of the door m irrors   operates   with   the   engine
r

unning,   by   switching   on   the   heated
re

ar
 sc
reen. As a safety measure, the mirrors should
be
  adjusted   to   reduce   the   "blind   spots".
The
  objects   observed   are,   in   reality,
c

loser   than   they   appear.
Take
  this   into   account   in   order   to
c

orrectly   judge   the   distance   of   vehicles
a

pproaching   from   behind.
Folding
F From  outside:   lock   the   vehicle   using   the  e
lectronic   key   or   the   Keyless   Entry   and
S

tarting   system.
F

F
rom   inside:   with   the   ignition   on,   pull   the
c

ontrol A   in   the   central   position   rear wards.
If
  the   mirrors   are   folded   using   control   A,
they will not unfold when the vehicle is
unlocked.
  Pull   again   on   control   A.
The
  folding   and   unfolding   of   the   door
m

irrors   using   the   remote   control   can   be
d

eactivated by a CITROËN dealer or a
qualified
 w

orkshop.
F

F
rom   outside:   unlock   the   vehicle   using   the
e

lectronic   key   or   the   Keyless   Entry   and
S

tarting   system.
F

F
rom   inside:   with   the   ignition   on,   pull   the
c

ontrol A   in   the   central   position   rear wards.
Unfolding
If necessary, it is possible to fold the
mirrors manually.
For more information on Demisting -
Defrosting the rear screen
, refer to the
corresponding
 s

ection.
5
Lighting and visibility

204
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed01-2016
Rear view mirror
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the   driver   caused   by   the   sun,   headlamps   from   other   vehicles...
Manual model
Adjustment
F A djust   the   mirror   so   that   the   glass   is
d

irected   correctly   in   the   "day"   position.
In order to ensure optimum visibility
during
  your   manoeuvres,   the   mirror
l

ightens   automatically   when   reverse
g

ear
 i
s
 enga
ged.
Day / night position
F

P
ull   the   lever   to   change   to   the   "night"   anti-
dazzle
  position.
F

P
ush   the   lever   to   change   to   the   normal
"

day"   position.
Automatic "electrochrome"
model
This system automatically and progressively changes   between   the   day   and   night   uses   by
m

eans   of   a   sensor,   which   measures   the   light
f

rom   the   rear   of   the   vehicle.
Automatic tilting in reverse gear
With the engine running, on engaging reverse gear,   the   mirror   glasses   tilt   downwards.
They
  return   to   their   initial   position:
-

a few seconds a fter c oming o ut o f r everse g ear,- once  the   speed   of   the   vehicle   exceeds  6 m
ph   (10   km/h),
-

o
n   switching   off   the   engine.
System
  which   provides   a   view   of   the   ground
d

uring   parking   manoeuvres   in   reverse   gear.
This function can be deactivated in the Driving
menu.
F

Sel
ect the " Setting" tab then " Comfort"
and " Auto mirror dipping in reverse".
Lighting and visibility

205
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed01-2016

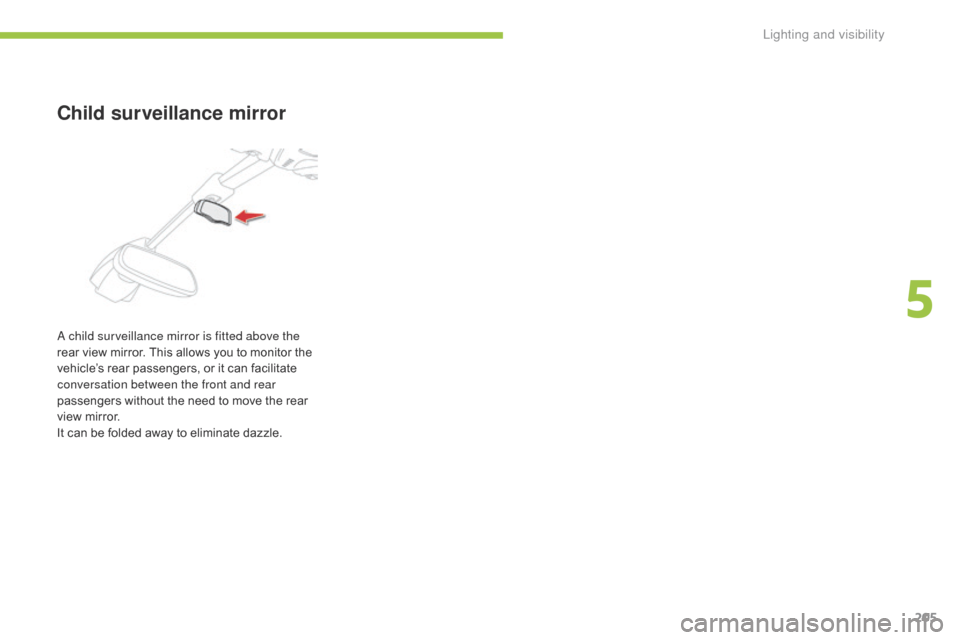

Child surveillance mirror
A child surveillance mirror is fitted above the
rear  view   mirror.   This   allows   you   to   monitor   the
v

ehicle’s   rear   passengers,   or   it   can   facilitate
c

onversation between the front and rear
passengers
  without   the   need   to   move   the   rear
v

iew   mirror.
I

t   can   be   folded   away   to   eliminate   dazzle.
5
Lighting and visibility

206
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed01-2016
Lighting control stalk
Main lighting
The various front and rear lamps of the vehicle
are  designed   to   adapt   the   driver's   visibility
p

rogressively   according   to   the   climatic
c

onditions:
-

s
idelamps, to be seen,
-

d
aytime   running   lamps   to   be   more   visible
d

uring   the   day,
-

d
ipped beam headlamps to see without
dazzling
 o

ther
 d
rivers,
-

m
ain beam headlamps to see clearly when
the
  road   is   clear.
Additional lighting
Other lamps are provided to meet the
requirements  of   particular   driving   conditions:
-
 r

ear
 fo
glamps,
-

f
ront   foglamps   with   cornering   lighting,
-
d

irectional headlamps for improved
visibility
 w

hen
 c
ornering,
-

g
uide-me-home   and   welcome   lighting   to
f

acilitate access to the vehicle,
-

p
arking   lamps   as   vehicle   position   markers.
Programming
The setting of some functions can be adjusted:
- a utomatic illumination of headlamps,
-

a
utomatic   headlamp   dipping,
-

g
uide-me-home   lighting,
-

w
elcome   lighting,
-

c
ornering   lighting,
-
 d

irectional
 l
ighting.
In

some

weather

conditions

(e.g.

low

t

emperature or humidity), the presence
of

misting

on

the

internal

sur face

of

the

g

lass

of

the

headlamps

and

rear

lamps

i

s

normal;

it

disappears

after

the

lamps

h

ave

been

on

for

a

few

minutes.
Travelling abroad
Halogen headlamps
For   motoring   in   countries   that   drive
o

n the other side of the road, it is
necessary
  to   adapt   the   adjustment   of
t

he dipped beams so as to not dazzle
the
  drivers   of   approaching   vehicles.
C

ontact a CITROËN dealer or qualified
workshop.
Xenon headlamps
The
  design   of   the   dipped   beam
h

eadlamps allows you to drive in a
country that drives on the other side
of the road, without the need for any
modification.
In the event of the failure of one or more
bulbs,

a

message

advises

you

to

check

t

he

lamp(s)

in

question.
Selection

and

control

of

the

various

front

and

rear

lamps

providing

the

vehicle's

lighting.
Lighting and visibility

207
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed01-2016
Displays
Illumination of the corresponding indicator lamp in the instrument panel confirms that the
lighting
  selected   is   on.
The rear sidelamps and direction
indicators
  are   located   on   the   tailgate.
W

hen   they   are   on,   opening   the   tailgate
a

utomatically transfers illumination to
the lamps located in the rear bumper, to
maintain
  the   safety   of   the   vehicle.
Main lighting
Lighting off (ignition off) /Daytime running lamps (engine running).
Automatic illumination of headlamps.
D aytime   running   lamps   /   Dipped
b

eam   /   Main   beam.
Sidelamps.
Dipped
  or   main   beam   headlamps.
Turn

the

ring   A to place the desired symbol
against

the   mark.
Selection of main lighting mode
Model without AUTO lighting
Model with AUTO lighting Headlamp dipping
Pull the stalk B towards you to switch the
l ighting   between   dipped   and   main   beam
h

eadlamps or to activate automatic headlamp
dipping.
In
  the   lighting   off   and   sidelamps   modes,   the
d

river can switch on the main beam headlamps
temporarily
  ("headlamp   flash")   by   maintaining   a
p

ull   on   the   stalk.
5
Lighting and visibility

208
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed01-2016
Model with rear foglamps only
Rear foglamps
Rotate

and   release   the   ring   C:
F

f

or wards a first time to switch on the front
foglamps,
F

f

or wards a second time to switch on the
rear
 fo

glamps,
F

r

ear wards a first time to switch off the rear
foglamps,
F

r

ear wards a second time to switch of the
front

fog   lamps.
Model with front and rear
foglamps Foglamps
F To
  switch   on   the   foglamps,   turn   the   ring   C
forwards.
Front
  and   rear   foglamps
F

T
o   switch   off   the   foglamps,   turn   the   ring   C
rearwards. When the headlamps switch off with automatic
illumination of headlamps or when the dipped
beam headlamps are switched off manually,
the
  foglamps   and   sidelamps   remain   on.
F
T
urn   the   ring   rear wards   to   switch   off  t
he   foglamps,   the   sidelamps   will   then  s
witch off.
When
  switching   off   dipped   beam
m

anually,   the   rear   foglamps   also   go   off.
The
  foglamps   operate   with   the   dipped   and   main
b

eam
 h
eadlamps.
Lighting and visibility
