23
Low fuel levelFixed, accompanied
by an audible signal
and a
message.When it first comes on, there
remains approximately 6
litres of
fuel in the tank (reser ve). Refuel without delay to avoid running out of fuel.
Never drive until completely empty
, this could
damage the emissions and injection systems.
Lane Depar ture
Warning System Fixed.
The system has been automatically
deactivated or placed on standby.
Flashing. You are about to cross a
broken
lane marking without operating the
direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ Fixed, accompanied
by the display of
a
message and an
audible signal. The system has a
fault.Carry out (3).
Stop & Star t Fixed, accompanied
by the display of
a


message. The Stop & Start system is
deactivated.
The engine will not switch off at the next traffic stop.
Reactivate the function via the touch screen
configuration menu.
Warning/indicator lamp
StateCause Actions/Observations
Passenger
airbag system Flashing.
The passenger airbag system is
defective. Carry out (3).
Fixed. The front passenger airbag is
deactivated.
The control is in the "OFF" position. You can install a "rear ward facing" child seat, unless
there is a fault with the airbags (Airbags warning lamp
o n).
1
Instruments

110
Deployment
* For more information on Deactivating the front passenger airbag , refer to the
corresponding section. The front airbag inflates between the thorax
and head of the front occupant of the vehicle
and the steering wheel, driver's side, and the
dashboard, passenger's side, to cushion their
for ward movement.
Lateral airbags
Deployment
Front airbags
System which protects the driver and front
passenger in the event of a
serious front
impact, in order to limit the risk of injury to the
head and thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
The airbags are deployed, except the front
passenger airbag if it is deactivated*, in the
event of a
serious front impact to all or part
of the front impact zone A , in the longitudinal
centreline of the vehicle on a
horizontal plane
and directed from the front to the rear of the
vehicle. System which protects the driver and front
passenger in the event of a
serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.
It is deployed unilaterally in the event of
a
severe side impact covering all or part of side
impact zone B , perpendicular to the longitudinal
centreline of the vehicle on a
horizontal plane
and directed from the outside towards the
inside of the vehicle. The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel.
Curtain airbags
System contributing towards greater protection
for the driver and passengers (with the
exception of the rear centre passenger) in the
event of a
serious side impact in order to limit
the risk of injury to the side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area.
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a
serious side impact applied to all or
part of the side impact zone B , perpendicular
to the longitudinal centreline of the vehicle
on a
horizontal plane and directed from the
outside towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.
Malfunction
If this warning lamp comes on in the
instrument panel, you must contact
a
CITROËN dealer or a qualified
workshop to have the system
checked.
Safety

113
"Forward facing "
When a "for ward facing" child seat is installed
on a
rear passenger seat , move the vehicle's
front seat for ward and straighten the backrest
so that the legs of the child in the "for ward
facing" child seat do not touch the vehicle's
front seat.
3rd row seats
Child seat at the front
" Rearward facing"
When a "rear ward facing" child seat is installed
on the front passenger seat , adjust the
vehicle's seat to the intermediate longitudinal
and lowest position, with the backrest
straightened. Then pull the booster/height
adjuster control 11
times.
The front passenger airbag must be
deactivated. Otherwise, the child risks
being seriously injured or killed in case
of airbag deployment .
"Forward facing "
When a "for ward facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the intermediate
longitudinal and lowest position, with the
backrest straightened. Then pull the booster/
height adjuster control 11
times. Leave the
passenger's airbag active. Passenger seat adjusted into the intermediate
longitudinal and lowest position, then the
booster/height adjuster control pulled 11
times.
When a

child seat is installed on a

rear
passenger seat in the 3
rd row , move the
seats in the 2nd row for ward and straighten the
backrest so that the child seat and the child's
legs do not touch the seat in the 2
nd row.
A child seat with a

support leg must never be
installed on a r ear passenger seat in the 3rd
row ,
Deactivating the front
passenger airbag
Never install a "rear ward facing" child
r estraint system on a seat protected by an
active front airbag. This could cause the
death of the child or serious injury.
5
Safety

114
The warning label present on both sides of the
passenger sun visor repeats this advice.
In line with current legislation, you will find this
warning in all the required languages in the
following tables.
Passenger airbag OFFPassenger airbag deactivation
switch
Only the front passenger airbag can be
deactivated.
F

W
ith the ignition off , insert the key in the
passenger airbag deactivation switch.
F

T
urn it to the OFF position.
F

R
emove the key keeping the switch in the
new position.
When the ignition is switched on,
this warning lamp comes on in the
instrument panel. It stays on while
the airbag is deactivated. To ensure the safety of your child, the front
passenger airbag must be deactivated
when you install a
"rear ward facing" child
seat on the front passenger seat.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.
Reactivating the front passenger
airbag
When you remove the "rear ward facing" child
seat, with the ignition off , turn the switch to
the ON position to reactivate the airbag and so
assure the safety of your front passenger in the
event of an impact.
When the ignition is switched on,
this warning lamp comes on in the
instrument panel, for approximately
one minute to signal that the front
airbag is activated.
Safety

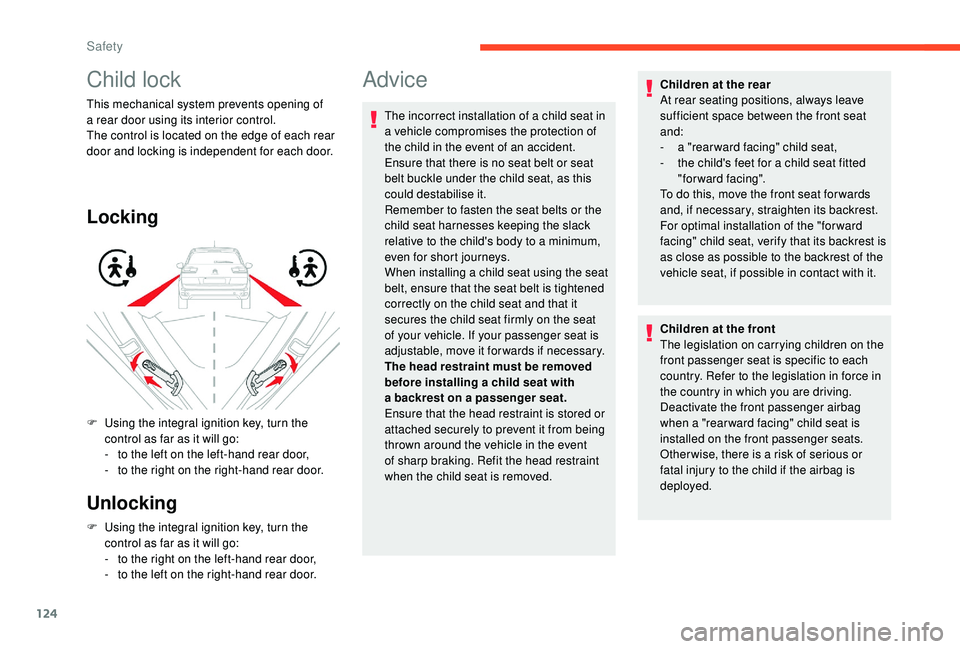

124
Child lock
This mechanical system prevents opening of
a rear door using its interior control.
The control is located on the edge of each rear
door and locking is independent for each door.
Locking
Unlocking
F Using the integral ignition key, turn the control as far as it will go:
-

t
o the right on the left-hand rear door,
-

t
o the left on the right-hand rear door.
F

U
sing the integral ignition key, turn the
control as far as it will go:
-
t
o the left on the left-hand rear door,
-
t
o the right on the right-hand rear door.
Advice
The incorrect installation of a child seat in
a vehicle compromises the protection of
the child in the event of an accident.
Ensure that there is no seat belt or seat
belt buckle under the child seat, as this
could destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a
minimum,
even for short journeys.
When installing a


child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it
secures the child seat firmly on the seat
of your vehicle. If your passenger seat is
adjustable, move it forwards if necessary.
The head restraint must be removed
before installing a
child seat with
a
backrest on a passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event
of sharp braking. Refit the head restraint
when the child seat is removed. Children at the rear
At rear seating positions, always leave
sufficient space between the front seat
and:
-

a "
rear ward facing" child seat,
-

t
he child's feet for a child seat fitted
"forward facing".
To do this, move the front seat for wards
and, if necessary, straighten its backrest.
For optimal installation of the "forward
facing" child seat, verify that its backrest is
as close as possible to the backrest of the
vehicle seat, if possible in contact with it.
Children at the front
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
the country in which you are driving.
Deactivate the front passenger airbag
when a "rear ward facing" child seat is
installed on the front passenger seats.
Other wise, there is a
risk of serious or
fatal injury to the child if the airbag is
deployed.
Safety
