190
Fuel
Fuel tank capacity: approximately 57 litres
(petrol) or 55 litres (Diesel).
Low fuel level
When the low fuel level is reached,
this warning lamp in the instrument
panel comes on, accompanied by
an audible warning, a message and
the last bar of the fuel gauge lights
up orange.
When it first comes on there remains
approximately 6


litres of fuel in the tank.
Until sufficient fuel has been added, this
warning lamp appears every time the ignition
is switched on, accompanied by an audible
warning and a
message. This audible warning
and this message are repeated with increasing
frequency as the fuel level drops towards " 0".
Refuel as soon as possible to avoid running
out.
Refilling
A self-adhesive label on the inner face of the
filler flap reminds you of the type of fuel to use,
depending on your engine.
Additions of fuel must be of at least 5
litres, in
order to be registered by the fuel gauge. To refuel in complete safety:
F

Y
ou must switch off the engine.
F
W
ith the vehicle unlocked, press the rear
edge of the flap to open it (the filler cap is
a part of it).
F T ake care to select the pump that delivers
the correct type of fuel for your vehicle.
F

I
nsert the nozzle so as to push in the metal
non-return flap.
F

M
ake sure that the nozzle is pushed in as
far as possible before starting to refuel (risk
of blowback). If you are filling your tank to the top, do not
continue after the 3
rd cut- off of the nozzle;
this could cause malfunctions.
Your vehicle is fitted with a
catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
For petrol engines, you must use unleaded
fuel.
The filler neck is narrower, allowing only
unleaded petrol nozzles to be introduced.
If you have put in the wrong fuel for
your vehicle, you must have the fuel
tank drained and filled with the correct
fuel before star ting the engine.
Fuel cut- of f
Your vehicle is fitted with a safety system that
c uts off the supply of fuel in the event of an
impact.
Opening the filler flap may create a

noise
caused by an inrush of air. This is entirely
normal and results from the sealing of the fuel
system. F
H
old it in this position throughout the filling
operation.
F
P
ush the filler flap to close it.
With Stop & Start, never refuel with the
engine in STOP mode; you must switch
off the ignition with the "START/STOP"
button.
Practical information

199
Engine compartment
This engine is shown as an example.
The positions of the following elements may
change:
-
A
ir filter.
-

E
ngine oil dipstick.
-

E
ngine oil filler cap.
-
P

riming pump.
Petrol
Diesel
5.Fusebox.
6. A i r f i l t e r.
7. Engine oil dipstick.
8. Engine oil filler cap.
9. Remote earth point.
10. Priming pump*
The Diesel fuel system operates under
very high pressure.
All work on this circuit must be carried out
only by a
CITROËN dealer or a qualified
workshop.
Checking levels
Check all of these levels regularly, in line with
the manufacturer's service schedule. Top them
up if necessary, unless other wise indicated.
If a
level drops significantly, have the
corresponding system checked by a
CITROËN
dealer or a
qualified workshop.
The liquid must comply with the
manufacturer's recommendations and with
the vehicle's engine. Take care when working under the bonnet,
as certain areas of the engine may be
extremely hot (risk of burns) and the
cooling fan could start at any time (even
with the ignition off).
Used products
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to health
or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a
CITROËN dealer or
a
qualified workshop and dispose of
it in the containers reser ved for this
purpose.
Engine oil level
The check is carried out either when
the ignition is switched in using the
oil level indicator in the instrument
panel for vehicles equipped with an
electric gauge, or using the dipstick.
*
D

epending on engine.
1. Screenwash and headlamp wash
reservoir.
2. Engine coolant reservoir.
3. Brake fluid reser voir.
4. Battery/Fuses.
7
Practical information

201
Brake fluid level
The fluid level should be close to the
"MA X" mark. If it is not, check the
brake pad wear.
Fluid specification
The fluid must conform to the manufacturer's
recommendations.
Coolant level
Check the coolant level regularly.
It is normal to top up the fluid
between two services.
The check and top-up must only be done with
the engine cold.
A low coolant level presents a
risk of serious
damage to your engine.
The coolant level should be close to the "MA X"
mark but should never exceed it.
If the level is close to or below the "MIN" mark,
it is essential to top up. To avoid the risk of scalding when you need to
top up in an emergency, wrap a
cloth around
the cap and unscrew the cap by two turns to
allow the pressure to drop.
Once the pressure has dropped, remove the
cap and top up to the required level.
The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might be
caught by the fan blades.
Fluid specification
This fluid must conform to the manufacturer's
recommendations.
Screenwash/headlamp
wash level low
In the case of vehicles fitted with
headlamp washers, when the fluid
reser voir low level is reached this
warning lamp comes on in the
instrument panel, accompanied by
an audible signal and a


message.
The warning lamp comes on when the ignition
is switched on, or every time the stalk is
operated, until the reser voir is refilled.
The next time you stop, have the screenwash/
headlamp wash reser voir topped up.
Diesel fuel additive level
(Diesel with particle filter)
The additive reser voir low level is
indicated by fixed illumination of this
warning lamp, accompanied by an
audible signal and a
message that
the particle filter additive level is
too low.
To p p i n g u p
This additive must be topped up without delay
by a CITROËN dealer or a qualified workshop.
Level of AdBlue
An alert is triggered once the reser ve level is
reached.
To avoid the vehicle being immobilised as per
regulations, you must top up with AdBlue.
For more information on AdBlue and the SCR
system, and, in particular, topping up the tank,
refer to the corresponding section.
When the engine is hot, the temperature of the
coolant is regulated by the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying out any
work.
7
Practical information

204
Only use products recommended by
CITROËN or products of equivalent quality
and specification.
In order to optimise the operation of
components as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness, or
in wintry conditions, ice can form on the
brake discs and pads: braking efficiency
may be reduced. Make light brake
applications to dry and defrost the brakes.
AdBlue® (BlueHDi engines)
To respect the environment and ensure
compliance with the Euro 6 standard, without
adversely affecting the per formance or fuel
consumption of Diesel engines, CITROËN
has taken the decision to equip its vehicles
with a
system that associates SCR (Selective
Catalytic Reduction) with a
Diesel particle filter
(DPF) for the treatment of exhaust gases.
SCR system
Using a fluid called AdBlue® that contains
urea, a catalytic converter turns up to 85%
of nitrogen oxides (NOx) into nitrogen and
water, which are harmless to health and the
environment.
The AdBlue
® is contained in
a
special tank holding about
17


litres.
Its capacity allows a

driving range of around
12,500

miles (20,000

km). An alert system is
triggered automatically once the reser ve level
is reached: you can then drive for a
further
1,500

miles (2,400

km) before the tank is
e m pt y. Once the AdBlue
® tank is empty, a system
required by regulations prevents starting
of the engine.
If the SCR system is defective, the level of
emissions from your vehicle will no longer
meet the Euro 6

standard: your vehicle
becomes polluting.
In the event of a

confirmed fault with the
SCR system, you must go to a
CITROËN
dealer or a

qualified workshop as soon
as possible: after a
running distance of
685

miles (1,100

km), a system will be
triggered automatically to prevent engine
starting.
In either case, a range indicator gives you
the distance you can travel before the
vehicle is immobilised.
For more information on the Warning and
indicator lamps and associated alerts,
refer to the corresponding section.
Freezing of the AdBlue
®
AdBlue® freezes at temperatures below
around -11°C.
The SCR system includes a
heater for the
AdBlue
® tank, allowing you to continue
driving in very cold conditions.
Practical information

205

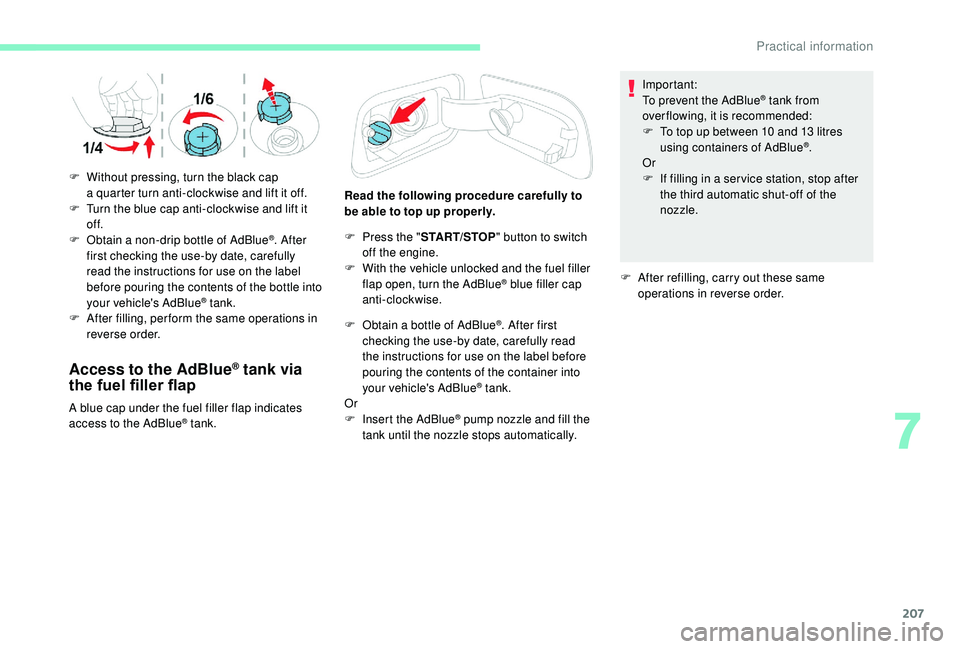

Topping up the AdBlue®
Filling the AdBlue® tank is an operation
included in every routine ser vice on your
vehicle by a

CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank, it
may be necessary to top up the fluid between
services, more particularly if an alert (warning
lamps and a


message) signals the requirement.
You can go to a

CITROËN dealer or a qualified
workshop.
If you envisage topping up yourself, please
read the following warnings carefully.
Supply of AdBlue®
It is recommended that the AdBlue® is
topped up as soon as the first alert is
issued indicating that the reser ve level has
been reached.
In order to ensure that the SCR system
operates correctly:
-

U

se only AdBlue
® liquid that meets the
ISO
22241
standard.
-

N

ever transfer AdBlue
® to another
container: it would lose its purity.
-

N

ever dilute AdBlue
® with water. You can obtain AdBlue
® from a CITROËN
d
ealer or a

qualified workshop.
You can also visit a
petrol station
equipped with AdBlue
® pumps specially
designed for passenger vehicles (for those
versions with access to the AdBlue
® tank
via the fuel filler flap).
Never top up from an AdBlue
® dispenser
reserved for heavy goods vehicles.
Recommendations on
storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It should be stored in
a

cool place and protected from direct sunlight.
Under these conditions, the fluid can be kept
for at least a
year.
If the additive has frozen, it can be used once it
has completely thawed out.
Never keep containers or bottles of
AdBlue
® in your vehicle.
Precautions for use
AdBlue® is a urea-based solution. This liquid
is
non-flammable, colourless and odourless
(when kept in a
cool place).
In the event of contact with the skin, wash the
affected area with soap and water. In the event
of contact with the eyes, wash (irrigate) the
eyes with large amounts of water or with an eye
wash solution for at least 15
minutes. If you feel
a

persistent burning sensation or irritation, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (at high temperature,
for example), the risk of release of ammonia
cannot be excluded: do not inhale the vapour.
Ammonia has an irritant effect on mucous
membranes (eyes, nose and throat).
Keep AdBlue
® out of the reach of children,
in its original container or bottle.
Procedure
Before starting the top-up procedure, ensure
that the vehicle is parked on a flat and level
sur face.
7
Practical information

206
In winter, check that the temperature of the
vehicle is above -11°C. If not, due to freezing,
the AdBlue
® cannot be poured into the tank.
Park your vehicle somewhere warmer for a few
hours before topping up.
In the event of an AdBlue
® breakdown,
confirmed by the message "Add AdBlue:
Starting impossible", you must top up with
at least 5

litres.
Never pour AdBlue
® into the Diesel fuel
tank.
If any AdBlue
® is splashed, or if there are
any spillages on the side of the body, rinse
immediately with cold water or wipe with
a

damp cloth.
If the fluid has crystallised, clean it off
using a

sponge and hot water.
Important: in the event of a top-up after
a breakdown because of a lack of
AdBlue, you must wait around 5
minutes
before switching on the ignition, without
opening the driver's door, locking the
vehicle, introducing the key into the
ignition switch, or introducing the key of
the

K
eyless Entr y and Star ting system
into the passenger compartment .
Switch on the ignition, then wait for
10


seconds before starting the engine.
Access to the AdBlue® tank via
the boot
Filling the AdBlue® tank is an operation
included in every routine ser vice on your
vehicle by a

CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank, it
may be necessary to top up the fluid between
ser vices, as soon as an alert (warning lamps
and a

message) indicates it.
You can go to a

CITROËN dealer or a qualified
workshop.
If you intend to do the topping-up yourself,
read the following procedure carefully.
The supply in a

non-drip bottle simplifies
topping up. F

P
ress the "
START/STOP " button to switch
off the engine.
F
T
o gain access to the AdBlue
® tank, raise
the floor of the boot or, for the 7-seater
version, fold down the seat of the 3
rd row on
the right.
Practical information

207
Access to the AdBlue® tank via
the fuel filler flap
A blue cap under the fuel filler flap indicates
access to the AdBlue® tank. Read the following procedure carefully to
be able to top up properly.
F

O
btain a bottle of AdBlue
®. After first
checking the use-by date, carefully read
the instructions for use on the label before
pouring the contents of the container into
your vehicle's AdBlue
® tank.
Or
F

I

nsert the AdBlue
® pump nozzle and fill the
tank until the nozzle stops automatically. Important:
To prevent the AdBlue
® tank from
over flowing, it is recommended:
F

T

o top up between 10 and 13 litres
using containers of AdBlue
®.
Or
F

I

f filling in a

ser vice station, stop after
the third automatic shut-off of the
nozzle.
F

A

fter refilling, carry out these same
operations in reverse order.
F

W

ithout pressing, turn the black cap
a

quarter turn anti-clockwise and lift it off.
F

T

urn the blue cap anti-clockwise and lift it
of f.
F

O

btain a

non-drip bottle of AdBlue
®. After
first checking the use-by date, carefully
read the instructions for use on the label
before pouring the contents of the bottle into
your vehicle's AdBlue
® tank.
F
A
fter filling, per form the same operations in
reverse order. F

P
ress the "
START/STOP " button to switch
off the engine.
F
W
ith the vehicle unlocked and the fuel filler
flap open, turn the AdBlue
® blue filler cap
anti-clockwise.
7
Practical information

238
Engines and towed loads – PETROL
Petrol enginesPureTech
110 S & S** PureTech
130 S&S** PureTech
130 S&S*** PureTech
130 S&S** PureTech
130 S&S***
Gearbox BVM6 (manual
6-speed) BVM6 (manual
6-speed) BVM6 (manual
6-speed) EAT6 (automatic
6-speed) EAT8 (automatic
8-speed)
Code EB2DTSEB2DTS EB2ADTS EB2DTS EB2ADTS
Model codes 3D
3D…3E… 3A … 3D… 3E… 3A … 3D… 3E… 3A … 3D… 3E… 3A …
HNX…
M/1S – M/2SM HNY…
M/1S – M/2SM HNS…PHNY…
T/1S – T/2S HNS…R
Cubic capacity (cm
3) 1,1 9 91,1 9 91,1 9 91,1 9 91,1 9 9
Max. power: EC standard (kW) 9696969696
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Braked trailer (within the GTW limit)
on a

10% or 12% gradient 1,13 01, 270 -1,0 5 0 -
1,050 -1, 270 -1,0 5 0 -
1,050 -
Unbraked trailer 640640-647-648 -640-647-648 -
Recommended nose weight 7070 -70 -
3D…: CITROËN C4
SpaceTourer (5 seats).
3E…: CITROËN Grand C4
SpaceTourer
(5


seats).
3A…: CITROËN Grand C4
SpaceTourer
(7


seats).
**

E

uro 6.1

engine
***

E

uro 6.2

engine
Technical data

239
Petrol enginesTHP 15 0/16 0** THP 165 S&S** THP 165 S&S
**
(For Israel) PureTech 180
S&S
***
Gearbox EAT6 (automatic
6-speed) EAT6 (automatic
6-speed) EAT6 (automatic
6-speed) EAT8 (automatic
8-speed)
Code EP6FDTMEP6FDTEP6FDTMEP6FADTXD
Model codes 3D…3E… 3A … 3D…3E… 3A … 3D…3E… 3A …
3E… 3A …
5GX – 5GY…
A-A/1-A/2-A/D- A/1D- A / 2 D -Y-Y/1-Y/ 2 5G Z T/S
5 G Y…
A /S – A /1S – A /2S 5 G F… R
Cubic capacity (cm
3) 1,59 81,59 81,59 81,59 8
Max. power: EC standard (kW) 11 0 / 12 1121121132
Fuel Unleaded/AlcoholUnleadedUnleadedUnleaded
Braked trailer (within the GTW limit)
on a

10% or 12% gradient 8001,4 0 0
-
1, 25 0 -1, 20 0 1,4 0 0
-
1, 25 0 -1, 20 0 -
Unbraked trailer 600685
-
690-690 685
-
690-690 -
Recommended nose weight 707070 -
3D…: CITROËN C4
SpaceTourer (5 seats).
3E…: CITROËN Grand C4
SpaceTourer
(5


seats).
3A…: CITROËN Grand C4
SpaceTourer
(7


seats).
**

E

uro 6.1

engine
***

E

uro 6.2

engine
9
Technical data

240

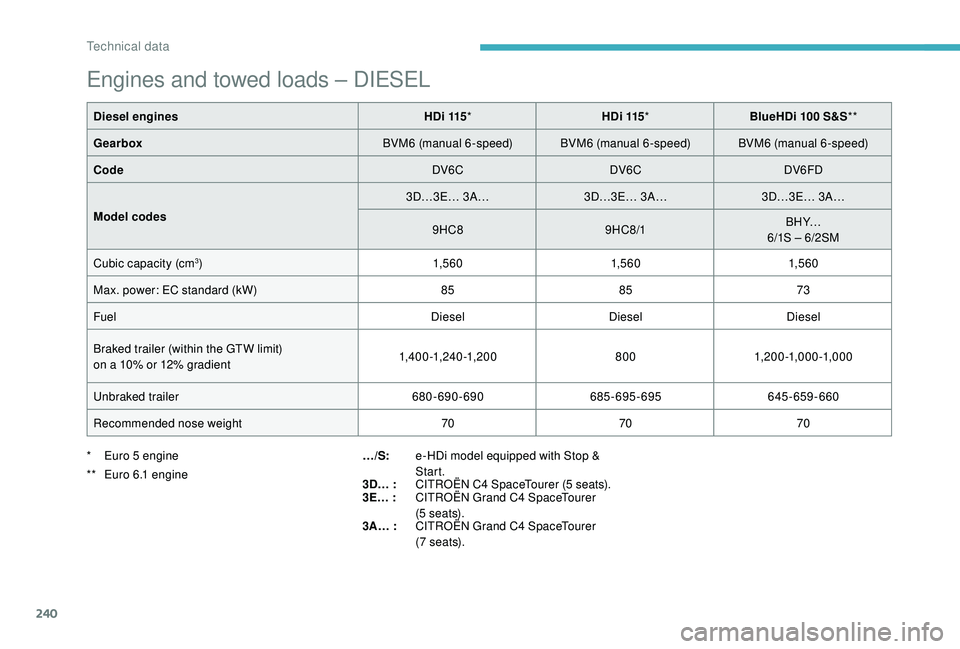

Engines and towed loads – DIESEL
Diesel enginesHDi 115* HDi 115* BlueHDi 100 S&S**
Gearbox BVM6 (manual 6-speed) BVM6 (manual 6-speed) BVM6 (manual 6-speed)
Code DV6CDV6CDV6FD
Model codes 3D…3E… 3A …
3D…3E… 3A …3D…3E… 3A …
9HC8 9HC8/1 B H Y…
6/1S – 6/2SM
Cubic capacity (cm
3) 1,5 6 01,5 6 01,5 6 0
Max. power: EC standard (kW) 8585 73
Fuel DieselDieselDiesel
Braked trailer (within the GTW limit)
on a

10% or 12% gradient 1,4 0 0 -1, 24 0 -1, 20 0
8001,200-1,000-1,000
Unbraked trailer 680-690-690685-695-695645-659-660
Recommended nose weight 707070
…/S: e-HDi model equipped with Stop &
Start.
3D… : CITROËN C4
SpaceTourer (5 seats).
3E… : CITROËN Grand C4
SpaceTourer
(5


seats).
3A… : CITROËN Grand C4
SpaceTourer
(7


seats).
*

E

uro 5

engine
**

E

uro 6.1

engine
Technical data
