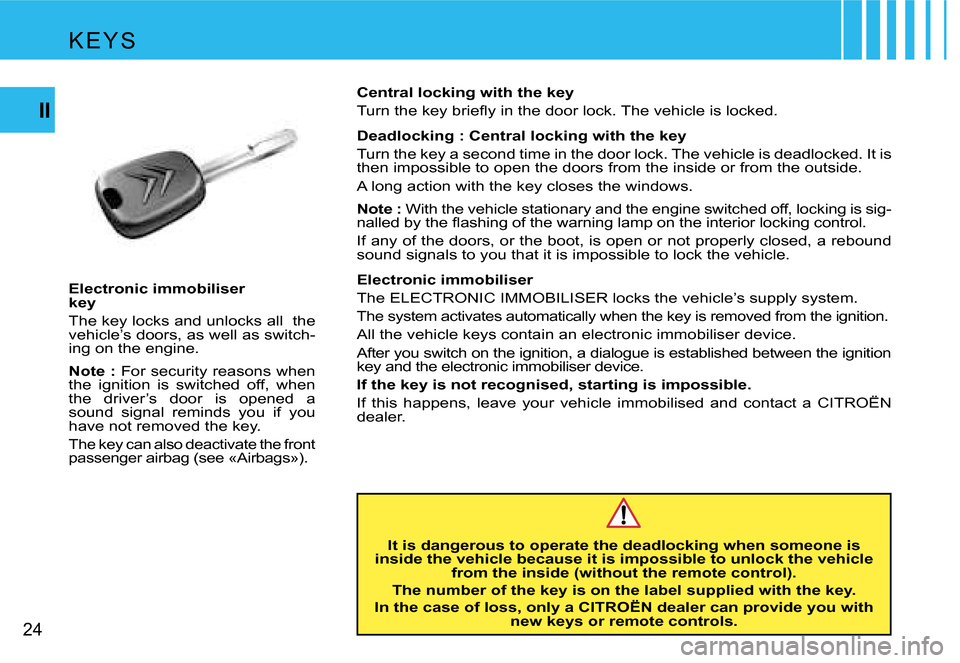

Electronic immobiliser
key
The key locks and unlocks all the
vehicle’s doors, as well as switch-
ing on the engine.
Note : For security reasons when
the ignition is switched off, when
the driver’s door is opened a
sound signal reminds you if you
have not removed the key.
The key can also deactivate the front
passenger airbag (see «Airbags»).
It is dangerous to operate the deadlocking when someone is
inside the vehicle because it is impossible to unlock the vehicle
from the inside (without the remote control).
The number of the key is on the label supplied with the key.
In the case of loss, only a CITROËN dealer can provide you with
new keys or remote controls.
Central locking with the key
Turn the key brieﬂy in the door lock. The vehicle is locked.
Deadlocking : Central locking with the key
Turn the key a second time in the door lock. The vehicle is dea
dlocked. It is
then impossible to open the doors from the inside or from the outside.
A long action with the key closes the windows.
Note : With the vehicle stationary and the engine switched off, loc king is sig-
nalled by the ﬂashing of the warning lamp on the interior l ocking control.
If any of the doors, or the boot, is open or not properly clo sed, a rebound
sound signals to you that it is impossible to lock the vehicle.
Electronic immobiliser
The ELECTRONIC IMMOBILISER locks the vehicle’s supply system.
The system activates automatically when the key is removed from the ignition.
All the vehicle keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue is est ablished between the ignition
key and the electronic immobiliser device.
If the key is not recognised, starting is impossible.
If this happens, leave your vehicle immobilised and contact a C ITROËN
dealer.
K E Y S

Page 22 of 255

Citroen C4 PICASSO DAG 2007.5 1.G Owners Guide �I�I
�2�5
�A� �c�o�n�ﬁ�d�e�n�t�i�a�l �c�a�r�d �i�s �g�i�v�e�n �t�o �t�h�e
�n�e�w� �o�w�n�e�r� �w�h�e�n� �h�e� �t�a�k�e�s� �d�e�l�i�v�-
�e�r�y� �o�f� �h�i�s� �n�e�w� �v�e�h�i�c�l�e�.
�T�h�i�s

II
25

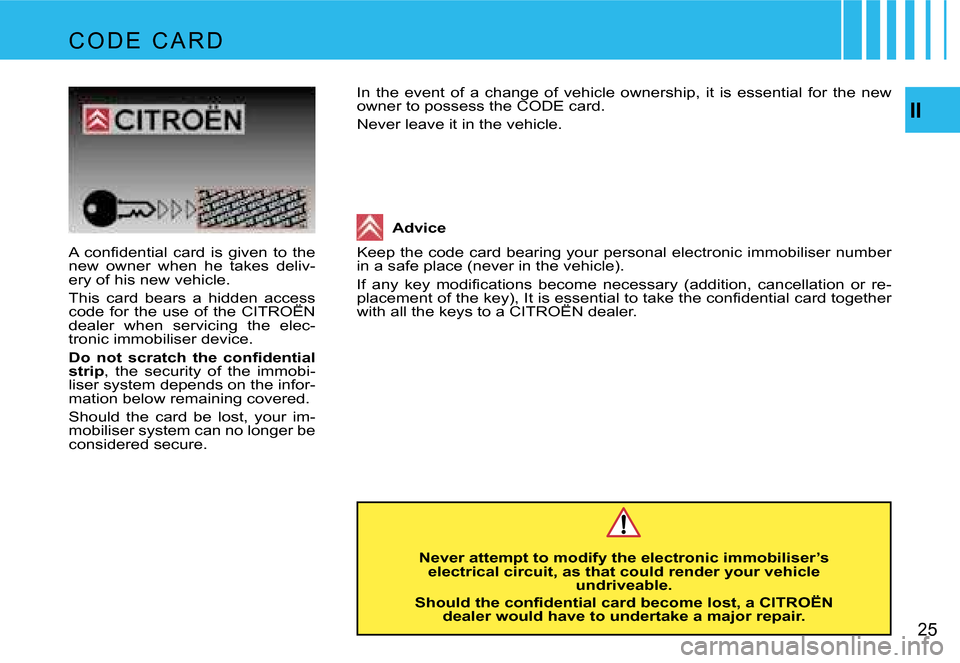

A conﬁdential card is given to the
new owner when he takes deliv-
ery of his new vehicle.
This card bears a hidden access
code for the use of the CITROËN
dealer when servicing the elec-
tronic immobiliser device.
Do not scratch the conﬁdential
strip, the security of the immobi-
liser system depends on the infor-
mation below remaining covered.
Should the card be lost, your im-
mobiliser system can no longer be
considered secure.
Never attempt to modify the electronic immobiliser’s electrical circuit, as that could render your vehicle undriveable.
Should the conﬁdential card become lost, a CITROËN dealer would have to undertake a major repair.
In the event of a change of vehicle ownership, it is essenti
al for the new
owner to possess the CODE card.
Never leave it in the vehicle.
Advice
Keep the code card bearing your personal electronic immobiliser numb er
in a safe place (never in the vehicle).
If any key modiﬁcations become necessary (addition, cancellation or re-
placement of the key), It is essential to take the conﬁdential card together
with all the keys to a CITROËN dealer.
C O D E C A R D

Page 23 of 255

Citroen C4 PICASSO DAG 2007.5 1.G Owners Guide �A
�B
�1
�2�6
�I�I
�Y�o�u�r� �v�e�h�i�c�l�e� �m�a�y� �b�e� �e�q�u�i�p�p�e�d� �w�i�t�h�
�a�n� �A�N�T�I�-�I�N�T�R�U�S�I�O�N� �A�L�A�R�M�.�
�T�h�i�s� �p�r�o�v�i�d�e�s� �:
�•� �E�x�t�e�r�i�o�r� �p

A
B
1
26
II

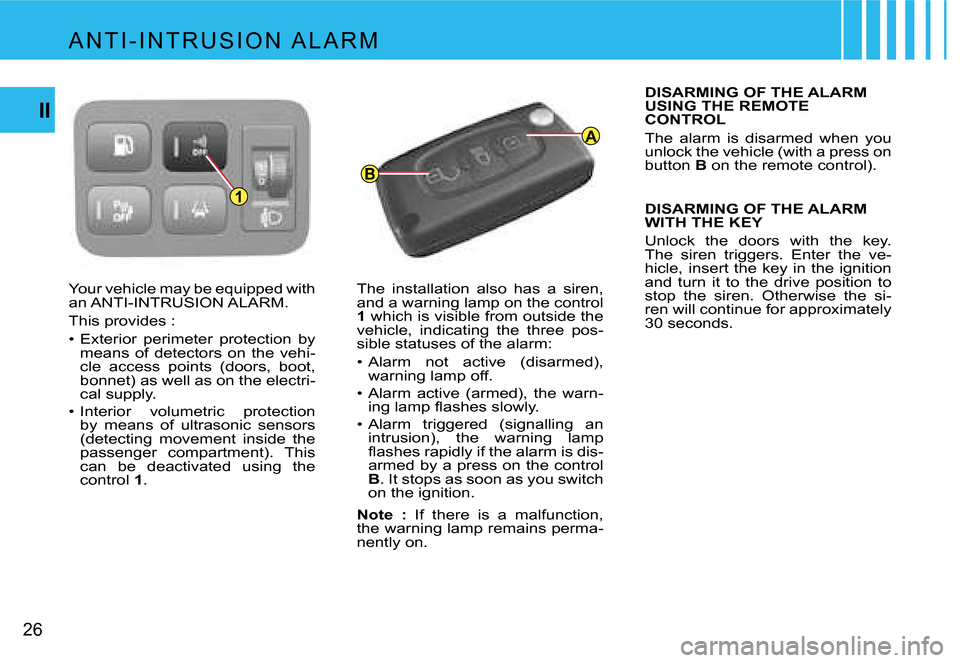

Your vehicle may be equipped with
an ANTI-INTRUSION ALARM.
This provides :
• Exterior perimeter protection by means of detectors on the vehi -
cle access points (doors, boot,
bonnet) as well as on the electri -
cal supply.
• Interior volumetric protection by means of ultrasonic sensors
(detecting movement inside the
passenger compartment). This
can be deactivated using the
control 1. The installation also has a siren,
and a warning lamp on the control
1
which is visible from outside the
vehicle, indicating the three pos -
sible statuses of the alarm:
• Alarm not active (disarmed),
warning lamp off.
• Alarm active (armed), the warn -
ing lamp ﬂashes slowly.
• Alarm triggered (signalling an intrusion), the warning lamp
ﬂashes rapidly if the alarm is dis -
armed by a press on the control
B . It stops as soon as you switch
on the ignition.
Note : If there is a malfunction,
the warning lamp remains perma -
nently on. DISARMING OF THE ALARM
USING THE REMOTE
CONTROL
The alarm is disarmed when you
unlock the vehicle (with a press on
button
B on the remote control).
DISARMING OF THE ALARM
WITH THE KEY
Unlock the doors with the key.
The siren triggers. Enter the ve -
hicle, insert the key in the ignition
and turn it to the drive position to
stop the siren. Otherwise the si -
ren will continue for approximately
30 seconds.
A N T I - I N T R U S I O N A L A R M

Page 24 of 255

Citroen C4 PICASSO DAG 2007.5 1.G Owners Guide �I�I
�2�7
�A �N �T �I �- �I �N �T �R �U �S �I �O �N � �A �L �A �R �M
�O�P�E�R�A�T�I�O�N� �O�F� �T�H�E� �A�L�A�R�M
�F�i�r�s�t� �m�a�k�e� �s�u�r�e� �a�l�l� �t�h�e� �d�o�o�r�s� �a�r�e� �c�l�o�s�e�d�.

II
27
A N T I - I N T R U S I O N A L A R M

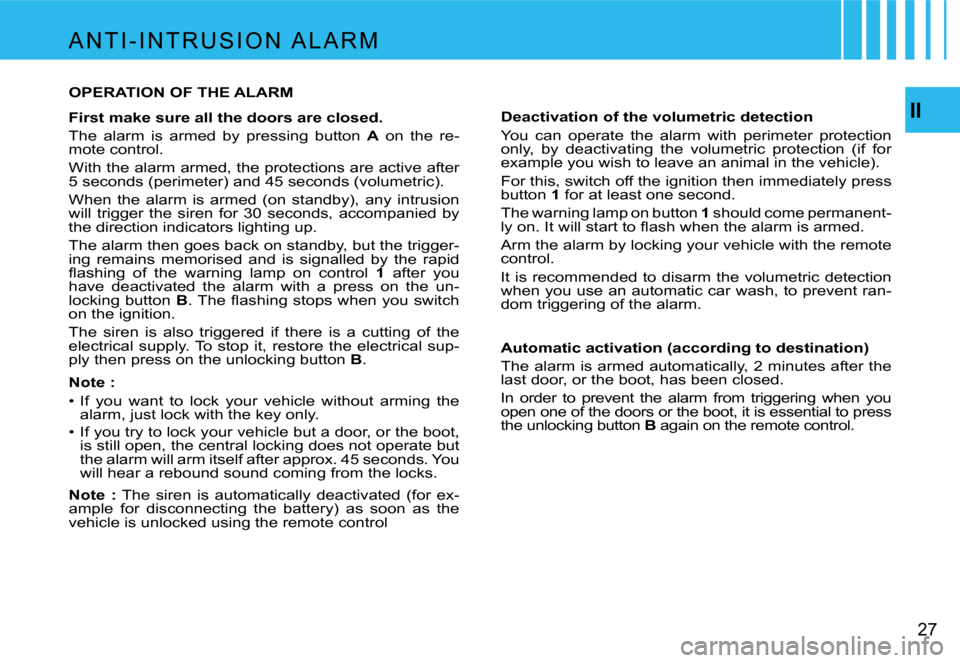

OPERATION OF THE ALARM
First make sure all the doors are closed.
The alarm is armed by pressing button
A on the re-
mote control.
With the alarm armed, the protections are active after
5 seconds (perimeter) and 45 seconds (volumetric).
When the alarm is armed (on standby), any intrusion
will trigger the siren for 30 seconds, accompanied by
the direction indicators lighting up.
The alarm then goes back on standby, but the trigger-
ing remains memorised and is signalled by the rapid
ﬂashing of the warning lamp on control 1 after you
have deactivated the alarm with a press on the un-
locking button B. The ﬂashing stops when you switch
on the ignition.
The siren is also triggered if there is a cutting of the
electrical supply. To stop it, restore the electrical sup-
ply then press on the unlocking button B.
Note :
• If you want to lock your vehicle without arming the alarm, just lock with the key only.
• If you try to lock your vehicle but a door, or the boot, is still open, the central locking does not operate but
the alarm will arm itself after approx. 45 seconds. You
will hear a rebound sound coming from the locks.
Note : The siren is automatically deactivated (for ex-
ample for disconnecting the battery) as soon as the
vehicle is unlocked using the remote control Deactivation of the volumetric detection
You can operate the alarm with perimeter protection
only, by deactivating the volumetric protection (if for
example you wish to leave an animal in the vehicle).
For this, switch off the ignition then immediately press
button
1 for at least one second.
The warning lamp on button 1 should come permanent-
ly on. It will start to ﬂash when the alarm is armed.
Arm the alarm by locking your vehicle with the remote
control.
It is recommended to disarm the volumetric detection
when you use an automatic car wash, to prevent ran-
dom triggering of the alarm.
Automatic activation (according to destination)
The alarm is armed automatically, 2 minutes after the
last door, or the boot, has been closed.
In order to prevent the alarm from triggering when you
open one of the doors or the boot, it is essential to press
the unlocking button B again on the remote control.

Page 25 of 255

Citroen C4 PICASSO DAG 2007.5 1.G Owners Guide �2�8
�I�I
�•� �D� �:� �S�t�a�r�t�e�r
� �R�e�l�e�a�s�e� �t�h�e� �k�e�y� �a�s� �s�o�o�n� �t�h�e� �e�n�- �g�i�n�e� �h�a�s� �s�t�a�r�t�e�d�.� �N�e�v�e�r� �a�c�t�i�o�n�
�t�h�e� �k�e�y� �w�h�i�l�

28
II

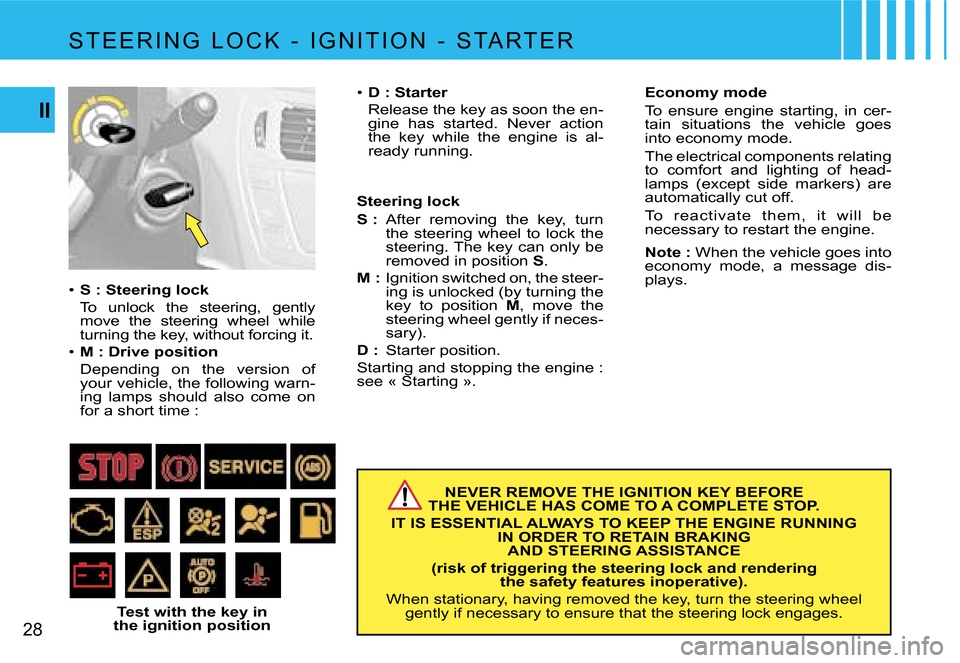

• D : Starter
Release the key as soon the en- gine has started. Never action
the key while the engine is al-
ready running.
Steering lock
S : After removing the key, turn
the steering wheel to lock the
steering. The key can only be
removed in position S.
M : Ignition switched on, the steer-
ing is unlocked (by turning the
key to position M, move the
steering wheel gently if neces-
sary).
D : Starter position.
Starting and stopping the engine :
see « Starting ».
Test with the key in
the ignition position
S T E E R I N G L O C K - I G N I T I O N - S TA R T E R
Economy mode
To ensure engine starting, in cer-
tain situations the vehicle goes
into economy mode.
The electrical components relating
to comfort and lighting of head-
lamps (except side markers) are
automatically cut off.
To reactivate them, it will be
necessary to restart the engine.
Note : When the vehicle goes into
economy mode, a message dis-
plays.
NEVER REMOVE THE IGNITION KEY BEFORE
THE VEHICLE HAS COME TO A COMPLETE STOP.
IT IS ESSENTIAL ALWAYS TO KEEP THE ENGINE RUNNING IN ORDER TO RETAIN BRAKING AND STEERING ASSISTANCE
(risk of triggering the steering lock and rendering the safety features inoperative).
When stationary, having removed the key, turn the steering wh eel
gently if necessary to ensure that the steering lock engages.
•
S : Steering lock
To unlock the steering, gently move the steering wheel while
turning the key, without forcing it.
• M : Drive position
Depending on the version of your vehicle, the following warn-
ing lamps should also come on
for a short time :

Page 26 of 255

Citroen C4 PICASSO DAG 2007.5 1.G Owners Guide �2�5�2�1
�1�9
�1�4
�1�1
�1�0
�9
�7
�6
�4
�3
�2 �1�3
�2�4
�2�9
�1
�3�2
�3�3
�3�4
�3�7
�3�6 �8
�2�8 �2�0
�1�8
�1�3�1�5�1�2�1�6 �1�7
�3�1 �2�2
�2�3
�2�6
�2�7
�3�0
�3�5
�5
�I�I
�2�9
�D �A �S �H �B �O �A �

2521
19
14
11
10
9
7
6
4
3
2 13
24
29
1
32
33
34
37
36 8
28 20
18
13151216 17
31 22
23
26
27
30
35
5
II
29
D A S H B O A R D

Page 27 of 255

Citroen C4 PICASSO DAG 2007.5 1.G Owners Guide �3�0
�I�I
�1� �C�o�n�t�r�o�l�s� �:
� �• � �R�e�a�r� �v�i�e�w� �m�i�r�r�o�r�s
� �• � �W�i�n�d�o�w�s
� �• � �C�h�i�l�d� �s�a�f�e�t�y
�2� �S�i�d�e� �a�i�r� �v�e�n�t
�3� �D�r�i�v�e�r�’�s� �a�

30
II

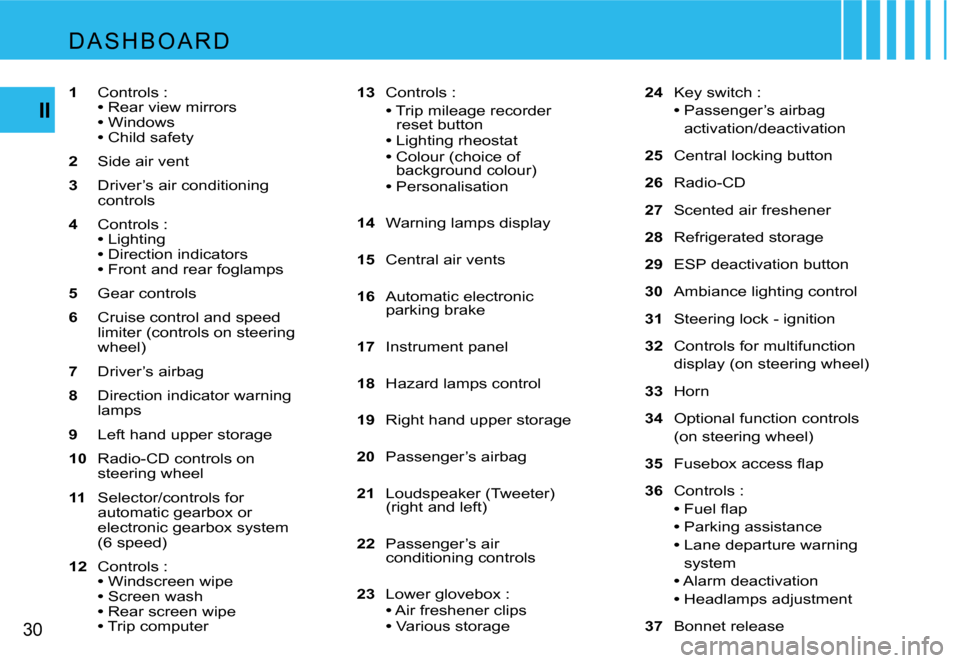

1 Controls :
• Rear view mirrors
• Windows
• Child safety
2 Side air vent
3 Driver’s air conditioning
controls
4 Controls :
• Lighting
• Direction indicators
• Front and rear foglamps
5 Gear controls
6 Cruise control and speed
limiter (controls on steering
wheel)
7 Driver’s airbag
8 Direction indicator warning
lamps
9 Left hand upper storage
10 Radio-CD controls on
steering wheel
11 Selector/controls for
automatic gearbox or
electronic gearbox system
(6 speed)
12 Controls :
• Windscreen wipe
• Screen wash
• Rear screen wipe
• Trip computer 13
Controls :
•
Trip mileage recorder reset button
• Lighting rheostat
•
Colour (choice of
background colour)
• Personalisation
14 Warning lamps display
15 Central air vents
16 Automatic electronic
parking brake
17 Instrument panel
18 Hazard lamps control
19 Right hand upper storage
20 Passenger’s airbag
21 Loudspeaker (Tweeter)
(right and left)
22 Passenger’s air
conditioning controls
23 Lower glovebox :
• Air freshener clips
• Various storage 24
Key switch :
•
Passenger’s airbag
activation/deactivation
25 Central locking button
26 Radio-CD
27 Scented air freshener
28 Refrigerated storage
29 ESP deactivation button
30 Ambiance lighting control
31 Steering lock - ignition
32 Controls for multifunction
display (on steering wheel)
33 Horn
34 Optional function controls
(on steering wheel)
35 Fusebox access ﬂap
36 Controls :
• Fuel ﬂap
• Parking assistance
• Lane departure warning
system
• Alarm deactivation
• Headlamps adjustment
37 Bonnet release

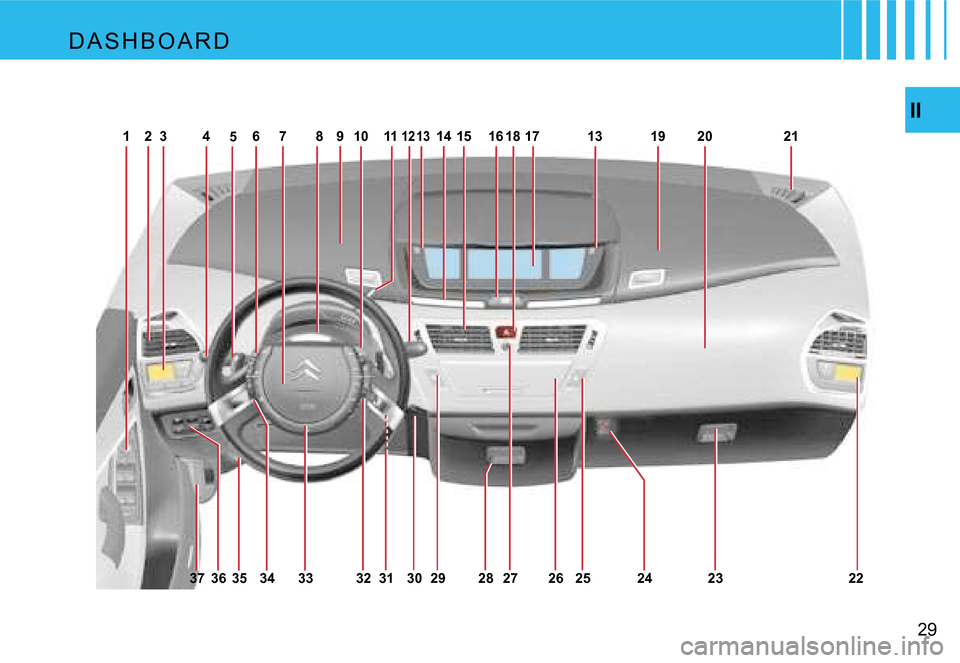

D A S H B O A R D

Page 28 of 255

Citroen C4 PICASSO DAG 2007.5 1.G Owners Guide �I�I
�3�1
�T�h�e� �i�n�s�t�r�u�m�e�n�t� �p�a�n�e�l� �g�r�o�u�p�s� �a�l�l� �t�h�e� �d�r�i�v�i�n�g� �a�n�d� �c�o�m�f�o�r�t� �i�n�f�o�r�m�a�t�i�o�n� �
�a�t� �t�h�e� �c�e�n�t�r�e� �o�f� �t�h�e� �d�a�s�h�

II
31

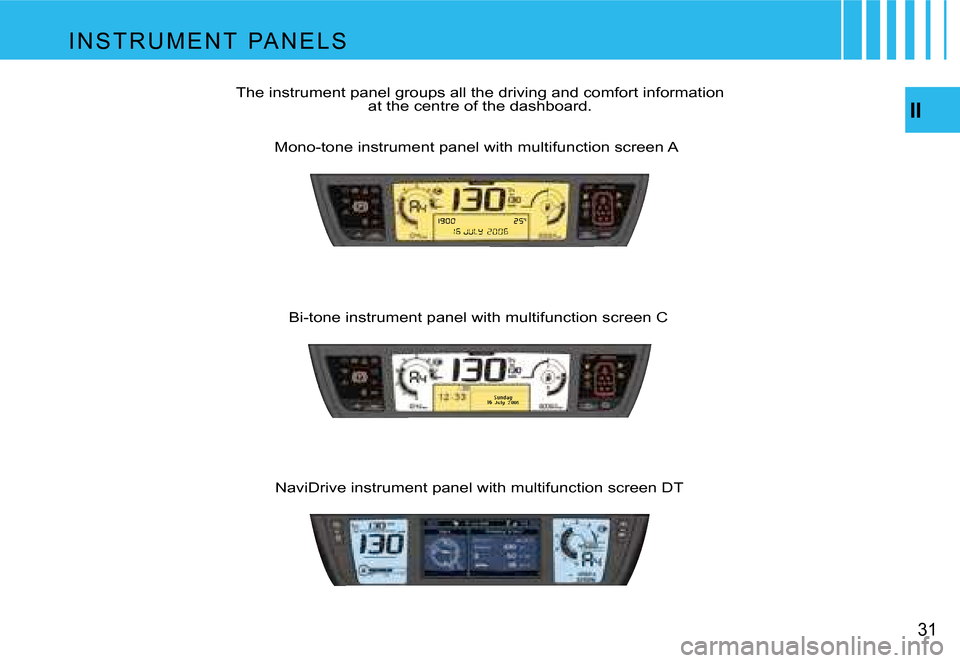

The instrument panel groups all the driving and comfort information
at the centre of the dashboard.
Mono-tone instrument panel with multifunction screen A
Bi-tone instrument panel with multifunction screen C
NaviDrive instrument panel with multifunction screen DT
I N S T R U M E N T PA N E L S

Page 29 of 255

Citroen C4 PICASSO DAG 2007.5 1.G Owners Guide �1 �2�3
�4 �5 �6
�D
�C
�9
�8
�7
�B
�A
�3�2
�I�I

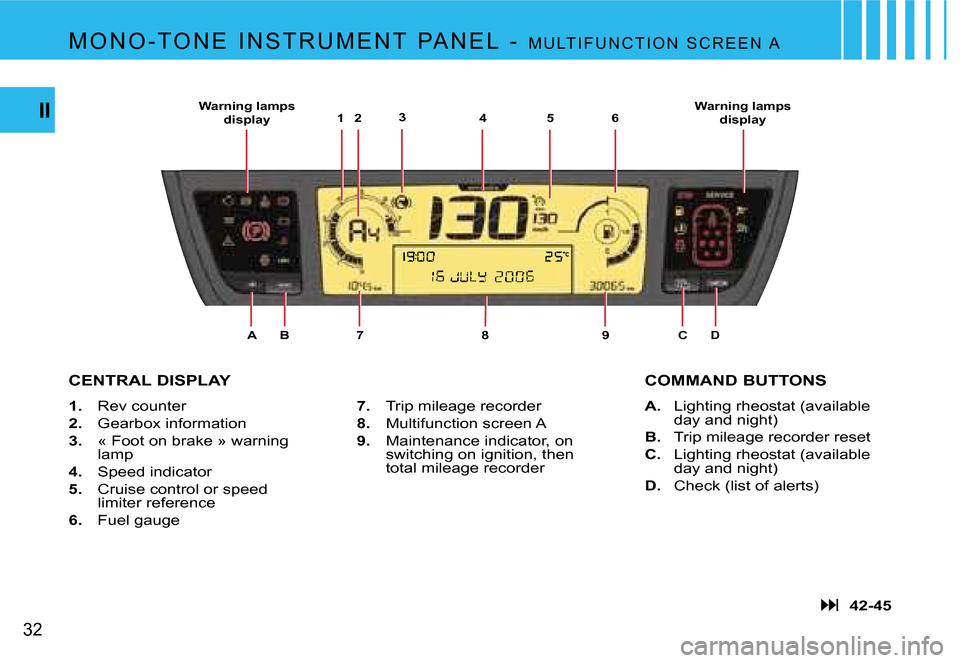

�C�E�N�T�R�A�L� �D�I�S�P�L�A�Y
�1�. � �R�e�v� �c�o�u�n�t�e�r
�2�. � �G�e�a�r�b�o�x� �i�n�f�o�r�m�a�t�i�o�n
�3�. � �«� �F�o�o�t� �o�n� �b�r�a�k�e� ��

1 23
4 5 6
D
C
9
8
7
B
A
32
II
CENTRAL DISPLAY
1. Rev counter
2. Gearbox information
3. « Foot on brake » warning
lamp
4. Speed indicator
5. Cruise control or speed
limiter reference
6. Fuel gauge 7.
Trip mileage recorder
8. Multifunction screen A
9. Maintenance indicator, on
switching on ignition, then
total mileage recorder
COMMAND BUTTONS
A. Lighting rheostat (available
day and night)
B. Trip mileage recorder reset
C. Lighting rheostat (available
day and night)
D. Check (list of alerts)
 42-45
Warning lamps
display Warning lamps
display
M O N O - T O N E I N S T R U M E N T PA N E L - M U LT I F U N C T I O N S C R E E N A
