IN BRIEF
I
4
E X T E R I O R
Panoramic glass roof
Xenon directional
headlamps
Whether on dipped beams
or main beams, this func-
tion allows your headlamps
to follow the direction of the
road ahead. Opening rear screen
Pneumatic rear
suspension
The rear pneumatic suspen-
sion enhances driving comfort
and maintains a constant body
height whatever the vehicle
load.
 138
 94
 145
Exterior side
lighters
These light up the zones fac-
ing the driver’s and passen-
ger’s doors.
Front/rear parking
assistance
Sensors located in the
bumpers detect obstacles.

95-96
Parking space sensor
Measures the size of a space
and informs you of the possi-
bility of parking.
 76-77

A
B
C
D
B
A
IN BRIEF
I
5

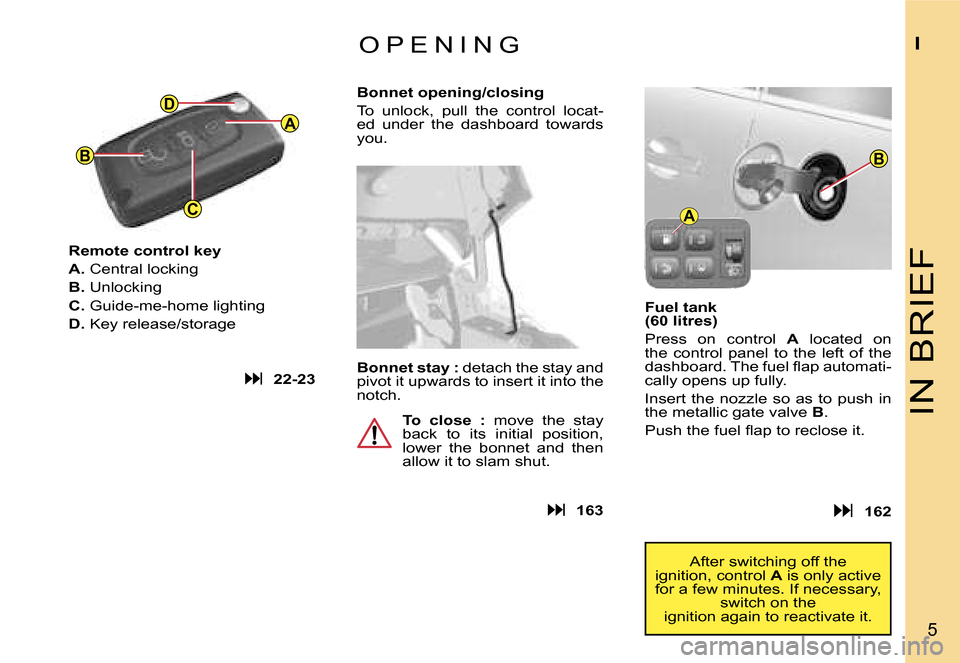

O P E N I N G
Remote control key
A. Central locking
B. Unlocking
C. Guide-me-home lighting
D. Key release/storage Fuel tank

(60 litres)
Press on control A located on
the control panel to the left of the
dashboard. The fuel flap automati -
cally opens up fully.
Insert the nozzle so as to push in
the metallic gate valve B.
Push the fuel flap to reclose it.
After switching off the
ignition, control A is only active
for a few minutes. If necessary, switch on the
ignition again to reactivate it.
Bonnet stay :
detach the stay and
pivot it upwards to insert it into the
notch.
To close : move the stay
back to its initial position,
lower the bonnet and then
allow it to slam shut.
 22-23 Bonnet opening/closing
To unlock, pull the control locat
-
ed under the dashboard towards
you.
 163 162

2
4
12
3
3
IN BRIEF
I
6
O P E N I N G

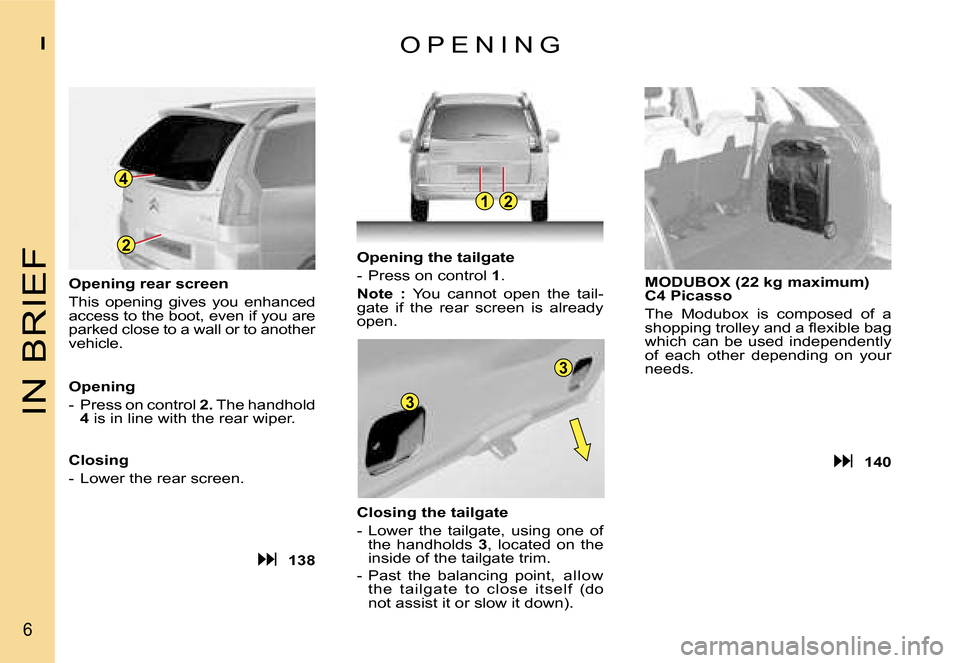

Opening rear screen
This opening gives you enhanced
access to the boot, even if you are
parked close to a wall or to another
vehicle.
Opening
- Press on control 2. The handhold
4 is in line with the rear wiper.
Closing
- Lower the rear screen. Opening the tailgate
- Press on control
1.
Note : You cannot open the tail -
gate if the rear screen is already
open.
Closing the tailgate
- Lower the tailgate, using one of
the handholds 3, located on the
inside of the tailgate trim.
- Past the balancing point, allow the tailgate to close itself (do
not assist it or slow it down). MODUBOX (22 kg maximum)

C4 Picasso
The Modubox is composed of a
shopping trolley and a flexible bag
which can be used independently
of each other depending on your
needs.
 140
 138

IN BRIEF
I
7

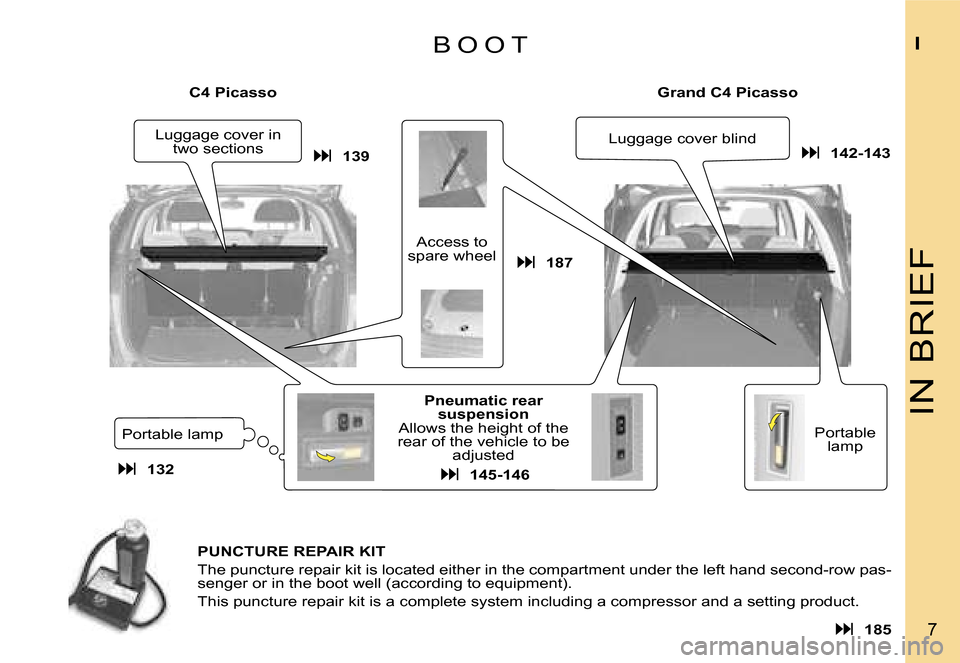

B O O T
C4 Picasso Grand C4 Picasso
Portable lamp
Pneumatic rear
suspension
Allows the height of the
rear of the vehicle to be adjusted
Access to
spare wheel
PUNCTURE REPAIR KIT
The puncture repair kit is located either in the compartment un der the left hand second-row pas-
senger or in the boot well (according to equipment).
This puncture repair kit is a complete system including a compressor an d a setting product.
Luggage cover blind
Luggage cover in
two sections
Portable lamp
 139 142-143
 187
 145-146
 185
 132

1
2
3
G
F
E
IN BRIEF
I
8

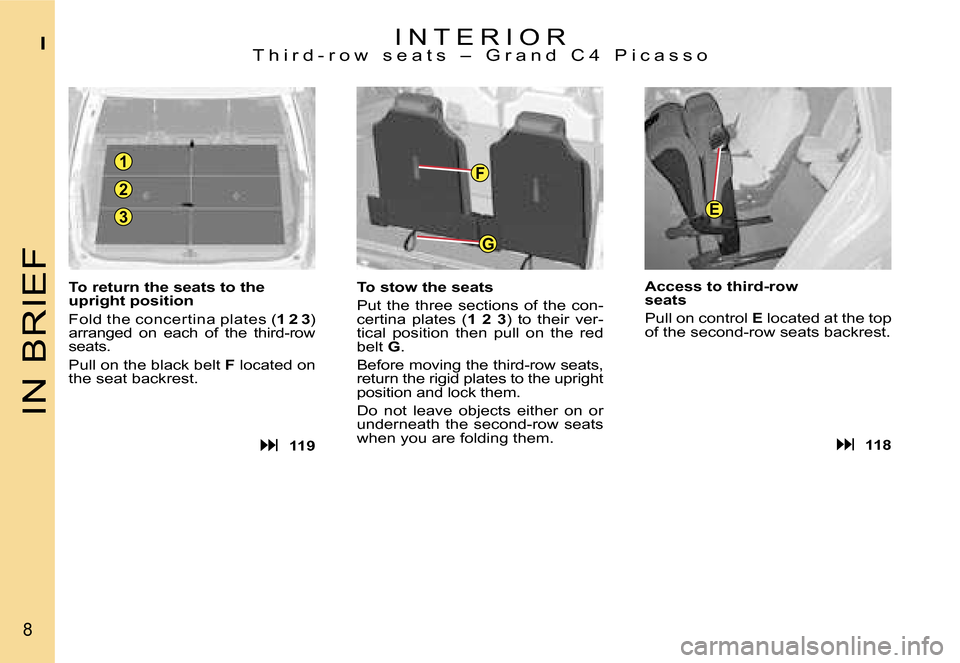

I N T E R I O RT h i r d - r o w s e a t s – G r a n d C 4 P i c a s s o
To return the seats to the
upright position
Fold the concertina plates ( 1 2 3)
arranged on each of the third-row
seats.
Pull on the black belt F located on
the seat backrest. To stow the seats
Put the three sections of the con
-
certina plates ( 1 2 3) to their ver -
tical position then pull on the red
belt G.
Before moving the third-row seats,
return the rigid plates to the upright
position and lock them.
Do not leave objects either on or
underneath the second-row seats
when you are folding them. Access to third-row

seats
Pull on control E located at the top
of the second-row seats backrest.
 119 118

C
D
A
IN BRIEF
I
9
I N T E R I O R

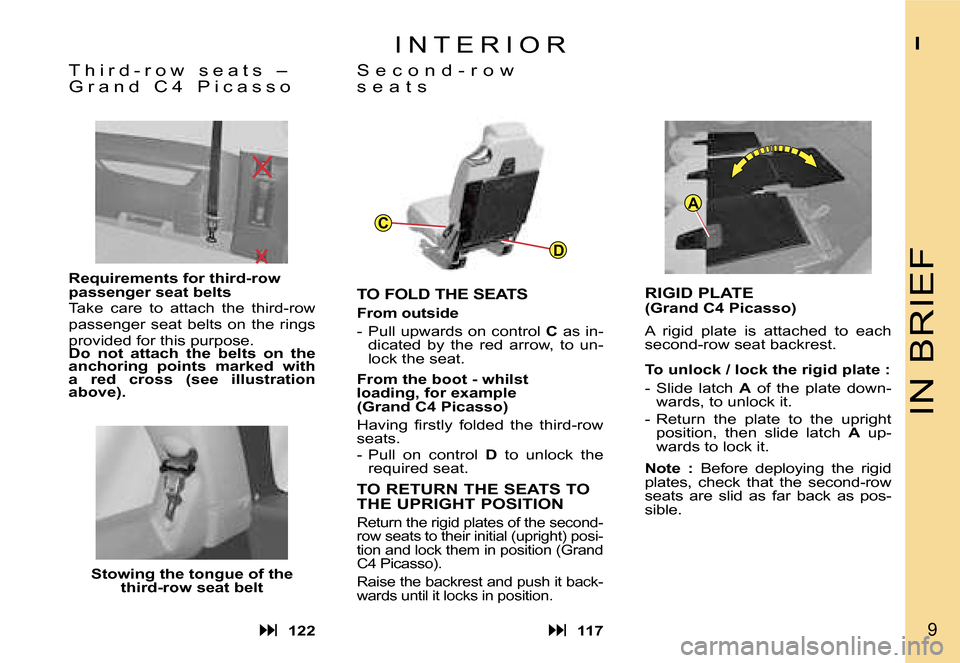

TO FOLD THE SEATS
From outside
- Pull upwards on control C as in-
dicated by the red arrow, to un-
lock the seat.
From the boot - whilst
loading, for example
(Grand C4 Picasso)
Having firstly folded the third-row
seats.
- Pull on control D to unlock the
required seat.
TO RETURN THE SEATS TO
THE UPRIGHT POSITION
Return the rigid plates of the second-
row seats to their initial (upright) posi-
tion and lock them in position (Grand
C4 Picasso).
Raise the backrest and push it back-
wards until it locks in position.
RIGID PLATE (Grand C4 Picasso)
A rigid plate is attached to each
second-row seat backrest.
To unlock / lock the rigid plate :
- Slide latch A of the plate down-
wards, to unlock it.
- Return the plate to the upright position, then slide latch A up-
wards to lock it.
Note : Before deploying the rigid
plates, check that the second-row
seats are slid as far back as pos-
sible.
Requirements for third-row
passenger seat belts
Take care to attach the third-row
passenger seat belts on the rings
provided for this purpose.
Do not attach the belts on the
anchoring points marked with
a red cross (see illustration
above).
Stowing the tongue of the third-row seat belt
T h i r d - r o w s e a t s –
G r a n d C 4 P i c a s s o S e c o n d - r o w
s e a t s

122 117

B
A
C
D
IN BRIEF
I
10
I N T E R I O R

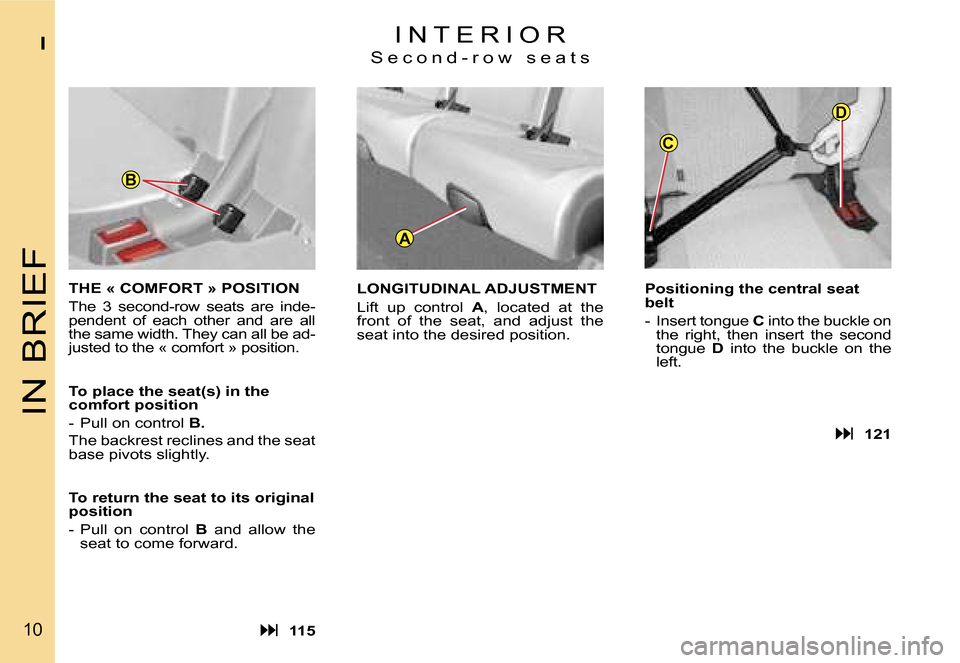

S e c o n d - r o w s e a t s
THE « COMFORT » POSITION
The 3 second-row seats are inde-
pendent of each other and are all
the same width. They can all be ad -
justed to the « comfort » position.
To place the seat(s) in the
comfort position
- Pull on control B.
The backrest reclines and the seat
base pivots slightly.
To return the seat to its original
position
- Pull on control B and allow the
seat to come forward. LONGITUDINAL ADJUSTMENT
Lift up control
A, located at the
front of the seat, and adjust the
seat into the desired position. Positioning the central seat
belt
- Insert tongue
C into the buckle on
the right, then insert the second
tongue D into the buckle on the
left.
 115
 121

IN BRIEF
I
11

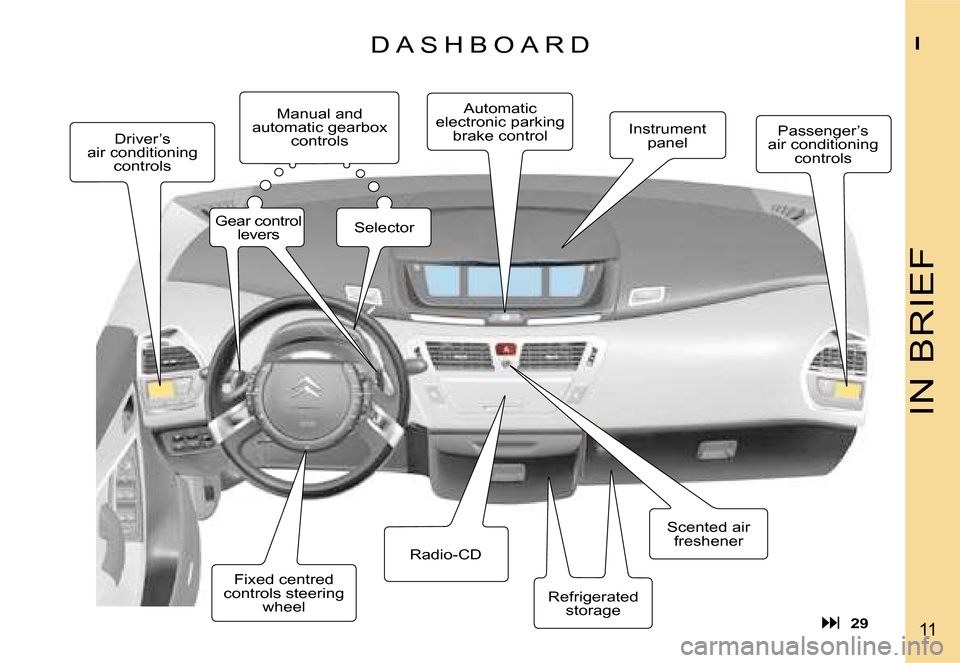

D A S H B O A R D
Driver’s
air conditioning controls Manual and
automatic gearbox controls Automatic
electronic parking brake control Instrument
panel Passenger’s
air conditioning controls
Scented air freshener
Refrigerated storage
Radio-CD
Fixed centred
controls steering wheel
Gear control
levers Selector

29

12
3
IN BRIEF
I
12

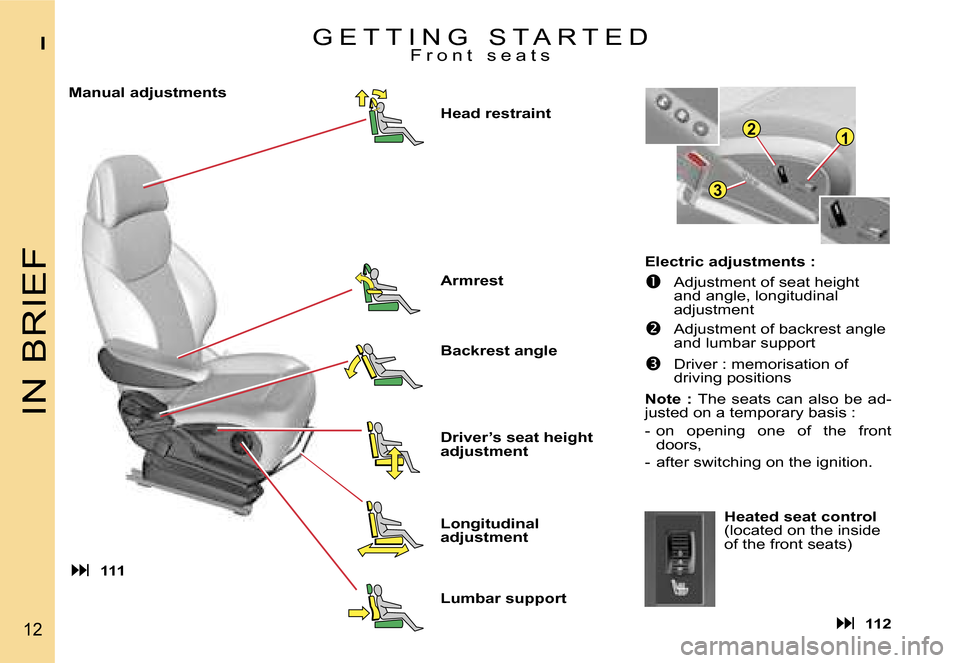

G E T T I N G S T A R T E DF r o n t s e a t s
Head restraint
Backrest angle
Driver’s seat height
adjustment
Longitudinal
adjustment
Lumbar support Armrest
Manual adjustments
Electric adjustments :
 Adjustment of seat height

and angle, longitudinal
adjustment
 Adjustment of backrest angle
and lumbar support

Driver : memorisation of
driving positions
Note : The seats can also be ad -
justed on a temporary basis :
- on opening one of the front
doors,
- after switching on the ignition.
 111
 112
Heated seat control

(located on the inside
of the front seats)

A
1
212
IN BRIEF
I
13

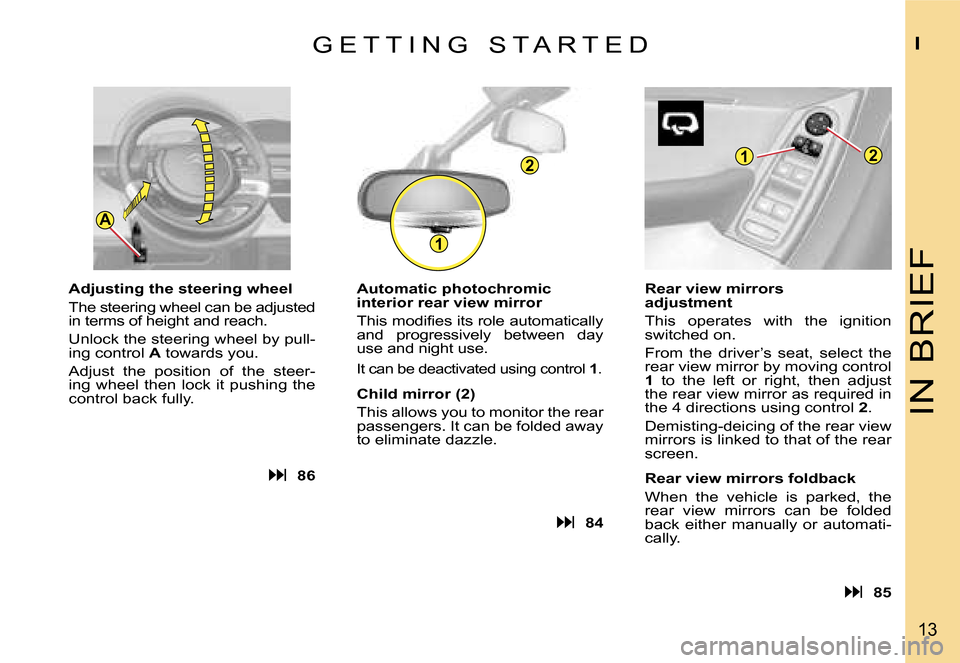

G E T T I N G S T A R T E D
Adjusting the steering wheel
The steering wheel can be adjusted
in terms of height and reach.
Unlock the steering wheel by pull-
ing control A towards you.
Adjust the position of the steer-
ing wheel then lock it pushing the
control back fully. Automatic photochromic
interior rear view mirror
This modifies its role automatically
and progressively between day
use and night use.
It can be deactivated using control
1.
Child mirror (2)
This allows you to monitor the rear
passengers. It can be folded away
to eliminate dazzle. Rear view mirrors
adjustment
This operates with the ignition
switched on.
From the driver’s seat, select the
rear view mirror by moving control
1
to the left or right, then adjust
the rear view mirror as required in
the 4 directions using control 2.
Demisting-deicing of the rear view
mirrors is linked to that of the rear
screen.
Rear view mirrors foldback
When the vehicle is parked, the
rear view mirrors can be folded
back either manually or automati-
cally.
 86
 84
 85
