IV
C D C H A N G E R S O U R C E
Selecting a CD
To select a CD, either press one of the pre-selection buttons 1 to 5 on the keypad P, or scroll using but-tons J or M.
The CD will start to play automati-cally.
You can also do this by means of control 3 at the steering wheel.
After each change of source, on return to CD changer source, play-back will resume at the same point where it had been interrupted.
Selecting a track
Press button K once to play the next track.
Press button N once to return to the beginning of the track current-ly being played, press a second time to go back to the start of the previous track.
Press the buttons successively to skip several tracks at a time.
You can also do this by means of the controls 2 and 3 at the steer-ing wheel.
Fast forward and rewind with accelerated sound
Press and keep pressed one of the buttons K or N respectively for fast forward or rewind with accelerated sound. Play resumes as normal when the button is released.
Menu
This menu is for activation/deacti-vation of three options :
- Playback of the fi rst 7 seconds (approx.) of each track of the CD.
- Repetition of the current CD.
- Random playback of tracks, CD by CD.
This can be accessed in two ways :
- Either by pressing button O and proceeding as for Search of Sta-tions RDS – for screen C, the sub-menu corresponds to the Audio Preferences.
- Or if you are in CD changer source by pressing button L. You then have access to the AUDIO menu (for screen C only).
Note:
If one of these options is active, it remains active for CD source.
CD Changer
This equipment S (if present) is lo-cated in the passenger’s storage compartment on the dashboard. It can accommodate 5 discs.
Inserting CDs into the magazine
Insert the CDs printed surface to the left.
Note :
- Each compartment takes one disc only.
- The CD changer will not operate if discs are inserted the wrong way up.
Removing discs
To remove a CD, give a long press on the corresponding button.
Note :
The CD changer (if there is one) is not MP3 compatible.
Selecting CD changer source
Press on button D until you reach CD changer.
After the magazine engages, play-back of the fi rst track of the fi rst CD will begin.

C
A
B
168
V

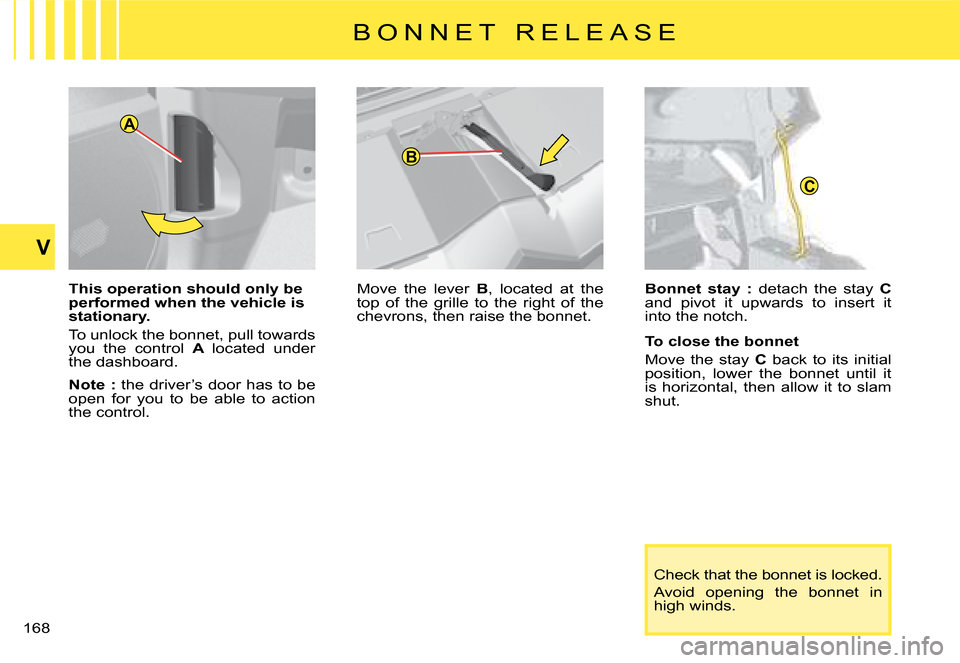

B O N N E T R E L E A S E
This operation should only be performed when the vehicle is stationary.
To unlock the bonnet, pull towards you the control A located under the dashboard.
Note : the driver’s door has to be open for you to be able to action the control.
Move the lever B,located at the top of the grille to the right of the chevrons, then raise the bonnet.
Bonnet stay : detach the stay Cand pivot it upwards to insert it into the notch.
To close the bonnet
Move the stay C back to its initial position, lower the bonnet until it is horizontal, then allow it to slam shut.
Check that the bonnet is locked.
Avoid opening the bonnet in high winds.
