99
VI
L A Y O U T

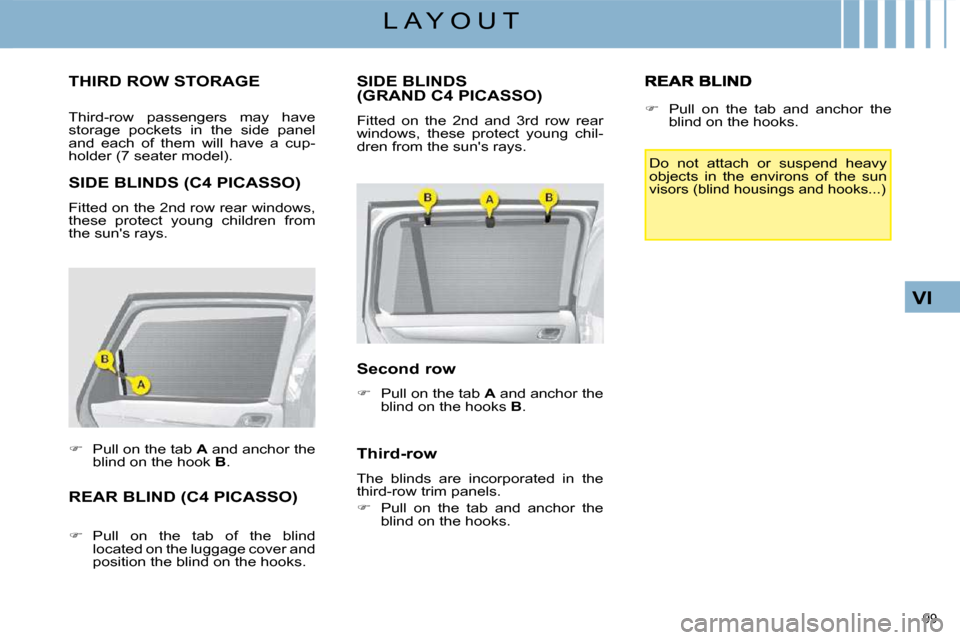

SIDE BLINDS (C4 PICASSO)
Fitted on the 2nd row rear windows,
these protect young children from
the sun's rays.
Pull on the tab A and anchor the
blind on the hook B .
REAR BLIND (C4 PICASSO)
Pull on the tab of the blind
located on the luggage cover and
position the blind on the hooks.
SIDE BLINDS (GRAND C4 PICASSO)
Fitted on the 2nd and 3rd row rear
windows, these protect young chil-
dren from the sun's rays.
Second row
Pull on the tab A and anchor the
blind on the hooks B .
Third-row
The blinds are incorporated in the
third-row trim panels.
Pull on the tab and anchor the
blind on the hooks.
Pull on the tab and anchor the
blind on the hooks.
Do not attach or suspend heavy
objects in the environs of the sun
visors (blind housings and hooks...)
THIRD ROW STORAGE
Third-row passengers may have
storage pockets in the side panel
and each of them will have a cup-
holder (7 seater model).
Page 129 of 330
105
VI
L A Y O U T
TORCH
This is a removable light, incorpo-
rated in the boot wall, which can be
used to light the boot or as a torch.
Grand C4 Picasso
C4 Picasso Boot lighting
The boot light
A comes on automati-
cally when the boot is opened and
switches off automatically when the
boot is closed.
Various lighting durations are avai-lable:
- ignition off, approximately ten minutes,
- in energy economy mode, appro- ximately thirty seconds,
- engine running, no limit.

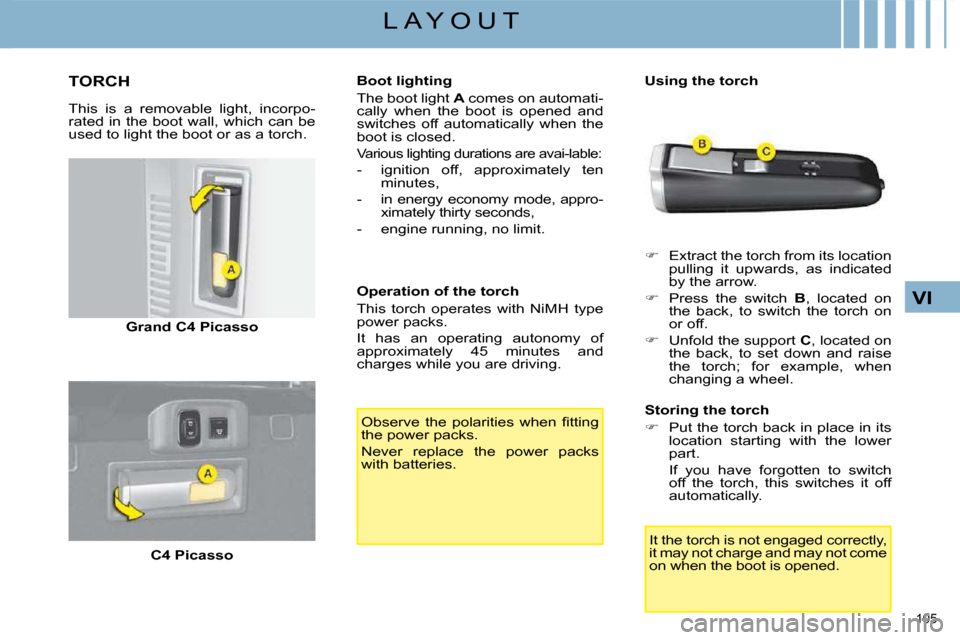

Operation of the torch
This torch operates with NiMH type
power packs.
It has an operating autonomy of
approximately 45 minutes and
charges while you are driving.
Extract the torch from its location
pulling it upwards, as indicated
by the arrow.
Press the switch B , located on
the back, to switch the torch on
or off.
Unfold the support C , located on
the back, to set down and raise
the torch; for example, when
changing a wheel.
Storing the torch
Put the torch back in place in its
location starting with the lower
part.
If you have forgotten to switch off the torch, this switches it off
automatically.
O b s e r v e t h e p o l a r i t i e s w h e n fi t t i n g
the power packs.
Never replace the power packs
with batteries.
It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.
Using the torch
Page 136 of 330
105
VI
L A Y O U T
TORCH
This is a removable light, incorpo-
rated in the boot wall, which can be
used to light the boot or as a torch.
Grand C4 Picasso
C4 Picasso Boot lighting
The boot light
A comes on automati-
cally when the boot is opened and
switches off automatically when the
boot is closed.
Various lighting durations are avai-lable:
- ignition off, approximately ten minutes,
- in energy economy mode, appro- ximately thirty seconds,
- engine running, no limit.
Operation of the torch
This torch operates with NiMH type
power packs.
It has an operating autonomy of
approximately 45 minutes and
charges while you are driving.
Extract the torch from its location
pulling it upwards, as indicated
by the arrow.
Press the switch B , located on
the back, to switch the torch on
or off.
Unfold the support C , located on
the back, to set down and raise
the torch; for example, when
changing a wheel.
Storing the torch
Put the torch back in place in its
location starting with the lower
part.
If you have forgotten to switch off the torch, this switches it off
automatically.
O b s e r v e t h e p o l a r i t i e s w h e n fi t t i n g
the power packs.
Never replace the power packs
with batteries.
It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.
Using the torch
Page 166 of 330
132
IX
D R I V I N G
SITUATION
CONSEQUENCES
4 Display of message
"Parking brake faulty"
and the following warning lamps:
and/or fl a s h i n g - The automatic functions are deactivated.
- The hill start assist is unavailable.
To apply the electronic parking brake:
Immobilise the vehicle and switch off the ignition
Pull the control lever for at least 5 seconds or until maximum
application.
Switch on the ignition and check that the electronic parkin g
brake warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P fl a s h e s o r i f t h e w a r n i n g l a m p s d o n o t c o m e
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer.
To release the electronic parking brake:
Switch on the ignition.
Pull the control lever and hold it for approximately 3 second s.
5 Display of message
"Parking brake control
faulty – automatic mode activated" and the
following warning lamps:
and/or fl a s h i n g - Only the functions for automatic application on switchi
ng off the
engine and automatic release on acceleration are available.
- Manual application/release of the electronic parking brake and
dynamic emergency braking are unavailable.
6 Battery fault - Lighting of the battery warning lamp ma
kes it essential to stop
t h e v e h i c l e a s s o o n a s t r a f fi c a l l o w s . S t o p a n d i m m o b i l i s e y o u r
vehicle.
- Apply the electronic parking brake before switching off the
engine.
Page 168 of 330
134
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the key to
position M and wait until the pre-
heating warning light switches off
if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of
two driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
-
the sequential mode for manual
changing of the gears by the driver.
automatic mode: selector 2 in
position A .
manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the levers 1 .
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Page 169 of 330
134
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the key to
position M and wait until the pre-
heating warning light switches off
if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of
two driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
-
the sequential mode for manual
changing of the gears by the driver.
automatic mode: selector 2 in
position A .
manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the levers 1 .
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Page 182 of 330
147
IX
D R I V I N G
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (approx. 40 km/h)
and you must engage:
- fourth gear on a manual gearbox,
- second gear, in sequential mode, on an electronic gearbox or
automatic gearbox,
- position A on an electronic gear-
box or D on an automatic gearbox.
Steering wheel controls
The cruise control commands are
located on the left-hand side of the
steering wheel. The programmed information is
grouped together in zone
A of the
instrument panel display.
Displays on the instrument
panel
Activation You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
on the instrument panel display by
pressing on:
button 4 to increase the speed,
button 2 to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph and a
sustained press in steps of 3 mph.
Deactivation
Either by pressing on the brake
pedal or on the clutch pedal.
Or by pressing button 3 .
Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral.
On selection of the
function via control
1,
no cruise speed has
yet been memorised .
Programming
Rotate the control
1 to the "REG"
position.
Once the desired speed has been
reached via action on the accelera-
tor, press button 2 or button 4 . The
cruise speed is then memorised. It
is displayed in zone A of the instru-
ment panel. These actions cause
the information
"OFF"
to appear on the instru-
ment panel display.
These manoeuvres do
not cancel the cruise
speed which remains
displayed in the instru-
ment panel.
The cruise control cannot, in any
circumstances, take the place of
the observance of speed limits or
of the vigilance and responsibility
of the driver.
Page 189 of 330
154
IX
D R I V I N G
PNEUMATIC SUSPENSION
Grand
C4 Picasso
C4 Picasso

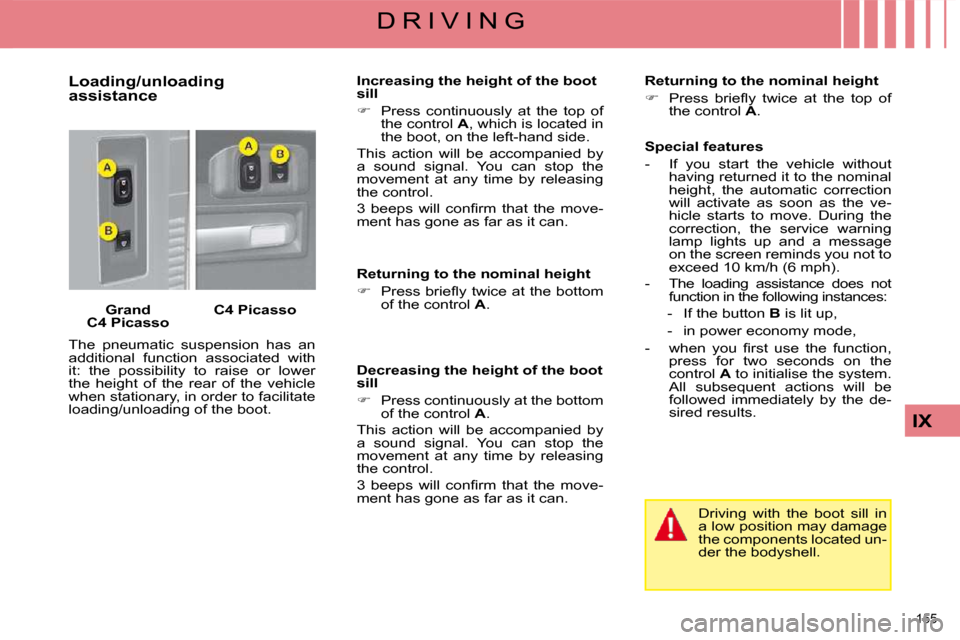

The rear pneumatic suspension en-
hances driving comfort by maintain-
ing a constant body height whatever
the vehicle load. Operation
- If there is an increase in vehi-
cle load, a sinking of the rear of
the vehicle is detected and the
p n e u m a t i c s p r i n g s i n fl a t e i n o r -
der to compensate for the extra
weight.
- If there is a decrease in load, a rising of the rear of the vehicle is
detected and so the pneumatic
s p r i n g s d e fl a t e t o r e t u r n t h e v e -
hicle to its nominal height.
- If the vehicle has been unused for a long period, the pneumatic
s p r i n g s m a y i n fl a t e i f n e c e s s a r y
when you unlock or open a door,
so as to return the vehicle to its
nominal height.
If you do not reactivate the system
manually, the automatic correction
will be activated as soon as the ve-
hicle starts to move. During the cor-
rection, the service warning lamp
lights up and a message on the
screen reminds you not to exceed
10 km/h (6 mph).
The automatic correction does not
function if the doors or the boot are
open.
The automatic correction operates
even if your vehicle is in power
economy mode. Activation/Deactivation
The automatic correction can be
deactivated:
press on the button B for approx-
imately two seconds,
release the button when you
hear a beep. Deactivation is
c o n fi r m e d b y t h e l i g h t i n g o f t h e
indicator lamp on the button B .
In the event of the system mal-
functioning, alert messages,
always in association with the
service warning lamp, will dis-
play in the instrument panel .
Consult a CITROËN dealer.
It is essential that you should
deactivate the system in the following
instances:
- working under the vehicle,
- changing a wheel,
- transporting the vehicle on a
truck or on a boot.
To reactivate the automatic correction:
press again on the button B for
approximately two seconds,
release the button when you hear
a b e e p . A c t i v a t i o n i s c o n fi r m e d
by the extinction of the indicator
lamp on the button B .
Page 190 of 330
155
IX
D R I V I N G
Loading/unloading
assistance
Grand
C4 Picasso
C4 Picasso
The pneumatic suspension has an
additional function associated with
it: the possibility to raise or lower
the height of the rear of the vehicle
when stationary, in order to facilitate
loading/unloading of the boot. Increasing the height of the boot
sill
Press continuously at the top of
the control A , which is located in
the boot, on the left-hand side.
This action will be accompanied by
a sound signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can.
Returning to the nominal height
P r e s s b r i e fl y t w i c e a t t h e b o t t o m
of the control A .
Decreasing the height of the boot
sill
Press continuously at the bottom
of the control A .
This action will be accompanied by
a sound signal. You can stop the
movement at any time by releasing
the control.
3 b e e p s w i l l c o n fi r m t h a t t h e m o v e -
ment has gone as far as it can. Returning to the nominal height
P r e s s b r i e fl y t w i c e a t t h e t o p o f
the control A .
Driving with the boot sill in
a low position may damage
the components located un-
der the bodyshell.
Special features
- If you start the vehicle without
having returned it to the nominal
height, the automatic correction
will activate as soon as the ve-
hicle starts to move. During the
correction, the service warning
lamp lights up and a message
on the screen reminds you not to
exceed 10 km/h (6 mph).
- The loading assistance does not function in the following instances:
- If the button B is lit up,
- in power economy mode,
- w h e n y o u fi r s t u s e t h e f u n c t i o n , press for two seconds on the
control A to initialise the system.
All subsequent actions will be
followed immediately by the de-
sired results.
Page 210 of 330
1 7 5
XI
P R A C T I C A L I N F O R M A T I O N
Changing integrated direction
indicator side repeaters
T o c h a n g e t h e r e p e a t e r , p r e s s d o w n -
w a r d s fi r m l y o n t h e z o n e i n d i c a t e d
b y t h e a r r o w , t h e n p u l l t h e r e p e a t e r .
R e p e a t e r s c a n b e o b t a i n e d f r o m a
C I T R O Ë N d e a l e r . Model with Xenon headlamps
and directional headlamps
1. Dual-function Xenon
headlamps (dipped/main
beam)
2. Additional main beams
(H7 - 55 W)
3. Sidelamps (H6 W - 6 W)
( s e e p r e v i o u s p a g e )
4. Direction indicators
(H21 - 21 W)
( s e e p r e v i o u s p a g e ) Changing dual-function Xenon
headlamps (dipped/main beam)
Changing additional main beams
R e m o v e t h e r u b b e r p l u g .
R o t a t e t h e b u l b - h o l d e r a q u a r t e r
t u r n a n t i - c l o c k w i s e a n d r e m o v e i t
f r o m i t s h o u s i n g .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r b y
p u s h i n g i t i n , t i g h t e n i n g i t b y a
q u a r t e r t u r n c l o c k w i s e .
P u t b a c k t h e r u b b e r p l u g . I f t h e h e a d l a m p b e a r s t h i s
s y m b o l , a n y o p e r a t i o n t o
c h a n g e t h e X e n o n d u a l -
f u n c t i o n d i r e c t i o n a l h e a d -
l a m p ( D 1 S - 3 5 W ) m u s t b e c a r r i e d
o u t b y p r o f e s s i o n a l s ( r i s k o f e l e c -
t r o c u t i o n ) .
C o n s u l t a C I T R O Ë N d e a l e r .
It is recommended to change both
b u l b s a t t h e s a m e t i m e i f o n e o f
t h e m i s f a u l t y .
W h e n u s i n g a h i g h - p r e s -
s u r e w a s h e r o n p e r s i s t e n t
m a r k s , d o n o t d i r e c t a t t h e
l a m p s o r t h e i r o u t l i n e s f o r t o o l o n g ,
so as not to damage their coating
a n d t h e i r s e a l s .
