AIRCRAFT-STYLE REAR TABLES
Rear table stowed
Rear table opened
The backrests of the front seats are
fi t t e d w i t h a i r c r a f t - s t y l e t a b l e s . T h e s e
incorporate a can-holder A and a
retaining strap B , for the placing of
objects.
Pull the table downwards to
open.
To restow the table, raise it until
the latch locks.
For safety reasons, these collapse
downwards if excessive pressure is
exerted.
Reading lamps C may be incorpo-
rated in the front seat backrests,
behind the tables. These light the
surface of the tables without distur-
bing the other passengers.
They are accessible only while the
table is down.
P r e s s o n t h e " o n / o f f " b u t t o n t o
turn the lamp on or off.
SECOND ROW FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has one or two storage com-
partments under the footwell, locat-
e d b e t w e e n t h e s e a t s o f t h e fi r s t a n d
second rows. They can be accessed
v i a c l i p p e d fl a p s w i t h a h a n d l e A .
The compartment on the left-hand
side may contain the puncture repair
kit and the tool kit may be stored in
the compartment on the right-hand
s i d e . I n t h i s c a s e t h e fl a p i s s e c u r e d
by means of a screw B . To gain
access to the compartment, turn the
screw a quarter turn anticlockwise
using a coin.
O n v e h i c l e s fi t t e d w i t h p n e u m a t i c
s u s p e n s i o n , t h e l e f t - h a n d fl a p i s
locked.
Individual reading lamps
Page 122 of 330
98
VI
L A Y O U T
AIRCRAFT-STYLE REAR TABLES
Rear table stowed
Rear table opened
The backrests of the front seats are
fi t t e d w i t h a i r c r a f t - s t y l e t a b l e s . T h e s e
incorporate a can-holder A and a
retaining strap B , for the placing of
objects.
Pull the table downwards to
open.
To restow the table, raise it until
the latch locks.
For safety reasons, these collapse
downwards if excessive pressure is
exerted.
Reading lamps C may be incorpo-
rated in the front seat backrests,
behind the tables. These light the
surface of the tables without distur-
bing the other passengers.
They are accessible only while the
table is down.
P r e s s o n t h e " o n / o f f " b u t t o n t o
turn the lamp on or off.
SECOND ROW FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has one or two storage com-
partments under the footwell, locat-
e d b e t w e e n t h e s e a t s o f t h e fi r s t a n d
second rows. They can be accessed
v i a c l i p p e d fl a p s w i t h a h a n d l e A .
The compartment on the left-hand
side may contain the puncture repair
kit and the tool kit may be stored in
the compartment on the right-hand
s i d e . I n t h i s c a s e t h e fl a p i s s e c u r e d
by means of a screw B . To gain
access to the compartment, turn the
screw a quarter turn anticlockwise
using a coin.
O n v e h i c l e s fi t t e d w i t h p n e u m a t i c
s u s p e n s i o n , t h e l e f t - h a n d fl a p i s
locked.
Individual reading lamps
Page 125 of 330
101
VI
L A Y O U T
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
l e y a n d a fl e x i b l e b a g ( i s o t h e r m o n
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle
Perform the operations in
reverse to fold and stow inside
the vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK

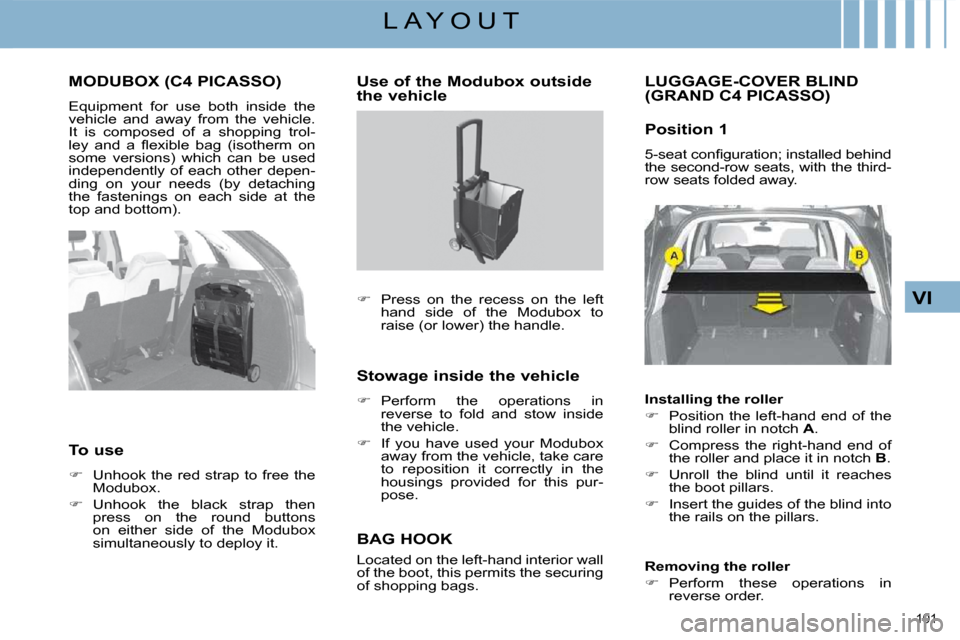

LUGGAGE-COVER BLIND (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the second-row seats, with the third-
row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller
Position the left-hand end of the
blind roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Unroll the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Perform these operations in
reverse order.
Page 126 of 330
102
VI
L A Y O U T

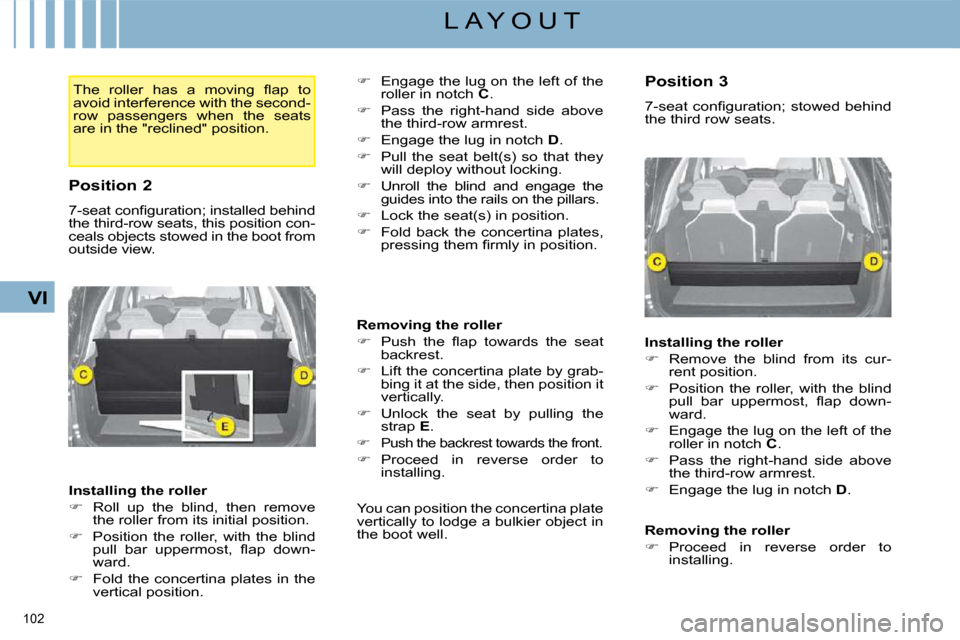

T h e r o l l e r h a s a m o v i n g fl a p t o
avoid interference with the second-
row passengers when the seats
are in the "reclined" position.
Engage the lug on the left of the
roller in notch C .
Pass the right-hand side above
the third-row armrest.
Engage the lug in notch D .
Pull the seat belt(s) so that they
will deploy without locking.
Unroll the blind and engage the
guides into the rails on the pillars.
Lock the seat(s) in position.
Fold back the concertina plates,
p r e s s i n g t h e m fi r m l y i n p o s i t i o n .
Installing the roller
Roll up the blind, then remove
the roller from its initial position.
Position the roller, with the blind
p u l l b a r u p p e r m o s t , fl a p d o w n -
ward.
Fold the concertina plates in the
vertical position.
Removing the roller
P u s h t h e fl a p t o w a r d s t h e s e a t
backrest.
Lift the concertina plate by grab-
bing it at the side, then position it
vertically.
Unlock the seat by pulling the
strap E .
Push the backrest towards the front.
Proceed in reverse order to
installing. Position 3
7 - s e a t c o n fi g u r a t i o n ; s t o w e d b e h i n d
the third row seats.
Installing the roller
Remove the blind from its cur-
rent position.
Position the roller, with the blind
p u l l b a r u p p e r m o s t , fl a p d o w n -
ward.
Engage the lug on the left of the
roller in notch C .
Pass the right-hand side above
the third-row armrest.
Engage the lug in notch D .
Removing the roller
Proceed in reverse order to
installing.
Position 2
7 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the third-row seats, this position con-
ceals objects stowed in the boot from
outside view.
You can position the concertina plate
vertically to lodge a bulkier object in
the boot well.
Page 127 of 330
103
VI
L A Y O U T

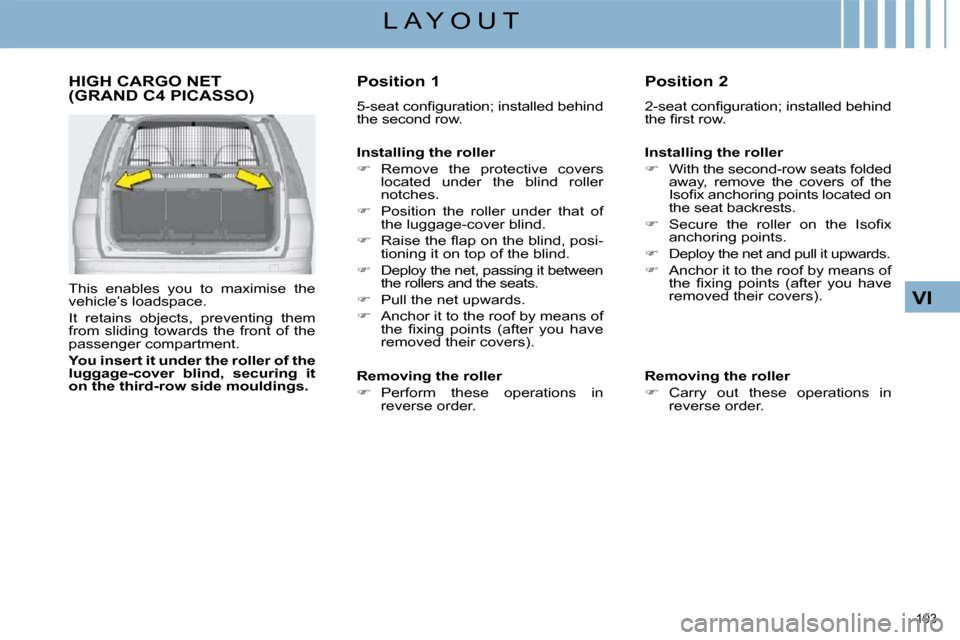

HIGH CARGO NET (GRAND C4 PICASSO)
This enables you to maximise the
vehicle’s loadspace.
It retains objects, preventing them
from sliding towards the front of the
passenger compartment.
You insert it under the roller of the
luggage-cover blind, securing it
on the third-row side mouldings. Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the second row.
Installing the roller
Remove the protective covers
located under the blind roller
notches.
Position the roller under that of
the luggage-cover blind.
R a i s e t h e fl a p o n t h e b l i n d , p o s i -
tioning it on top of the blind.
Deploy the net, passing it between
the rollers and the seats.
Pull the net upwards.
Anchor it to the roof by means of
t h e fi x i n g p o i n t s ( a f t e r y o u h a v e
removed their covers).
Removing the roller
Perform these operations in
reverse order. Position 2
2 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
t h e fi r s t r o w .
Removing the roller
Carry out these operations in
reverse order.
Installing the roller
With the second-row seats folded
away, remove the covers of the
I s o fi x a n c h o r i n g p o i n t s l o c a t e d o n
the seat backrests.
S e c u r e t h e r o l l e r o n t h e I s o fi x
anchoring points.
Deploy the net and pull it upwards.
Anchor it to the roof by means of
t h e fi x i n g p o i n t s ( a f t e r y o u h a v e
removed their covers).
Page 131 of 330
101
VI
L A Y O U T
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
l e y a n d a fl e x i b l e b a g ( i s o t h e r m o n
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle
Perform the operations in
reverse to fold and stow inside
the vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE-COVER BLIND (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the second-row seats, with the third-
row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller
Position the left-hand end of the
blind roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Unroll the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Perform these operations in
reverse order.
Page 132 of 330
101
VI
L A Y O U T
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
l e y a n d a fl e x i b l e b a g ( i s o t h e r m o n
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle
Perform the operations in
reverse to fold and stow inside
the vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE-COVER BLIND (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the second-row seats, with the third-
row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller
Position the left-hand end of the
blind roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Unroll the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Perform these operations in
reverse order.
Page 133 of 330
102
VI
L A Y O U T
T h e r o l l e r h a s a m o v i n g fl a p t o
avoid interference with the second-
row passengers when the seats
are in the "reclined" position.
Engage the lug on the left of the
roller in notch C .
Pass the right-hand side above
the third-row armrest.
Engage the lug in notch D .
Pull the seat belt(s) so that they
will deploy without locking.
Unroll the blind and engage the
guides into the rails on the pillars.
Lock the seat(s) in position.
Fold back the concertina plates,
p r e s s i n g t h e m fi r m l y i n p o s i t i o n .
Installing the roller
Roll up the blind, then remove
the roller from its initial position.
Position the roller, with the blind
p u l l b a r u p p e r m o s t , fl a p d o w n -
ward.
Fold the concertina plates in the
vertical position.
Removing the roller
P u s h t h e fl a p t o w a r d s t h e s e a t
backrest.
Lift the concertina plate by grab-
bing it at the side, then position it
vertically.
Unlock the seat by pulling the
strap E .
Push the backrest towards the front.
Proceed in reverse order to
installing. Position 3
7 - s e a t c o n fi g u r a t i o n ; s t o w e d b e h i n d
the third row seats.
Installing the roller
Remove the blind from its cur-
rent position.
Position the roller, with the blind
p u l l b a r u p p e r m o s t , fl a p d o w n -
ward.
Engage the lug on the left of the
roller in notch C .
Pass the right-hand side above
the third-row armrest.
Engage the lug in notch D .
Removing the roller
Proceed in reverse order to
installing.
Position 2
7 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the third-row seats, this position con-
ceals objects stowed in the boot from
outside view.
You can position the concertina plate
vertically to lodge a bulkier object in
the boot well.
Page 134 of 330
103
VI
L A Y O U T
HIGH CARGO NET (GRAND C4 PICASSO)
This enables you to maximise the
vehicle’s loadspace.
It retains objects, preventing them
from sliding towards the front of the
passenger compartment.
You insert it under the roller of the
luggage-cover blind, securing it
on the third-row side mouldings. Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
the second row.
Installing the roller
Remove the protective covers
located under the blind roller
notches.
Position the roller under that of
the luggage-cover blind.
R a i s e t h e fl a p o n t h e b l i n d , p o s i -
tioning it on top of the blind.
Deploy the net, passing it between
the rollers and the seats.
Pull the net upwards.
Anchor it to the roof by means of
t h e fi x i n g p o i n t s ( a f t e r y o u h a v e
removed their covers).
Removing the roller
Perform these operations in
reverse order. Position 2
2 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e h i n d
t h e fi r s t r o w .
Removing the roller
Carry out these operations in
reverse order.
Installing the roller
With the second-row seats folded
away, remove the covers of the
I s o fi x a n c h o r i n g p o i n t s l o c a t e d o n
the seat backrests.
S e c u r e t h e r o l l e r o n t h e I s o fi x
anchoring points.
Deploy the net and pull it upwards.
Anchor it to the roof by means of
t h e fi x i n g p o i n t s ( a f t e r y o u h a v e
removed their covers).
Page 146 of 330
114
VIII
S A F E T Y

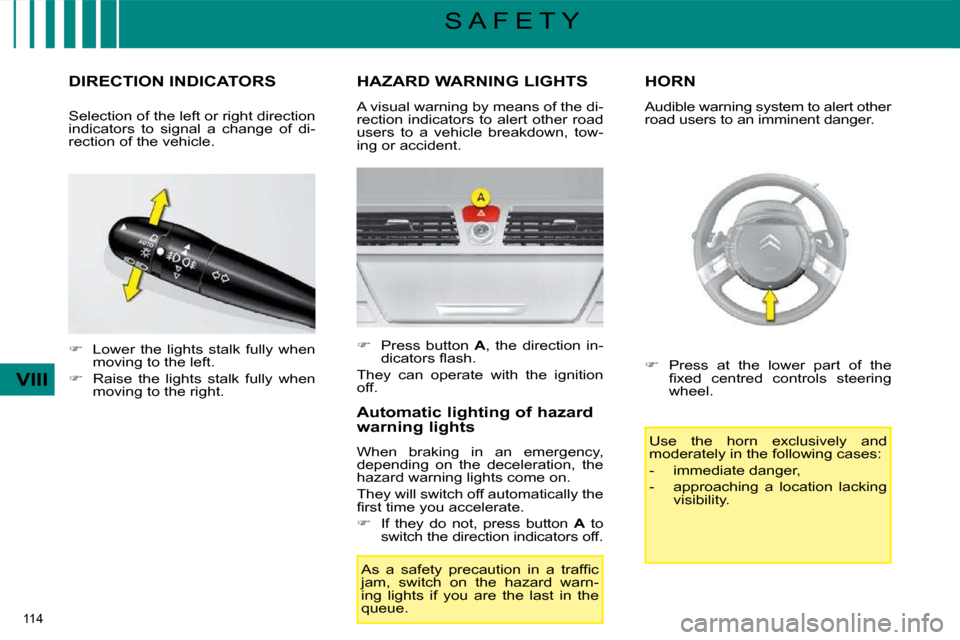

DIRECTION INDICATORS
Lower the lights stalk fully when
moving to the left.
Raise the lights stalk fully when
moving to the right.
HAZARD WARNING LIGHTS
A visual warning by means of the di-
rection indicators to alert other road
users to a vehicle breakdown, tow-
ing or accident.
Automatic lighting of hazard
warning lights
When braking in an emergency,
depending on the deceleration, the
hazard warning lights come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off. HORN
Selection of the left or right direction
indicators to signal a change of di-
rection of the vehicle.
Press button A , the direction in-
d i c a t o r s fl a s h .
They can operate with the ignition
off.
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c
jam, switch on the hazard warn-
ing lights if you are the last in the
queue. Audible warning system to alert other
road users to an imminent danger.
Press at the lower part of the
fi x e d c e n t r e d c o n t r o l s s t e e r i n g
wheel.
U s e t h e h o r n e x c l u s i v e l y a n d
moderately in the following cases:
- immediate danger,
- approaching a location lacking visibility.
