Citroen C4 PICASSO DAG 2008.5 1.G Owner's Manual

23
11
22
11
33
22
Press the MENU button then select the CONFIGURATION function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the audio equipment auxiliary input.
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) located in the glove box using a suitable cable.
Press the SOURCE button several times in succession and select AUX.
The displaying and management of the commands takes place via the portable equipment.
It is not possible to copy the fi les onto the hard disc from the auxiliary input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED
AUDIO CD CHANGER
PLAYING A CD
Insert the CDs in a multi-slot changer (not MP3 compatible) one by one. On a single slot changer (MP3 compatible), press LOAD, select the number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the alphanumeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD.
It is not possible to copy the fi les onto the hard disc from the CD changer.
CD CHANGER

24
11
22
33
44
55
66
77
Turn the dial and select the VIDEO PARAMETERS function to set the display format, the brightness, the contrast and the colours.
Turn the dial and select the ACTIVATE VIDEO MODE function to activate/deactivate the video.
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video sockets, located in the glove box.
Turn the dial and select the VIDEO function.
After connecting the video equipment, press the MENU button.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Pressing the "SOURCE" button several times in succ ession permits the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects the display ing of the video.
Press the dial to confi rm the selection.
VIDEO MENU
Videos can only be displayed when stationary.

25
11
22
33
11
22
06 INTERNAL TELEPHONE
ENTERING THE PIN CODE
Access the slot by pressing the button using the tip of a pen.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with the NaviDrive audio and telematics system switched off and the ig nition off.
Enter the PIN code on the keypad.
Confi rm the PIN code by pressing button #.
PIN CODE
When entering your PIN code, tick the STORE PIN ta b to gain access to the telephone without having to enter this code when it is used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)

26
33
22
11
44
06
The services offered by the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telepho ne's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
For safety reasons, it is imperative that the driv er carries out operations which require prolonged attention with t he vehicle stationary (pairing the Bluetooth mobile telephone to the hand s-free kit).
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select BLUETOOTH ACTIVATION MODE, then ACTIVATED AND VISIBLE. Press the dial to confi rm each operation.
Press the MENU button, select TELEMATICS, then BLUETOOTH FUNCTIONS. Press the dial to confi rm each operation.
On your telephone, select the name of the CITROËN audio/telephone. On your telephone, select the name
Enter the authentication code (0000 by default).
To fi nd and change the name of the CITROËN audio/t elephone, To fi nd and change the name of the CITROËN audio/telephone, repeat step 2 then select CHANGE AUDIO/TELEPHONPHONE NAME.

27
06
telephone only.
Once the telephone has been connected, the system can synchronise the address book and the call list. Repeat step 2 then select PHONE BOOK SYNCHRONISATION MODE. Select the synchronisation of your choice and press the dial to confi rm.
The synchronisation may take a few minutes.
To change the telephone connected, repeat step 2 then select LIST OF MATCHED TELEPHONES and press OK to confi rm. The list of previously connected telephones (10 maximum) appears. Select the telephone of your choice, confi rm, then select CONNECT and press the dial to confi rm.
To change the authentication code, repeat step 2 then select AUTHENTICATION CODE and save the code of your choic e.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE

28
1
22
33
55
66
44
06 TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
Press the dial to confi rm the selection.
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
Press the end of the steering wheel stalk for more than 2 seconds to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoo th telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Selec t the number required and confi rm to make the call.
DIAL

29

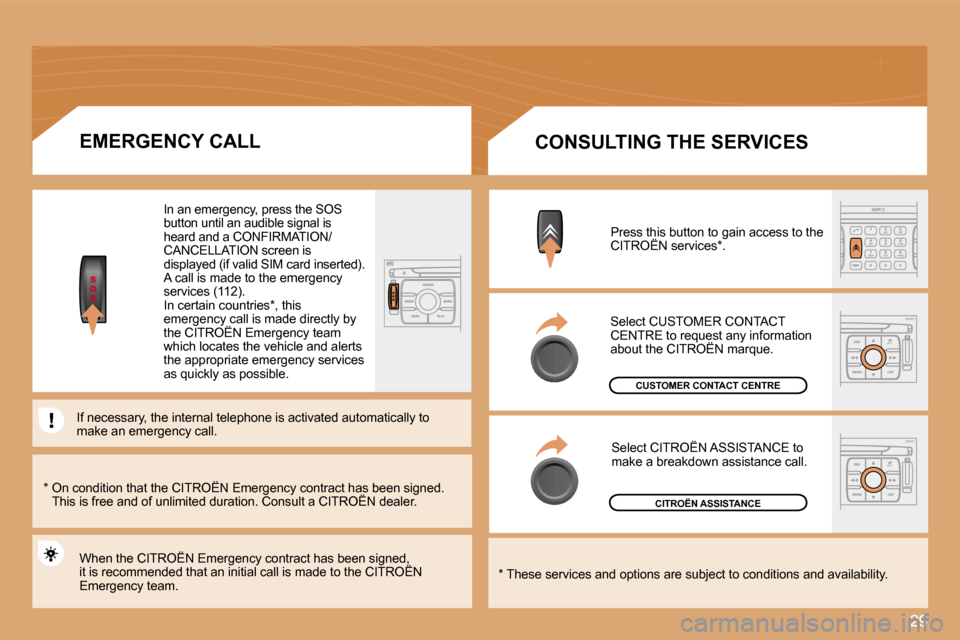

Select CITROËN ASSISTANCE to make a breakdown assistance call.
Select CUSTOMER CONTACT CENTRE to request any information about the CITROËN marque. CENTRE to request any informequest
CITROËN ASSISTANCE
CUSTOMER CONTACT CENTRE
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES
Press this button to gain access to the CITROËN services * . Press this button to gain access to the Press this button to gain access to the
* On condition that the CITROËN Emergency cont ract has been signed. This is free and of unlimited duration. Consult a CITROËN dealer. * On condition that the CITROËN Emergency cont ract has been signed. * On condition that the CITROËN Emergency contract has been signed.
EMERGENCY CALL
When the CITROËN Emergency contract has been signe d, it is recommended that an initial call is made to the CITROËN When the CITROËN Emergency contract has been signe d, When the CITROËN Emergency contract has been signed,
Emergency team.
In an emergency, press the SOS button until an audible signal is heard and a CONFIRMATION/CANCELLATION screen is displayed (if valid SIM card inserted). A call is made to the emergency services (112). In certain countries * , this emergency call is made directly by the CITROËN Emergency team emergency call is made directly by emergency call is made directly by
which locates the vehicle and alerts the appropriate emergency services as quickly as possible.
If necessary, the internal telephone is activated automattomatically to make an emergency call.

30
1
2
2
2
07
Each press of the button, located at the end of the wipers stalk , wipers stalkwipers stalkpermits displaying of the different trip computer d ata in succession, depending on the display.
With the "vehicle" tab:

31
07
A few defi nitions
Range: displays the distance which can be travelled with the remaining fuel detected in the tank, in relation to the average consumption over the last few miles (kilometres). This displayed value may vary signifi cantly following a change in the vehicle speed or the relief of the route. When the range falls below 20 miles (30 km), dashe s are displayed. After fi lling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km). If, whilst driving, dashes are displayed continuou sly in place of digits, contact a CITROËN dealer. If, whilst driving, dashes are displayed continuously in place of digits, contact If, whilst driving, dashes are displayed continuously in place of digits, contact
Current consumption: only calculated and displayed above 20 mph (30 km /h).
Average consumption: this is the average quantity of fuel consumed since the last trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to the fi nal destination, entered by the user. If guidance is activated, the navigation system calculates it as a current value.
Average speed: this is the average speed calculated since the last trip computer zero reset (ignition on).
TRIP COMPUTER
With tab "1" (route 1):

32
08
4
1
23
51
23
4
5
1
CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
1. Volume increase.
2. Volume decrease.
3. Mute.
4. RADIO: selection of the previous or next stored station. MP3/JUKEBOX: selection of the previous or next directory. CD CHANGER: selection of the previous or next CD.
5. RADIO: automatic search for a higher frequency. CD/MP3/JUKEBOX/CD CHANGER: selection of the next track. CD/MP3/CD CHANGER: continuous press: fast forwards play.
1. Displays the main screen.
2. Selection of the mode displayed (TRIP, TEL, NAV or AUDIO).
3. Abandon the operation in progress and return to the previous display.
4. Navigation through the menus.
5. Confi rmation of the function selected.
1. When the telephone is not in use = access to the telephone menu. Incoming call: short press to accept, long press to reject the call. Call in progress: short press to hang up, long press to access the telephone menu.
