engine Citroen C4 PICASSO DAG 2008.5 1.G Owner's Guide
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2008.5, Model line: C4 PICASSO DAG, Model: Citroen C4 PICASSO DAG 2008.5 1.GPages: 330, PDF Size: 13.13 MB
Page 72 of 330
67
III
C O M F O R T
MIRRORS
Exterior mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
permitting the lateral rearward vision
necessary for overtaking or parking.
They can also be folded for parking
i n c o n fi n e d s p a c e s .

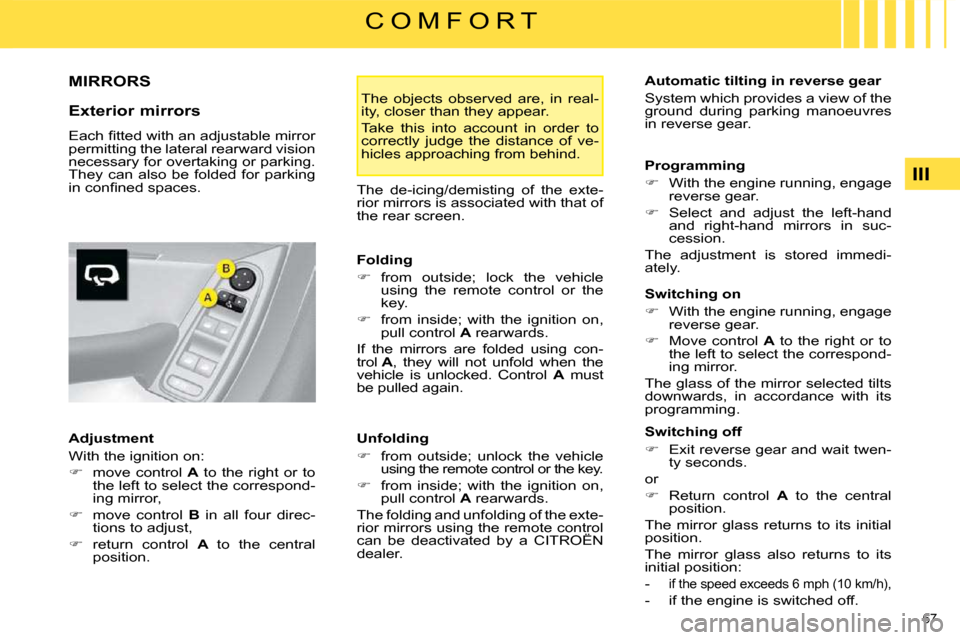

Adjustment
With the ignition on:
move control A to the right or to
the left to select the correspond-
ing mirror,
move control B in all four direc-
tions to adjust,
return control A to the central
position. The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Folding
from outside; lock the vehicle
using the remote control or the
key.
from inside; with the ignition on,
pull control A rearwards.
If the mirrors are folded using con-
trol A , they will not unfold when the
vehicle is unlocked. Control A must
be pulled again.
Unfolding
from outside; unlock the vehicle
using the remote control or the key.
from inside; with the ignition on,
pull control A rearwards.
The folding and unfolding of the exte-
rior mirrors using the remote control
can be deactivated by a CITROËN
dealer. Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immedi-
ately.
Switching off
Exit reverse gear and wait twen-
ty seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Switching on
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The de-icing/demisting of the exte-
rior mirrors is associated with that of
the rear screen.
Page 74 of 330
69
IV
A C C E S S
REMOTE CONTROL KEY
System which permits central un-
locking or locking of the vehicle us-
ing the lock or from a distance. It is
also used to locate the vehicle, acti-
vate the guide-me-home lighting and
start the engine, as well as providing
protection against theft.
Unlocking the vehicle
Complete unlocking using the
remote control
Unfolding the key
First press button A to unfold the
key.
Press the open padlock
to unlock the vehicle. Complete unlocking using the
key
Turn the key to the left in the
driver's door lock to unlock the
vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds.
According to version, the exterior
mirrors unfold at the same time.
This also triggers the timed switch-
ing on of the welcome lighting, cour-
tesy lights and exterior side lights for
approximately thirty seconds.
Selective unlocking using the
remote control
Press the open padlock
once to unlock the driv-
er's door only.
Press the open padlock again to
unlock the other doors and the
boot. According to version, the exterior
mirrors unfold at the same time as
t h e fi r s t u n l o c k i n g a c t i o n .
It also triggers the timed switching on
of the welcome lighting, the courtesy
lights and the exterior side lights for
approximately thirty seconds.
The complete or se-
lective unlocking pa-
rameter is set via the
multifunction display
c o n fi g u r a t i o n m e n u .
Complete unlocking is activated by
default.
E a c h u n l o c k i n g i s c o n fi r m e d b y r a p -
i d fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds. Selective unlocking is not available
using the key.
Page 76 of 330
71
IV
A C C E S S
Deadlocking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically in
addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
This also triggers the timed switching
on of the exterior lateral lights and
guide-me-home lighting, if this is
activated.
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to lo-
cate your locked vehicle in a car
park.
This is indicated by lighting of the
courtesy lights and exterior side
l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting of
the sidelamps, dipped beams, num-
ber plate lamps and exterior side
lighters (located underneath the ex-
terior rear view mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning light, an
audible signal and a
message on the multifunction display.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
Page 77 of 330
72
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then oper-
ate the starter again. Steering lock
1. " S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be re-
moved in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move the
steering wheel gently if neces-
sary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Key in ignition buzzer
If you forget to remove the key from
the ignition, a buzzer sounds when
the driver's door is opened.
DO NOT RUN THE ENGINE IN AN
ENCLOSED SPACE OR WHERE
THERE IS INSUFFICIENT
VENTILATION.
IT IS ESSENTIAL ALWAYS TO
KEEP THE ENGINE RUNNING
IN ORDER TO RETAIN BRAKING
AND STEERING ASSISTANCE .
NEVER REMOVE THE IGNITION
KEY BEFORE THE VEHICLE
HAS COME TO A COMPLETE
STOP.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds
at idle, this being the time required
for the turbocharger to return to a
normal speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
Page 79 of 330
74
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d y o u r
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to re-
trieve the key code and the transponder
code required to order a replacement
key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reprogramming.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system, this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 80 of 330
71
IV
A C C E S S
Deadlocking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically in
addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
This also triggers the timed switching
on of the exterior lateral lights and
guide-me-home lighting, if this is
activated.
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to lo-
cate your locked vehicle in a car
park.
This is indicated by lighting of the
courtesy lights and exterior side
l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting of
the sidelamps, dipped beams, num-
ber plate lamps and exterior side
lighters (located underneath the ex-
terior rear view mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning light, an
audible signal and a
message on the multifunction display.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.

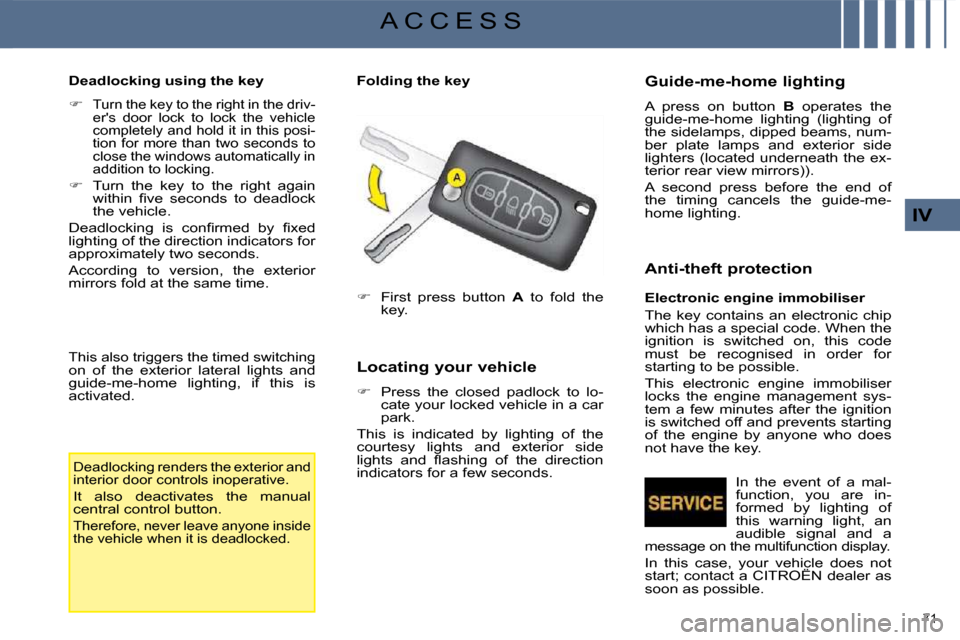

Folding the key
Page 81 of 330
74
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d y o u r
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to re-
trieve the key code and the transponder
code required to order a replacement
key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reprogramming.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system, this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 82 of 330
72
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then oper-
ate the starter again. Steering lock
1. " S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be re-
moved in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move the
steering wheel gently if neces-
sary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Key in ignition buzzer
If you forget to remove the key from
the ignition, a buzzer sounds when
the driver's door is opened.
DO NOT RUN THE ENGINE IN AN
ENCLOSED SPACE OR WHERE
THERE IS INSUFFICIENT
VENTILATION.
IT IS ESSENTIAL ALWAYS TO
KEEP THE ENGINE RUNNING
IN ORDER TO RETAIN BRAKING
AND STEERING ASSISTANCE .
NEVER REMOVE THE IGNITION
KEY BEFORE THE VEHICLE
HAS COME TO A COMPLETE
STOP.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds
at idle, this being the time required
for the turbocharger to return to a
normal speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
Page 90 of 330
81
A C C E S S

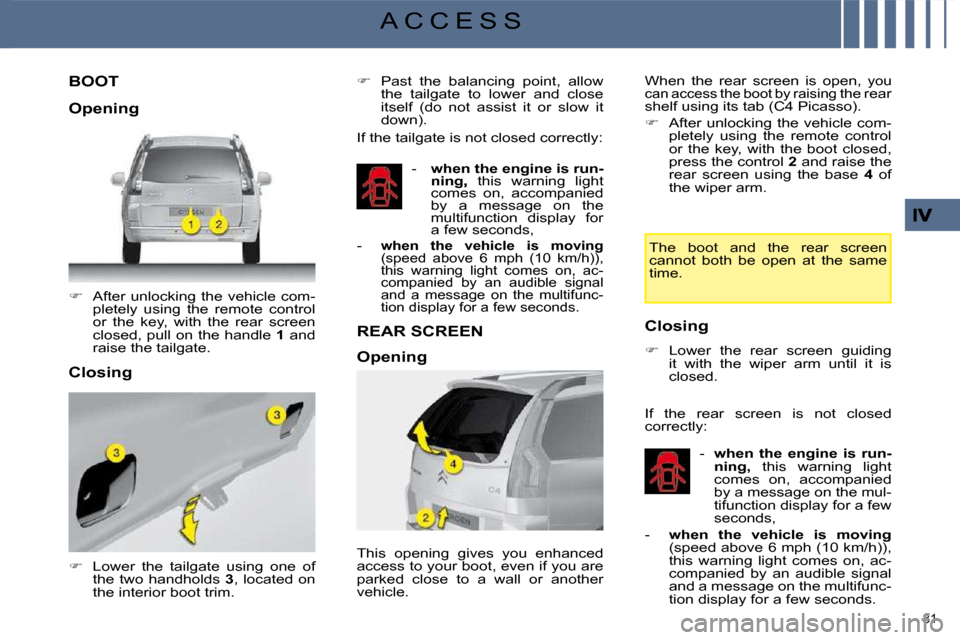

BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the handle 1 and
raise the tailgate.
Lower the tailgate using one of
the two handholds 3 , located on
the interior boot trim. -
when the engine is run-
ning
this warning light
comes on, accompanied
by a message on the
multifunction display for
a few seconds,
-
when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display for a few seconds.
If the tailgate is not closed correctly:
REAR SCREEN
This opening gives you enhanced
access to your boot, even if you are
parked close to a wall or another
vehicle. Closing
Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed
correctly: - when the engine is run-
ning
, this warning light
comes on, accompanied
by a message on the mul-
tifunction display for a few
seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open,
you
can access the boot by raising the rear
shelf using its tab (C4 Picasso).
After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.
Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing
Page 92 of 330
81
A C C E S S
BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the handle 1 and
raise the tailgate.
Lower the tailgate using one of
the two handholds 3 , located on
the interior boot trim. -
when the engine is run-
ning
this warning light
comes on, accompanied
by a message on the
multifunction display for
a few seconds,
-
when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display for a few seconds.
If the tailgate is not closed correctly:
REAR SCREEN
This opening gives you enhanced
access to your boot, even if you are
parked close to a wall or another
vehicle. Closing
Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed
correctly: - when the engine is run-
ning
, this warning light
comes on, accompanied
by a message on the mul-
tifunction display for a few
seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open,
you
can access the boot by raising the rear
shelf using its tab (C4 Picasso).
After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.
Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing
