5
F A M I L I A R I S A T I O N
A. Central locking
B. Unlocking
C. Guide-me-home lighting
D. Key release/storage
Press on control A , located on the con-
trol panel to the left of the dashboard.
T h e f u e l fl a p a u t o m a t i c a l l y o p e n s u p
fully.
Insert the nozzle so as to push in the
metallic gate valve B .
P u s h t h e f u e l fl a p t o r e c l o s e i t .
After switching off the ignition, con-
trol A is only active for a few minutes.
If necessary, switch on the ignition
again to reactivate it.
Bonnet stay: detach the stay and pivot
it upwards to insert it into the notch.
69 Bonnet opening/closing
To unlock, pull the control located under
the dashboard towards you.
157
83
Opening
Using the multifunction screen, you can
choose from the following options when
opening your vehicle with the remote
control:
- either all of the doors and the tailgate,
- o r t h e d r i v e r ’ s d o o r w i t h a fi r s t p r e s s ,
then all of the other doors with a
second press.
To close: move the stay back to
its initial position, lower the bon-
net, then allow it to slam shut at
the end of its travel.
O P E N I N G
Remote control key
Fuel tank
Capacity: approximately 60 litres.
Page 15 of 330
18
F A M I L I A R I S A T I O N

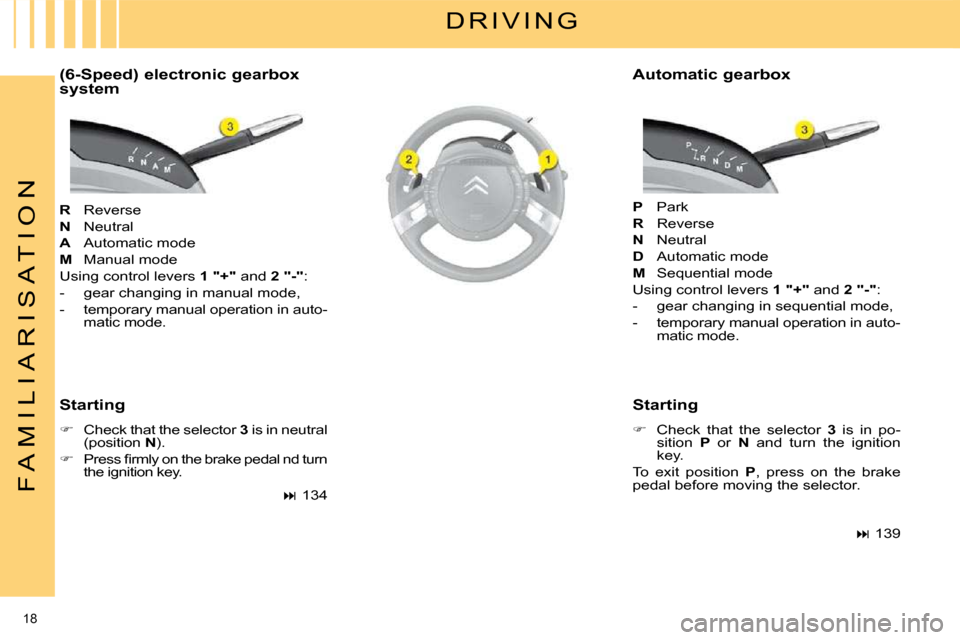

(6-Speed) electronic gearbox
system
R Reverse
N Neutral
A Automatic mode
M Manual mode
Using control levers 1 "+" and 2 "-" :
- gear changing in manual mode,
- temporary manual operation in auto- matic mode.
P Park
R Reverse
N Neutral
D Automatic mode
M S e q u e n t i a l m o d e
Using control levers 1 "+" and 2 "-" :
- g e a r c h a n g i n g i n s e q u e n t i a l m o d e ,
- temporary manual operation in auto- matic mode.
Starting
Check that the selector 3 is in neutral
(position N ).
P r e s s fi r m l y o n t h e b r a k e p e d a l n d t u r n
the ignition key.
134 Starting
Check that the selector 3 is in po-
sition P or N and turn the ignition
key.
To exit position P , press on the brake
pedal before moving the selector.
139
D R I V I N G
Automatic gearbox
Page 20 of 330
23
F A M I L I A R I S A T I O N
Deactivation of front passenger
airbag Child safety

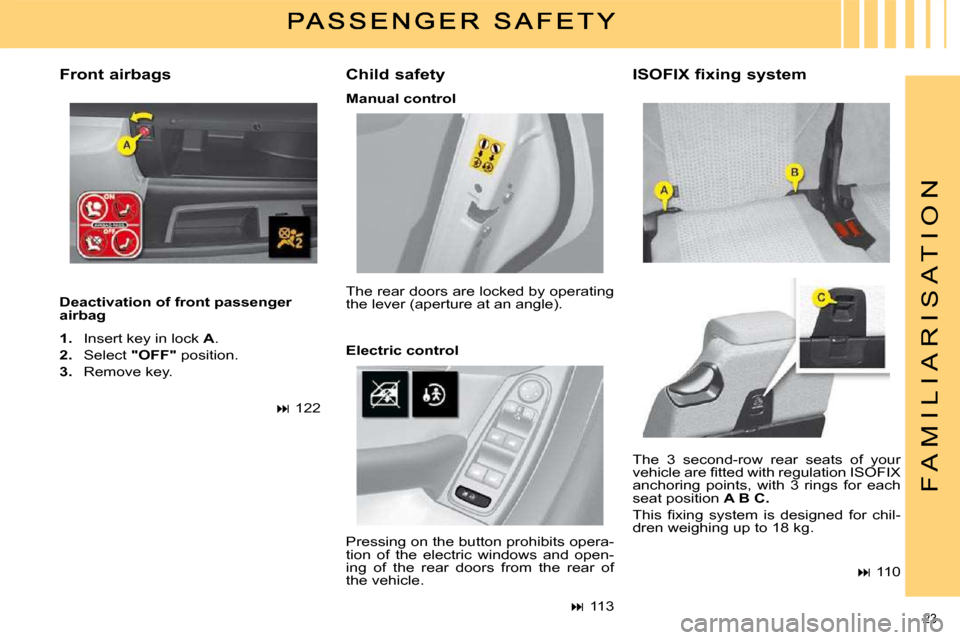

The 3 second-row rear seats of your
v e h i c l e a r e fi t t e d w i t h r e g u l a t i o n I S O F I X
anchoring points, with 3 rings for each
seat position A B C.
T h i s fi x i n g s y s t e m i s d e s i g n e d f o r c h i l -
dren weighing up to 18 kg.
Electric control
122
113
110
Front airbags
Manual control
1. Insert key in lock A .
2. Select "OFF" position.
3. Remove key. The rear doors are locked by operating
the lever (aperture at an angle).
Pressing on the button prohibits opera-
tion of the electric windows and open-
ing of the rear doors from the rear of
the vehicle. ISOFIX fixing system
Page 72 of 330
67
III
C O M F O R T
MIRRORS
Exterior mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
permitting the lateral rearward vision
necessary for overtaking or parking.
They can also be folded for parking
i n c o n fi n e d s p a c e s .
Adjustment
With the ignition on:
move control A to the right or to
the left to select the correspond-
ing mirror,
move control B in all four direc-
tions to adjust,
return control A to the central
position. The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Folding
from outside; lock the vehicle
using the remote control or the
key.
from inside; with the ignition on,
pull control A rearwards.
If the mirrors are folded using con-
trol A , they will not unfold when the
vehicle is unlocked. Control A must
be pulled again.
Unfolding
from outside; unlock the vehicle
using the remote control or the key.
from inside; with the ignition on,
pull control A rearwards.
The folding and unfolding of the exte-
rior mirrors using the remote control
can be deactivated by a CITROËN
dealer. Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immedi-
ately.
Switching off
Exit reverse gear and wait twen-
ty seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Switching on
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The de-icing/demisting of the exte-
rior mirrors is associated with that of
the rear screen.
Page 74 of 330
69
IV
A C C E S S
REMOTE CONTROL KEY
System which permits central un-
locking or locking of the vehicle us-
ing the lock or from a distance. It is
also used to locate the vehicle, acti-
vate the guide-me-home lighting and
start the engine, as well as providing
protection against theft.
Unlocking the vehicle
Complete unlocking using the
remote control
Unfolding the key
First press button A to unfold the
key.
Press the open padlock
to unlock the vehicle. Complete unlocking using the
key
Turn the key to the left in the
driver's door lock to unlock the
vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds.
According to version, the exterior
mirrors unfold at the same time.
This also triggers the timed switch-
ing on of the welcome lighting, cour-
tesy lights and exterior side lights for
approximately thirty seconds.
Selective unlocking using the
remote control
Press the open padlock
once to unlock the driv-
er's door only.
Press the open padlock again to
unlock the other doors and the
boot. According to version, the exterior
mirrors unfold at the same time as
t h e fi r s t u n l o c k i n g a c t i o n .
It also triggers the timed switching on
of the welcome lighting, the courtesy
lights and the exterior side lights for
approximately thirty seconds.
The complete or se-
lective unlocking pa-
rameter is set via the
multifunction display
c o n fi g u r a t i o n m e n u .
Complete unlocking is activated by
default.
E a c h u n l o c k i n g i s c o n fi r m e d b y r a p -
i d fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds. Selective unlocking is not available
using the key.
Page 75 of 330
70
IV
A C C E S S
Normal locking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
proximately two seconds.
According to version, the exterior
mirrors fold at the same time.
It also triggers the timed switching
on of the exterior lateral lights and
the follow-me-home lighting, if this is
activated. If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
To permit the transportation of
bulky objects, the vehicle can be
locked from the inside, using the
centralised control on the fascia,
even if the tailgate or rear screen
is open.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
When closing the windows and/or
glass panoramic roof shutter us-
ing the remote control, you must
ensure that no one prevents them
from closing correctly.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Deadlocking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
the glass panoramic roof
shutter automatically in
addition to locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Locking the vehicle
Normal locking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely.
Press the closed padlock for
more than two seconds to close
the windows and the glass pan-
oramic roof shutter automatically
in addition to locking.
Page 76 of 330
71
IV
A C C E S S
Deadlocking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically in
addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
This also triggers the timed switching
on of the exterior lateral lights and
guide-me-home lighting, if this is
activated.
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to lo-
cate your locked vehicle in a car
park.
This is indicated by lighting of the
courtesy lights and exterior side
l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting of
the sidelamps, dipped beams, num-
ber plate lamps and exterior side
lighters (located underneath the ex-
terior rear view mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning light, an
audible signal and a
message on the multifunction display.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
Page 77 of 330
72
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then oper-
ate the starter again. Steering lock
1. " S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be re-
moved in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move the
steering wheel gently if neces-
sary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Key in ignition buzzer
If you forget to remove the key from
the ignition, a buzzer sounds when
the driver's door is opened.
DO NOT RUN THE ENGINE IN AN
ENCLOSED SPACE OR WHERE
THERE IS INSUFFICIENT
VENTILATION.
IT IS ESSENTIAL ALWAYS TO
KEEP THE ENGINE RUNNING
IN ORDER TO RETAIN BRAKING
AND STEERING ASSISTANCE .
NEVER REMOVE THE IGNITION
KEY BEFORE THE VEHICLE
HAS COME TO A COMPLETE
STOP.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds
at idle, this being the time required
for the turbocharger to return to a
normal speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
Page 78 of 330
73
IV
A C C E S S
Remote control problem
Following disconnection of the
vehicle battery, replacement of the
remote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2
(Ignition) .
Press the closed padlock imme-
diately for a few seconds.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.
I f t h e b a t t e r y i s fl a t ,
you are informed by
lighting of this warning
light, an audible signal
and a message on the
multifunction display.
Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its
location observing the original
direction.
Clip the casing.
Reinitialise the remote control.
Changing the battery
Page 79 of 330
74
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d y o u r
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to re-
trieve the key code and the transponder
code required to order a replacement
key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reprogramming.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system, this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
