Third row rear seat belts
(Grand C4 Picasso)
Requirements for the third-row
passenger seat belts
Take care to attach the third-row
passenger seat belts securely on
the rings provided for this purpose.
Do not attach the belts on the an-
choring points marked with a red
cross, as shown on the illustration. Stowing the tongue of the third-
row seat belt
Secure the tongue in the place
provided on the rear pillar trim.
The third-row passenger seat belts
that are not being used can be
stowed in order to free up loadspace
and facilitate use of the luggage
cover.
Before use:
To avoid damaging or jamming the
seat belts, take care to stow them
on the sides of the backrests.
Page 152 of 337
120
VIII
S A F E T Y

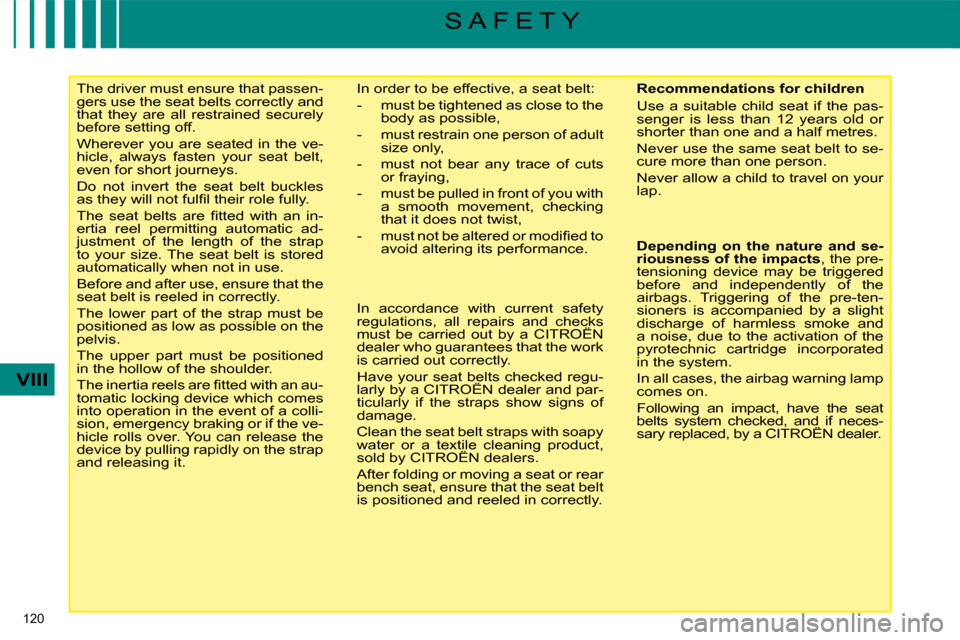

The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a CITROËN dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the
airbags. Triggering of the pre-ten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.
Page 153 of 337
121
VIII
S A F E T Y
AIR BAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact, the air bags are triggered instant-
ly and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n o f
the rear centre passenger); im-
mediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t
they do not hinder visibility or the
e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear im- pact or in certain roll-over con-
ditions, the air bags will not be
triggered; the seat belt alone is
s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The air bags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the air bag will not operate. Impact detection zones

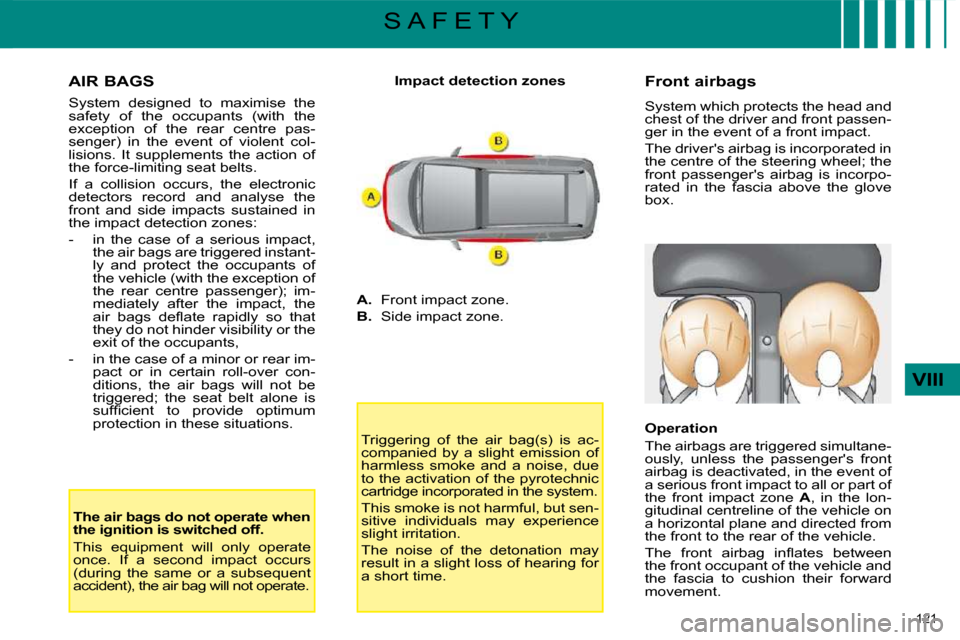

A. Front impact zone.
B. Side impact zone.
Triggering of the air bag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passen-
ger in the event of a front impact.
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorpo-
rated in the fascia above the glove
b o x .
Operation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact to all or part of
the front impact zone
A , in the lon-
gitudinal centreline of the vehicle on
a horizontal plane and directed from
the front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion their forward
movement.
Page 154 of 337
122
VIII
S A F E T Y
Deactivation

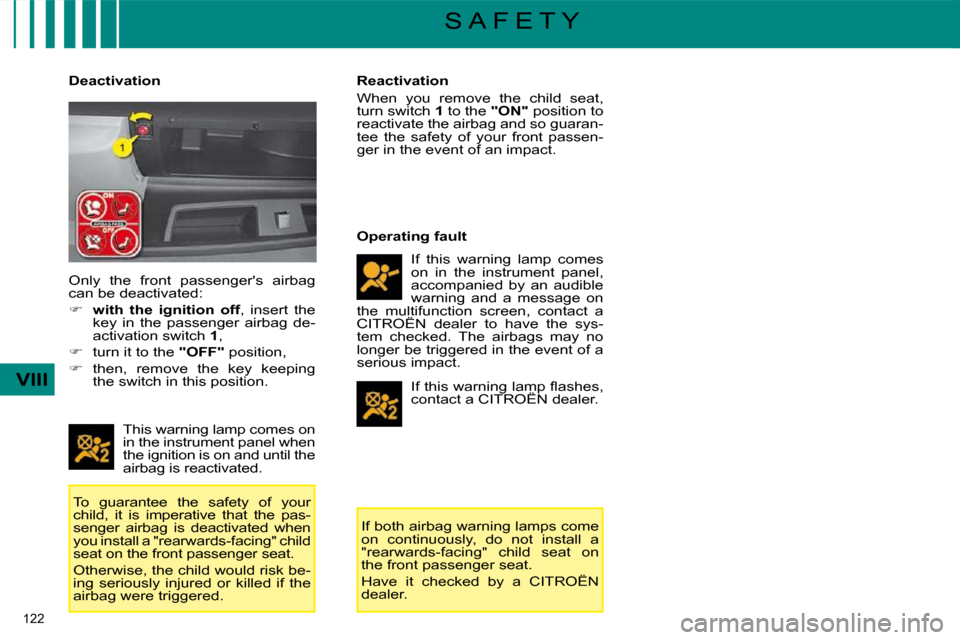

This warning lamp comes on
in the instrument panel when
the ignition is on and until the
airbag is reactivated.
To guarantee the safety of your
child, it is imperative that the pas-
senger airbag is deactivated when
you install a "rearwards-facing" child
seat on the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were triggered. Reactivation
When you remove the child seat,
turn switch
1 to the "ON" position to
reactivate the airbag and so guaran-
tee the safety of your front passen-
ger in the event of an impact.
Operating fault
If this warning lamp comes
on in the instrument panel,
accompanied by an audible
warning and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The airbags may no
longer be triggered in the event of a
serious impact.
I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a CITROËN dealer.
If both airbag warning lamps come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Only the front passenger's airbag
can be deactivated:
with the ignition off , insert the
key in the passenger airbag de-
activation switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position.
Page 155 of 337
124
VIII
S A F E T Y

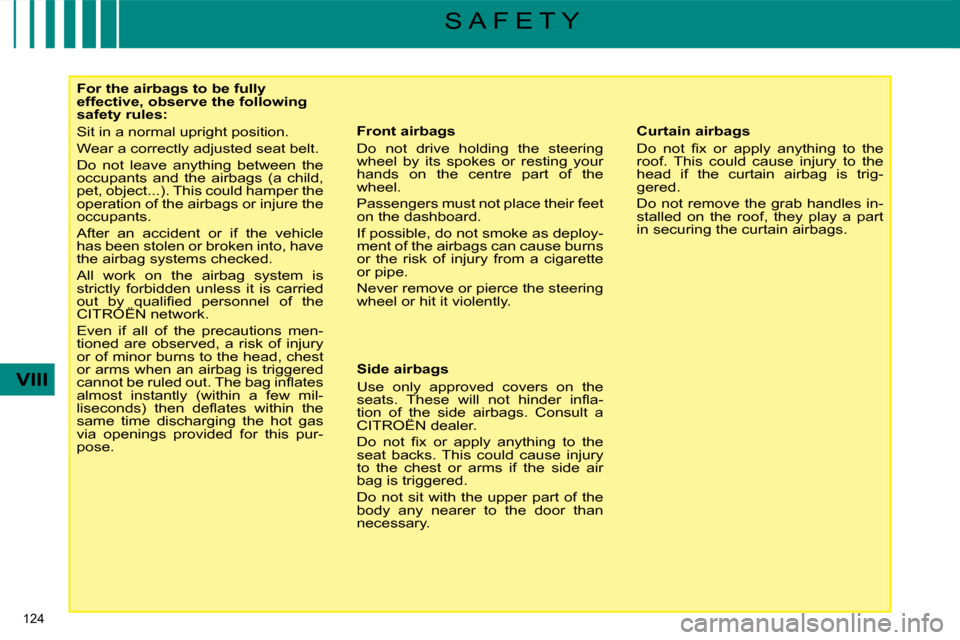

For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 156 of 337
123
VIII
S A F E T Y
* According to country.
Side airbags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
the risk of injury to the chest.
Each side airbag is incorporated in
the front seat back frame, on the
door side.
Operation
It is triggered unilaterally in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain airbags *
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p t i o n
of the rear centre passenger) in the
event of a serious side impact in or-
der to limit the risk of head injuries.
Each curtain airbag is incorporated
in the pillars and the upper part of
the passenger compartment. Operation
It is triggered at the same time as
the corresponding side airbag in the
event of a serious side impact applied
to all or part of the side impact zone
B , perpendicular to the longitudinal
centreline of the vehicle on a horizon-
tal plane and directed from the outside
towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the ve-
hicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Operating fault If this warning lamp comes
on in the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The airbags may no
longer be triggered in the event of a
serious impact.
Page 157 of 337
124
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
seat backs. This could cause injury
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is trig-
gered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Page 158 of 337
125
IX
D R I V I N G
ELECTRIC PARKING BRAKE
The electric parking brake operates
as follows
- Automatic application/release
Application is automatic when the
engine stops, release is automatic
on use of the accelerator.
- Manual application/release
Manual application/release of the parking brake is possible by
pulling control A while pressing
the brake pedal. Manual application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off,
pull on control A . Manual release
With the ignition on or the engine
running, to release the parking
brake, press on the brake pedal, or
the accelerator,
pull then release
control A .
- the extinction of the warning lamp P on con-
trol A and on the instru-
ment panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
If you pull control A without pressing
the brake pedal, the parking brake
will not be released and the "Foot on
brake" warning lamp will light up on
the instrument panel.
The application of the parking brake
i s c o n fi r m e d b y :
- the lighting of the warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is
opened with the engine run-
ning, a beep is heard and a
message displayed if the parking
brake has not been applied. Before getting out of the vehicle,
check that the warning lamp P is lit
permanently on the instrument panel.
The full application of the parking
b r a k e i s c o n fi r m e d b y :
Page 159 of 337
126
IX
D R I V I N G
Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of warning lamp P on control A and
on the instrument panel, Automatic release
The electronic parking brake
releas-
es automatically and progressive-
ly w h e n y o u p r e s s t h e a c c e l e r a t o r :
Manual gearbox ( fi r s t g e a r o r
r e v e r s e g e a r e n g a g e d ) : p r e s s
down fully on the clutch pedal
then press on the accelerator
pedal and move off.
Automatic gearbox : a c c e l e r a t e
with the selector in position D , M
or R .
Electronic gearbox : a c c e l e r a t e
with the selector in position A , M
or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may
release the parking brake.
Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essen-
tial:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "parking
brake applied" on the multifunc-
tion screen (except NaviDrive).
The normal operating sound will con-
fi r m t o y o u t h e a p p l i c a t i o n / r e l e a s e o f
your electronic parking brake.
Page 160 of 337
126
IX
D R I V I N G
Automatic application,
engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of warning lamp P on control A and
on the instrument panel, Automatic release
The electronic parking brake
releas-
es automatically and progressive-
ly w h e n y o u p r e s s t h e a c c e l e r a t o r :
Manual gearbox ( fi r s t g e a r o r
r e v e r s e g e a r e n g a g e d ) : p r e s s
down fully on the clutch pedal
then press on the accelerator
pedal and move off.
Automatic gearbox : a c c e l e r a t e
with the selector in position D , M
or R .
Electronic gearbox : a c c e l e r a t e
with the selector in position A , M
or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may
release the parking brake.
Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essen-
tial:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "parking
brake applied" on the multifunc-
tion screen (except NaviDrive).
The normal operating sound will con-
fi r m t o y o u t h e a p p l i c a t i o n / r e l e a s e o f
your electronic parking brake.
