Citroen C4 PICASSO DAG 2009 1.G Owner's Manual

192
XII
T E C H N I C A L D A T A

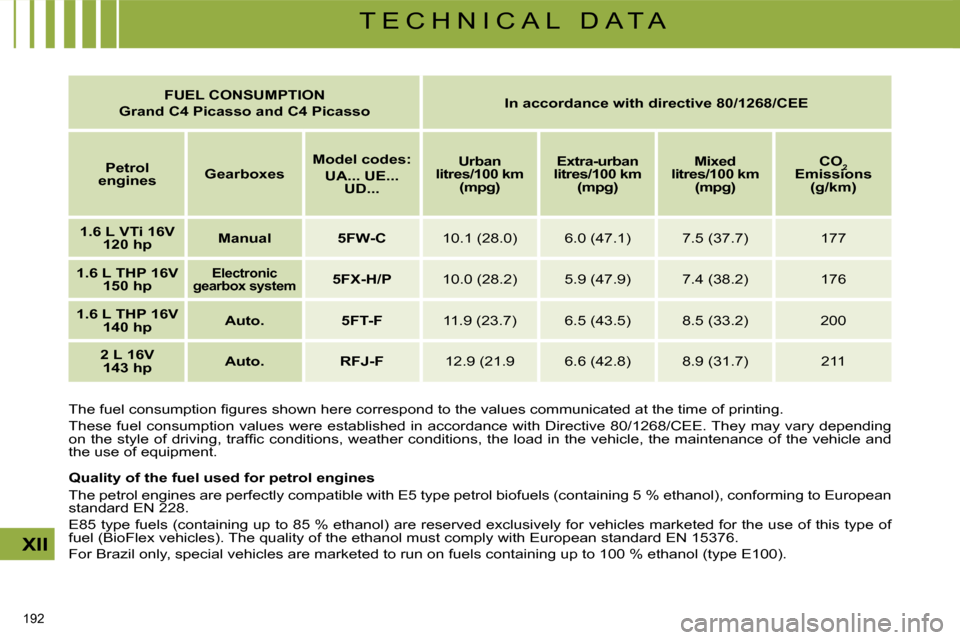

FUEL
CONSUMPTION
Grand C4 Picasso and C4 Picasso
In accordance with directive 80/1268/CEE

Petrol
engines
Gearboxes
Model codes:
UA... UE... UD...
Urban


litres/100 km
(
mpg
)
Extra
-urban


litres/100 km
(
mpg
)
Mixed



litres/100 km
(
mpg
)
CO
2

Emissions

(g/km)

1.6
L
VTi 16V
120
hp
Manual 5FW-C 10.1 (28.0) 6.0 (47.1) 7.5 (37.7) 177

1.6
L
THP 16V
150
hp

Electronic
gearbox system
5FX-H/P 10.0 (28.2) 5.9 (47.9) 7.4 (38.2) 176

1.6
L
THP 16V
140
hp
Auto. 5FT-F 11.9 (23.7) 6.5 (43.5) 8.5 (33.2) 200

2
L
16V
143
hp
Auto. RFJ-F 12.9 (21.9 6.6 (42.8) 8.9 (31.7) 211
The fuel consumption fi gures shown here correspond to the val ues communicated at the time of printing.
These fuel consumption values were established in accordance wi th Directive 80/1268/CEE. They may vary depending
on the style of driving, traffi c conditions, weather conditio ns, the load in the vehicle, the maintenance of the vehicle and
the use of equipment.
Quality of the fuel used for petrol engines
The petrol engines are perfectly compatible with E5 type pet rol biofuels (containing 5 % ethanol), conforming to European
standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved e xclusively for vehicles marketed for the use of this type of
fuel (BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).

196
XII
T E C H N I C A L D A T A

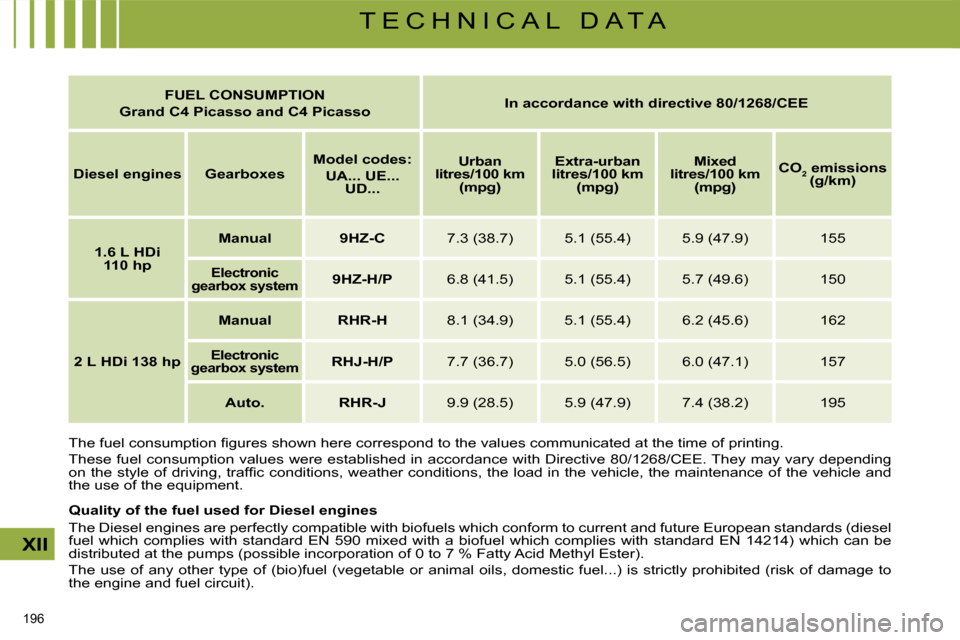

FUEL
CONSUMPTION
Grand C4 Picasso and C4 Picasso
In accordance with directive 80/1268/CEE

Diesel engines Gearboxes
Model codes:
UA... UE... UD...
Urban



litres/100 km

(
mpg
)
Extra
-urban



litres/100 km

(
mpg
)
Mixed



litres/100 km
(
mpg
)
CO
2

emissions

(g/km)

1.6
L
HDi
110
hp
Manual 9HZ-C 7.3 (38.7) 5.1 (55.4) 5.9 (47.9) 155

Electronic
gearbox system
9HZ-H/P 6.8 (41.5) 5.1 (55.4) 5.7 (49.6) 150

2
L
HDi 138
hp
Manual RHR-H 8.1 (34.9) 5.1 (55.4) 6.2 (45.6) 162

Electronic
gearbox system
RHJ-H/P 7.7 (36.7) 5.0 (56.5) 6.0 (47.1) 157

Auto. RHR-J 9.9 (28.5) 5.9 (47.9) 7.4 (38.2) 195
The fuel consumption fi gures shown here correspond to the val ues communicated at the time of printing.
These fuel consumption values were established in accordance wi th Directive 80/1268/CEE. They may vary depending
on the style of driving, traffi c conditions, weather conditio ns, the load in the vehicle, the maintenance of the vehicle and
the use of the equipment.
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels w hich conform to current and future European standards (diesel
fuel which complies with standard EN 590 mixed with a biofue l which complies with standard EN 14214) which can be
distributed at the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to
the engine and fuel circuit).

193
XII
T E C H N I C A L D A T A
* The weight of the braked trailer can be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines 1.6
L
VTi 16V 120
hp 1.6
L
THP 16V 150
hp 1.6
L
THP 16V 140
hp

Gearboxes Manual

Electronic gearbox system
Auto.

Model codes:
UA... UE... UD...
5FW-C 5FX-H/P 5FT-F
- Unladen weight 1 486 - 1 467 - 1 458 1 530 - 1 521 - 1 506 1 568 - 1 572 - 1 539
- Kerb weight 1 561 - 1 542 - 1 533 1 605 - 1 5 96 - 1 581 1 643 - 1 647 - 1 614
- Payload 714 - 648 - 557 690 - 539 - 534 667 - 513 - 516
- Gross vehicle weight (GVW) 2 200 - 2 115 - 2 015 2 220 - 2 060 - 2 040 2 235 - 2 085 - 2 055
- Gross train weight (GTW)

on a 12 % gradient 3 400 - 3 515 - 3 415 3 420 - 3 460 - 3 440 3 635 - 3 585 - 3 555
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 1 200 - 1 400 - 1 400 1 200 - 1 400 - 1 400 1 400 - 1 500 - 1 500
- Braked trailer * (with load transfer within GTW limit) 1 500 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 60 60 60
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

194
XII
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

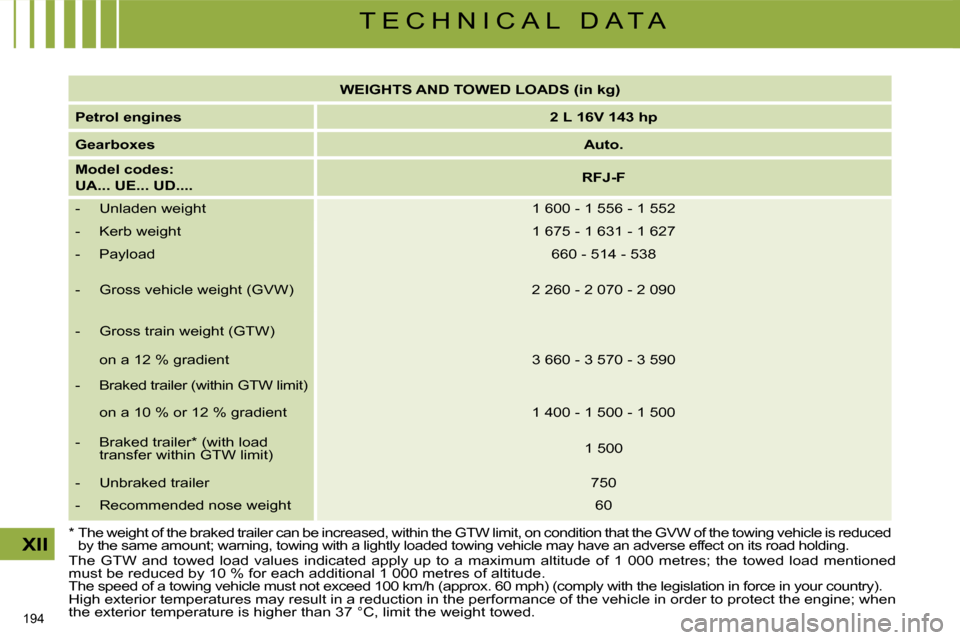

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
2
L
16V 143
hp

Gearboxes
Auto.

Model codes:
UA... UE... UD....
RFJ-F
- Unladen weight 1 600 - 1 556 - 1 552
- Kerb weight 1 675 - 1 631 - 1 627
- Payload 660 - 514 - 538
- Gross vehicle weight (GVW) 2 260 - 2 070 - 2 090
- Gross train weight (GTW)
on a 12 % gradient 3 660 - 3 570 - 3 590
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 - 1 500 - 1 500
- Braked trailer * (with load transfer within GTW limit) 1 500
- Unbraked trailer 750
- Recommended nose weight 60

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

197
XII
T E C H N I C A L D A T A

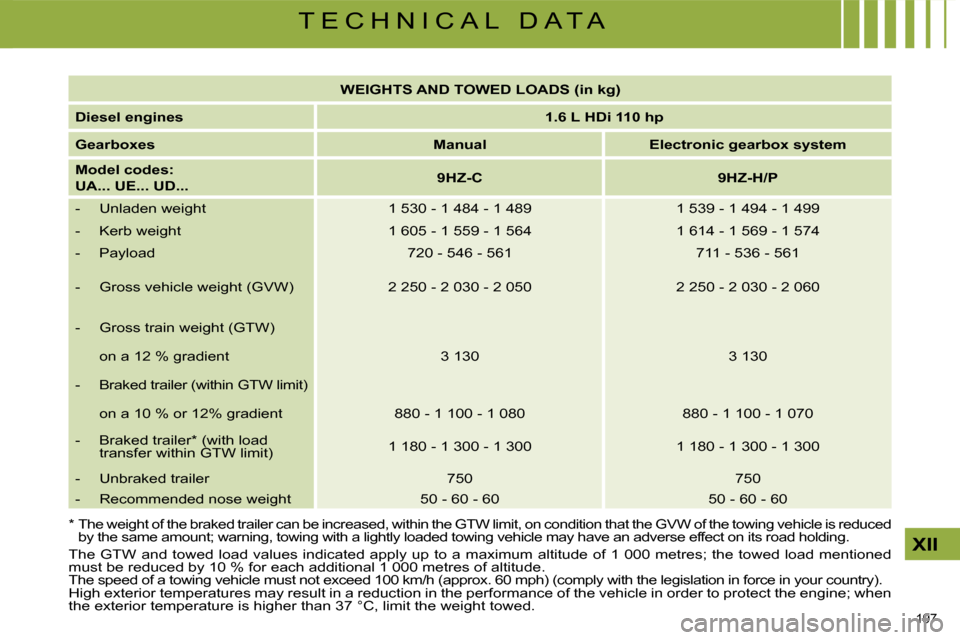

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6
L
HDi 110
hp

Gearboxes
Manual Electronic gearbox system

Model codes:
UA... UE... UD...
9HZ-C 9HZ-H/P
- Unladen weight 1 530 - 1 484 - 1 489 1 539 - 1 494 - 1 499
- Kerb weight 1 605 - 1 559 - 1 564 1 614 - 1 5 69 - 1 574
- Payload 720 - 546 - 561 711 - 536 - 561
- Gross vehicle weight (GVW) 2 250 - 2 030 - 2 050 2 250 - 2 030 - 2 060
- Gross train weight (GTW)

on a 12 % gradient 3 130 3 130
- Braked trailer (within GTW limit)

on a 10 % or 12% gradient 880 - 1 100 - 1 080 880 - 1 100 - 1 070
- Braked trailer * (with load transfer within GTW limit) 1 180 - 1 300 - 1 300 1 180 - 1 300 - 1 300
- Unbraked trailer 750 750
- Recommended nose weight 50 - 60 - 60 50 - 60 - 6 0
* The weight of the braked trailer can be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

198
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

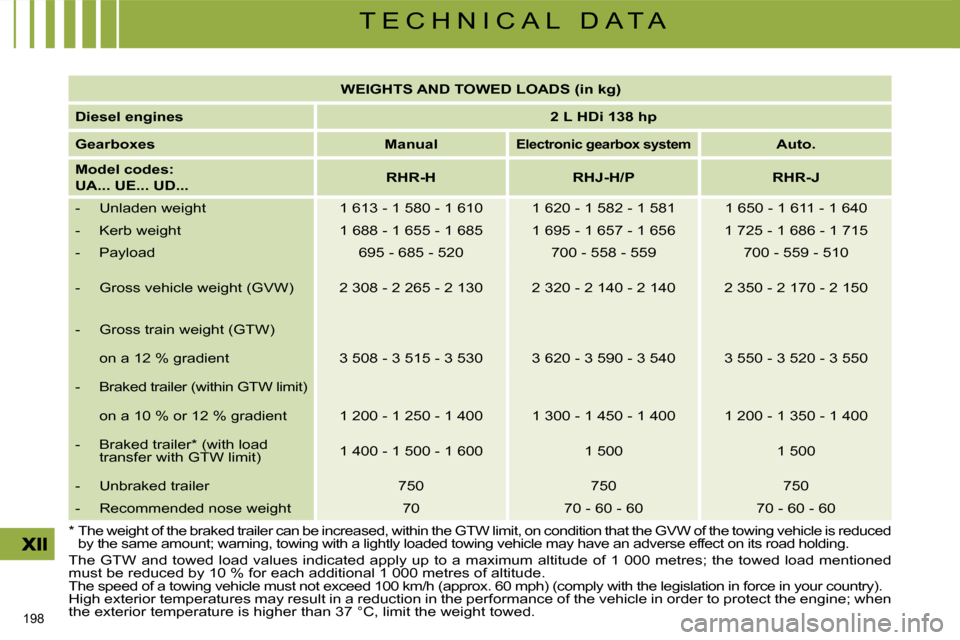

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
2
L
HDi 138
hp

Gearboxes Manual

Electronic gearbox system
Auto.

Model codes:
UA... UE... UD...
RHR-H RHJ-H/P RHR-J
- Unladen weight 1 613 - 1 580 - 1 610 1 620 - 1 582 - 1 581 1 650 - 1 611 - 1 640
- Kerb weight 1 688 - 1 655 - 1 685 1 695 - 1 6 57 - 1 656 1 725 - 1 686 - 1 715
- Payload 695 - 685 - 520 700 - 558 - 559 700 - 559 - 510
- Gross vehicle weight (GVW) 2 308 - 2 265 - 2 130 2 320 - 2 140 - 2 140 2 350 - 2 170 - 2 150
- Gross train weight (GTW)

on a 12 % gradient 3 508 - 3 515 - 3 530 3 620 - 3 590 - 3 540 3 550 - 3 520 - 3 550
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 1 200 - 1 250 - 1 400 1 300 - 1 450 - 1 400 1 200 - 1 350 - 1 400
- Braked trailer * (with load transfer with GTW limit) 1 400 - 1 500 - 1 600 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 70 70 - 60 - 60 70 - 60 - 60

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

199
XII
T E C H N I C A L D A T A * Depending on suspensions and roof bars.
DIMENSIONS (IN METRES)
Exterior (Grand C4 Picasso and C4 Picasso)
Grand C4
Picasso
C4 Picasso

A 2.730 2.730

B 4.590 4.470

C 0.990 0.990

D 0.870 0.750

E 1.510 1.510

F 1.540 1.540

G * 1.660 to 1.710 1.660 to 1.680

H 2.100 2.100

I 1.830 1.830

200
XII
T E C H N I C A L D A T A

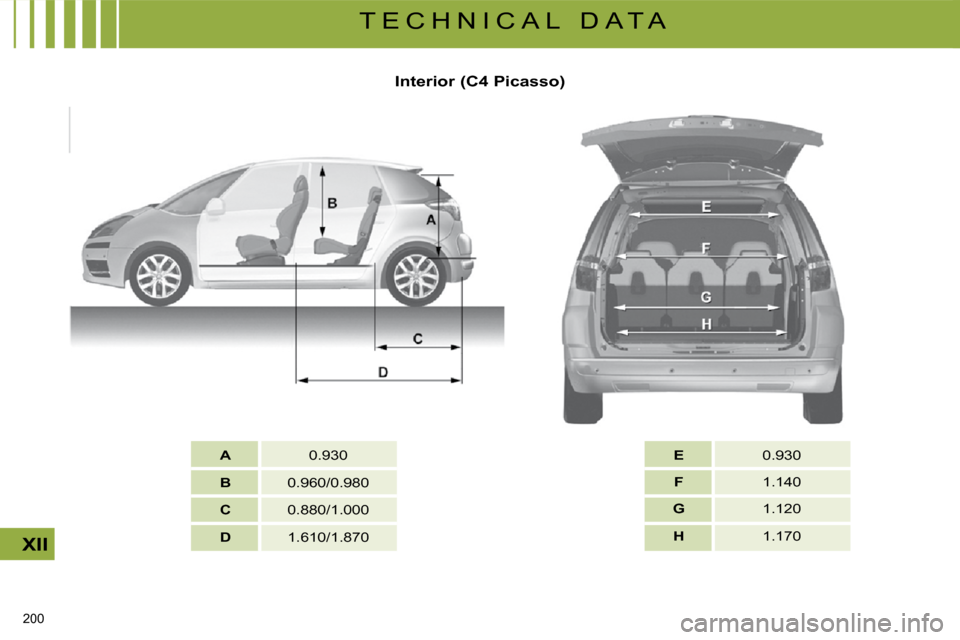

A 0.930

B 0.960/0.980

C 0.880/1.000

D 1.610/1.870
E 0.930

F 1.140

G 1.120

H 1.170
Interior (C4 Picasso)

201
XII

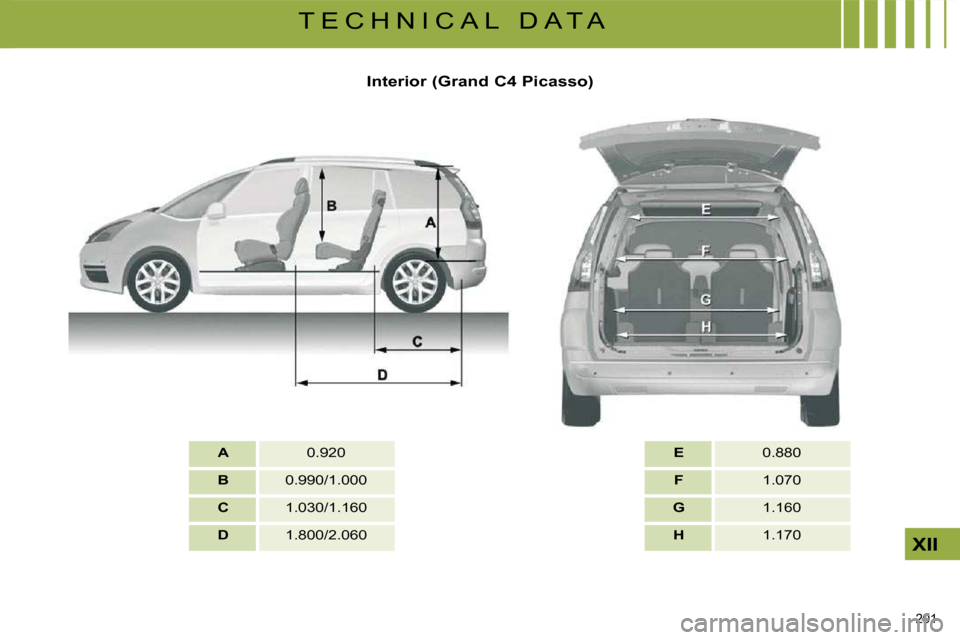

T E C H N I C A L D A T A Interior (Grand C4 Picasso)

E 0.880

F 1.070

G 1.160

H 1.170

A 0.920

B 0.990/1.000

C 1.030/1.160

D 1.800/2.060

202
T E C H N I C A L D A T A

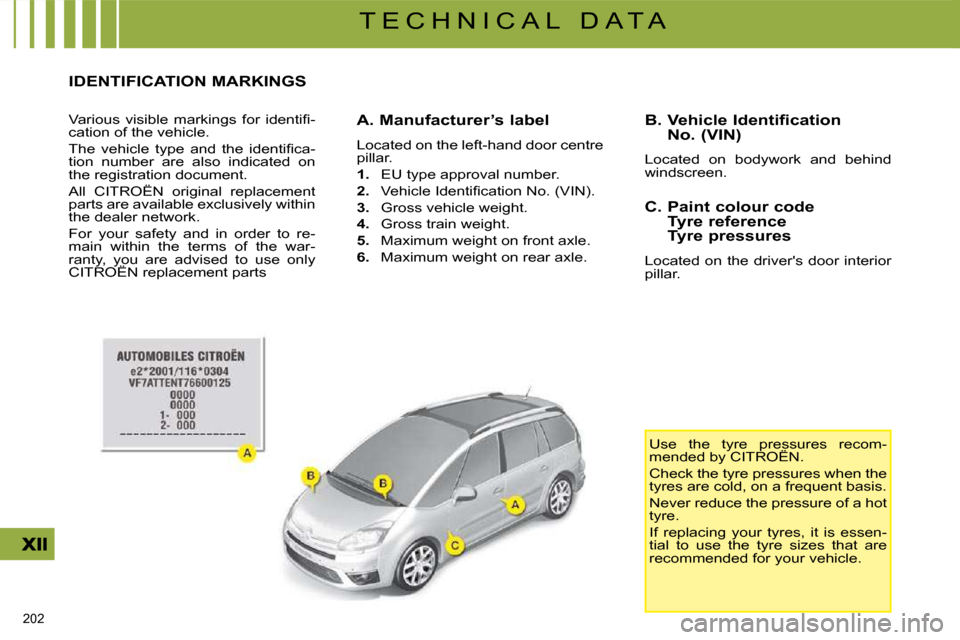

IDENTIFICATION MARKINGS
Various visible markings for identifi -
cation of the vehicle.
The vehicle type and the identifi ca-
tion number are also indicated on
the registration document.
All CITROËN original replacement
parts are available exclusively within
the dealer network.
For your safety and in order to re-
main within the terms of the war-
ranty, you are advised to use only
CITROËN replacement parts A. Manufacturer’s label
Located on the left-hand door centre
pillar.

1. EU type approval number.

2. Vehicle Identifi cation No. (VIN).

3. Gross vehicle weight.

4. Gross train weight.

5. Maximum weight on front axle.

6. Maximum weight on rear axle. B. Vehicle Identification
No. (VIN)
Located on bodywork and behind
windscreen.
C. Paint colour code Tyre reference
Tyre pressures
Located on the driver's door interior
pillar.
Use the tyre pressures recom-
mended by CITROËN.
Check the tyre pressures when the
tyres are cold, on a frequent basis.
Never reduce the pressure of a hot
tyre.
If replacing your tyres, it is essen-
tial to use the tyre sizes that are
recommended for your vehicle.
