Citroen C4 PICASSO DAG 2009 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2009, Model line: C4 PICASSO DAG, Model: Citroen C4 PICASSO DAG 2009 1.GPages: 337, PDF Size: 12.85 MB
Page 211 of 337
176
XI
P R A C T I C A L I N F O R M A T I O N
Rear lamps (C4 Picasso)
1. Direction indicators
(PY21 W)
2. Stoplamps/sidelamps
(P21/5 W)
3. Reversing lamp (P21 W )
I d e n t i f y t h e b u l b t h a t i s f a u l t y .
W i t h t h e b o o t o p e n , p r e s s o n t h e
p l a s t i c c o v e r A , l o c a t e d c l o s e
t o t h e l e n s , t o r e l e a s e i t f r o m i t s
h o u s i n g .
Undo the two screws B on the
side of the lens and detach the
l a m p b y p u l l i n g i t r e a r w a r d s .
D i s c o n n e c t t h e c o n n e c t o r l i n k i n g
t h e l e n s u n i t w i t h t h e t a i l g a t e .
R e m o v e t h e b u l b - h o l d e r .
R e p l a c e t h e b u l b s .
T o r e m o v e a b u l b , r o t a t e i t a quarter turn.
T o r e fi t t h e b u l b , r o t a t e i t a q u a r - ter turn in the other direction.
R e p o s i t i o n t h e b u l b - h o l d e r .
Reconnect the connector to the
lens unit.
Lamps mounted on the
bodywork
I d e n t i f y t h e b u l b t h a t i s f a u l t y .
W i t h t h e b o o t o p e n , r e m o v e t h e
p l a s t i c c o v e r o n t h e t a i l g a t e .
R e m o v e t h e b u l b - h o l d e r f r o m i t s
h o u s i n g .
R e p l a c e t h e b u l b .
T o r e m o v e a b u l b , r o t a t e i t a quarter turn.
T o r e fi t t h e b u l b , r o t a t e i t a q u a r - ter turn in the other direction.
R e p o s i t i o n t h e b u l b - h o l d e r .
R e fi t t h e p l a s t i c c o v e r .
Lamps mounted on the tailgate
R e fi t t h e l a m p u n i t o n t h e b o d y
a n d d o u p t h e t w o s c r e w s .
R e p o s i t i o n t h e p l a s t i c c o v e r b y
p r e s s i n g o n i t .
Page 212 of 337
177
XI
P R A C T I C A L I N F O R M A T I O N
Rear lamps
(Grand C4 Picasso)
1. Direction indicators
(PY21 W)
2. Stoplamps (P21 W)
3. Reversing lamp
(P21 W)
4. Sidelamps (diodes)
F o r t h i s t y p e o f l a m p , c o n t a c t a CITROËN dealer. Changing lamps
I d e n t i f y t h e b u l b t h a t i s f a u l t y .
W i t h t h e t a i l g a t e o p e n , u n d o t h e
3 screws located on the side of
t h e l e n s u n i t a n d p u l l i t r e a r w a r d s
to detach.
D i s c o n n e c t t h e c o n n e c t o r l i n k i n g
the lens unit to the boot. Do not
disconnect the diodes.
R e m o v e t h e s e a l .
R e m o v e t h e b u l b - h o l d e r .
R e p l a c e t h e b u l b s .
T o r e m o v e a b u l b , r o t a t e i t a quarter turn.
T o fi t t h e b u l b , r o t a t e i t a q u a r t e r turn in the other direction.
R e p o s i t i o n t h e b u l b - h o l d e r .
Put back the seal.
Reconnect the connector to the
lens unit.
S t o w t h e h a r n e s s i n t h e o p e n i n g
p r o v i d e d i n t h e b o d y .
R e fi t t h e l e n s u n i t t o t h e b o d y
a n d d o u p t h e 3 s c r e w s .
Number plate lamps (W 5 W)
Insert a thin screwdriver into one
o f t h e e x t e r n a l h o l e s o f t h e l e n s .
P u s h i t o u t w a r d s t o u n c l i p i t .
R e m o v e t h e l e n s .
C h a n g e t h e f a u l t y b u l b .
Page 213 of 337
1 7 8
XI
P R A C T I C A L I N F O R M A T I O N
Third brake lamp with bulb
(W 5 W)
W i t h t h e b o o t o p e n , d e t a c h t h e
i n t e r i o r t r i m .
Undo the nuts.
U s i n g a t h i n s c r e w d r i v e r , d e t a c h
t h e 3 r e t a i n i n g l u g s .
R e m o v e t h e l a m p v i a t h e e x t e -
r i o r o f t h e t a i l g a t e .
R e m o v e t h e b u l b - h o l d e r .
C h a n g e t h e f a u l t y b u l b ( s ) .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Third brake lamp (diodes)
F o r t h e r e p l a c e m e n t o f t h i s t y p e o f
d i o d e l a m p , c o n t a c t a C I T R O Ë N
dealer. Interior lighting
Interior lamp (1/W 5 W)
D e t a c h t h e c o v e r o f t h e i n t e r i o r l a m p
1
w i t h a t h i n s c r e w d r i v e r , c l o s e t o t h e b u t -
t o n , t o a c c e s s t h e f a u l t y b u l b .
Map reading lamps (2/W 5 W)
D e t a c h t h e c o v e r o f t h e i n t e r i o r l a m p .
T o a c c e s s t h e f a u l t y b u l b , d e t a c h t h e
p a r t i t i o n f o r t h e r e a d i n g l a m p 2 c o n -
c e r n e d , a s n e c e s s a r y . Boot lamps (W 5 W)
D e t a c h t h e u n i t b y p u s h i n g i t r e a r -
wards.
Torch (Krypton 3.6 V)
O p e n t h e t a b .
P u s h w i t h a fl a t s c r e w d r i v e r
in the hole under the tab and
recover the bulb unit.
O p e n t h e b u l b u n i t f u l l y t o c h a n g e
the bulb.
Page 214 of 337
1 7 8
XI
P R A C T I C A L I N F O R M A T I O N
Third brake lamp with bulb
(W 5 W)
W i t h t h e b o o t o p e n , d e t a c h t h e
i n t e r i o r t r i m .
Undo the nuts.
U s i n g a t h i n s c r e w d r i v e r , d e t a c h
t h e 3 r e t a i n i n g l u g s .
R e m o v e t h e l a m p v i a t h e e x t e -
r i o r o f t h e t a i l g a t e .
R e m o v e t h e b u l b - h o l d e r .
C h a n g e t h e f a u l t y b u l b ( s ) .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Third brake lamp (diodes)
F o r t h e r e p l a c e m e n t o f t h i s t y p e o f
d i o d e l a m p , c o n t a c t a C I T R O Ë N
dealer. Interior lighting
Interior lamp (1/W 5 W)
D e t a c h t h e c o v e r o f t h e i n t e r i o r l a m p
1
w i t h a t h i n s c r e w d r i v e r , c l o s e t o t h e b u t -
t o n , t o a c c e s s t h e f a u l t y b u l b .
Map reading lamps (2/W 5 W)
D e t a c h t h e c o v e r o f t h e i n t e r i o r l a m p .
T o a c c e s s t h e f a u l t y b u l b , d e t a c h t h e
p a r t i t i o n f o r t h e r e a d i n g l a m p 2 c o n -
c e r n e d , a s n e c e s s a r y . Boot lamps (W 5 W)
D e t a c h t h e u n i t b y p u s h i n g i t r e a r -
wards.
Torch (Krypton 3.6 V)
O p e n t h e t a b .
P u s h w i t h a fl a t s c r e w d r i v e r
in the hole under the tab and
recover the bulb unit.
O p e n t h e b u l b u n i t f u l l y t o c h a n g e
the bulb.
Page 215 of 337
179
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
O p e r a t i n g p r o c e d u r e f o r r e p l a c i n g a
f a u l t y f u s e w i t h a n e w f u s e t o r e c t i f y a
f a i l u r e o f t h e c o r r e s p o n d i n g f u n c t i o n .
T h e r e a r e t w o f u s e b o x e s u n d e r t h e
d a s h b o a r d , o n e f u s e b o x i n t h e e n -
g i n e c o m p a r t m e n t a n d a n o t h e r o n
t h e b a t t e r y .
Changing a fuse
B e f o r e r e p l a c i n g a f u s e , i t i s e s s e n -
t i a l t o fi n d t h e c a u s e o f t h e i n c i d e n t
a n d t o h a v e i t r e c t i fi e d . T h e f u s e
i d e n t i fi c a t i o n n u m b e r s a r e i n d i c a t e d
i n s i d e t h e f u s e b o x .
R e p l a c e a b l o w n f u s e w i t h o n e o f t h e
s a m e r a t i n g ( t h e s a m e c o l o u r ) . U s e t h e s p e c i a l t o o l
A t h a t i s p r o -
v i d e d i n t h e f u s e h o u s i n g fl a p , w h i c h
a l s o c o n t a i n s s p a r e f u s e s .
Correct Incorrect
Tool A
A c c e s s t o t h e fi r s t d a s h b o a r d
fusebox
Fuses under the dashboard
Your vehicle's electrical
s y s t e m i s d e s i g n e d t o o p e r -
ate with either standard or
o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g e l e c t r i c a l e q u i p -
m e n t o r a c c e s s o r i e s o n y o u r v e h i -
c l e , c o n s u l t a C I T R O Ë N d e a l e r .
C I T R O Ë N d e c l i n e s a l l r e s p o n s i b i l -
i t y f o r t h e c o n s e q u e n c e s a n d c o s t s
t h a t a r e c a u s e d b y f a u l t s o r r e p a i r s
o n y o u r v e h i c l e r e s u l t i n g f r o m t h e
installation of accessories that
a r e n o t s u p p l i e d a n d / o r n o t r e c -
o m m e n d e d b y C I T R O Ë N a n d n o t
i n s t a l l e d a c c o r d i n g t o i t s i n s t r u c -
t i o n s , p a r t i c u l a r l y w h e n t h e e n e r g y
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n a l
a c c e s s o r i e s c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s ( M a ) .
Page 216 of 337
179
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
O p e r a t i n g p r o c e d u r e f o r r e p l a c i n g a
f a u l t y f u s e w i t h a n e w f u s e t o r e c t i f y a
f a i l u r e o f t h e c o r r e s p o n d i n g f u n c t i o n .
T h e r e a r e t w o f u s e b o x e s u n d e r t h e
d a s h b o a r d , o n e f u s e b o x i n t h e e n -
g i n e c o m p a r t m e n t a n d a n o t h e r o n
t h e b a t t e r y .
Changing a fuse
B e f o r e r e p l a c i n g a f u s e , i t i s e s s e n -
t i a l t o fi n d t h e c a u s e o f t h e i n c i d e n t
a n d t o h a v e i t r e c t i fi e d . T h e f u s e
i d e n t i fi c a t i o n n u m b e r s a r e i n d i c a t e d
i n s i d e t h e f u s e b o x .
R e p l a c e a b l o w n f u s e w i t h o n e o f t h e
s a m e r a t i n g ( t h e s a m e c o l o u r ) . U s e t h e s p e c i a l t o o l
A t h a t i s p r o -
v i d e d i n t h e f u s e h o u s i n g fl a p , w h i c h
a l s o c o n t a i n s s p a r e f u s e s .
Correct Incorrect
Tool A
A c c e s s t o t h e fi r s t d a s h b o a r d
fusebox
Fuses under the dashboard
Your vehicle's electrical
s y s t e m i s d e s i g n e d t o o p e r -
ate with either standard or
o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g e l e c t r i c a l e q u i p -
m e n t o r a c c e s s o r i e s o n y o u r v e h i -
c l e , c o n s u l t a C I T R O Ë N d e a l e r .
C I T R O Ë N d e c l i n e s a l l r e s p o n s i b i l -
i t y f o r t h e c o n s e q u e n c e s a n d c o s t s
t h a t a r e c a u s e d b y f a u l t s o r r e p a i r s
o n y o u r v e h i c l e r e s u l t i n g f r o m t h e
installation of accessories that
a r e n o t s u p p l i e d a n d / o r n o t r e c -
o m m e n d e d b y C I T R O Ë N a n d n o t
i n s t a l l e d a c c o r d i n g t o i t s i n s t r u c -
t i o n s , p a r t i c u l a r l y w h e n t h e e n e r g y
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n a l
a c c e s s o r i e s c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s ( M a ) .
Page 217 of 337
1 8 0
XI
P R A C T I C A L I N F O R M A T I O N

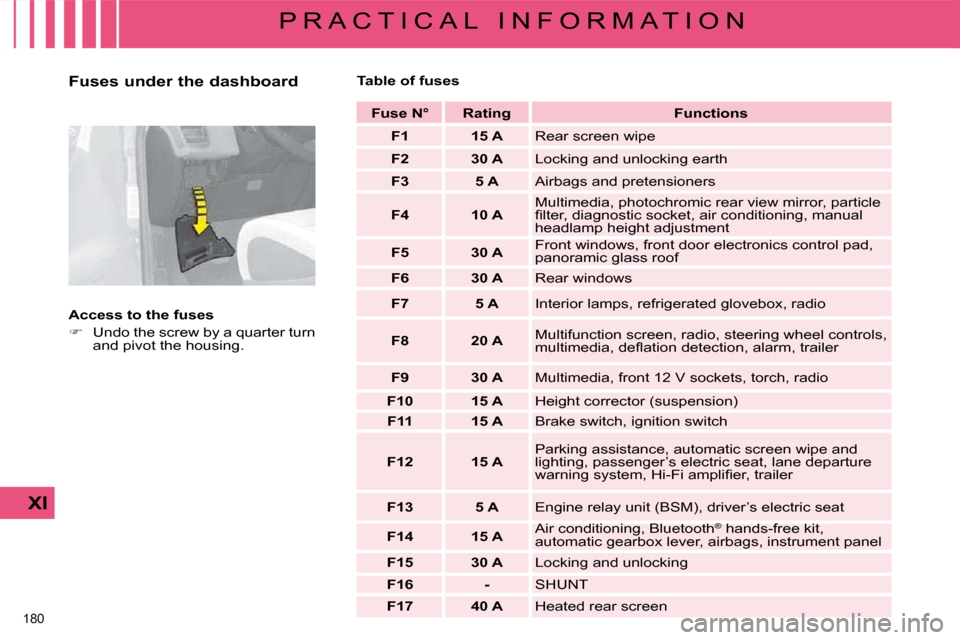

Fuses under the dashboard
Access to the fuses
U n d o t h e s c r e w b y a q u a r t e r t u r n
a n d p i v o t t h e h o u s i n g . Table of fuses
Fuse N° Rating Functions
F1 15 A R e a r s c r e e n w i p e
F2 30 A L o c k i n g a n d u n l o c k i n g e a r t h
F3 5 A A i r b a g s a n d p r e t e n s i o n e r s
F4 10 A M u l t i m e d i a , p h o t o c h r o m i c r e a r v i e w m i r r o r , p a r t i c l e
fi l t e r , d i a g n o s t i c s o c k e t , a i r c o n d i t i o n i n g , m a n u a l
h e a d l a m p h e i g h t a d j u s t m e n t
F5 30 A F r o n t w i n d o w s , f r o n t d o o r e l e c t r o n i c s c o n t r o l p a d ,
p a n o r a m i c g l a s s r o o f
F6 30 A Rear windows
F7 5 A I n t e r i o r l a m p s , r e f r i g e r a t e d g l o v e b o x , r a d i o
F8 20 A M u l t i f u n c t i o n s c r e e n , r a d i o , s t e e r i n g w h e e l c o n t r o l s ,
m u l t i m e d i a , d e fl a t i o n d e t e c t i o n , a l a r m , t r a i l e r
F9 30 A M u l t i m e d i a , f r o n t 1 2 V s o c k e t s , t o r c h , r a d i o
F10 15 A H e i g h t c o r r e c t o r ( s u s p e n s i o n )
F11 15 A B r a k e s w i t c h , i g n i t i o n s w i t c h
F12 15 A P a r k i n g a s s i s t a n c e , a u t o m a t i c s c r e e n w i p e a n d
l i g h t i n g , p a s s e n g e r ’ s e l e c t r i c s e a t , l a n e d e p a r t u r e
w a r n i n g s y s t e m , H i - F i a m p l i fi e r , t r a i l e r
F13 5 A E n g i n e r e l a y u n i t ( B S M ) , d r i v e r ’ s e l e c t r i c s e a t
F14 15 A A i r c o n d i t i o n i n g , B l u e t o o t h
®
h a n d s - f r e e k i t ,
a u t o m a t i c g e a r b o x l e v e r , a i r b a g s , i n s t r u m e n t p a n e l
F15 30 A L o c k i n g a n d u n l o c k i n g
F16 - SHUNT
F17 40 A Heated rear screen
Page 218 of 337
1 8 1
XI
P R A C T I C A L I N F O R M A T I O N
Access to the second dashboard
fusebox
After any operation on the fuses
in the fusebox, check that the
fusebox cover is put back cor-
rectly for their protection. Table of fuses
Fuse N° Rating Functions
F29 20 A Heated seats
F30 - Not used
F31 40 A T r a i l e r r e l a y u n i t
F32 15 A R e a r 1 2 V s o c k e t
F33 5 A P a r k i n g a s s i s t a n c e , a u t o m a t i c s c r e e n w i p e a n d
l i g h t i n g , p a s s e n g e r ’ s e l e c t r i c s e a t , l a n e d e p a r t u r e
w a r n i n g s y s t e m , H i - F i a m p l i fi e r
F34 5 A Trailer
F35 - Not used
F36 20 A H i - F i a m p l i fi e r
F37 10 A A i r c o n d i t i o n i n g , l i g h t p a c k
F38 30 A D r i v e r ’ s e l e c t r i c s e a t
F39 5 A F u e l fl a p
F40 30 A P a s s e n g e r ’ s e l e c t r i c s e a t , p a n o r a m i c g l a s s r o o f
Page 219 of 337
1 8 2
XI
P R A C T I C A L I N F O R M A T I O N
Fuses in the engine
compartment
Access to the fuses
D e t a c h a n d r e m o v e t h e c o v e r .
After any operation, carefully
r e fi t
the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For the
same reason, take care not to spill
any liquid in the fusebox.
A l l w o r k o n t h e m a x i - f u s e s ,
which are located in these
f u s e b o x e s a n d w h i c h g i v e
e x t r a p r o t e c t i o n , m u s t b e c a r r i e d
o u t b y C I T R O Ë N t e c h n i c i a n s .
Page 220 of 337
1 8 3
XI
P R A C T I C A L I N F O R M A T I O N

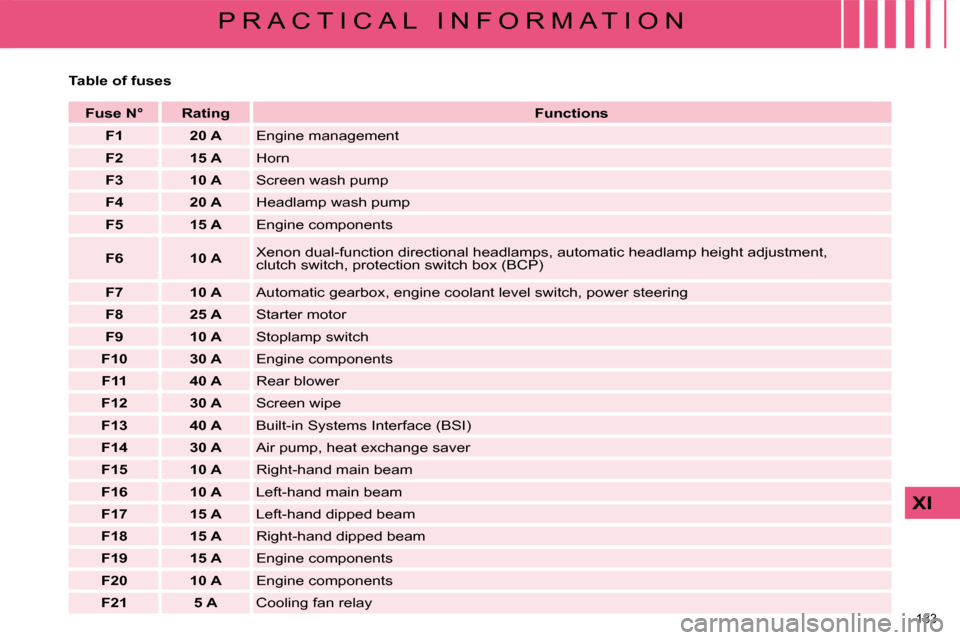

Table of fuses
Fuse N° Rating
Functions
F1 20 A E n g i n e m a n a g e m e n t
F2 15 A Horn
F3 10 A S c r e e n w a s h p u m p
F4 20 A H e a d l a m p w a s h p u m p
F5 15 A E n g i n e c o m p o n e n t s
F6 10 A X e n o n d u a l - f u n c t i o n d i r e c t i o n a l h e a d l a m p s , a u t o m a t i c h e a d l a
m p h e i g h t a d j u s t m e n t ,
c l u t c h s w i t c h , p r o t e c t i o n s w i t c h b o x ( B C P )
F7 10 A A u t o m a t i c g e a r b o x , e n g i n e c o o l a n t l e v e l s w i t c h , p o w e r s t e e r i n g
F8 25 A S t a r t e r m o t o r
F9 10 A S t o p l a m p s w i t c h
F10 30 A E n g i n e c o m p o n e n t s
F11 40 A Rear blower
F12 30 A S c r e e n w i p e
F13 40 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I )
F14 30 A A i r p u m p , h e a t e x c h a n g e s a v e r
F15 10 A R i g h t - h a n d m a i n b e a m
F16 10 A L e f t - h a n d m a i n b e a m
F17 15 A L e f t - h a n d d i p p e d b e a m
F18 15 A R i g h t - h a n d d i p p e d b e a m
F19 15 A E n g i n e c o m p o n e n t s
F20 10 A E n g i n e c o m p o n e n t s
F21 5 A C o o l i n g f a n r e l a y
