CD player Citroen C4 PICASSO DAG 2009.5 1.G User Guide

286
33
04
44
11
55
22
USB PLAYER
USING THE USB SOCKET
Press LIST briefl y to display the previously selected classifi cation.
The lists available are Artist, Genre and Playlist (as defi ned on the iPod ® ). ®
Selection and Navigation are described in steps 1 to 5 above.
Do not connect a hard disk or USB devices other than audio equipment to the USB port. This could damage your i nstallation.
CONNECTING AN IPOD ®AN IPOD AN IPOD VIA THE USB PORT ®
Navigate through the list using the left/right and up/down buttons. Confi rm the selection by pressing OK. Press one of these buttons to gain access to the previous/next track on the classifi cation list currently being played.
Press and hold one of the buttons for fast forward or backward play. Press one of these buttons to gain access to the previous/next Genre, Folder, Artist or Playlist on the classifi cation list currently being played.
Press and hold LIST to display the different classifi cations. Select by Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.
- by Folder: all folders containing audio fi les recognised on the peripheral device, classifi ed in alphabetical order without following the fl ow chart. - by Artist: all of the artist names defi ned in the ID3 Tags, classifi ed in alphabetical order. - by Genre: all of the genres defi ned in the ID3 Tags. - by Playlist: in accordance with the playlists recorded on the USB device.
OK

287
11
22
22

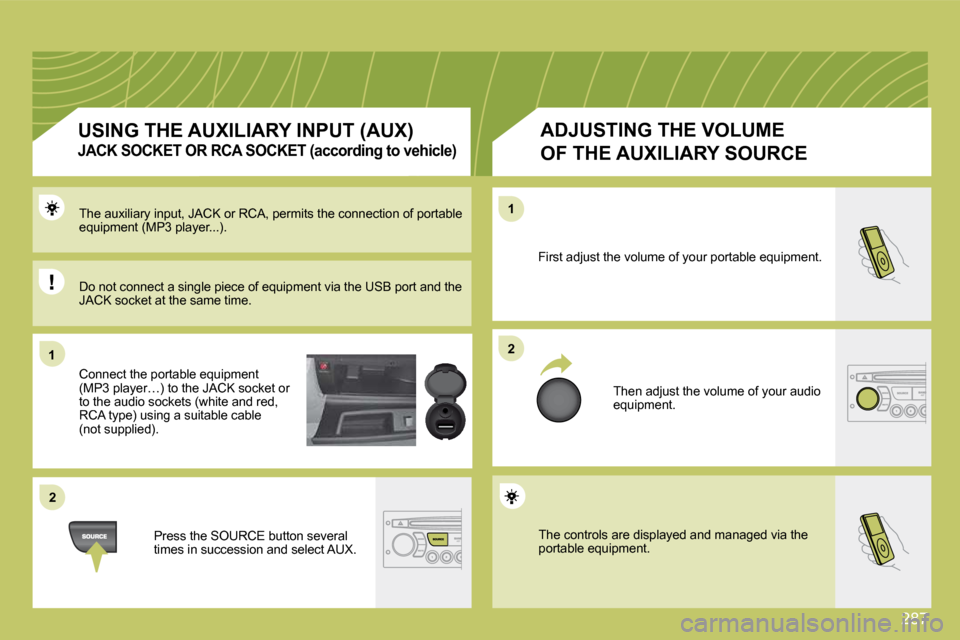

11 The auxiliary input, JACK or RCA, permits the connection of portable equipment (MP3 player...).
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) using a suitable cable (not supplied).
Press the SOURCE button several times in succession and select AUX.
USING THE AUXILIARY INPUT (AUX)
JACK SOCKET OR RCA SOCKET (according to vehicle)
Do not connect a single piece of equipment via the USB port and the JACK socket at the same time.
The controls are displayed and managed via the portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audio equipment.
ADJUSTING THE VOLUME
OF THE AUXILIARY SOURCE

294
There is a difference in sound quality between the different audio sources (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source(radio, CD...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment's CD player does not play DVDs. - Due to their quality level, certain writeable CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
The message "USB peripheral error" is displayed on the screen.
Recharge tha battery of the peripheral device. The Bluetooth conecion is cut. The battery of the peripheral may not be suffi ciently charged.
The USB memory stick is not recognised. The memory stick may be corrupt. Reformat the memory stick.
QUESTION SOLUTION ANSWER

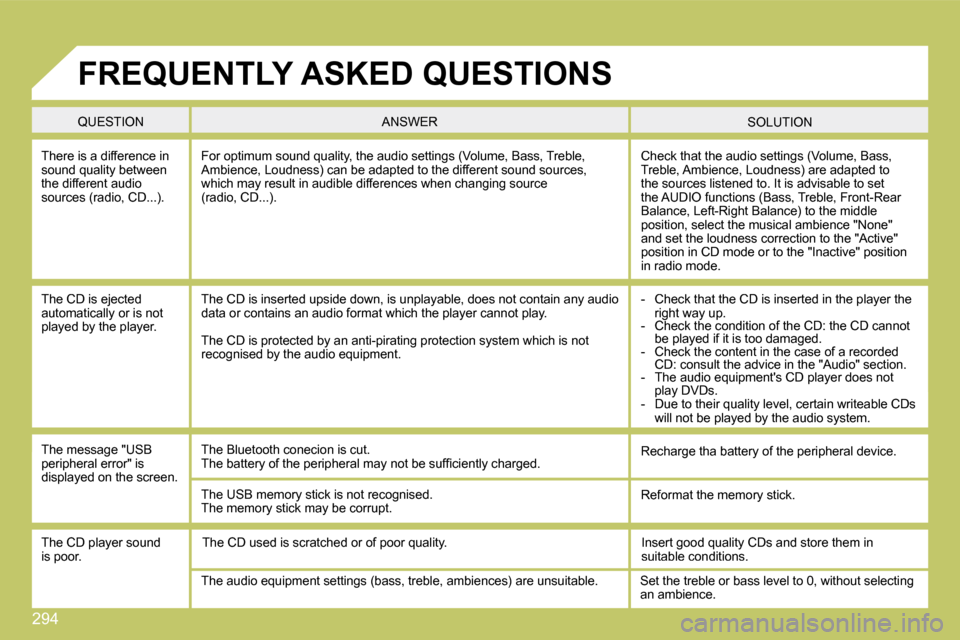

FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.

297

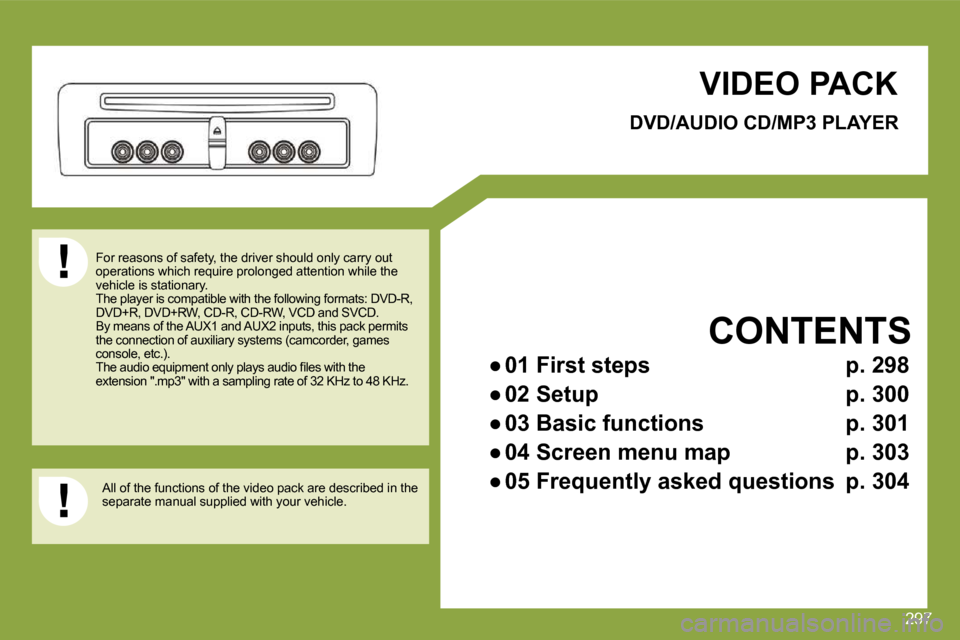

VIDEO PACK
For reasons of safety, the driver should only carry out operations which require prolonged attention while the vehicle is stationary. The player is compatible with the following formats: DVD-R, DVD+R, DVD+RW, CD-R, CD-RW, VCD and SVCD. By means of the AUX1 and AUX2 inputs, this pack pe rmits the connection of auxiliary systems (camcorder, games console, etc.). The audio equipment only plays audio fi les with the extension ".mp3" with a sampling rate of 32 KHz to 48 KHz.
CONTENTS

298
01
1122
8899
66
33
33
44
11
77
5522

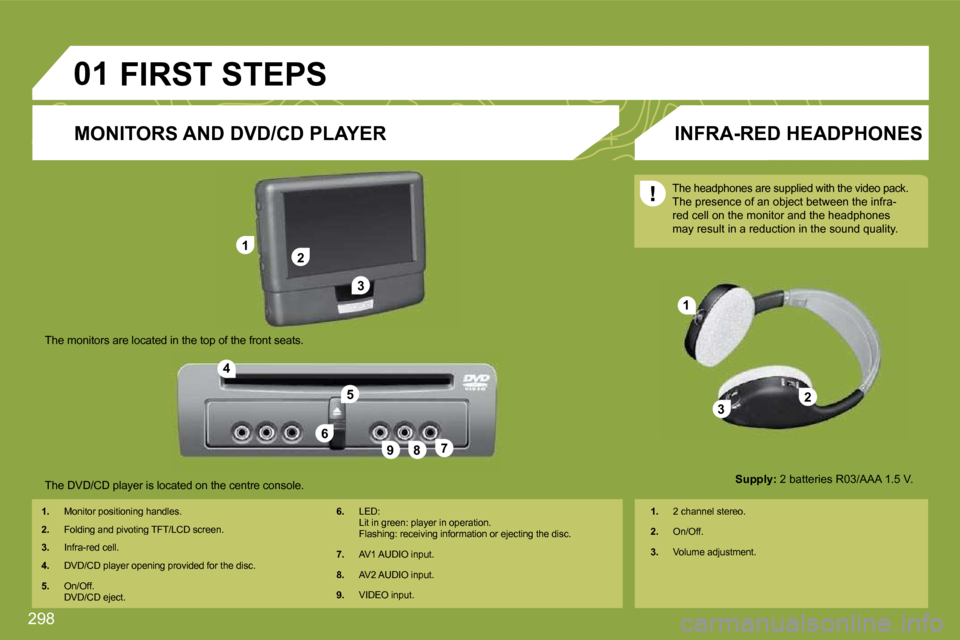

1. Monitor positioning handles.
2. Folding and pivoting TFT/LCD screen.
3. Infra-red cell.
4. DVD/CD player opening provided for the disc.
5. On/Off. DVD/CD eject.
6. LED: Lit in green: player in operation. Flashing: receiving information or ejecting the disc.
7. AV1 AUDIO input.
8. AV2 AUDIO input.
9. VIDEO input.
FIRST STEPS
1. 2 channel stereo.
2. On/Off.
3. Volume adjustment.
The headphones are supplied with the video pack. The presence of an object between the infra-red cell on the monitor and the headphones may result in a reduction in the sound quality.
Supply:2 batteries R03/AAA 1.5 V.
MONITORS AND DVD/CD PLAYER INFRA-RED HEADPHONES
The monitors are located in the top of the front s eats.
The DVD/CD player is located on the centre console .

302
11
22
11
22
11
22
03

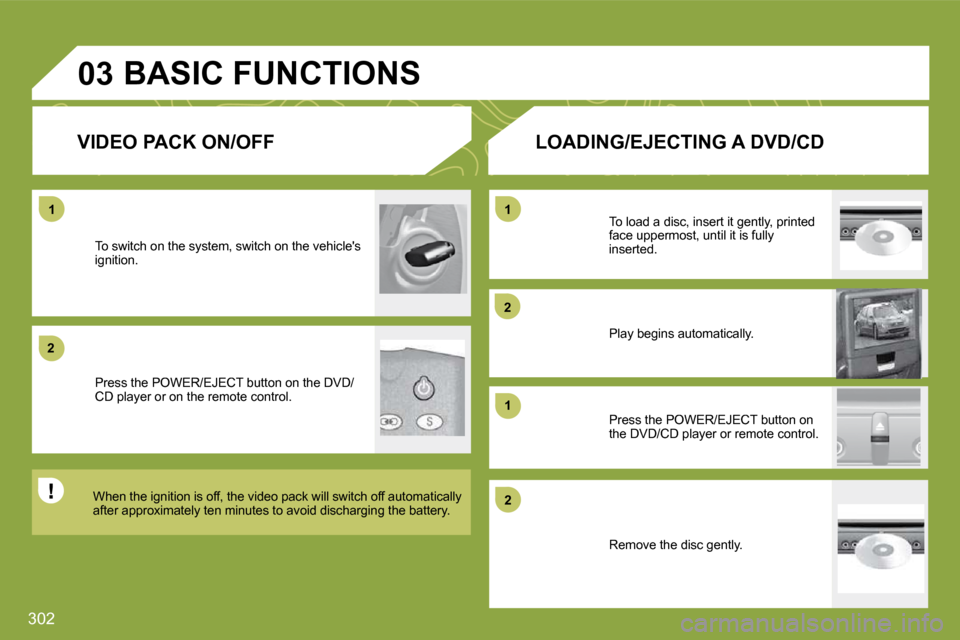

VIDEO PACK ON/OFF
BASIC FUNCTIONS
To switch on the system, switch on the vehicle's ignition.
Press the POWER/EJECT button on the DVD/CD player or on the remote control.
Play begins automatically.
To load a disc, insert it gently, printed face uppermost, until it is fully inserted.
Press the POWER/EJECT button on the DVD/CD player or remote control.
Remove the disc gently.
LOADING/EJECTING A DVD/CD
When the ignition is off, the video pack will switch off automatically after approximately ten minutes to avoid dischargin g the battery.

304
05
The table below groups together the answers to the most frequently asked questions concerning the vi deo pack.
FREQUENTLY ASKED QUESTIONS
QUESTION SOLUTION
The player does not start. - Check the vehicle's fuses.
The player does not react to pressing of the remote control buttons. - The remote control batteries are fl at. Replace them. - The remote control sensor is hampered by objec ts or is dirty. Remove all objects on the remote control receiver or clean the surface using a damp cloth. - The video pack has overheated. Let it cool for a few minutes.
Image or sound interference while playing a DVD. The image remains frozen during play. The player cannot read the disc. The disc may be d amaged or dirty.
The player does not play the disc inserted. - The format of the disc does not correspond to the specifi cations of the player. - If it is cold, condensation may have formed on the laser. Wait approximately 5 minutes to allow t he humidity to evaporate.
When a DVD/VCD/SVCD is played, the image is of poor quality. - Remove the disc. - Using the SETUP button , adjust the brightness and insert the disc again.
No image is displayed on the monitor. - Press the SOURCE button until the image appea rs. - Press the SCREEN ON/OFF button.
There is no sound in the audio headphones. - Increase the volume using the VOLUME +/- buttons on the remote control or using the dial on the headphones. - Check that the correct channel is selected on the headphones. - Press the SOURCE button until the sound arrive s. - Replace the headphone batteries.
The start-up screen does not appear following ejection of the disc. - Insert another disc. - Switch the system off and then on again.
