Page 64 of 338
59
III
C O M F O R T
Storing driving positions
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you
to store up to two positions using the
buttons on the side of the driver's
seat. Storing a position
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and the exterior
mirrors.
Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indi- cating that the position has been
stored.
Storing a new position cancels the
previous position. Recalling a stored position
Ignition on or engine running
B r i e fl y p r e s s b u t t o n 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery.
Vehicle moving
Press and hold button 1 or 2
until the audible signal is
heard indicating the end of the
adjustment.
Do not try to store a driving position
while driving.
Page 79 of 338
73
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 81 of 338
73
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 124 of 338
100
VI
F I T T I N G S
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
l e y a n d a fl e x i b l e b a g ( i s o t h e r m o n
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle
Perform the operations in
reverse to fold and stow inside
the vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE COVER BLIND (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e -
hind the second-row seats, with the
third-row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller
Position the left-hand end of the
blind roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Unroll the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Carry out these operations in
reverse order.
Page 130 of 338
100
VI
F I T T I N G S
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
l e y a n d a fl e x i b l e b a g ( i s o t h e r m o n
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle
Perform the operations in
reverse to fold and stow inside
the vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE COVER BLIND (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e -
hind the second-row seats, with the
third-row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller
Position the left-hand end of the
blind roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Unroll the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Carry out these operations in
reverse order.
Page 131 of 338
100
VI
F I T T I N G S
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
l e y a n d a fl e x i b l e b a g ( i s o t h e r m o n
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle
Perform the operations in
reverse to fold and stow inside
the vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE COVER BLIND (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e -
hind the second-row seats, with the
third-row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller
Position the left-hand end of the
blind roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Unroll the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Carry out these operations in
reverse order.

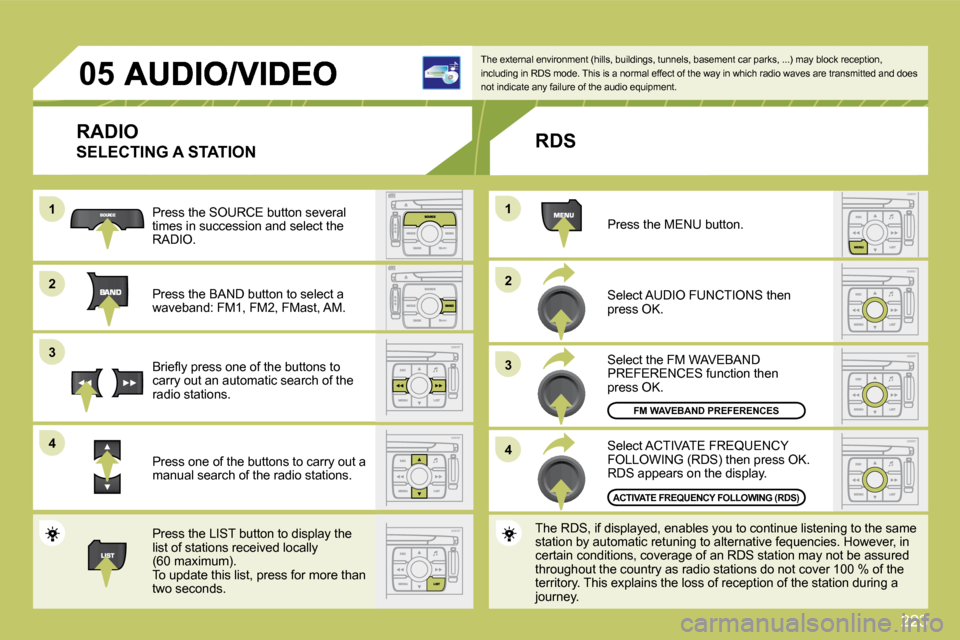

Page 259 of 338
223
11
2 2
3 3
4 4
11
2 2
3 3
4 4
0 5
RADIO
SELECTING A STATION
Press the SOURCE button several times in succession and select the RADIO.
Press the BAND button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST button to display the list of stations received locally ( 6 0 m a x i m u m ) . To update this list, press for more than two seconds.
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s , . . . ) m a y b l o c k r e c e p t i o n , i n c l u d i n g i n R D S m o d e . T h i s i s a n o r m a l e f f e c t o f t h e w a y i n w h i c h r a d i o w a v e s a r e t r a n s m i t t e d a n d d o e s not indicate any failure of the audio equipment.
RDS
S e l e c t A C T I V A T E F R E Q U E N C Y F O L L O W I N G ( R D S ) t h e n p r e s s O K . RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
T h e R D S , i f d i s p l a y e d , e n a b l e s y o u t o c o n t i n u e l i s t e n i n g t o t h e s a m e s t a t i o n b y a u t o m a t i c r e t u n i n g t o a l t e r n a t i v e f e q u e n c i e s . H o w e v e r , i n c e r t a i n c o n d i t i o n s , c o v e r a g e o f a n R D S s t a t i o n m a y n o t b e a s s u r e d t h r o u g h o u t t h e c o u n t r y a s r a d i o s t a t i o n s d o n o t c o v e r 1 0 0 % o f t h e t e r r i t o r y . T h i s e x p l a i n s t h e l o s s o f r e c e p t i o n o f t h e s t a t i o n d u r i n g a journey.
F M W A V E B A N D P R E F E R E N C E S
A C T I V A T E F R E Q U E N C Y F O L L O W I N G ( R D S )

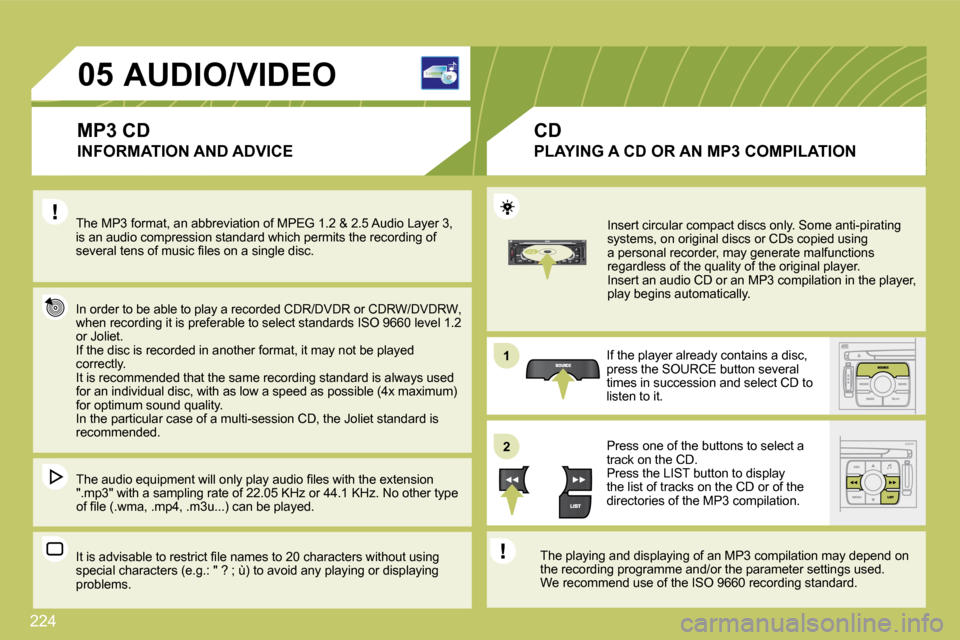

Page 260 of 338
224
11
2 2
0 5 A U D I O / V I D E O
I N F O R M A T I O N A N D A D V I C E
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, i s a n a u d i o c o m p r e s s i o n s t a n d a r d w h i c h p e r m i t s t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
In order to be able to play a recorded CDR/DVDR or CDRW/DVDRW, w h e n r e c o r d i n g i t i s p r e f e r a b l e t o s e l e c t s t a n d a r d s I S O 9 6 6 0 l e v e l 1 . 2 or Joliet. If the disc is recorded in another format, it may not be played correctly. I t i s r e c o m m e n d e d t h a t t h e s a m e r e c o r d i n g s t a n d a r d i s a l w a y s u s e d f o r a n i n d i v i d u a l d i s c , w i t h a s l o w a s p e e d a s p o s s i b l e ( 4 x m a x i m u m ) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h a s a m p l i n g r a t e o f 2 2 . 0 5 K H z o r 4 4 . 1 K H z . N o o t h e r t y p e o f fi l e ( . w m a , . m p 4 , . m 3 u . . . ) c a n b e p l a y e d .
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g s p e c i a l c h a r a c t e r s ( e . g . : " ? ; ù ) t o a v o i d a n y p l a y i n g o r d i s p l a y i n g problems.
I n s e r t c i r c u l a r c o m p a c t d i s c s o n l y . S o m e a n t i - p i r a t i n g s y s t e m s , o n o r i g i n a l d i s c s o r C D s c o p i e d u s i n g a p e r s o n a l r e c o r d e r , m a y g e n e r a t e m a l f u n c t i o n s r e g a r d l e s s o f t h e q u a l i t y o f t h e o r i g i n a l p l a y e r . Insert an audio CD or an MP3 compilation in the pl ayer, p l a y b e g i n s a u t o m a t i c a l l y .
If the player already contains a disc, press the SOURCE button several times in succession and select CD to listen to it.
Press one of the buttons to select a track on the CD. Press the LIST button to display the list of tracks on the CD or of the directories of the MP3 compilation.
T h e p l a y i n g a n d d i s p l a y i n g o f a n M P 3 c o m p i l a t i o n m a y d e p e n d o n t h e r e c o r d i n g p r o g r a m m e a n d / o r t h e p a r a m e t e r s e t t i n g s u s e d . W e r e c o m m e n d u s e o f t h e I S O 9 6 6 0 r e c o r d i n g s t a n d a r d .
M P 3 C D
P L A Y I N G A C D O R A N M P 3 C O M P I L A T I O N
CD

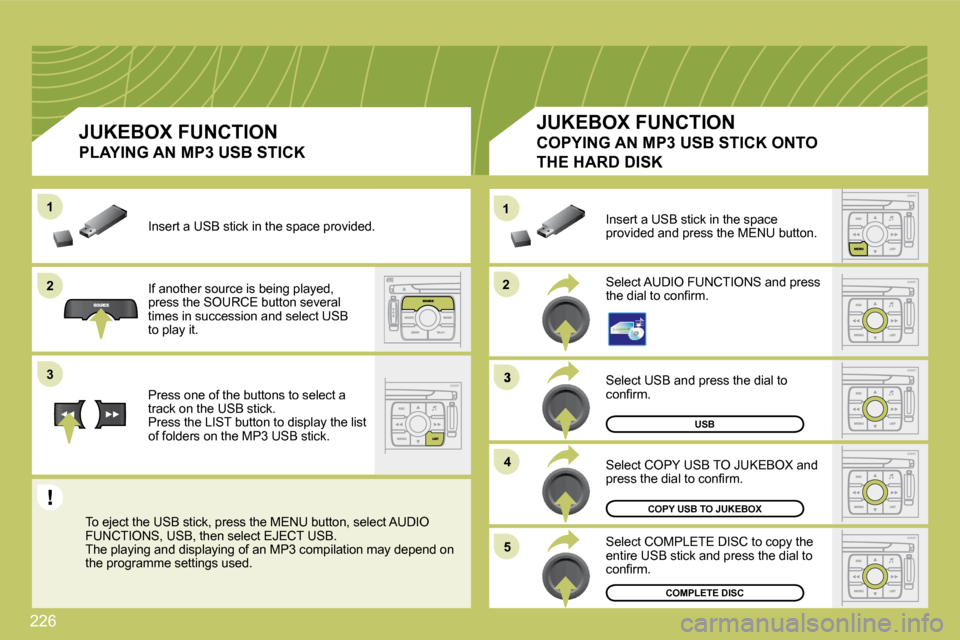

Page 262 of 338
226
2 2
11
3
4 4
5 5
2 2
3 3
11
USB
COPY USB TO JUKEBOX
COMPLETE DISC
Select USB and press the dial to c o n fi r m .
S e l e c t C O P Y U S B T O J U K E B O X a n d p r e s s t h e d i a l t o c o n fi r m .
Select COMPLETE DISC to copy the entire USB stick and press the dial to c o n fi r m .
Select AUDIO FUNCTIONS and press t h e d i a l t o c o n fi r m .
Insert a USB stick in the space provided and press the MENU button.
JUKEBOX FUNCTION
C O P Y I N G A N M P 3 U S B S T I C K O N T O
THE HARD DISK
I f a n o t h e r s o u r c e i s b e i n g p l a y e d , press the SOURCE button several times in succession and select USB to play it.
Press one of the buttons to select a track on the USB stick. Press the LIST button to display the list of folders on the MP3 USB stick.
To eject the USB stick, press the MENU button, select AUDIO FUNCTIONS, USB, then select EJECT USB. T h e p l a y i n g a n d d i s p l a y i n g o f a n M P 3 c o m p i l a t i o n m a y d e p e n d o n t h e p r o g r a m m e s e t t i n g s u s e d .
JUKEBOX FUNCTION
P L A Y I N G A N M P 3 U S B S T I C K
Insert a USB stick in the space provided. ded.
Page 287 of 338
252
1
5
1 0
2
3 4 6
1 3
1 1
9
1 4 1 5
7 8 1 2
1 6
0 1

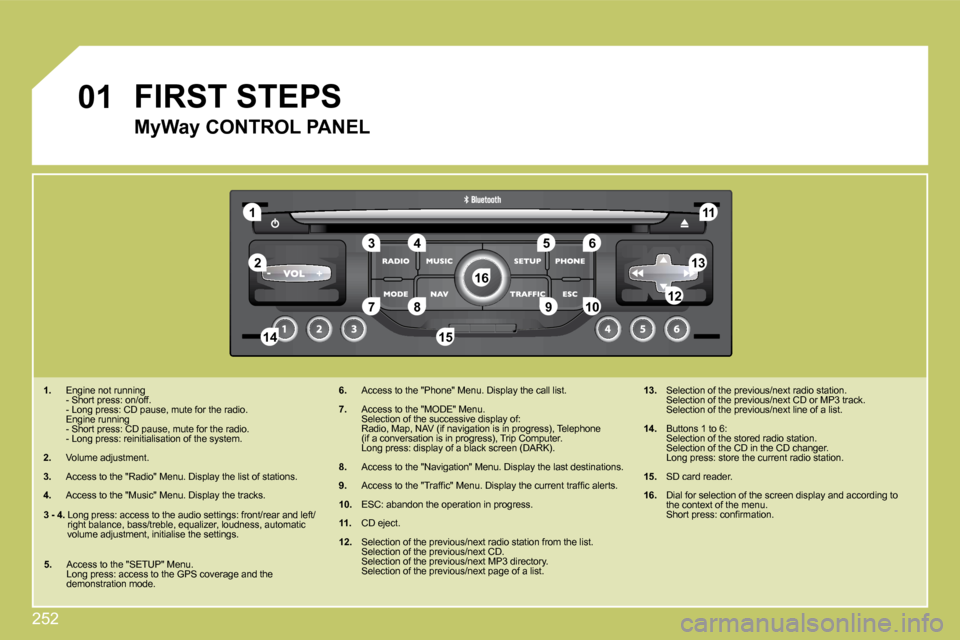

F I R S T S T E P S
1 . E n g i n e n o t r u n n i n g - Short press: on/off. - L o n g p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . E n g i n e r u n n i n g - S h o r t p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . - L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m .
2 . Volume adjustment.
3 . A c c e s s t o t h e " R a d i o " M e n u . D i s p l a y t h e l i s t o f s t
a t i o n s .
4 . A c c e s s t o t h e " M u s i c " M e n u . D i s p l a y t h e t r a c k s .
6 . A c c e s s t o t h e " P h o n e " M e n u . D i s p l a y t h e c a l l l i s t .
7 . A c c e s s t o t h e " M O D E " M e n u . Selection of the successive display of: R a d i o , M a p , N A V ( i f n a v i g a t i o n i s i n p r o g r e s s ) , T e l e p h o n e ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) , T r i p C o m p u t e r . L o n g p r e s s : d i s p l a y o f a b l a c k s c r e e n ( D A R K ) .
8 . A c c e s s t o t h e " N a v i g a t i o n " M e n u . D i s p l a y t h e l a s t d e s t i n a t i o n s .
9 . A c c e s s t o t h e " T r a f fi c " M e n u . D i s p l a y t h e c u r r e n t t r a f fi c a l e r t s .
1 0 . E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s .
1 1 . C D e j e c t .
1 2 . Selection of the previous/next radio station from the list. S e l e c t i o n o f t h e p r e v i o u s / n e x t C D . Selection of the previous/next MP3 directory. S e l e c t i o n o f t h e p r e v i o u s / n e x t p a g e o f a l i s t .
1 3 . Selection of the previous/next radio station. S e l e c t i o n o f t h e p r e v i o u s / n e x t C D o r M P 3 t r a c k . Selection of the previous/next line of a list.
1 4 . Buttons 1 to 6: Selection of the stored radio station. S e l e c t i o n o f t h e C D i n t h e C D c h a n g e r . L o n g p r e s s : s t o r e t h e c u r r e n t r a d i o s t a t i o n .
1 5 . S D c a r d r e a d e r .
1 6 . D i a l f o r s e l e c t i o n o f t h e s c r e e n d i s p l a y a n d a c c o r d i n g t othe context of the menu. S h o r t p r e s s : c o n fi r m a t i o n .
M y W a y C O N T R O L P A N E L
3 - 4 . L o n g p r e s s : a c c e s s t o t h e a u d i o s e t t i n g s : f r o n t / r e a r a n d l e f t / r i g h t b a l a n c e , b a s s / t r e b l e , e q u a l i z e r , l o u d n e s s , a u t o m a t i c v o l u m e a d j u s t m e n t , i n i t i a l i s e t h e s e t t i n g s .
5 . A c c e s s t o t h e " S E T U P " M e n u . L o n g p r e s s : a c c e s s t o t h e G P S c o v e r a g e a n d t h e demonstration mode.
