Page 17 of 338
20
F A M I L I A R I S A T I O N
Driver's and front passenger's control panel
Automatic air conditioning
Rear passengers' control panel
V E N T I L A T I O N
1. Automatic comfort regulation.
2. Adjustment and display of driver's
temperature.
3. Adjustment of air blower speed.
Maintaining of ventilation with the engine switched off (REST).
4. Adjustment and display of air distri-
bution.
5. Air recirculation.
6. Mode of adjustment for rear pas-
sengers.
7. Panel and buttons display mode
(black panel).
8. Demisting/defrosting of rear screen
and rear view mirrors.
9. Rapid demisting/defrosting of wind-
screen and windows.
10. Air conditioning.
11. Adjustment and display of front pas-
senger's temperature.
49, 54
12. Adjustment of air blower speed.
52

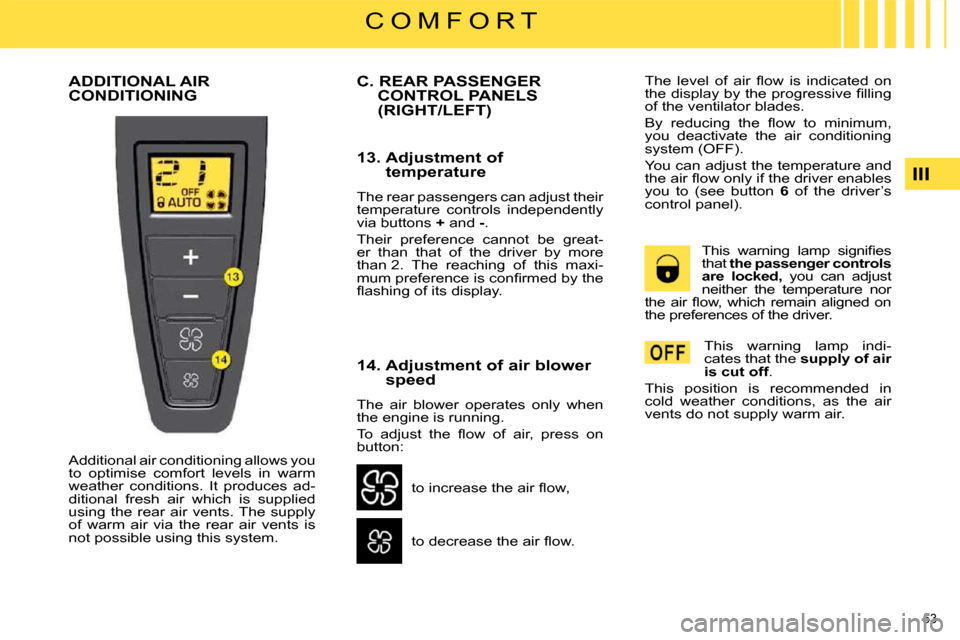

13. Temperature adjustment (no warm
air distribution).
14. Adjustment of air blower speed.
53
Page 19 of 338
22
F A M I L I A R I S A T I O N
Seat belts not fastened/
unfastened warning lamp This warning lamp informs you
if the driver’s or front passen-
ger’s seat belt is not fastened
(depending on model), and if
the front passenger’s (depend-
ing on model) or the second-
row passengers’ seat belts are
unfastened. The lit up positions
represent those whose seat belts are
not fastened/unfastened.
You can use electrical central locking or
unlocking by pressing on button A .
If one of the doors is open or is not
closed properly, central locking will not
work. Tyre under-inflation detection
This function warns you if a tyre is de-
fl a t e d o r p u n c t u r e d .
This system does not absolve the driver
of the need to regularly check the tyre
pressures.
The service warning lamp
lights up, and a vehicle outline
is displayed, accompanied by
a message and an audible
signal.
U n d e r - i n fl a t i o n w a r n i n g
The
STOP warning lamp lights
up, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Puncture
30
114
Anti-intrusion security
Once the function has been activated,
when starting the engine, the system
automatically locks the doors once you
reach approximately 6 mph (10 km/h).
This function can be deactivated
by pressing button A for more than
two seconds.
78
M O N I T O R I N G
Locking from inside
Instrument panel
with multifunction screen A
24
with multifunction screen C
25
with NaviDrive multifunction screen
26
1. Instrument panel.
2. Multifunction screen.
3. Control buttons.
4. Warning lamps display zone.
Page 21 of 338
24
I
I N S T R U M E N T S a n d C O N T R O L S
MONOCHROME INSTRUMENT PANEL
MULTIFUNCTION SCREEN A
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
1. Rev counter
2. Electronic gearbox or automatic
gearbox selector position and
gear
3. Electronic gearbox or automatic
gearbox "Foot on brake" warning
lamp
4. Speedometer
5. Cruise control or speed limiter
setting
6. Fuel gauge
7. Trip mileage recorder
8. Multifunction screen A
9. Total mileage recorder
In this zone, the following infor- mation appears in succession
when the ignition is switched on:
- service indicator,
- engine oil level indicator,
- total mileage recorder.
A. Lighting rheostat (available day
and night)
B. Trip mileage recorder reset
C. Personalisation of the instrument
panel (display of desired informa-
tion)
D. CHECK (list of alerts)
Central display Control buttons
Page 22 of 338
25
I
I N S T R U M E N T S a n d C O N T R O L S
TWO - TONE INSTRUMENT PANEL
MULTIFUNCTION SCREEN C
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
1. Rev counter
2. Electronic gearbox or automatic
gearbox selector position and
gear
3. Electronic gearbox or automatic
gearbox "Foot on brake" warning
lamp
4. Speedometer
5. Cruise control or speed limiter
setting
6. Fuel gauge
7. Trip mileage recorder
8. Multifunction screen C
9. Total mileage recorder
In this zone, the following infor- mation appears in succession
when the ignition is switched on:
- service indicator,
- engine oil level indicator,
- total mileage recorder.
A. Lighting rheostat (available day
and night)
B. Trip mileage recorder reset
C. Personalisation of the instrument
panel (display of desired informa-
tion)
D. COLOUR (choice of background
colour ranging from white to blue)
Central display Control buttons
Page 23 of 338
26
I
I N S T R U M E N T S a n d C O N T R O L S
NAVIDRIVE INSTRUMENT PANEL
NAVIDRIVE MULTIFUNCTION SCREEN
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
1. Cruise control or speed limiter
setting
2. Speeometer
3. NaviDrive multifunction screen
(see "NaviDrive instructions")
4. Rev counter
5. Electronic gearbox or automatic
gearbox "Foot on brake" warning
lamp
6. Fuel gauge
7. Electronic gearbox or automatic
gearbox selector position
8. Trip mileage recorder
9. Total mileage recorder
In this zone, the following infor- mation appears in succession
when the ignition is switched on:
- service indicator,
- engine oil level indicator,
- total mileage recorder.
A. Personalisation of the instru-
ment panel (display of desired
information)
B. COLOUR (choice of background
colour ranging from white to
blue)
C. Lighting rheostat (available day
and night)
D. Trip mileage recorder reset
Central display
Control buttons
Page 53 of 338
51
III
C O M F O R T
5. Air recirculation
Press on button 5 to close off the
entry of air from outside and to ac-
tivate recycling of the air in the cab-
in. the warning lamp comes on.
Whilst retaining the other adjust-
ments, this position enables the
driver at any time to exclude any dis-
agreeable odours or fumes coming
from outside the vehicle. It should
be cancelled as soon as possible to
permit renewal of cabin air and to
prevent misting.
Press again on button 5 to allow
entry of air from the outside. The
warning lamp goes out.
The air recirculation can also be ac-
cessed by means of a press on the
control, located on the lower left of
the steering wheel (see "§ Fixed
centred controls steering wheel"). 6. Adjustment mode for the
rear passengers
This button decides whether
or not the rear passengers
may use their adjustment
controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the
rear passenger con-
trols
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their con-
venience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode:
black panel function
This function turns the dis-
plays and panel backlighting
on or off.
- Function activated, a press on any button will light up the screen
temporarily.
- press on button 7 deactivates
the function, lighting of buttons
and screen is again permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting of the rear screen
This can only operate when the en-
gine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
exterior rear view mirrors. The
warning lamp lights up and the
symbol appears on the display.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recir-
culation of air within the pas-
senger compartment and also
has an automatic function.
Page 54 of 338
52
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press on button 9 . The warning
lamp lights up.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at opti- mum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the rear view mirrors and heated rear
screen,
- air conditioning, if necessary.
Press again on button 9 or on AUTO
to stop the function. Demisting/defrost-
ing of the rear view mirrors and heated
rear screen remains activated.
10. Air conditioning
Press on button 10 to activate
the air conditioning.
The A/C warning lamp lights up.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger con-
trols the adjustment of their
own temperature.
The temperature for the
passenger is aligned with
that for the driver. 12. Rear passengers (right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the but-
ton to decrease
or increase the air
fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s
is enabled by the driver (see button 6
of the driver’s control panel).
Page 56 of 338
51
III
C O M F O R T
5. Air recirculation
Press on button 5 to close off the
entry of air from outside and to ac-
tivate recycling of the air in the cab-
in. the warning lamp comes on.
Whilst retaining the other adjust-
ments, this position enables the
driver at any time to exclude any dis-
agreeable odours or fumes coming
from outside the vehicle. It should
be cancelled as soon as possible to
permit renewal of cabin air and to
prevent misting.
Press again on button 5 to allow
entry of air from the outside. The
warning lamp goes out.
The air recirculation can also be ac-
cessed by means of a press on the
control, located on the lower left of
the steering wheel (see "§ Fixed
centred controls steering wheel"). 6. Adjustment mode for the
rear passengers
This button decides whether
or not the rear passengers
may use their adjustment
controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the
rear passenger con-
trols
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their con-
venience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode:
black panel function
This function turns the dis-
plays and panel backlighting
on or off.
- Function activated, a press on any button will light up the screen
temporarily.
- press on button 7 deactivates
the function, lighting of buttons
and screen is again permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting of the rear screen
This can only operate when the en-
gine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
exterior rear view mirrors. The
warning lamp lights up and the
symbol appears on the display.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recir-
culation of air within the pas-
senger compartment and also
has an automatic function.
Page 57 of 338
52
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press on button 9 . The warning
lamp lights up.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at opti- mum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the rear view mirrors and heated rear
screen,
- air conditioning, if necessary.
Press again on button 9 or on AUTO
to stop the function. Demisting/defrost-
ing of the rear view mirrors and heated
rear screen remains activated.
10. Air conditioning
Press on button 10 to activate
the air conditioning.
The A/C warning lamp lights up.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger con-
trols the adjustment of their
own temperature.
The temperature for the
passenger is aligned with
that for the driver. 12. Rear passengers (right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the but-
ton to decrease
or increase the air
fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s
is enabled by the driver (see button 6
of the driver’s control panel).
Page 59 of 338
53
III
C O M F O R T
ADDITIONAL AIR CONDITIONING
Additional air conditioning allows you
to optimise comfort levels in warm
weather conditions. It produces ad-
ditional fresh air which is supplied
using the rear air vents. The supply
of warm air via the rear air vents is
not possible using this system.
C. REAR PASSENGER CONTROL PANELS (RIGHT/LEFT)
13. Adjustment of temperature
The rear passengers can adjust their
temperature controls independently
via buttons + and - .
Their preference cannot be great-
er than that of the driver by more
than 2. The reaching of this maxi-
m u m p r e f e r e n c e i s c o n fi r m e d b y t h e
fl a s h i n g o f i t s d i s p l a y .
14. Adjustment of air blower speed
The air blower operates only when
the engine is running.
T o a d j u s t t h e fl o w o f a i r , p r e s s o n
button:
t o i n c r e a s e t h e a i r fl o w ,
t o d e c r e a s e t h e a i r fl o w . T h e l e v e l o f a i r fl o w i s i n d i c a t e d o n
t h e d i s p l a y b y t h e p r o g r e s s i v e fi l l i n g
of the ventilator blades.
B y r e d u c i n g t h e fl o w t o m i n i m u m ,
you deactivate the air conditioning
system (OFF).
You can adjust the temperature and
t h e a i r fl o w o n l y i f t h e d r i v e r e n a b l e s
you to (see button
6 of the driver’s
control panel).
T h i s w a r n i n g l a m p s i g n i fi e s
that the passenger controls
are locked, you can adjust
neither the temperature nor
t h e a i r fl o w , w h i c h r e m a i n a l i g n e d o n
the preferences of the driver.
This warning lamp indi-
cates that the supply of air
is cut off .
This position is recommended in
cold weather conditions, as the air
vents do not supply warm air.
