Page 176 of 338
142
D R I V I N G
Manual operation
Position of the selector for manual
gear changing.
Move the selector to po-
sition M .
Pull the " + " paddle to change up
a gear.
Pull the " - " paddle to change
down a gear.
- If the vehicle stops or reduces speed (for example when ap-
proaching a stop sign), the gear-
box changes down automatically
t o fi r s t g e a r .
- In sequential mode, it is not nec- essary to release the accelerator
during gear changes.
- A request to change gear is ac- cepted only if the engine speed
permits it. - For safety reasons, depending
on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to move from position D (driving in auto-
matic mode) to position M (driving
in sequential mode) or vice versa.
T h e fl a s h i n g o f t h e w a r n -
ing lamp for the position
requested signals that this
position is not yet obtained.
I f t h e w a r n i n g l a m p i s o n fi x e d , t h e
p o s i t i o n i s c o n fi r m e d .
Display of a dash in the rev counter
indicates a malfunction. Consult a
CITROËN dealer.
Lighting of the service warning
lamp accompanied by a message
and an audible signal indicates an
operating fault. In this case:
- a marked snatching may be felt when selecting R for reverse
gear,
- the gearbox is locked in one gear,
- do not exceed a speed of 60 mph (approx. 100 km/h).
Consult a CITROËN dealer.
Page 178 of 338
144
IX
D R I V I N G

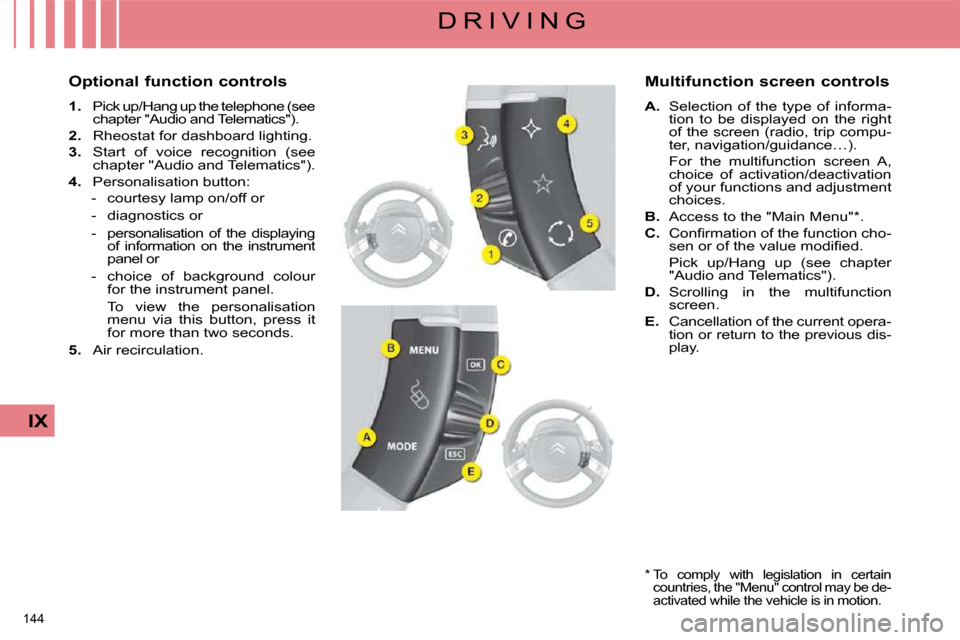

Optional function controls
1. Pick up/Hang up the telephone (see
chapter "Audio and Telematics").
2. Rheostat for dashboard lighting.
3. Start of voice recognition (see
chapter "Audio and Telematics").
4. Personalisation button:
- courtesy lamp on/off or
- diagnostics or
- personalisation of the displaying of information on the instrument
panel or
- choice of background colour for the instrument panel.
To view the personalisation menu via this button, press it
for more than two seconds.
5. Air recirculation. Multifunction screen controls
A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.
B. Access to the "Main Menu" * .
C. C o n fi r m a t i o n o f t h e f u n c t i o n c h o -
s e n o r o f t h e v a l u e m o d i fi e d .
Pick up/Hang up (see chapter "Audio and Telematics").
D. Scrolling in the multifunction
screen.
E. Cancellation of the current opera-
tion or return to the previous dis-
play.
* To comply with legislation in certain
countries, the "Menu" control may be de-
activated while the vehicle is in motion.
Page 179 of 338
145
D R I V I N G
SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched on
manually: a speed of at least 20 mph
(around 30 km/h) must be pro-
grammed.
The speed limiter controls are located
on the left-hand side of the steering
wheel. The programmed information is
grouped together in zone
A of the
instrument panel display.
Steering wheel controls
Displays on the instrument panel
Programming
Rotate the control 1 to the "LIM" po-
sition. With the engine running, you can
adjust the memorised maximum
speed, by means of short or long
presses on:
button 4 to increase the memo-
rised maximum speed,
button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
and a sustained press in steps of
3 mph.
Activation
When the desired maximum speed
is displayed, press button 3 so that
the limitation is activated.
On selection of the
function, the previous
memorised speed and
the information "OFF"
are displayed on the
instrument panel. The information
"OFF"
then disappears from the
instrument panel display.
While the function is active, pressing
the accelerator pedal will not enable
the programmed speed to be ex-
ceeded, except if you press the pedal
hard down to beyond the end-of-travel
switch.
The speed of your vehicle may vary
slightly in relation to that memorised.
The speed limiter cannot, in any circum-
stances, take the place of the observ-
ance of speed limits or of the vigilance
and responsibility of the driver.
Page 180 of 338
146
IX
D R I V I N G
Deactivation
Press on button 3 .
This action causes the
information "OFF" to
appear on the instru-
ment panel display.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A of the
instrument panel.
Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl a s h e s .
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again. Return to normal driving
By moving the control 1 from po-
sition "LIM" to position 0 .
By the engine stopping.
The speed previously chosen is still
memorised. Operating fault
If there is a speed limiter malfunc-
tion, a message will display accom-
panied by an audible signal and
lighting of the service warning lamp.
Have it checked by a CITROËN
dealer.
If during the operation of the speed
limiter, the system is unable to
keep within the maximum speed
(for example on a steep descent or
under heavy acceleration) then the
s p e e d fl a s h e s . A d a p t y o u r s p e e d a s
necessary.
The function will re-engage when
your speed returns below the de-
sired maximum speed.
On a steep downhill gradi-
ent or on sharp accelera-
tion, the speed limiter will
not be able to prevent the vehicle
from exceeding the programmed
speed.
U s e o f fl o o r m a t s t h a t a r e n o t a p -
proved by CITROËN may hinder
access to the accelerator pedal
and thus interfere with the function-
ing of the speed limiter.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
Page 181 of 338
147
IX
D R I V I N G
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (approx. 40 km/h)
and you must engage:
- fourth gear on a manual gearbox,
- second gear, in sequential mode, on an electronic gearbox or au-
tomatic gearbox,
- position A on an electronic gear-
box or D on an automatic gearbox.
Steering wheel controls
The cruise control switches are lo-
cated on the left-hand side of the
steering wheel. The programmed information is
grouped together in zone
A of the
instrument panel display.
Displays on the instrument panel
Activation You can then release the accelerator
pedal. The vehicle will automatically
keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
on the instrument panel display by
pressing on:
button 4 to increase the speed,
button 2 to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph and a
sustained press in steps of 3 mph.
Deactivation
Either by pressing on the brake
pedal or on the clutch pedal.
Or by pressing button 3 .
Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral.
On selection of the
function via control
1,
no cruise speed has
yet been memorised.
Programming
Rotate the control
1 to the "REG"
position.
Once the desired speed has been
reached using the accelerator, press
button 2 or button 4 . The cruise
speed is then memorised. It is dis-
played in zone A of the instrument
panel. These actions cause
the information
"OFF"
to appear on the instru-
ment panel display.
These actions do
not cancel the cruise
speed which remains
displayed in the instru-
ment panel.
The cruise control cannot, in any circum-
stances, take the place of the observ-
ance of speed limits or of the vigilance
and responsibility of the driver.
Page 182 of 338
148
IX
D R I V I N G
Reactivation
By recall of the memorised
speed
After a disengagement, press on button 3 . Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
in zone A .
If the memorised cruise speed is higher than the current speed,
the vehicle will accelerate to
reach the former.
By selection of the current
speed
Press on button 2 or 4 once the
desired speed has been reached.
The information "OFF" will then
disappear from the instrument
panel display.
Overriding the programmed
speed
During the operation of cruise con-
trol, it is always possible to use the
accelerator to go faster than the
cruise speed (for example to over-
take another vehicle). The speed
displayed in zone A fl a s h e s .
You have only to release the accel-
erator pedal to return to the cruise
speed. If during the operation of cruise
control, the system is unable to
keep within the memorised speed
(for example on a steep descent),
t h e n t h e s p e e d fl a s h e s . A d a p t y o u r
speed as necessary.
Return to normal driving Operating fault
If there is a malfunction, a message
will display accompanied by an au-
dible signal and lighting of the serv-
ice warning lamp.
Have it checked by a CITROËN
dealer.
Cruise control should only
be used when the driving
conditions allow you to drive
at a constant speed.
D o n o t u s e i t i n h e a v y t r a f fi c , o r o n
dangerous or slippery roads.
The driver must remain attentive
and in full control of his vehicle.
You are recommended to keep your
feet within range of the pedals.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
By an action on the control 1 from
position "REG" to position 0 .
By the engine stopping.
The cruise speed previously chosen is no longer memorised.
Page 183 of 338
149
IX
D R I V I N G

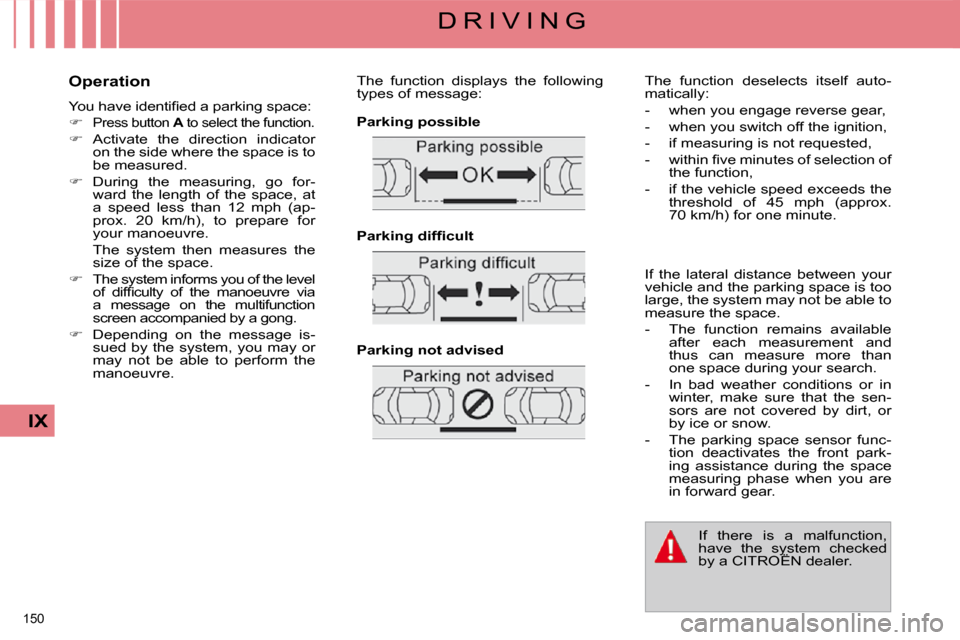

PARKING SPACE SENSOR
System which measures the parking
space available between two vehi-
cles or obstacles. It measures the
size of the space and gives you in-
formation on:
- t h e p o s s i b i l i t y o f fi t t i n g i n t o a f r e e space, depending on the dimensions
of your vehicle and the distances
necessary for your manoeuvring,
- t h e l e v e l o f d i f fi c u l t y o f t h e m a -noeuvre to be performed.
The system does not measure spac-
es which are clearly much smaller or
larger than the size of the vehicle. Displays on the instrument
panel
The parking space sensor
function warning lamp can
have three different states:
- off: the function is not selected,
- o n fi x e d : the function is selected
but the conditions for measuring
are not yet met (direction indi-
cator not operating, speed too
high) or the measuring phase is
terminated.
- fl a s h i n g : the measuring is in
progress or the message is be-
ing displayed. You can select the "parking space
sensor" function by pressing button
A.
T h e fi x e d l i g h t i n g o f t h e w a r n i n g l a m p
indicates that the function is selected.
Page 184 of 338
150
IX
D R I V I N G
Operation
Y o u h a v e i d e n t i fi e d a p a r k i n g s p a c e :
Press button A to select the function.
Activate the direction indicator
on the side where the space is to
be measured.
During the measuring, go for-
ward the length of the space, at
a speed less than 12 mph (ap-
prox. 20 km/h), to prepare for
your manoeuvre.
The system then measures the size of the space.
The system informs you of the level
o f d i f fi c u l t y o f t h e m a n o e u v r e v i a
a message on the multifunction
screen accompanied by a gong.
Depending on the message is-
sued by the system, you may or
may not be able to perform the
manoeuvre.
Parking possible
P a r k i n g d i f fi c u l t
Parking not advised
The function displays the following
types of message: The function deselects itself auto-
matically:
- when you engage reverse gear,
- when you switch off the ignition,
- if measuring is not requested,
- w i t h i n fi v e m i n u t e s o f s e l e c t i o n o f
the function,
- if the vehicle speed exceeds the threshold of 45 mph (approx.
70 km/h) for one minute.
If there is a malfunction,
have the system checked
by a CITROËN dealer.
If the lateral distance between your
vehicle and the parking space is too
large, the system may not be able to
measure the space.
- The function remains available
after each measurement and
thus can measure more than
one space during your search.
- In bad weather conditions or in winter, make sure that the sen-
sors are not covered by dirt, or
by ice or snow.
- The parking space sensor func- tion deactivates the front park-
ing assistance during the space
measuring phase when you are
in forward gear.
Page 187 of 338
153
IX
D R I V I N G The parking assistance system
cannot, in any circumstances, re-
place the need for vigilance and
responsibility on the part of the
driver.
AUDIBLE AND VISUAL FRONT AND REAR PARKING ASSISTANCE
System consisting of four proximity
sensors, installed in the front and/or
rear bumper.
It detects any obstacle (person, ve-
hicle, tree, barrier...) located in front
of and behind the vehicle, except for
obstacles located immediately be-
low the bumper.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the start of
the manoeuvre but may no longer
be detected when the vehicle moves
nearer to it. The parking assistance is
switched
on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible
signal and/or displaying of the vehi-
cle on the multifunction screen.
The proximity information is indicated
by:
- an audible signal which be- comes more rapid as the vehicle
approaches the obstacle,
- a diagram on the multifunction screen, with blocks which move
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; front or rear and right
or left.
When the distance between the ve-
hicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous
and/or the "Danger" symbol appears,
depending on the multifunction
screen version. The parking assistance is
switched
off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been station- ary for more than three seconds in
forward gear.
Page 244 of 338
208
2
8
1 6
1 8 1 7 711 1 4 3
5 9 4
1 5 1 2
1 3
61
10
01

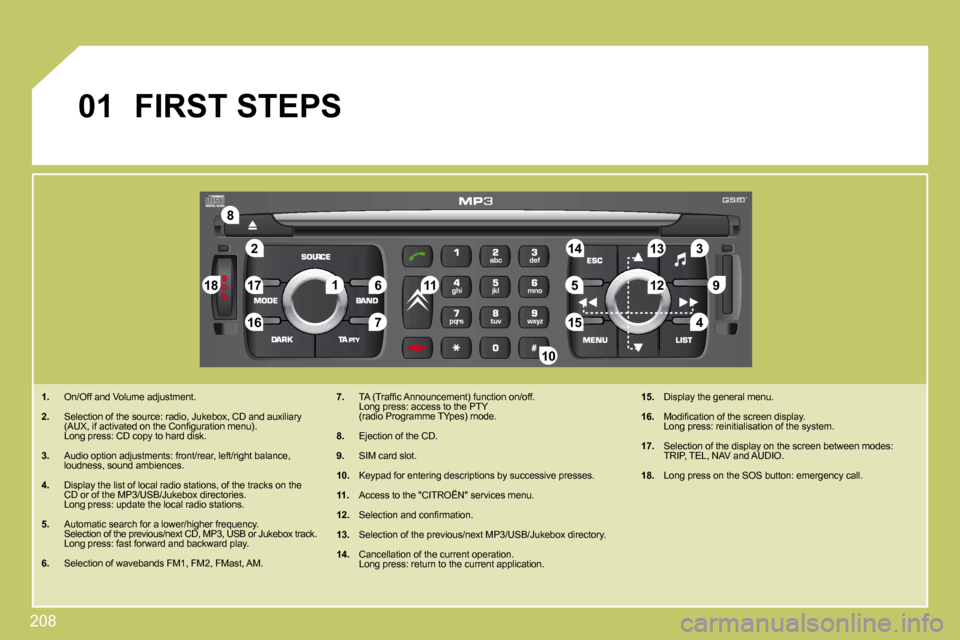

FIRST STEPS
1 . On/Off and Volume adjustment.
2 . Selection of the source: radio, Jukebox, CD and aux
iliary ( A U X , i f a c t i v a t e d o n t h e C o n fi g u r a t i o n m e n u ) . L o n g p r e s s : C D c o p y t o h a r d d i s k .
3 . A u d i o o p t i o n a d j u s t m e n t s : f r o n t / r e a r , l e f t / r i g h t b a l a n c e , loudness, sound ambiences.
4 . Display the list of local radio stations, of the tracks on the CD or of the MP3/USB/Jukebox directories. L o n g p r e s s : u p d a t e t h e l o c a l r a d i o s t a t i o n s .
5 . A u t o m a t i c s e a r c h f o r a l o w e r / h i g h e r f r e q u e n c y . Selection of the previous/next CD, MP3, USB or Juke box track. L o n g p r e s s : f a s t f o r w a r d a n d b a c k w a r d p l a y .
6 . Selection of wavebands FM1, FM2, FMast, AM.
7 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . L o n g p r e s s : a c c e s s t o t h e P T Y ( r a d i o P r o g r a m m e T Y p e s ) m o d e .
8 . Ejection of the CD.
9 . SIM card slot.
1 0 . K e y p a d f o r e n t e r i n g d e s c r i p t i o n s b y s u c c e s s i v e p r e s s e s .
1 1 . Access to the "CITROËN" services menu.
1 2 . S e l e c t i o n a n d c o n fi r m a t i o n .
1 3 . Selection of the previous/next MP3/USB/Jukebox dir ectory.
1 4 . Cancellation of the current operation. L o n g p r e s s : r e t u r n t o t h e c u r r e n t a p p l i c a t i o n .
1 5 . D i s p l a y t h e g e n e r a l m e n u .
1 6 . M o d i fi c a t i o n o f t h e s c r e e n d i s p l a y . L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m .
1 7 . Selection of the display on the screen between modes: TRIP, TEL, NAV and AUDIO.
1 8 . L o n g p r e s s o n t h e S O S b u t t o n : e m e r g e n c y c a l l .
