Citroen C4 PICASSO DAG 2009.5 1.G Manual PDF
Manufacturer: CITROEN, Model Year: 2009.5, Model line: C4 PICASSO DAG, Model: Citroen C4 PICASSO DAG 2009.5 1.GPages: 338, PDF Size: 12.94 MB
Page 71 of 338
65
C O M F O R T

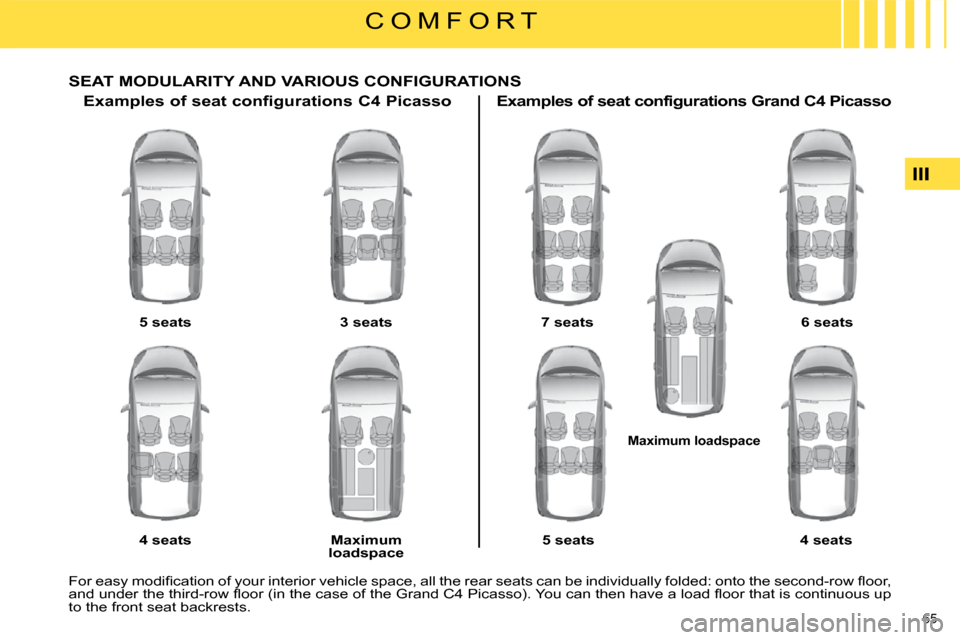

SEAT MODULARITY AND VARIOUS CONFIGURATIONS
Examples of seat configurations C4 Picasso
5 seats
4 seats
3 seats
Maximum
loadspace Examples of seat configurations Grand C4 Picasso
7 seats 6 seats
5 seats 4 seats
Maximum loadspace
F o r e a s y m o d i fi c a t i o n o f y o u r i n t e r i o r v e h i c l e s p a c e , a l l t h e r e a r s e a t s c a n b e i n d i v i d u a l l y f o l d e d : o n t o t h e s e c o n d - r o w fl o o r ,
a n d u n d e r t h e t h i r d - r o w fl o o r ( i n t h e c a s e o f t h e G r a n d C 4 P i c a s s o ) . Y o u c a n t h e n h a v e a l o a d fl o o r t h a t i s c o n t i n u o u s u p
to the front seat backrests.
Page 72 of 338
66
III
C O M F O R T
MIRRORS
Exterior mirrors
Each mirror is adjustable to provide
the rear view needed for overtaking
or parking. They can also be folded
f o r p a r k i n g i n c o n fi n e d s p a c e s .
Adjustment
With the ignition on:
move control A to the right or to
the left to select the correspond-
ing mirror,
move control B in one of four
directions to adjust,
return control A to the central
position. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from behind.
Folding
From outside: lock the vehicle
using the remote control or the
key.
From inside: with the ignition on,
pull control A rearwards.
If the mirrors are folded using con-
trol A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Unfolding
From outside: unlock the vehicle
using the remote control or the
key.
From inside: with the ignition on,
pull control A rearwards.
The folding and unfolding of the exte-
rior mirrors using the remote control
can be deactivated by a CITROËN
dealer. Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immedi-
ately.
Switching off
Exit reverse gear and wait ten
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Switching on
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The demisting/defrosting of the ex-
terior mirrors is linked to that of the
rear screen.
Page 73 of 338
67
III
C O M F O R T

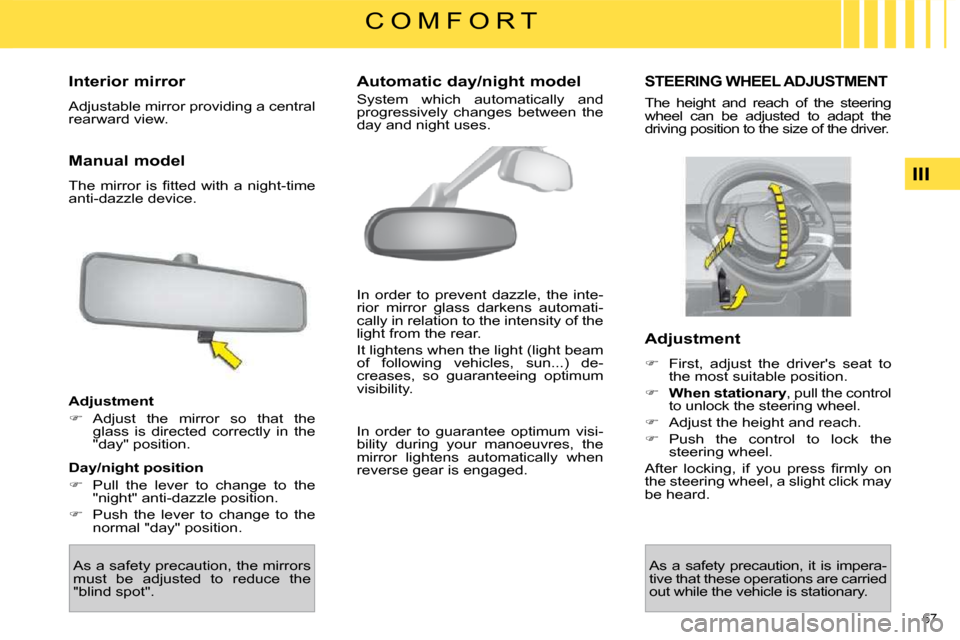

Interior mirror
Adjustable mirror providing a central
rearward view.
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e
anti-dazzle device.
Adjustment
Adjust the mirror so that the
glass is directed correctly in the
"day" position.
Day/night position
Pull the lever to change to the
"night" anti-dazzle position.
Push the lever to change to the
normal "day" position.
In order to prevent dazzle, the inte-
rior mirror glass darkens automati-
cally in relation to the intensity of the
light from the rear.
It lightens when the light (light beam
of following vehicles, sun...) de-
creases, so guaranteeing optimum
visibility.
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
STEERING WHEEL ADJUSTMENT
The height and reach of the steering
wheel can be adjusted to adapt the
driving position to the size of the driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
When stationary , pull the control
to unlock the steering wheel.
Adjust the height and reach.
Push the control to lock the
steering wheel.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". Automatic day/night model
System which automatically and
progressively changes between the
day and night uses.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
Page 74 of 338
68
A C C E S S
REMOTE CONTROL KEY
System which permits central
unlocking or locking of the vehicle
using the lock or remotely. It is also
used to locate the vehicle, activate
the guide-me-home lighting and
start the engine, as well as providing
protection against theft.
Unlocking the vehicle
Complete unlocking using the
remote control
Unfolding the key
First press button A to unfold the
key.
Press the open padlock
to unlock the vehicle. Complete unlocking using the key
Turn the key to the left in the
driver's door lock to unlock the
vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds.
According to version, the exterior
mirrors unfold at the same time.
This also triggers the timed switching
on of the welcome lighting, courtesy
lamps and exterior side spotlamps
for approximately thirty seconds.
Selective unlocking using the
remote control
Press the open pad-
lock once to unlock the
driver's door only.
Press the open pad-
lock again to unlock
the other doors and
the boot. According to version, the exterior
mirrors unfold at the same time as
t h e fi r s t u n l o c k i n g a c t i o n .
It also triggers the timed switching on
of the welcome lighting, the courtesy
lights and the exterior side spotlamps
for approximately thirty seconds.
The complete or selec-
tive unlocking parameter
is set via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
Complete unlocking is activated by
default.
E a c h u n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
approximately two seconds. Selective unlocking is not available
using the key.
Page 75 of 338
69
IV
A C C E S S
Normal locking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
proximately two seconds.
According to version, the exterior
mirrors fold at the same time.
It also triggers the timed switching
on of the exterior side spotlamps
and the guide-me-home lighting, if
this is activated. If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
To permit the transportation of
bulky objects, the vehicle can be
locked from the inside, using the
centralised control on the dash-
board, even if the tailgate or rear
screen is open.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
When closing the windows and/or
glass panoramic roof shutter us-
ing the remote control, you must
ensure that no one prevents them
from closing correctly.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Deadlocking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
the glass panoramic
roof blind automatically
in addition to locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Locking the vehicle
Normal locking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely.
Press the closed padlock for
more than two seconds to close
the windows and the glass pano-
ramic roof blind automatically in
addition to locking.
Page 76 of 338
70
IV
A C C E S S

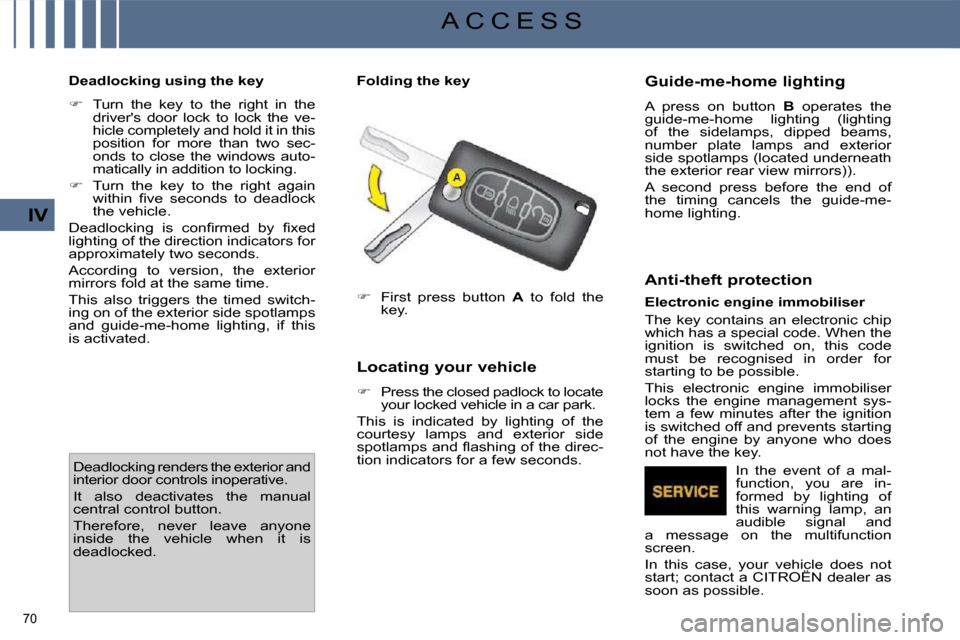

Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely and hold it in this
position for more than two sec-
onds to close the windows auto-
matically in addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
This also triggers the timed switch-
ing on of the exterior side spotlamps
and guide-me-home lighting, if this
is activated.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the
courtesy lamps and exterior side
s p o t l a m p s a n d fl a s h i n g o f t h e d i r e c -
tion indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting
of the sidelamps, dipped beams,
number plate lamps and exterior
side spotlamps (located underneath
the exterior rear view mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and
a message on the multifunction
screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
Page 77 of 338
71
IV
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then operate
the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be re-
moved in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move the
steering wheel gently if neces-
sary).
3. "D": Starter position.
Key left in position "M" buzzer
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .
Do not run the engine in an en-
closed space or where there is
i n s u f fi c i e n t v e n t i l a t i o n
.
It is essential always to keep the
engine running in order to retain
braking and steering
power
as-
sistance .
Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds
at idle, this being the time required
for the turbocharger to return to a
normal speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.
Page 78 of 338
72
IV
A C C E S S
Remote control problem
Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote con-
trol.
If the problem persists, contact a
CITROËN dealer as soon as pos-
sible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2
(Ignition on) .
Press the closed padlock imme-
diately for a few seconds.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.
If the remote control bat-
t e r y i s fl a t , y o u a r e i n -
formed by lighting of this
warning lamp, an audible
signal and a message on
the multifunction screen.
Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o -
cation.
Slide the new battery into its lo-
cation observing the original di-
rection.
Clip the casing together.
Reinitialise the remote control.
Changing the battery
Page 79 of 338
73
IV
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 80 of 338
70
IV
A C C E S S
Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely and hold it in this
position for more than two sec-
onds to close the windows auto-
matically in addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
This also triggers the timed switch-
ing on of the exterior side spotlamps
and guide-me-home lighting, if this
is activated.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the
courtesy lamps and exterior side
s p o t l a m p s a n d fl a s h i n g o f t h e d i r e c -
tion indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting
of the sidelamps, dipped beams,
number plate lamps and exterior
side spotlamps (located underneath
the exterior rear view mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and
a message on the multifunction
screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
