62
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press button 9 . The warning
lamp comes on.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the door mirrors and rear screen,
- air conditioning, if necessary.
Press button 9 again or " AUTO"
to stop the function. Demisting/
defrosting of the door mirrors and
rear screen remains activated.
10. Air conditioning
Press button 10 to activate the
air conditioning.
The A/C warning lamp comes on.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger controls
the adjustment of their own
temperature.
The temperature setting for
the passenger is aligned
with that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the button
to decrease or in-
c r e a s e t h e a i r fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s is enabled by the driver (see but-
ton 6 of the driver’s control panel).
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 62 of 355
III
62
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press button 9 . The warning
lamp comes on.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the door mirrors and rear screen,
- air conditioning, if necessary.
Press button 9 again or " AUTO"
to stop the function. Demisting/
defrosting of the door mirrors and
rear screen remains activated.
10. Air conditioning
Press button 10 to activate the
air conditioning.
The A/C warning lamp comes on.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger controls
the adjustment of their own
temperature.
The temperature setting for
the passenger is aligned
with that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the button
to decrease or in-
c r e a s e t h e a i r fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s is enabled by the driver (see but-
ton 6 of the driver’s control panel).
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 81 of 355
IV
80
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Ignition on
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then oper-
ate the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be
removed in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move
the steering wheel gently if
necessary).
3. "D": Starter position.
Key left in position "M"
audible warning
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .
Do not run the engine in an en-
closed space or where there is
i n s u f fi c i e n t v e n t i l a t i o n
.
You must always to keep the
engine running when moving in
order to retain braking and steer-
ing power assistance .
Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.
Page 83 of 355
IV
82
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 85 of 355
IV
82
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 86 of 355
IV
80
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Ignition on
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then oper-
ate the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be
removed in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move
the steering wheel gently if
necessary).
3. "D": Starter position.
Key left in position "M"
audible warning
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .
Do not run the engine in an en-
closed space or where there is
i n s u f fi c i e n t v e n t i l a t i o n
.
You must always to keep the
engine running when moving in
order to retain braking and steer-
ing power assistance .
Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.
Page 97 of 355
IV
91
A C C E S S
FUEL TANK
Capacity of the tank: approxi-
mately 60 litres.
Low fuel level When the low fuel level is
reached, this warning lamp
on the instrument panel
comes on, accompanied by
an audible warning and a message
on the multifunction screen.
W h e n i t fi r s t c o m e s o n , about 7 litres
of fuel remain in the tank.
U n t i l s u f fi c i e n t f u e l h a s b e e n
added, this warning lamp appears
every time the ignition is switched
on, accompanied by an audible
warning and a message. Depending
on version, this audible warning
and message are repeated with
increasing frequency as the fuel
level drops towards " 0 ".
Refuel as soon as possible to avoid
running out. A l a b e l o n t h e i n s i d e o f t h e f u e l fi l l e r
fl a p r e m i n d s y o u o f t h e t y p e o f f u e l
to use, depending on your engine
type.
Additions of fuel must be of at least
5 litres to be registered by the fuel
gauge.
Refuelling
I f y o u a r e fi l l i n g y o u r t a n k t o
the top, do not persist after the
3rd cut-off; this could cause
malfunctions.
With Stop & Start, never refuel with
the system in STOP mode; you
must switch off the ignition with the
key. O p e n i n g t h e fi l l e r c a p m a y r e s u l t i n
an inrush of air. This is entirely nor-
mal and results from the sealing of
the fuel system.
Press control switch A , situated
on the switch panel on the left of
t h e d a s h b o a r d , u n t i l t h e f u e l fl a p
opens.
This control switch remains ac- tive for a few minutes after
switching of the ignition. If nec-
essary, switch the ignition on
again to reactivate it.
Take care to select the pump
that delivers the correct type of
fuel for your vehicle.
Introduce the nozzle so as to push
i n t h e m e t a l n o n - r e t u r n fl a p B.
Make sure that the nozzle is
pushed in as far as possible
before starting to refuel (risk of
blowback).
Maintain this position throughout
the refuelling operation.
P u s h t h e f u e l fl a p t o c l o s e i t .
Page 168 of 355
IX
142
D R I V I N G
SITUATION
CONSEQUENCES
4 Display of message "
Parking brake faulty "
and the following warning lamps:
and/or fl a s h i n g - The automatic functions are deactivated.
- Hill start assist is not available.
To apply the electric parking brake:
Immobilise the vehicle and switch off the ignition
Pull the control lever for at least 5 seconds or until maximum
application.
Switch on the ignition and check that the electric parking brake
warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P fl a s h e s o r i f t h e w a r n i n g l a m p s d o n o t c o m e
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer.
To release the electric parking brake:
Switch on the ignition.
Pull the control lever and hold it for approximately 3 second s.
5 Display of message "
Parking brake control
faulty – auto parking brake activated " and
the following warning lamps:
and/or fl a s h i n g - Only the functions for automatic application on switchi
ng off the
engine and automatic release on acceleration are available.
- Manual application/release of the electric parking brake a nd
dynamic emergency braking are unavailable.
6 Battery fault - Lighting of the battery warning lamp ma
kes it essential to stop
t h e v e h i c l e a s s o o n a s t r a f fi c a l l o w s . S t o p a n d i m m o b i l i s e y o u r
vehicle.
- Apply the electric parking brake before switchi ng off the engine.
Page 176 of 355
IX
150
D R I V I N G
STOP & START
The Stop & Start system puts the en-
gine temporarily on standby - STOP
m o d e - d u r i n g s t o p s i n t h e t r a f fi c
( r e d l i g h t s , t r a f fi c j a m s , o r o t h e r . . . ) .
The engine restarts automatically -
START mode - as soon as you want
to move off. The restart takes place
instantly, quickly and silently.
Perfect for urban use, the Stop &
Start system reduces fuel consump-
tion and exhaust emissions as well
as the noise level when stationary.
Operation
Going into engine STOP mode The "ECO" warning lamp
comes on in the instrument
panel and the engine goes
into standby:
- with the 6-speed electronic
gearbox system , at speeds be-
l o w 4 m p h ( 6 k m / h ) , p r e s s t h e
brake pedal or put the selector
lever in position N . I f y o u r v e h i c l e i s fi t t e d w i t h t h e s y s -
tem, a time counter calculates the
sum of the periods in STOP mode
d u r i n g a j o u r n e y . I t r e s t s i t s e l f t o z e r o
every time the ignition is switched on
with the key.
Special cases: STOP mode
unavailable
Never refuel with the en-
gine in STOP mode; you
must switch off the ignition
with the key.
For your comfort, during parking
maoeuvres, STOP mode is not avail-
able for a few seconds after coming
out of reverse gear.
STOP mode does not affect the func-
tionality of the vehicle, such as for
example, braking, power steering...
STOP mode is not invoked
when:
- the driver's door is open,
- the driver's seat belt is not fas- tened,
- the vehicle has not exceeded 6 m p h ( 1 0 k m / h ) s i n c e t h e l a s t
engine start using the key,
- the electric parking brake is ap- plied or being applied,
- the engine is needed to maintain a comfortable temperature in the
passenger compartment,
- demisting is active,
- some special conditions (battery charge, engine temperature,
braking assistance, ambient
t e m p e r a t u r e . . . ) w h e r e t h e e n g i n e
is needed to assure control of a
system.
In this case, the "ECO" warning
l a m p fl a s h e s f o r a f e w s e c o n d s t h e n
goes off.
This operation is perfectly normal.
Page 178 of 355
IX
152
D R I V I N G

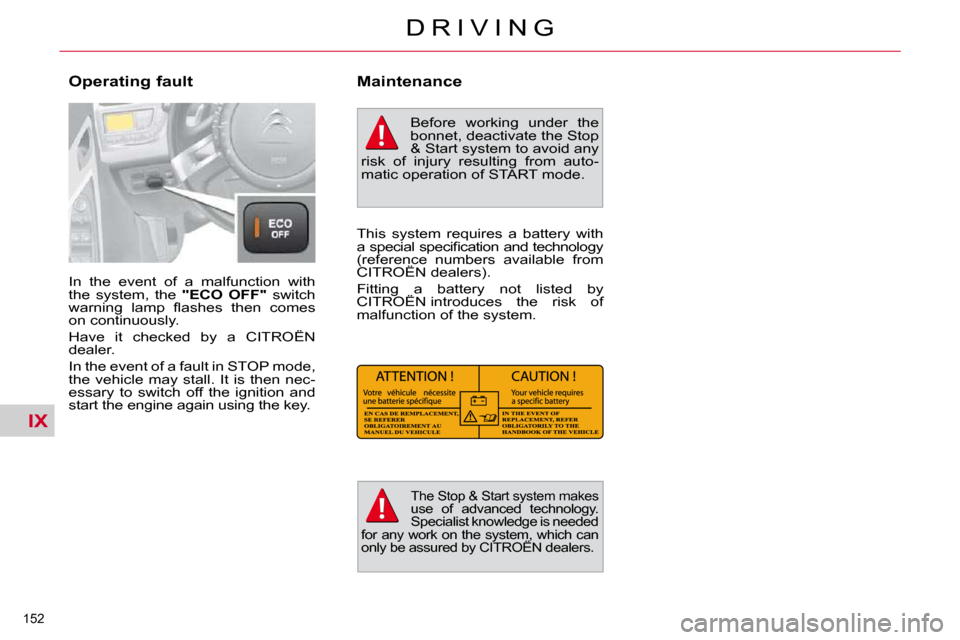

In the event of a malfunction with
the system, the "ECO OFF" switch
w a r n i n g l a m p fl a s h e s t h e n c o m e s
on continuously.
Have it checked by a CITROËN
dealer.
In the event of a fault in STOP mode,
the vehicle may stall. It is then nec-
essary to switch off the ignition and
start the engine again using the key. Maintenance
Operating fault
Before working under the
bonnet, deactivate the Stop
& Start system to avoid any
r i s k o f i n j u r y r e s u l t i n g f r o m a u t o -
matic operation of START mode.
This system requires a battery with
a s p e c i a l s p e c i fi c a t i o n a n d t e c h n o l o g y
(reference numbers available from
C I T R O Ë N d e a l e r s ) .
Fitting a battery not listed by
CITROËN introduces the risk of
malfunction of the system.
The Stop & Start system makes use of advanced technology.
Specialist knowledge is needed
for any work on the system, which can
only be assured by CITROËN dealers.
