Page 1 of 355
4
F A M I L I A R I S A T I O N
Xenon directional headlamps
This system allows the light beams
to follow the direction of the road
ahead.
98
Front/rear parking sensors
Sensors, located in the bumpers,
detect obstacles.
166
Parking space sensor
This system measures the size of
a parking space available between
two vehicles or obstacles.
163
E X T E R I O R
Stop & Start
This system puts the engine tempo-
rarily into standby during stops in the
t r a f fi c ( r e d l i g h t s , t r a f fi c j a m s , e t c . . . ) .
The engine restarts automatically as
soon as you want to move off.
Stop & Start reduces fuel consump-
tion, exhaust emissions and noise
when stationary.
150
Page 8 of 355
11
F A M I L I A R I S A T I O N
8. Controls:
- Trip mileage recorder reset button
- Lighting rheostat
9. W a r n i n g l a m p s d i s p l a y ( w i t h t h e
MyWay or NaviDrive multifunction
s c r e e n )
10. Electric parking brake
11. Instrument panel
12. Hazard warning lamps
13. Switch panels:
- Emergency or assistance
- Lane departure warning system
14. ESP deactivation button
15. Steering lock - Ignition switch
16. Multifunction screen steering
mounted controls
17. Horn
1. Controls:
- Lighting
- Direction indicators
- Front and rear foglamps
2. Paddles for automatic gearbox or
6-speed electronic gearbox system
3. Cruise control and speed limiter
steering mounted controls
4. Direction indicator warning lamps
5. Audio and telematics system
steering mounted controls
6. Selector for automatic gearbox or
6-speed electronic gearbox system
7. Controls:
- Windscreen wipe
- Screenwash
- Rear screen wipe
- Trip computer
I N S T R U M E N T S A N D C O N T R O L S
18. Optional function controls
( o n s t e e r i n g w h e e l )
19. Fusebox access cover
20. Controls:
- F u e l fi l l e r fl a p
- Front and rear parking sensors
- Stop & Start
- Volumetric alarm deactivation
- H e a d l a m p a d j u s t m e n t
21. Bonnet release
22. Mirror controls
Page 15 of 355
18
F A M I L I A R I S A T I O N
Seat belts not fastened/
unfastened warning lamp This warning lamp informs you if
the driver’s or front passenger’s
s e a t b e l t i s n o t f a s t e n e d ( d e -
p e n d i n g o n m o d e l ) , a n d i f t h e
f r o n t p a s s e n g e r ’ s ( d e p e n d i n g
o n m o d e l ) o r t h e s e c o n d - r o w
passengers’ seat belts are unfastened.
The illuminated positions represent
those whose seat belts are not fas-
tened/unfastened.
Once the function has been activated,
when starting the engine, the system
automatically locks the doors once you
r e a c h a p p r o x i m a t e l y 6 m p h ( 1 0 k m / h ) .
This function can be deactivated
by pressing button A for more than
two seconds.
Tyre under-inflation detection
This function warns you if a tyre is de-
fl a t e d o r p u n c t u r e d .
This system does not absolve the driver
of the need to regularly check the tyre
pressures.
The service warning lamp comes
on, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
U n d e r - i n fl a t i o n w a r n i n g
The STOP warning lamp comes
on, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Puncture
40
124
88
M O N I T O R I N G
Automatic central locking
Instrument panel
with multifunction screen A or C
with the MyWay or NaviDrive
multifunction screen
1. Instrument panel.
2. Multifunction screen.
3. Control buttons.
4. Warning lamps display zone.
30
31 Manual central locking
You can use electrical central locking or
unlocking by pressing on button
A .
If one of the doors is open or is not
closed properly, central locking will not
work.
Page 21 of 355
24
F A M I L I A R I S A T I O N
Ring B Ring D: rear screen wipe Stop.
Intermittent.
Timed wash and wipe. Fixed centred controls steering
wheel
Lighting stalk
Ring A
94 Stalk C: windscreen wipe
99
D R I V I N G
1. Off
2. Automatic illumination of headlamps
3. Sidelamps
4. Dipped/main beam headlamps
Front foglamps
Rear foglamp Wiper stalk
1. Optional function controls
2. Cruise control/speed limiter and
parking space sensor
3. Audio system controls
4. Multifunction screen controls
157
5. Horn
123
6. Warning lamps for direction indica-
tors and vehicle lamps
32
93 Switching on "AUTO" mode
Press the stalk down and release.
Switching off "AUTO" mode
Press the stalk up and return it to
position "0" .
The automatic rain sensitive wipers
must be reactivated each time the ve-
hicle is started.
Under certain climatic conditions
( l o w t e m p e r a t u r e , h u m i d ) , t h e p r e s -
ence of condensation on the inner
surfaces of the headlamps and rear
lamps is not an indication of a fault;
this disappears a few minutes after
switching on the lamps.
Page 22 of 355
25
F A M I L I A R I S A T I O N
163
Electric parking brake
Before leaving the vehicle, check that
the electric parking brake warning
lamp P ( r e d ) i s o n fi x e d ( n o t fl a s h i n g ) .
If you leave the vehicle with the en-
gine running, apply the parking brake
manually.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake. Parking space sensor
You can activate this function by press-
ing button
A .
Once the space has been measured, the
system displays the following messages:
< 1 2 m p h ( 2 0 k m / h )
Parking possible
P a r k i n g d i f fi c u l t
Parking not advised
This device combines:
- automatic functions: Automatic ap-
plication when the engine stops and
automatic release on use of the ac-
c e l e r a t o r ( a u t o m a t i c o p e r a t i o n b y
d e f a u l t ) ;
- manual use: Manual application/ release of parking brake is possible
by operating control lever A .
When in automatic mode, it remains
possible to apply or release the parking
brake at any time:
To apply it, pull on the lever A .
To release it, pull then release lever A .
Hill start assist
To aid starting on a gradient, your vehicle
i s e q u i p p e d w i t h a s y s t e m w h i c h k e e p s
it immobilised for about 2 seconds, the
approximate time it takes to move your
foot from the brake pedal to the accel-
erator pedal.
143
D R I V I N G
136
Do not drive if the parking brake
warning lamp and the P indicator on
the lever A are on.
Page 24 of 355
27
F A M I L I A R I S A T I O N
D R I V I N G
Stop & Start
Engine going into STOP mode The "ECO" warning lamp comes
on in the instrument panel and
the engine goes into stand-by:
- with the 6-speed electronic gear-
box system ; at speeds below
4 m p h ( 6 k m / h ) , p r e s s t h e b r a k e
pedal or put the gear lever into neu-
t r a l ( p o s i t i o n N) .
In certain circumstances the STOP
mode may not be available; the "ECO"
w a r n i n g l a m p fl a s h e s f o r a f e w s e c o n d s
then goes off.
150 The
"ECO" warning lamp goes
off and the engine restarts:
- with the gear lever in position A or M ,
release the brake pedal,
- or with the gear lever in position N and
the brake pedal released, change to
position A or M ,
- or select reverse gear.
In certain condition, START mode may
be invoked automatically; the "ECO"
w a r n i n g l a m p fl a s h e s t h e n g o e s o f f .
151 Deactivation/Reactivation
You can deactivate the system at any
time by pressing the
"ECO OFF" button;
the button's warning lamp comes on.
The system is reactivated automati-
cally every time you start the engine
with the key. Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition
with the key.
151
Going into engine START mode
Page 30 of 355
I
34M O N I T O R I N G

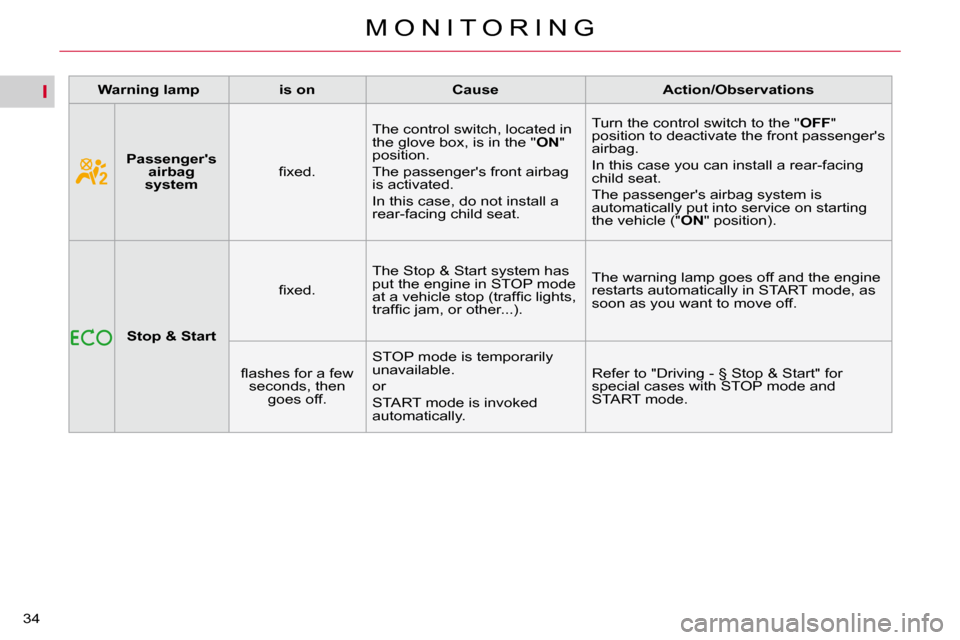

Warning lamp is on Cause Action/Observations
Stop & Start fi x e d .
The Stop & Start system has
put the engine in STOP mode
a t a v e h i c l e s t o p ( t r a f fi c l i g h t s ,
t r a f fi c j a m , o r o t h e r . . . ) . The warning lamp goes off and the engine
restarts automatically in START mode, as
soon as you want to move off.
fl a s h e s f o r a f e w seconds, then goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for
special cases with STOP mode and
START mode.
Passenger's
airbag
system fi x e d . The control switch, located in
the glove box, is in the "
ON "
position.
The passenger's front airbag
is activated.
In this case, do not install a
rear-facing child seat. Turn the control switch to the "
OFF "
position to deactivate the front passenger's
airbag.
In this case you can install a rear-facing
child seat.
The passenger's airbag system is
automatically put into service on starting
the vehicle (" ON " position).
Page 36 of 355
I
40M O N I T O R I N G
Warning lamp is on Cause Action/Observations
Maximum
coolant
temperature fi x e d r e d .
The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
CITROËN dealer.
Battery
charge fi x e d . The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the
engine is started.
If it does not switch off, contact a
CITROËN dealer.
Door(s) open fi x e d i f t h e s p e e d
is below 6 mph (10 km/h).
A door, the boot or the rear
screen is still open. Close the door or boot.
fi x e d a n d
accompanied by
an audible signal if the speed is above 6 mph (10 km/h).
+
Seat belts
not fastened/ unfastened fi x e d . The driver and/or the front/
rear passenger has not
fastened or has unfastened
their seat belt.
Pull the strap then insert the tongue in the buckl
e. The illuminated dots represent the passengers
that have not fastened/unfastened their seat belt.
They come on:
- fi x e d f o r 3 0 a b o u t s e c o n d s o n s t a r t i n g
the vehicle,
- fi x e d f r o m 0 t o 1 2 m p h ( 0 t o 2 0 k m / h ) when driving,
- fl a s h i n g a b o v e 1 2 m p h ( 2 0 k m / h ) , accompanied by an audible signal for
about 120 seconds.
Page 52 of 355
II
54
M U L T I F U N C T I O N S C R E E N S
A few definitions… Range
( m i l e s o r k m )
This value may vary following a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current fuel con-
sumption.
W h e n t h e r a n g e f a l l s b e l o w 2 0 m i l e s
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r
fi l l i n g w i t h a t l e a s t 5 l i t r e s o f f u e l ,
the range is recalculated and is dis-
p l a y e d w h e n i t e x c e e d s 6 0 m i l e s
( 1 0 0 k m ) .
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer.
This indicates the distance which
can still be travelled with the fuel re-
m a i n i n g i n t h e t a n k i n r e l a t i o n t o t h e
average fuel consumption over the
l a s t f e w m i l e s ( k i l o m e t r e s ) t r a v e l l e d .
Current fuel consumption
( m p g o r l / 1 0 0 k m o r k m / l )
A v e r a g e f u e l
consumption
( m p g o r l / 1 0 0 k m o r k m / l )
This is the average fuel consump-
tion since the last trip computer zero
reset.
A v e r a g e s p e e d
( m p h o r k m / h )
This is the average speed calculat-
ed since the last trip computer zero
r e s e t ( i g n i t i o n o n ) . D i s t a n c e t r a v e l l e d
( m i l e s o r k m )
This indicates the distance travelled
since the last trip computer zero
reset.
Distance remaining to
destination
( m i l e s o r k m )
This is the distance remaining to be
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the
navigation system, if guidance is ac-
tivated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
This function is only displayed from
2 0 m p h ( 3 0 k m / h ) .
This is the average fuel consump-
tion during the last few seconds.
I f y o u r v e h i c l e i s fi t t e d w i t h S t o p &
Start, a time counter calculates the
time spent in STOP mode during a
journey.
It resets to zero every time the igni-
t i o n i s s w i t c h e d o n w i t h t h e k e y . Stop & Start time counter
( m i n u t e s / s e c o n d s o r h o u r s /
minutes)
Page 56 of 355
III
58
C O M F O R T
6. Demisting/defrosting the rear screen
This function operates only if the
engine is running.
Press button 6 to activate/de-
activate the electric demisting/
defrosting of the rear screen and
door mirrors. The warning lamp
comes on.
7. Rapid demisting/defrosting of front and rear windows
and door mirrors
Press button 7 . The warning
lamp comes on.
This function simultaneously acti-
vates:
- front demisting/defrosting,
- o p t i m u m fl o w o f a i r ,
- recirculation prohibition,
- demisting/defrosting of door mir- rors and heated rear screen,
- air conditioning, if necessary.
To stop the function, press button 7
again. 8. Adjustment of the fan air
temperature
This control is for adjusting the tem-
perature of the air in the passenger
compartment. It can be used in cold
weather as well as in hot weather, pro-
vided the air conditioning is active.
The adjustment of the temperature is
continuous and progressive starting
from left to right.
Adjustment of temperature
Press button 9 to take control of
the temperature. The warning
lamp comes on.
Rotate button 10 to adjust your
temperature.
The adjustment of the temperature is
continuous and progressive starting
from left to right.
The demisting/defrosting switch-
es off automatically to prevent
excessive consumption of power.
B. PASSENGER'S CONTROL PANEL
