Page 8 of 355
11
F A M I L I A R I S A T I O N
8. Controls:
- Trip mileage recorder reset button
- Lighting rheostat
9. W a r n i n g l a m p s d i s p l a y ( w i t h t h e
MyWay or NaviDrive multifunction
s c r e e n )
10. Electric parking brake
11. Instrument panel
12. Hazard warning lamps
13. Switch panels:
- Emergency or assistance
- Lane departure warning system
14. ESP deactivation button
15. Steering lock - Ignition switch
16. Multifunction screen steering
mounted controls
17. Horn
1. Controls:
- Lighting
- Direction indicators
- Front and rear foglamps
2. Paddles for automatic gearbox or
6-speed electronic gearbox system
3. Cruise control and speed limiter
steering mounted controls
4. Direction indicator warning lamps
5. Audio and telematics system
steering mounted controls
6. Selector for automatic gearbox or
6-speed electronic gearbox system
7. Controls:
- Windscreen wipe
- Screenwash
- Rear screen wipe
- Trip computer
I N S T R U M E N T S A N D C O N T R O L S
18. Optional function controls
( o n s t e e r i n g w h e e l )
19. Fusebox access cover
20. Controls:
- F u e l fi l l e r fl a p
- Front and rear parking sensors
- Stop & Start
- Volumetric alarm deactivation
- H e a d l a m p a d j u s t m e n t
21. Bonnet release
22. Mirror controls
Page 59 of 355
III
61
C O M F O R T

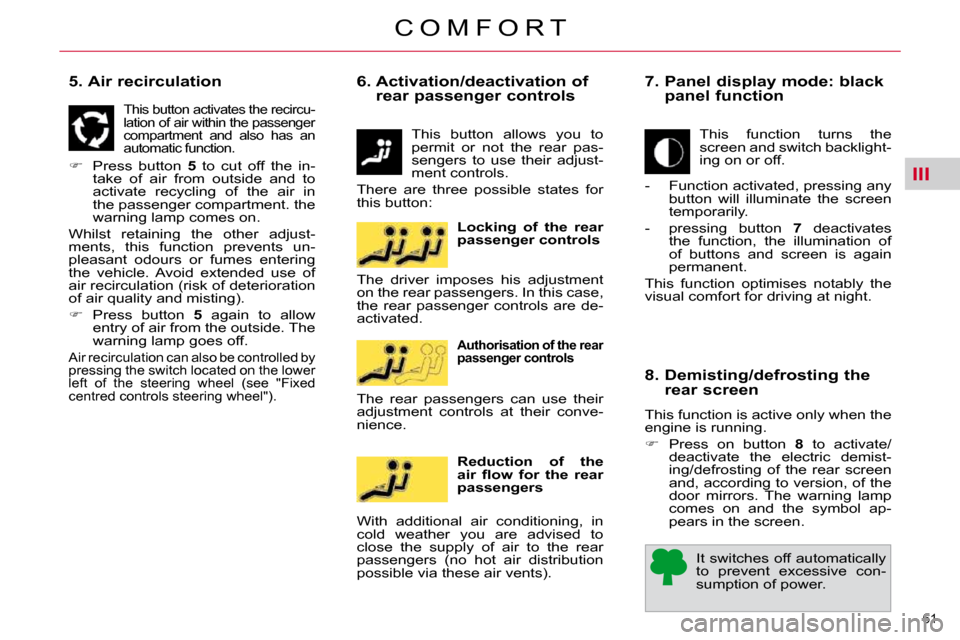

5. Air recirculation
Press button 5 to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).
Press button 5 again to allow
entry of air from the outside. The
warning lamp goes off.
Air recirculation can also be controlled by
pressing the switch located on the lower
left of the steering wheel (see "Fixed
centred controls steering wheel").
6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the rear
passenger controls
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their conve-
nience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.
- Function activated, pressing any button will illuminate the screen
temporarily.
- pressing button 7 deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting the rear screen
This function is active only when the
engine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol ap-
pears in the screen.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recircu-
lation of air within the passenger
compartment and also has an
automatic function.
Page 60 of 355
III
62
C O M F O R T

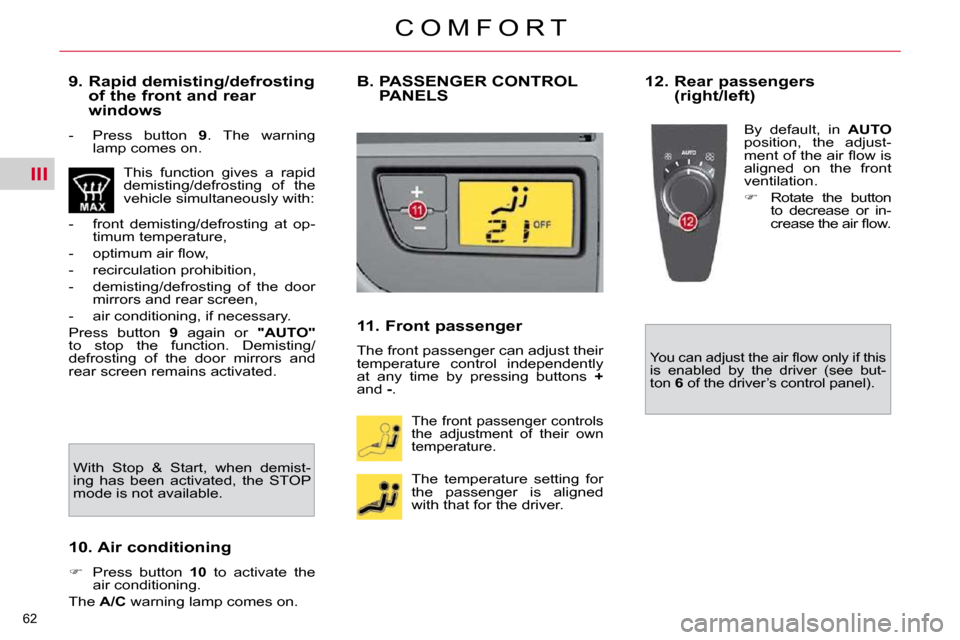

9. Rapid demisting/defrosting of the front and rear
windows
- Press button 9 . The warning
lamp comes on.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the door mirrors and rear screen,
- air conditioning, if necessary.
Press button 9 again or " AUTO"
to stop the function. Demisting/
defrosting of the door mirrors and
rear screen remains activated.
10. Air conditioning
Press button 10 to activate the
air conditioning.
The A/C warning lamp comes on.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger controls
the adjustment of their own
temperature.
The temperature setting for
the passenger is aligned
with that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the button
to decrease or in-
c r e a s e t h e a i r fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s is enabled by the driver (see but-
ton 6 of the driver’s control panel).
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 61 of 355
III
61
C O M F O R T
5. Air recirculation
Press button 5 to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).
Press button 5 again to allow
entry of air from the outside. The
warning lamp goes off.
Air recirculation can also be controlled by
pressing the switch located on the lower
left of the steering wheel (see "Fixed
centred controls steering wheel").
6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the rear
passenger controls
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their conve-
nience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.
- Function activated, pressing any button will illuminate the screen
temporarily.
- pressing button 7 deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting the rear screen
This function is active only when the
engine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol ap-
pears in the screen.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recircu-
lation of air within the passenger
compartment and also has an
automatic function.
Page 62 of 355
III
62
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press button 9 . The warning
lamp comes on.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the door mirrors and rear screen,
- air conditioning, if necessary.
Press button 9 again or " AUTO"
to stop the function. Demisting/
defrosting of the door mirrors and
rear screen remains activated.
10. Air conditioning
Press button 10 to activate the
air conditioning.
The A/C warning lamp comes on.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger controls
the adjustment of their own
temperature.
The temperature setting for
the passenger is aligned
with that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the button
to decrease or in-
c r e a s e t h e a i r fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s is enabled by the driver (see but-
ton 6 of the driver’s control panel).
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 80 of 355
IV
79
A C C E S S
Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely and hold it in this
position for more than two sec-
onds to close the windows auto-
matically in addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking also triggers the timed
illumination of the exterior side spot
lamps and guide-me-home lighting,
if this is activated.
First press this button to fold the
key.
Locating your vehicle
This function allows you to identify
your vehicle from a distance, espe-
cially when the light is poor. Your ve-
hicle must be locked.
Press the closed padlock on the
remote control.
This will bring on the courtesy lamps
and exterior side spotlamps, as well
a s fl a s h i n g t h e d i r e c t i o n i n d i c a t o r s
for a few seconds. Guide-me-home lighting
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a
message on the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
A press on this button op-
erates the guide-me-home
lighting (lighting of the side-
lamps, dipped beam head-
lamps, number plate lamps
and exterior side spotlamps (located
underneath the door mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the door mir-
rors fold at the same time.
Page 84 of 355
IV
79
A C C E S S
Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely and hold it in this
position for more than two sec-
onds to close the windows auto-
matically in addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking also triggers the timed
illumination of the exterior side spot
lamps and guide-me-home lighting,
if this is activated.
First press this button to fold the
key.
Locating your vehicle
This function allows you to identify
your vehicle from a distance, espe-
cially when the light is poor. Your ve-
hicle must be locked.
Press the closed padlock on the
remote control.
This will bring on the courtesy lamps
and exterior side spotlamps, as well
a s fl a s h i n g t h e d i r e c t i o n i n d i c a t o r s
for a few seconds. Guide-me-home lighting
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a
message on the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
A press on this button op-
erates the guide-me-home
lighting (lighting of the side-
lamps, dipped beam head-
lamps, number plate lamps
and exterior side spotlamps (located
underneath the door mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the door mir-
rors fold at the same time.
