9
F A M I L I A R I S A T I O N
6-speed electronic gearbox system
This offers a fully automatic mode, a
m a n u a l m o d e a n d a n a u t o - s e q u e n t i a l
mode which combines the advantages of
the automatic and manual modes, using
the paddles behind the steering wheel.
146
Speed limiter/Cruise control
These functions control the speed of
the vehicle to the value that you have
programmed.
159, 161 Electric parking brake
For holding and releasing the vehicle.
Operation is automatic with manual
operation possible using the dash-
board control.
136
Scented air freshener
This diffuses the fragrance that you
have chosen throughout the passen-
ger compartment from its location in
the ventilation system.
64
Interior mood lighting
This soft lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
102
I N T E R I O R
Page 11 of 355
14
F A M I L I A R I S A T I O N

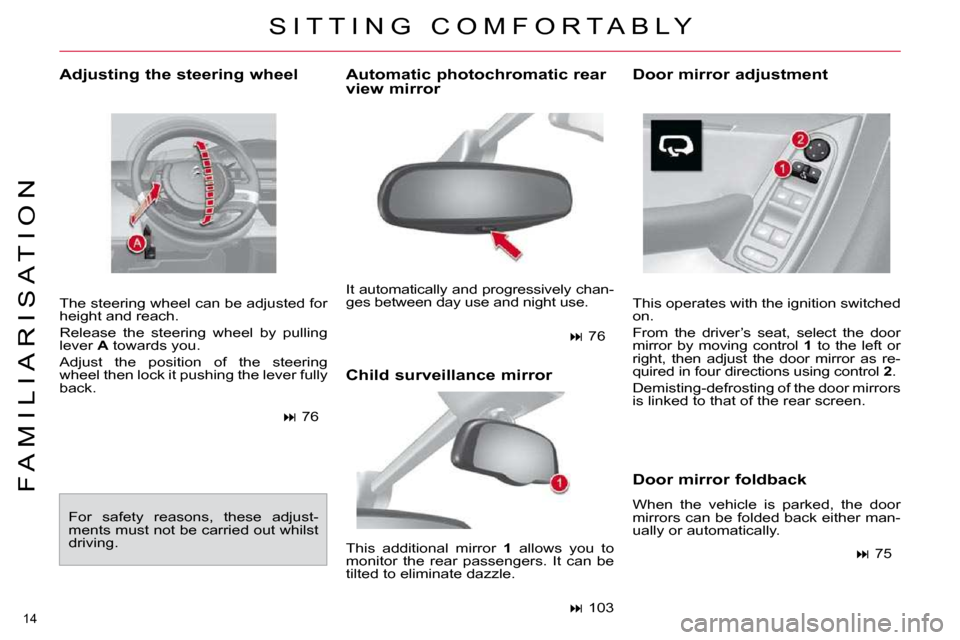

Adjusting the steering wheel
T h e s t e e r i n g w h e e l c a n b e a d j u s t e d f o r
height and reach.
Release the steering wheel by pulling
lever A towards you.
A d j u s t t h e p o s i t i o n o f t h e s t e e r i n g
wheel then lock it pushing the lever fully
back.
76 It automatically and progressively chan-
ges between day use and night use.
This operates with the ignition switched
on.
From the driver’s seat, select the door
mirror by moving control 1 to the left or
r i g h t , t h e n a d j u s t t h e d o o r m i r r o r a s r e -
q u i r e d i n f o u r d i r e c t i o n s u s i n g c o n t r o l 2 .
Demisting-defrosting of the door mirrors
is linked to that of the rear screen.
103
75
F o r s a f e t y r e a s o n s , t h e s e a d j u s t -
ments must not be carried out whilst
driving.
This additional mirror 1 allows you to
monitor the rear passengers. It can be
tilted to eliminate dazzle. Door mirror foldback
When the vehicle is parked, the door
mirrors can be folded back either man-
ually or automatically.
S I T T I N G C O M F O R T A B L Y
Automatic photochromatic rear
view mirror
Door mirror adjustment
76
Child surveillance mirror
Page 21 of 355
24
F A M I L I A R I S A T I O N
Ring B Ring D: rear screen wipe Stop.
Intermittent.
Timed wash and wipe. Fixed centred controls steering
wheel
Lighting stalk
Ring A
94 Stalk C: windscreen wipe
99
D R I V I N G
1. Off
2. Automatic illumination of headlamps
3. Sidelamps
4. Dipped/main beam headlamps
Front foglamps
Rear foglamp Wiper stalk
1. Optional function controls
2. Cruise control/speed limiter and
parking space sensor
3. Audio system controls
4. Multifunction screen controls
157
5. Horn
123
6. Warning lamps for direction indica-
tors and vehicle lamps
32
93 Switching on "AUTO" mode
Press the stalk down and release.
Switching off "AUTO" mode
Press the stalk up and return it to
position "0" .
The automatic rain sensitive wipers
must be reactivated each time the ve-
hicle is started.
Under certain climatic conditions
( l o w t e m p e r a t u r e , h u m i d ) , t h e p r e s -
ence of condensation on the inner
surfaces of the headlamps and rear
lamps is not an indication of a fault;
this disappears a few minutes after
switching on the lamps.
Page 59 of 355
III
61
C O M F O R T
5. Air recirculation
Press button 5 to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).
Press button 5 again to allow
entry of air from the outside. The
warning lamp goes off.
Air recirculation can also be controlled by
pressing the switch located on the lower
left of the steering wheel (see "Fixed
centred controls steering wheel").
6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the rear
passenger controls
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their conve-
nience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.
- Function activated, pressing any button will illuminate the screen
temporarily.
- pressing button 7 deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting the rear screen
This function is active only when the
engine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol ap-
pears in the screen.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recircu-
lation of air within the passenger
compartment and also has an
automatic function.
Page 61 of 355
III
61
C O M F O R T
5. Air recirculation
Press button 5 to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).
Press button 5 again to allow
entry of air from the outside. The
warning lamp goes off.
Air recirculation can also be controlled by
pressing the switch located on the lower
left of the steering wheel (see "Fixed
centred controls steering wheel").
6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the rear
passenger controls
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their conve-
nience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.
- Function activated, pressing any button will illuminate the screen
temporarily.
- pressing button 7 deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting the rear screen
This function is active only when the
engine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol ap-
pears in the screen.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recircu-
lation of air within the passenger
compartment and also has an
automatic function.
Page 77 of 355
III
76
C O M F O R T
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Manual day/night model
Adjustment
Adjust the mirror so that the
glass is directed correctly in the
"day" position.
Day/night position
Pull the lever to change to the
"night" anti-dazzle position.
Push the lever to change to the
normal "day" position. By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this re-
duces any driver discomfort caused
by the light beams of following ve-
hicles, the sun...
STEERING WHEEL ADJUSTMENT
The height and reach of the steer-
ing wheel can be adjusted to adapt
the driving position to the size of the
driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
When stationary , pull the control
lever to unlock the steering wheel
adjustment.
Adjust for height and reach.
Push the control lever to lock the
steering wheel adjustment.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". Automatic day/night model
As a safety precaution, these
operations must only be carried out
while the vehicle is stationary.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Page 81 of 355
IV
80
A C C E S S
STARTING

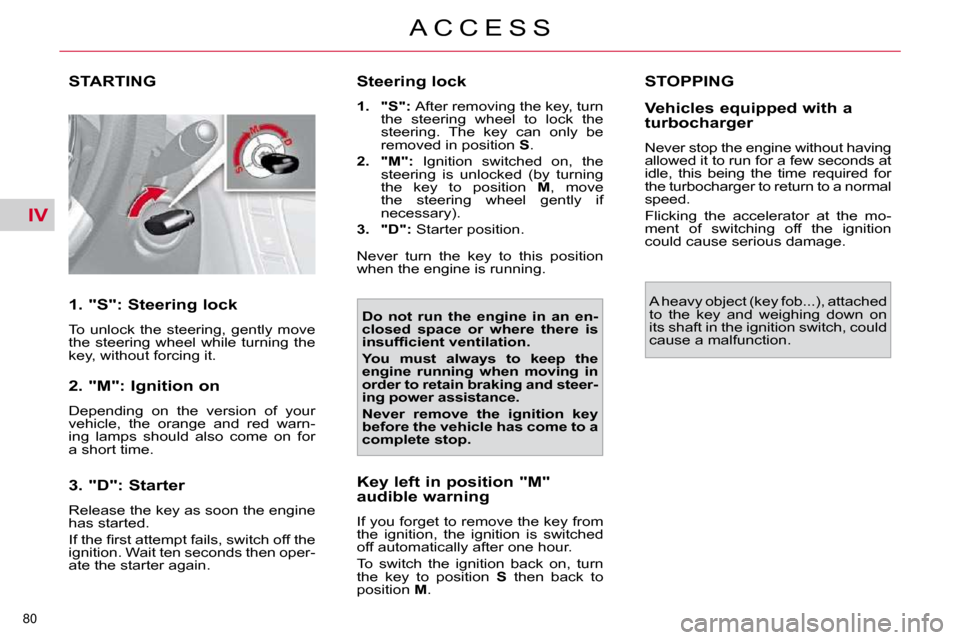

1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Ignition on
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then oper-
ate the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be
removed in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move
the steering wheel gently if
necessary).
3. "D": Starter position.
Key left in position "M"
audible warning
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .
Do not run the engine in an en-
closed space or where there is
i n s u f fi c i e n t v e n t i l a t i o n
.
You must always to keep the
engine running when moving in
order to retain braking and steer-
ing power assistance .
Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.
Page 86 of 355
IV
80
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Ignition on
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then oper-
ate the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be
removed in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move
the steering wheel gently if
necessary).
3. "D": Starter position.
Key left in position "M"
audible warning
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .
Do not run the engine in an en-
closed space or where there is
i n s u f fi c i e n t v e n t i l a t i o n
.
You must always to keep the
engine running when moving in
order to retain braking and steer-
ing power assistance .
Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.
Page 149 of 355
VIII
124
S A F E T Y
TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
U n d e r - i n fl a t e d t y r e T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen lo-
cating the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen lo-
cating the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Sensor(s) not detected or faulty
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen
locating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
markings" section) to ensure that
the optimum dynamic performance
of the vehicle is maintained and
prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to electro-mag-
netic signals on a frequency close
to that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
Page 157 of 355
VIII
132
S A F E T Y
AIRBAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact,
the airbags are triggered instant-
ly and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n o f
the rear centre passenger); im-
mediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t
they do not hinder visibility or the
e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear impact or in certain roll-over
conditions, the airbags will not
be triggered; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The airbags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs (dur-
ing the same or a subsequent acci-
dent), the airbag will not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is incorporated
in the centre of the steering wheel;
the front passenger's airbag is incor-
porated in the dashboard above the
g l o v e b o x .
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all
or part of the front impact zone
A ,
in the longitudinal centreline of the
vehicle on a horizontal plane and di-
rected from the front to the rear of
the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
