DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function
enables the light beam to follow the
direction of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.

with directional lighting


without directional lighting



Programming

The function is activat-
ed or deactivated via
the multifunction screen
confi guration menu.


Operating fault

If a malfunction occurs, this
warning lamp fl ashes on the
instrument panel, accompa-
nied by a message on the
multifunction screen.
Contact a CITROËN dealer or a
qualifi ed workshop.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
On vehicles fi tted with daytime run-
ning lamps, the function is activated if
the lighting stalk is in the "AUTO"
or
"Dipped/main beam headlamps"

position. In position "0"
, the function
is not activated.

V
100
VISIBILITY

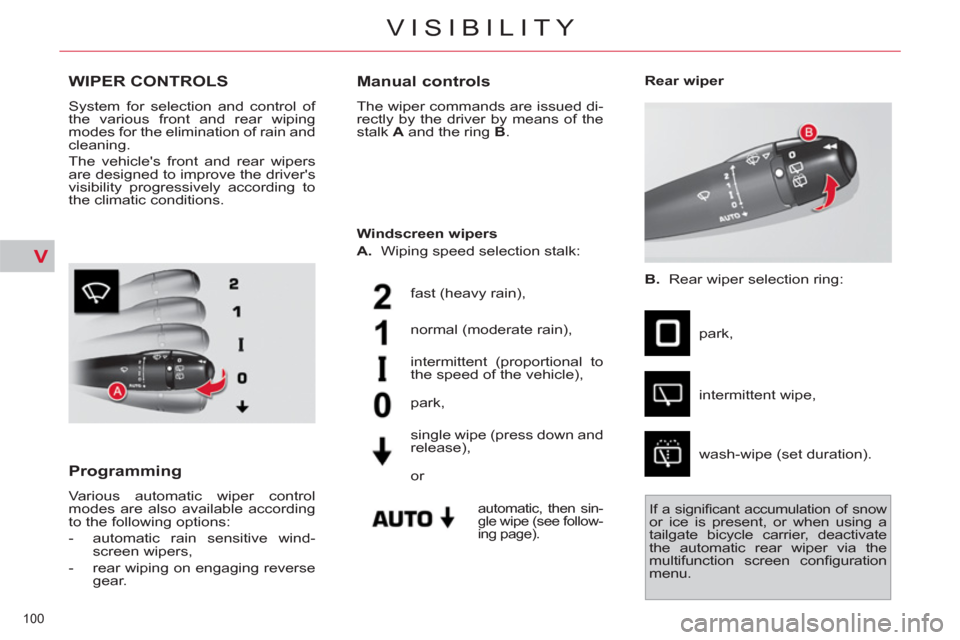

WIPER CONTROLS
System for selection and control of
the various front and rear wiping
modes for the elimination of rain and
cleaning.
The vehicle's front and rear wipers
are designed to improve the driver's
visibility progressively according to
the climatic conditions.

Programming

Various automatic wiper control
modes are also available according
to the following options:


- automatic rain sensitive wind-
screen wipers,

- rear wiping on engaging reverse
gear.



Manual controls

The wiper commands are issued di-
rectly by the driver by means of the
stalk A
and the ring B
.












Rear wiper

B.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration). fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then sin-
gle wipe (see follow-
ing page).
park,

single wipe (press down and
release),
Windscreen wipers

A.
Wiping speed selection stalk:





or

If a signifi cant accumulation of snow or ice is present, or when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
multifunction screen confi guration
menu.

V
101
VISIBILITY

Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.

Programming
The function is activated
or deactivated via the
vehicle confi guration
menu.
This function is activated
by default.











Windscreen and headlamp
wash


)
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
operate for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.













Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
(sensor behind the rear view mirror),
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing the stalk down-
wards to the "AUTO"
position.
It is accompanied by a message in
the screen. The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute,
by pushing the stalk downwards.

Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.

Activation

Switching off
This is controlled manually by the
driver by moving the stalk upwards
then returning it to position "0"
.
It is accompanied by a message in
the screen.

V
102
VISIBILITY









Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
To maintain the effectiveness of the
"fl at-blade" type of wiper blades, it
is advisable to:


- handle them with care,

- clean them regularly using soapy
water,

- avoid using them to retain card-
board on the windscreen,

- replace them at the fi rst signs
of wear.




)
Any action on the wiper stalk in
the minute after switching off the
ignition places the blades verti-
cally on the screen.

)
To park the blades again, switch
on the ignition and operate the
wiper stalk.

V
103
VISIBILITY
COURTESY LAMPS


1.
Front courtesy lamp


2.
Map reading lamps




Front courtesy lamp

In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, different
lighting times are available:


- with the ignition off, approxi-
mately ten minutes,

-
in energy economy mode, approxi-mately thirty seconds,

-
with the engine running, unlimited.




- when the vehicle is unlocked,

- when a door or the boot is
opened,

- when the key is removed from
the ignition,

-
when the remote control locking
button is activated, in order to locate
your vehicle.

It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.


Map reading lamps



)
With the ignition on, press the
corresponding switch.



Panoramic sunroof courtesy
lamps
These courtesy lamps have two oper-
ating modes:


- automatic lighting when a door is
opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,

- permanent lighting.

Opening the boot switches on the
third row courtesy lamp and the
boot lamps.

V
104
VISIBILITY
LIGHTING PACK

Interior mood lighting

This function activates the light
sources which are located in the
dashboard, near the interior door le-
vers and in the roof.
Operation
This back-lit control, located near
the steering wheel below the dash-
board, is used to switch on and off
and adjust the brightness of this
lighting.
To increase
brightness:


)
Press the right of the control to
obtain the desired level.
To reduce
brightness:


)
Press the left of the control to
obtain the desired level.
The setting is stored when the ignition
is switched off.


Interior welcome lighting

When unlocking the vehicle with the
remote control or the key, the foot-
well lamps, interior lamps and interior
mood lighting sources come on for
30 seconds.
This function cannot be deactivated.


Front door pockets with
automatic lighting

The lighting for the door pockets
comes on automatically when you
place a hand inside one of the com-
partments.
It goes off after a few seconds when
you take your hand away.

Reading lamps on front seat
backrests

There are reading lamps in the back-
rests of the front seats, behind the
rear tables. They can operate only
when the table is lowered.


)
Press the "On/Off" button to switch
the reading lamp on or off. This lighting, available once the
sidelamps are on, in night mode,
provides subdued lighting in the
passenger compartment.

VI
105
FITTINGS
SLIDING SUN VISOR

Sliding blinds

Visor rails

The blinds are extended on the sun
visor rails.
Fold the visor downwards, to protect
against dazzle to the face.
If dazzle is coming from the side
windows, detach the visor from its
housing above the centre of the
windscreen and pivot it to the side.
Do not attach or suspend heavy
objects on the slide rail of the sun
blind.
TOLL CARD/CAR PARK TICKET WINDOWS

Facility for affi xing toll cards and/or
car park tickets.
These windows are located on each
side of the base of the child surveil-
lance mirror.
They are two non-refl ective areas of
the athermic windscreen.






Child surveillance mirror

The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists of
a refl ective layer, which also blocks
certain radio-electric signals (auto-
matic toll card payments, etc.). A child surveillance mirror is fi tted
above the rear view mirror. This al-
lows you to monitor the vehicle’s
rear passengers, or it can facilitate
conversation between the front and
rear passengers without the need to
move the rear view mirror.
It can be folded away to eliminate
dazzle. Sliding blinds are provided for your
protection against bright sunlight.
They can be adjusted manually.


)
Slide the blind to the desired po-
sition by pushing at A
.
The visors are fi tted with a lock-
ing system on their central housing
when the blind is reeled in. To re-
move the visor from its central hous-
ing or to reposition it, it must be in a
vertical position.

VI
106
FITTINGS
UPPER STORAGE
COMPARTMENTS

There are large storage compart-
ments at the top of the dashboard,
one on the driver's side and one on
the passenger's side.


)
To open, press the button at the
bottom corner.

)
To close, lower the lid fully until it
clicks.
ILLUMINATED GLOVE BOX

Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
can, fragrance cartridges...


)
To open the glove box, raise the
handle and lower the lid.
The lamp comes on automatically
when the lid is opened.
COOLED GLOVE BOX


It is cooled by a ventilation nozzle
that can be closed manually.
It is directly linked to the vehicle’s air
conditioning system, being supplied
with cooled air whatever the require-
ments of the passenger compart-
ment.
The cooling of your glove box only
operates when the engine is running
and the air conditioning is on.


For safety reasons, the glove
box should remain closed
when the vehicle is moving. For safety reasons, the up-
per storage compartments
should be kept closed when
the vehicle is moving.

VI
107
FITTINGS
COOL STORAGE CENTRE CONSOLE
The centre console contains, de-
pending on version:


- two cup-holders,

- two storage compartments,

- a 12 V accessory socket (Maxi-
mum power: 120W); this is opera-
tional when the ignition is on.
There may be an additional 12 V
accessory socket in the boot,

- a USB port.

For safety reasons, the
cooled storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT

This kit consists of a cigar lighter
and a portable ashtray.
These are located on the centre
console. The portable ashtray can
be placed in a cup holder.


)
To use the cigar lighter, press it
in and wait a few seconds until it
pops out automatically.

Vehicles with the electronic gearbox
system
or an automatic gearbox

possess an additional storage space
in the middle of the dashboard.


)
To open, pull the handle and lower
the lid.
The cooled storage has automatic
lighting.
It can accommodate a 1.5 litre bottle
and two 0.5 litre bottles, for example.
Two cup-holders are available when
the lid is open. The cooled storage has a ventilation
nozzle. It is directly linked to the ve-
hicle’s air conditioning system, and
is supplied with cooled air whatever
the settings for the passenger com-
partment.
The cooling of this storage area only
operates when the engine is running
and the air conditioning is on.

VI
108
FITTINGS
MATS
Removable carpet protection com-
ponent.

Fitting

When fi tting the mat for the fi rst time,
on the driver's side, use only the fi x-
ings provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)
move the seat as far back as
possible,

)
unclip the fi xings,

)
remove the mat.



Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured
correctly. To avoid any risk of jamming of the
pedals:


- only use mats which are suited
to the fi xings already present in
the vehicle; their use is essen-
tial,

- never fi t one mat on top of
another.



Front door

The front door pockets can hold ob-
jects equivalent in volume to a 1.5 litre
bottle.
They may have their own lighting,
which comes on automatically when
your hand approaches.
This lighting goes out automatically
after a few moments when your hand
is taken away.


Rear door

The rear door pockets can hold
objects equivalent in volume to a
0.5 litre bottle.
USB BOX


This connection box, consisting of an
auxiliary JACK socket and a USB port,
is located on the centre console.
It permits the connection of portable
equipment, such as a digital audio
player of the iPod
® or USB memory
stick type.
It reads the audio fi le formats which are
transmitted to your audio equipment
and played via the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the use of
this equipment, refer to the "Audio
and Telematics" section.
