Page 144 of 352
IX
142
DRIVING
Dynamic emergency braking
In the event of a failure of the vehicle’s
main braking system or in an excep-
tional situation (e.g. driver taken ill,
under instruction, etc) a continuous
pull on the control lever A
will stop
the vehicle.
The electronic stability programme
(ESP) provides stability during dy-
namic emergency braking.
If the dynamic emergency braking
malfunctions, one of the following
messages will be displayed in the
multifunction screen:
- "Parking brake faulty".
- "Parking brake control faulty". If a failure of the ESP sys-
tem is signalled by the il-
lumination of this warning
lamp, then braking stability
is not guaranteed. In this event, sta-
bility must be assured by the driver
by repeating alternate "pull-release"
actions on control lever A
.
The dynamic emergency
braking must only be used in
exceptional circumstances.
Page 146 of 352
IX
144
DRIVING
SITUATION
CONSEQUENCES
1
Electric parking brake fault and display of
message " Parking brake faulty
" and the fol-
lowing warning lamps: If the electric parking brake fault warning lamp and the service
warning lamp come on, position the vehicle in a safe location (on
fl at ground, with a gear engaged).
2
Display of message " Parking brake faulty
"
and the following warning lamps:
- The automatic functions are deactivated.
- Hill start assist is not available.
- The electric parking brake is only available manually.
3
Display of message " Parking brake faulty
"
and the following warning lamps:
- The manual release of the electric parking brake is not available.
- Hill start assist is not available.
- The automatic functions and manual application are still available.
If any of these instances arises, contact a CITROËN dealer or a qualifi ed workshop as soon as possible.
Operating faults
Page 147 of 352
IX
145
DRIVING
SITUATION
CONSEQUENCES
4
Display of message " Parking brake faulty
"
and the following warning lamps:
and/or fl ashing
- The automatic functions are deactivated.
- Hill start assist is not available.
To apply the electric parking brake:
)
Immobilise the vehicle and switch off the ignition
)
Pull the control lever for at least 5 seconds or until maximum
application.
)
Switch on the ignition and check that the electric parking brake
warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P
fl ashes or if the warning lamps do not come
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer or a qualifi ed workshop.
To release the electric parking brake:
)
Switch on the ignition.
)
Pull the control lever and hold it for approximately 3 seconds.
5
Display of message " Parking brake control
faulty – auto parking brake activated
" and
the following warning lamps:
and/or fl ashing
- Only the functions for automatic application on switching off the
engine and automatic release on acceleration are available.
- Manual application/release of the electric parking brake and
dynamic emergency braking are unavailable.
6
Battery fault
- Lighting of the battery warning lamp makes it essential to stop
the vehicle as soon as traffi c allows. Stop and immobilise your
vehicle.
- Apply the electric parking brake before switching off the engine.
Page 151 of 352
IX
149
DRIVING
Displays in the instrument panel
- The gear lever position is dis-
played in the instrument panel,
on the left on the A and C multi-
function screens and on the right
on NaviDrive and MyWay multi-
function screens.
- A back-lit position grille associ-
ated with the gear lever shows
the position selected.
When the ignition is on, il-
lumination of the service
warning lamp, accompa-
nied by an audible signal and
the message "Gearbox faulty"
indicates a malfunction.
Contact a CITROËN dealer or a
qualifi ed workshop.
For safety:
)
position N
can only be disen-
gaged if you are pressing the
brake pedal.
)
if the gearbox is in position N
but the gear lever position is dif-
ferent, reposition the gear lever
on N
in order to be able to start.
Moving off
)
To start the engine, the gear lever
must be in position N
.
)
Press fi rmly on the brake pedal.
)
Operate the starter.
)
When the engine is running,
place the gear lever on R
, A
or
M
as desired.
)
In the instrument panel, check
the position engaged.
)
Release the brake pedal and ac-
celerate.
If the gear lever is not in position N
,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
6-SPEED ELECTRONIC GEARBOX SYSTEM
The 6-speed electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
You have a choice of two driving
modes:
- automatic
mode for automatic
control of the gears by the gear-
box,
- manual
mode for sequential
changing of the gears by the
driver.
)
Automated mode: gear lever 2
in
position A
.
)
Manual mode: gear lever 2
in po-
sition M
.
In automated mode, temporary man-
ual operation is possible any time by
using one of the paddles 1
.
Mode selection

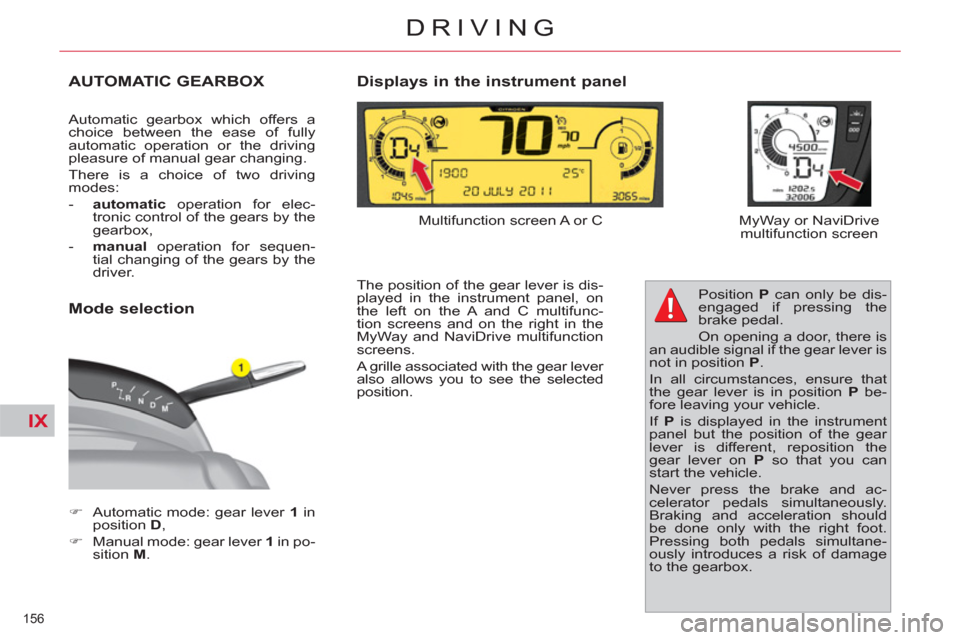

Page 158 of 352
IX
156
DRIVING
AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the ease of fully
automatic operation or the driving
pleasure of manual gear changing.
There is a choice of two driving
modes:
- automatic
operation for elec-
tronic control of the gears by the
gearbox,
- manual
operation for sequen-
tial changing of the gears by the
driver.
)
Automatic mode: gear lever 1
in
position D
,
)
Manual mode: gear lever 1
in po-
sition M
. The position of the gear lever is dis-
played in the instrument panel, on
the left on the A and C multifunc-
tion screens and on the right in the
MyWay and NaviDrive multifunction
screens.
A grille associated with the gear lever
also allows you to see the selected
position.
Position P
can only be dis-
engaged if pressing the
brake pedal.
On opening a door, there is
an audible signal if the gear lever is
not in position P
.
In all circumstances, ensure that
the gear lever is in position P
be-
fore leaving your vehicle.
If P
is displayed in the instrument
panel but the position of the gear
lever is different, reposition the
gear lever on P
so that you can
start the vehicle.
Never press the brake and ac-
celerator pedals simultaneously.
Braking and acceleration should
be done only with the right foot.
Pressing both pedals simultane-
ously introduces a risk of damage
to the gearbox.
Displays in the instrument panel
Multifunction screen A or C MyWay or NaviDrive
multifunction screen
Mode selection
Page 159 of 352
IX
157
DRIVING
)
To start the engine, press the
brake pedal and place the gear
lever in position P
.
)
Operate the starter.
)
When the engine is running,
place the gear lever on R
, D
or
M
as required.
)
Check, in the instrument panel,
the position engaged.
)
Release the brake pedal and ac-
celerate.
If the gear lever is not in position P
, a
message "Place automatic gearbox
in position P
" is displayed in the mul-
tifunction screen. It is accompanied
by an audible signal and fl ashing of
P
in the instrument panel.
Moving off
To avoid any difference between the
position of the gear lever and the
true position of the gearbox, always
come out of position P
with the igni-
tion on and your foot on the brake.
)
When this warning lamp
comes on in the instru-
ment panel, press the
brake pedal to disen-
gage the gear lever from
position P
.
Park
)
To select position P, move the
gear lever back to the highest
position (towards R
), then push
it forwards and then to the left.
)
To exit position P
, move the gear
lever to the right and then to the
position you want.
)
Only engage this position when
the vehicle is completely sta-
tionary. In this position, the front
wheels are locked. Make sure
that the gear lever is correctly
positioned.
Reverse gear
Neutral
Only engage this position
when the vehicle is station-
ary. To prevent snatching,
do not accelerate too soon
after selection.
Never select position N
if
the vehicle is moving.
Never select positions P
or
R
unless the vehicle is sta-
tionary.
If, while the vehicle is moving, po-
sition N
is engaged inadvertently,
allow the engine to idle before en-
gaging position D
or M
. This position of the gear le-
ver is used to prevent the
vehicle from moving when
you are stationary.
Foot on the brake
Page 161 of 352
IX
159
DRIVING
Manual operation
Position of the gear lever for manual
gear changing.
)
Move the gear lever to
position M
.
)
Pull the " +
" paddle to change up
a gear.
)
Pull the " -
" paddle to change
down a gear.
- If the vehicle stops or reduces
speed (for example when ap-
proaching a stop sign), the gear-
box changes down automatically
to fi rst gear.
- In manual mode, it is not neces-
sary to release the accelerator
during gear changes.
- A request to change gear is ac-
cepted only if the engine speed
permits it.
- For safety reasons, depending
on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to
change mode, by moving the
gear lever from position D
to po-
sition M
or vice versa.
Flashing of the indicator for
the position requested sig-
nals that this position is not
yet obtained.
If the indicator is on fi xed, the posi-
tion is confi rmed.
Display of a dash in the rev counter
indicates a malfunction. Contact
a CITROËN dealer or a qualifi ed
workshop.
Illumination of the service warning
lamp accompanied by a message
and an audible signal indicates an
operating fault. In this case:
- a marked snatching may be felt
when selecting R
for reverse
gear,
- the gearbox is locked in one
gear,
-
do not exceed a speed of 60 mph
(approximately 100 km/h).
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
Page 163 of 352
IX
161
DRIVING
Optional function controls
1.
Call/Hang up the telephone (see
"Audio and Telematics" section).
2.
Rheostat for dashboard lighting.
3.
Start of voice recognition (see
"Audio and Telematics" section).
4.
Personalisation button:
- courtesy lamp on/off or
- diagnostics
Press this button for more than
two seconds to display the per-
sonalisation menu.
5.
Air recirculation.
Multifunction screen controls
A.
Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip computer,
navigation/guidance…).
For the multifunction screen A,
choice of activation/deactivation
of functions and setting choices.
B.
Access to the "Main Menu" * .
C.
Confi rmation of the function cho-
sen or of the value modifi ed.
Call/Hang up (see "Audio and
Telematics" section).
D.
Scrolling in the multifunction
screen.
E.
Cancellation of the current op-
eration or return to the previous
display.
*
To comply with legislation in certain
countries, the "Menu" control may
be deactivated while the vehicle is
in motion.
Page 164 of 352
IX
162
DRIVING
SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched on
manually: a speed of at least 20 mph
(approximately 30 km/h) must be
programmed.
The speed limiter controls are located
on the left-hand side of the steering
wheel. The programmed information is
grouped together in zone A
of the
instrument panel screen.
Steering mounted controls
Displays in the instrument
panel
Programming
Rotate the control 1
to the "LIM"
po-
sition.
With the engine running, you can
adjust the memorised maximum
speed , by means of short or long
presses on:
)
button 4
to increase the memo-
rised maximum speed,
)
button 2
to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
(1 km/h) and a sustained press in
steps of 3 mph (5 km/h).
Activation
When the desired maximum speed
is displayed, press button 3
so that
the limitation is activated.
On selection of the
function, the previous
memorised speed and
the information "OFF"
are displayed in the in-
strument panel. The information "OFF"
then disappears from
the instrument panel
screen.
While the function is active, pressing
the accelerator pedal will not enable
the programmed speed to be ex-
ceeded, except if you press the pedal
hard down to beyond the end-of-travel
switch.
The speed of your vehicle may vary
slightly in relation to that memorised.
The speed limiter cannot, in any circum-
stances, take the place of the obser-
vance of speed limits or of the vigilance
and responsibility of the driver.
Page 165 of 352
IX
163
DRIVING
Deactivation
Press on button 3
.
This action causes the
information "OFF"
to
appear on the instru-
ment panel screen.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A
of the
instrument panel.
Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl ashes.
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again.
Return to normal driving
)
By moving the control 1
from po-
sition "LIM"
to position 0
.
)
By the engine stopping.
The speed previously chosen is still
memorised.
Operating fault
If there is a speed limiter malfunc-
tion, a message will display accom-
panied by an audible signal and
lighting of the service warning lamp.
Have it checked by a CITROËN
dealer or a qualifi ed workshop. If during the operation of the speed
limiter, the system is unable to keep
within the maximum speed (for ex-
ample on a steep descent or under
heavy acceleration) then the speed
fl ashes. Adapt your speed as neces-
sary.
The function will re-engage when
your speed returns below the de-
sired maximum speed.
On a steep downhill gradi-
ent or on sharp accelera-
tion, the speed limiter will
not be able to prevent the vehicle
from exceeding the programmed
speed.
Use of fl oor mats that are not ap-
proved by CITROËN may hinder
access to the accelerator pedal
and thus interfere with the function-
ing of the speed limiter.
To avoid any risk of interfering with
the pedals:
- check that the fl oor mat is cor-
rectly positioned,
- never use more than one fl oor
mat.
