Comfort
Boot fi ttings
1.
Rear parcel shelf

(see details on a following page)2.Hooks
(see details on a following page)3.Torch (see details on a following page)4. Storage boxes
(see details on a following page)5. Storage net
6.Lashing eyes
7. 12 V socket (maximum power: 120 Watts)



Versions with storage boxes: theseboxes must be put in place beforeloading the boot.

130
Comfort
To remove the shelf: )unhook the two cords, )raise the shelf slightly, then remove it.
Rear parcel shelf
There are several options for storing the shelf:
- either upright behind the front seats,
- or flat at the base of the boot. The hooks can be used to secure shoppin
gbags.
Hooks
)Remove the boot carpet for access to thestorage boxes.
Storage boxes

Depending on the configuration, they are laid
out for storing:


- wheel chocks,

- a t
yre repair kit,

- two warning triangles,
-
...

131
3
Comfort

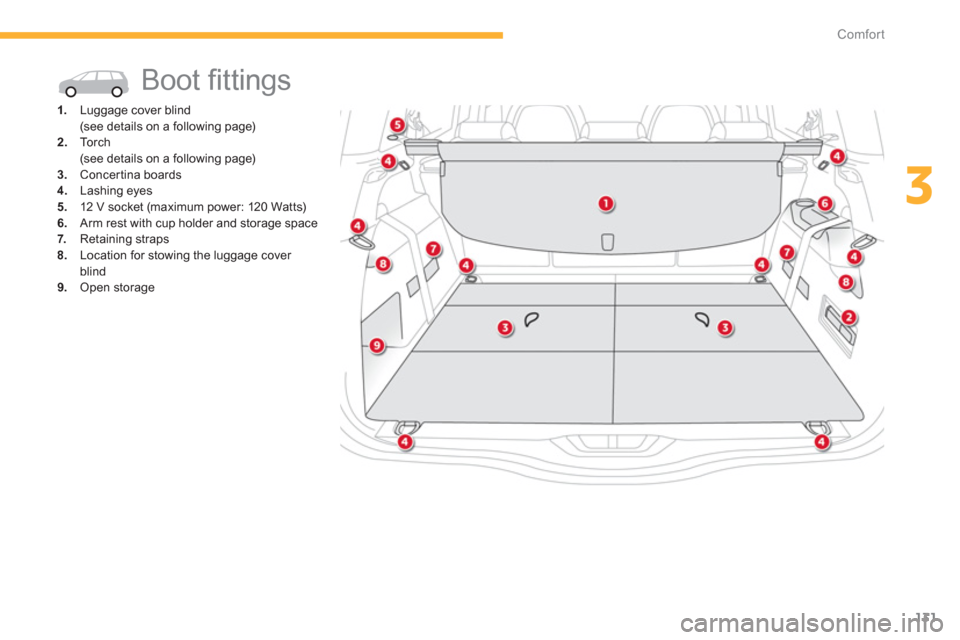

Boot fi ttings
1.
Luggage cover blind
(see details on a following page)2.Torch
(see details on a following page)3.Concertina boards 4. Lashing eyes
5. 12 V socket (maximum power: 120 Watts)
6.Arm rest with cup holder and storage space
7
. Retaining straps 8.Location for stowing the luggage cover blind 9.
Open storage

132
Comfort





Luggage cover roller
In the 5 -seat configuration, it is installed behind
the second-row seats, with the third-row seats
folded awa
y.
In the 7-seat configuration, it is stowed behind
the third row seats.
Installation
)
Position the left and right hand ends of the
roller in cut-out A
, with the mobile flap at
the front. ) Pull out the blind until it reaches the boot
pillars.
) Inser t the guides of the blind into the rails on the pillars B.

Removal
)Disengage the roller guides from the rails
in the pillars B.)Guide the blind as it is reeled in. )Unlock the roller by pressing one of
the grips located at the ends of the reelsupport.
The mobile flap allows passengers in the second row to place their seats inthe "comfort" position.

133
3
Comfort

Stowing behind the 3 rd
row seats
To fold the 3rdrow seats with the roller
stowed at the rear, it is necessary to raise theconcertina boards in order to allow access to
the seat locking controls (red straps).
)Ensure that the 3rdrow seats are folded.)Fold the first two concertina boards.)Install the roller in the space above the armrest, one side after the other, inclining itslightly. )Slide the roller as far as it will go, up to thecut-outs provided at the back of the boot,
with the two flaps directed downwards.)Unfold the third row seats.
The folded concer tina boards can be positioned horizontally or ver tically.

134
Comfort

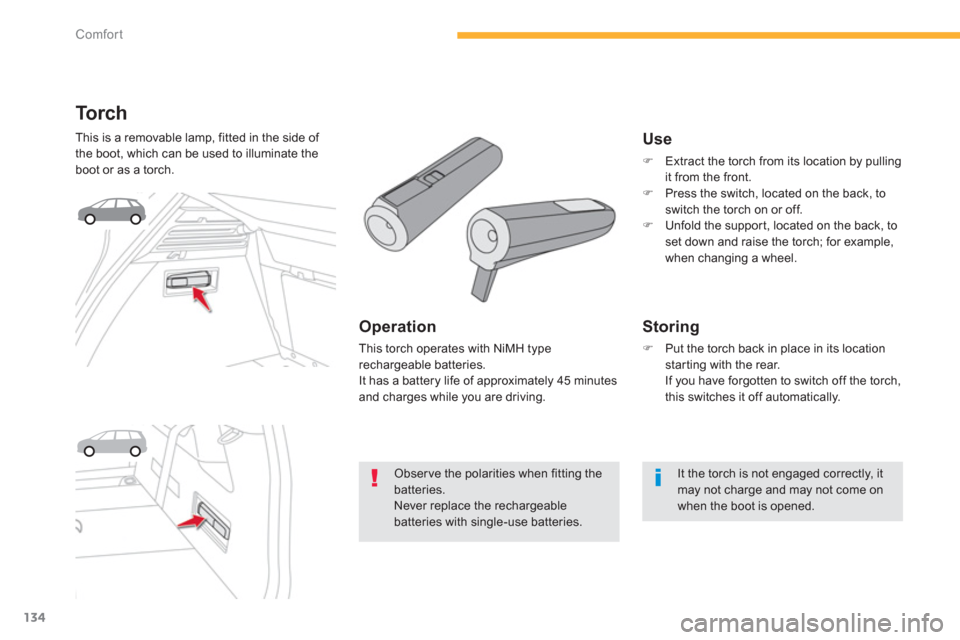

Torch
This is a removable lamp, fitted in the side of
the boot, which can be used to illuminate the
boot or as a torch.

Operation
This torch operates with NiMH typerechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.

Use
)Extract the torch from its location by pullingit from the front. )Press the switch, located on the back, to switch the torch on or off. )Unfold the suppor t, located on the back, toset down and raise the torch; for example,
when changing a wheel.



Storing
)Put the torch back in place in its location starting with the rear.
If you have forgotten to switch off the torch,
this switches it off automatically.

It the torch is not engaged correctly, itmay not charge and may not come onwhen the boot is opened.
Obser ve the polarities when fitting the batteries. Never replace the rechargeablebatteries with single-use batteries.

135
4
Driving








Starting-switching off the engine with the electronic key
)Place the gear selector lever at Nfor
vehicles with an electronic gearbox, Por Nfor vehicles with an automatic gearbox or neutral with a manual gearbox. )Inser t the electronic key in the reader.)Press the brake pedal for vehicles with an electronic or automatic gearbox, or
fully declutch for vehicles with a manualgearbox.

Starting the engine
For Diesel vehicles, intemperatures below zero theengine will not star t until the preheater warning lamp has gone off.
If this warning lamp comes on after pressing "STA R T/STOP", you should hold the brake or clutch pedal down
until the warning lamp goes off and do not press the START/STOP buttonagain.



If one of the star ting conditions is notmet, a reminder message appears in the instrument panel screen. In somecircumstances, it is necessary to turnthe steering wheel slightly while pressingthe "STA R T/STOP" button to assistunlocking of the steering; a messagewarns you when this is needed.
)
Briefly press the " START/STOP"button.
The steering column unlocks and
the engine star ts more or less
immediatel
y (see the advice for
Diesel versions).

136
Driving
Electronic key left in the reader
If the electronic key is left in the reader,on opening the driver's door a message appears to warn you. In the event o
f an emergency only,
the engine can be switched off
without any conditions. To do this,press the "STA R T/STOP" button for about three seconds.
In this case the steering column locks
as soon as the vehicle stops

Emergency stop
)Immobilise the vehicle. )Place the gear selector lever at Nfor
vehicles with an electronic gearbox, Por Nfor an automatic gearbox, or neutral with amanual gearbox.
Switching off the engine

If the vehicle is not immobilised, the engine will not stop.

)
Briefly press the " START/STOP
"button
The engine stops and the steering column locks.
)Remove the electronic key from the reader.

137
4
Driving








Starting-switching off the engine with the "Keyless Entry and
Starting" system
)Place the gear selector lever at Nfor
vehicles with an electronic gearbox, Por Nwith an automatic gearbox, or neutral witha manual gearbox. )With the electronic key inside the vehicle (it is not necessary to put it in the reader), press the brake pedal for vehicles withan electronic or automatic gearbox, or fully declutch for vehicles with a manual
gearbox.
For Diesel vehicles, intemperatures below zero theengine will not star t until thepreheater warning lamp hasgone off. If this warning lamp comes onafter pressing "STA R T/STOP", you should hold the brake or clutch pedal down until thewarning lamp goes off and donot press the START/STOP button again.

Starting the engine
If one of the star ting conditions is not met, a reminder message appears inthe instrument panel screen. In somecircumstances, it is necessary to turn the steering wheel slightly while pressing the "STA R T/STOP" button to assist unlocking of the steering; a message warns you when this is needed.
)
Briefly press the " START/STOP"button.
The steering column locks and
the engine star ts more or less
instantly (see the advice for
Diesel versions).
The presence in the defined zone of theelectronic key for the "Keyless Entry and Starting" system is essential. For safety reasons, do not leave this zone with the vehicle running.


If the electronic key is not detected in the zone, a message is displayed. Movethe electronic key into the zone so thatthe engine can be started.

138
Driving
Emergency starting

When the electronic key is in the defined zone
and your vehicle does not star t after pressing
the "STA R T/STOP" button: ) Place the gear selector at N
for vehicles
with an electronic gearbox, P or N
for
vehicles with an automatic gearbox or
neutral
for vehicles with a manual gearbox.
) With the electronic key inside
the vehicle, press the " START/
STO
P " button.
The engine stops and the steering column locks.
)Immobilise the vehicle. )Place the gear selector lever at Nfor
vehicles with an electronic gearbox, Por Nwith an automatic gearbox, or neutral with
a manual gearbox.
Switching off the engine

If the vehicle is not immobilised, the engine will not stop.

Do not leave your vehicle with theelectronic key still inside.
)Inser t the electronic key in the reader.)Press the brake pedal on vehicles with anelectronic or automatic gearbox, or fully
declutch with a manual gearbox.)Press the "STA R T/STOP" button.
The engine starts.
