ESP Citroen C4 PICASSO RHD 2013 1.G Workshop Manual

270
Practical information
*
Depending on version. The complete tooling
is with the spare wheel.











Changing a wheel Procedure for changing a wheel with a punctured tyre by the spare wheel using the tools provided with the vehicle.
Some of the tools are accessible from inside
th
e boot. The wheel chocks 2as well as thewheelbrace extension 6are stowed under theright hand boot sill.The wheelbrace 1
and the towing eye 7
arestowed under the left hand boot sill.The other tools, the jack 3
and the tool for removing the wheel bolt head finishers for alloy
wheels 4 , are stowed in a box attached to thespare wheel. The assembly is secured under
the vehicle in a carrier. See the "Access to thespare wheel" section).
Access to the vehicle's tools *
2.Wheel chocks for immobilising the vehicle
(except versions with manual gearbox).3.Jack with integral handle.
For raising the vehicle.4. Wheel bolt head cover removal tool.
For removing the wheel bolt head finishers
on alloy wheels.
5. Socket for the security bolts (stowed in the glove box).
For adapting the wheelbrace to the specialsecurity bolts.
6.Wheelbrace extension.
For unscrewing/tightening the spare wheelcarrier drive.
7. To w i ng eye.


Wheel with trim
When removing the wheel
, detach the trimfirst using the wheelbrace 1
pulling at the valvepassage hole.
When refitting the wheel
, refit the trimstarting by placing its notch facing the valve
and press around its edge with the palm of your hand.



List of tools *

All of these tools are specific to your vehicle
and can var
y according to equipment. Do not use them for other purposes. 1.Wheelbrace.
For removing the wheel trim and the wheelfixing bolts.

272
Practical information

A puncture wheel from the vehiclecannot be fitted under the vehicle. Itmust be carried in the boot. Use a cover to protect the boot.
)Press the tongue, slide the box cover to thecentre and remove it for access to the other
tools (jack and wheel bolt head finisher removal tool for alloy wheels).

Putting the spare wheel back in place
)Stow the corresponding tools in the box and close the cover. )Position the tool box on the ground.


Stowing the tools
)
Return the tools to the box and stow the box in the vehicle's boot. )
Wind in the carrier by turning the
wheelbrace clockwise: once the cable isfully wound in you should no longer feel
any resistance. ) Stow the other tools in the locations provided in the boot.

276
Practical information
Fitting a wheel
Fitting the "space-saver"spare wheel
If your vehicle is fitted with alloy wheels, when tightening the bolts on fitting, it is normal to notice that the washers
do not come into contact with the"space-saver" spare wheel. The wheel is secured by the conical surface of each bolt.


List of operations
)Put the wheel in place on the hub. )Screw in the bolts fully by hand.)Pre-tighten the security bolt using the
wheelbrace 1fitted with the security socket 5
(depending on equipment). )Pre-tighten the other bolts using the
wheelbrace 1only.
After changing a wheel
To correctly store the punctured wheelin the boot (not in the location of the space-saver wheel ), first remove thecentral cover. When using the "space-saver" typespare wheel, do not exceed 50 mph(80 km/h). Have the tightening of the bolts and thepressure of the spare wheel checked by a CITROËN dealer or a qualified workshop without delay. Have the punctured wheel repairedand refitted to the vehicle as soon as possible.

289
7
Practical information
CITROËN will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and notrecommended by CITROËN andnot installed in accordance with its instructions, in par ticular when the combined consumption of all of the additional equipment connectedexceeds 10 milliamperes.


Installing electricalaccessories

Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.
Configurations
The type of electrical system of the vehicle depends on its level of equipment.
To i d e n t i fy the type of electrical system on your vehicle, open the bonnet: the presence of anadditional fusebox in front of the battery indicates that it is type 2.
The type 1 electrical system does not have any fuses in front of the battery.

293
7
Practical information

Engine compartment fuses
An additional fusebox is fitted in front of thebattery, for type 2. The
fusebox is placed in the engine compartment near the battery (left-hand side).Access to the fuses
)
Unclip the cover, by pushing the two red latches towards the rear of the vehicle. )
Change the fuse (see correspondingparagraph). )
When you have finished, close the cover carefully to ensure correct sealing of the
fusebox.

296
Practical information
Do not apply excessive force on thetab as locking will not be possible if the clamp is not positioned correctly; star tthe procedure again.



Disconnecting the (+) cable
)Raise the locking tab Dfully to release the cable terminal clamp E.


Reconnecting the (+) cable
)Position the open clamp Eof the cable on
the positive post (+) of the battery.
)Press vertically on the clamp E to position
it correctly on the battery.
)Lock the clamp by spreading the positioning lug and then lowering the tab D.
)Operate the star ter on the broken down
vehicle and let the engine run
If the engine does not start straight away,
switch off the ignition and wait a few moments before trying again. )Wait until the engine returns to idle then
disconnect the jump lead cables in the reverse order.






Before disconnecting the battery

Wait 2 minutes after switching off the ignitionbefore disconnecting the battery.

Close the windows and the doors before
disconnecting the battery.

Following reconnectionof the battery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting to
permit initialisation of the electronic systems.However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise (depending on
version):


- the remote control key,

- the electric blind(s),

- ...

299
7
Practical information

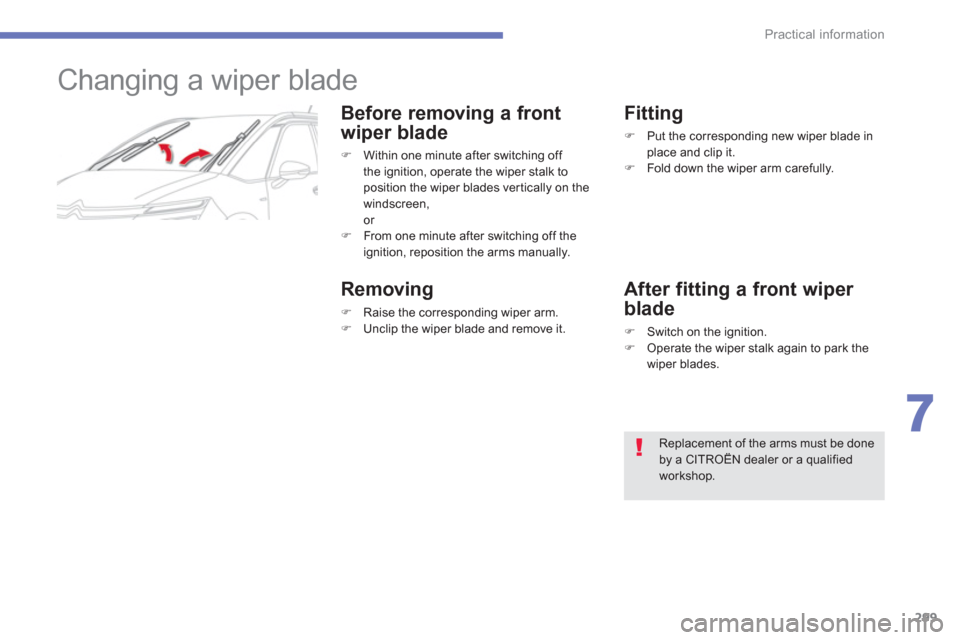

Changing a wiper blade
Before removing a front
w
iper blade
) Within one minute after switching off
t
he ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen,
or ) From one minute after switching off the
ignition, reposition the arms manually.

Removing
)
Raise the corresponding wiper arm. )
Unclip the wiper blade and remove it.



Fitting
)
Put the corresponding new wiper blade inplace and clip it.
)
Fold down the wiper arm carefully.



After fitting a front wiper
blade
) Switch on the ignition.)
Operate the wiper stalk again to park the
wiper blades.


Replacement of the arms must be done by a CITRO

308
Practical information
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.

Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle, breathalyzers and spare bulbs and fuses available in thevehicle.
"Multimedia":
Speakers, Hi-Fi module, Bluetooth hands-freesystem, head-up display screen, por tablesatellite navigation system, semi-integralsuppor t bracket for por table navigation system,
driving assistance systems, reversing camera, por table video screen, por table video carrier,
telephone carrier, two-screen video pack,
por table video player, CD player, solar USB charger, 230 V/50 Hz socket, 230 V/12 Vadaptor, iPhone/iPad charger, Wi-Fi on board...
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products (interior and exterior) - including ecologicalproducts in the "TECHNATURE" range, products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...

317
8
Checks











Running out of fuel (Diesel)

On vehicle fitted with HDi engines, the fuel system must be primed if you run out of fuel;
refer to the corresponding engine compar tment
view.
1.6 litre HDi engine
)
Fill the fuel tank with at least five litres of diesel.
)
Open the bonnet.)
If necessary, unclip the styling cover for
access to the priming pump.) Squeeze and release the priming pumprepeatedly until resistance is felt (there may be resistance at the first press). )
Operate the star ter until the engine starts(if the engine does not star t at the first
attempt, wait around 15 seconds before
tr
ying again). ) If the engine does not star t after a few
attempts, operate the priming pump again
then star t the engine.) Clip the styling cover back in place. )
Close the bonnet.


If the tank on your vehicle is fitted witha misfuel prevention device, refer to the"Misfuel prevention (Diesel)" section.


If the engine does not star t first time, don't keep trying but star t the procedureagain from the beginning.

318
Checks






Checking levels


Ta k e c a r e w h e n w o r k i ng under the bonnet, as certain areas of the engine may be extremelyhot (risk of burns) and the cooling fan could star t at any time (even with the ignition off).
Oil level

The check is carried out either when
the ignition is switched on using theoil level indicator in the instrument
panel, or using the dipstick.
Engine oil change

Refer to the maintenance and warranty guidefor details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

Oil specifi cation

The oil must be the correct grade for your engine and conform to the manufacturer'srecommendations.
Check all of these levels re
gularly, in line with the maintenance and warranty guide. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
Dipstick

There are two marks on the dipstick:
A= maximum
If you fill past this mark, contact a CITROËN dealer or a qualified workshop. B= minimum
Top up the level through the
oil filler orifice, using thecorrect grade of oil for your engine. The level must never be below this mark.
It will onl
y be correct if the vehicle is on level ground and the engine has been off for more
than 30 minutes.It is normal to top up the oil level between
two ser vices (or oil changes). CITROËNrecommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).
After topping up the oil, the check whenswitching on the ignition with the oil level
indicator in the instrument panel is not valid
durin
g the 30 minutes after topping up.
