Contents
7- i nch touch screen tablet 26
Instrument panels 33
Indicator and warning lamps 38
Adjustment buttons 54
Setting the date and time 57
Trip computer 59
Monitoring Familiarisation
Electronic key - remote control 61
"Keyless Entry and Star ting"
system 64
Central locking 72
Doors 73
Boot 75
Motorised tailgate 76
Alarm 79
Electric windows 82
Access
Front seats 84
Rear seats 92
Seat modularity 99
Mirrors 101
Steering wheel adjustment 103
Ventilation 104
Heating 106
Manual dual-zone air conditioning 107
Dual-zone digital air conditioning 109
Rear screen demist - defrost 115
Scented air freshener 116
Interior
fi ttings 118
Rear multimedia 127
Comfort
Starting-switching off the engine
with the electronic key 135
Starting-switching off the engine with the
"Keyless Entry and Starting" system 137
Electric parking brake 141
Hill start assist 148
5-speed manual gearbox 149
6-speed manual gearbox 149
6-speed electronic gearbox system 150
Automatic gearbox 154
Gear shift indicator 159
Stop & Start 160
Display of inter-vehicle time 163
Speed limiter 168
Cruise control 171
Active cruise control 174
Collision risk aler t 182
Lane depar ture warning system 185
Blind spot sensors 186
Parking sensors 189
Reversing camera 191
360 Vision 192
Park Assist 194
Driving
Eco-driving

6
Familiarisation
Exterior
Park Assist
This system provides active assistance when parking: it detects a parking space and thencontrols the vehicle's steering to park the
v
ehicle.
Reversing camera
This system is activated automatically onengaging reverse and provides an image in the
instrument panel.

Front and rear parking
sensors
This system provides warnings when
manoeuvring for wards and backwards by
detecting obstacles in front of and behind the
vehicle.
194
191
18
9

360 Vision

This system provides an image in the
instrument panel of the near surroundings of
your vehicle, using cameras located at the front and rear of the vehicle and under the door mirrors.

.
7
Familiarisation
Exterior


Motorised tailgate

This system simplifies the opening and closing of the boot by means of motorisation of the
tailgate.
7
6
260 18
6
224

Te m p o r a ry puncture repair
kit
This kit is a complete system, consisting of acompressor and a sealant car tridge, for the
temporary repair of a tyre.

Under-inflation detection

This system continuously monitors thepressures in the tyres and aler ts you in theevent of an under-inflated tyre.


Blind spot sensors

In cer tain driving conditions, this system
detects the presence of vehicles in the blind
spots. You are aler ted by the illumination of a
warning lamp in the corresponding mirror.

26
Monitoring
7-inch touch screen tablet
The 7-inch touch screen tablet gives access to:
- the heating/air conditioning controls,
- menus for adjusting settings for vehicle
functions and systems,
- audio and display configuration menus,
- audio system and telephone controls andthe display of associated information,
and, depending on equipment, allows:
- the displa
y of aler t messages and the
visual parking sensors information,
- access to the controls for the navigation
system and Internet ser vices, and the
display of associated information.
For reasons of safety, the driver should only carry out operationsthat require close attention, with the vehicle stationary. Some functions are not accessible when driving.

General operation


Recommendations

It is necessary to press firmly, par ticularly for "flick" gestures (scrolling through lists, moving
the map...).
A light wipe is not enough.
The tablet does not recognise pressing withmore than one finger.
This technology allows use at all temperatures
and when wearin
g gloves.
Do not use pointed objects on the touch screen
tablet.
Do not touch the tablet screen with wet hands.
Uses a soft clean cloth to clean the tablet touchscreen.
Use this button to go to the
secondary page.

Use this button to return to theprimary page.

Use this button
for access toadditional information and to thesettings for cer tain functions.

Use this button to confirm.

Use this button to quit.


Principles
Use the buttons on either side of the screen
for access to the menus, then press the vir tual
buttons in the touch screen.
Each menu is displayed over one or two pages(primary page and secondary page).


After a few moments with no action on the secondary page, the primary pageis displayed automatically.

28
Monitoring
"Driving assistance" menu
The functions with settings that can be adjusted are detailed in the table below.
ButtonCorresponding functionComments
Speed settingsMemorisation of speeds for use with the speed limiter or cruise control.
Under-inflation initialisationReinitialisation of the under-inflation system.
Park Assis
t Activation of the Park Assist function.
Stop & Star
tDeactivation of the function.
Blind s
pot sensors
Activation of the function.
360 vision
Activation of the function then choice of options.

30
Monitoring
ButtonCorresponding functionComments
DiagnosticList of current alerts.
Lane depar ture warning system
Activation of the function.
Parking sensorsDeactivation of the function.
Inter-vehicle tim
e Activation of the function.
Automatic headlamp dipping
Activation of the function.

1
41
Monitoring
Warning / indicator lampStateCauseAction / Observations
Electric parking brake
fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, brieflypush the electric parking brake control lever.
Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the corresponding section.
Diesel engine pre-heating
fixed. The "START/STOP" switch has been pressed (ignition on). Wait until the warning lamp goes off before star ting.
Once it goes off, star ting is immediate, on condition
that you maintain pressure on the brake pedal for anelectronic or automatic gearbox, or the clutch pedal is pressed fully down for a manual gearbox.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Blind spotsensors fixed. The blind spot monitoring function has been activated. For more information, refer to the correspondingsection.
Park Assist fixed. The Park Assist function has beenactivated. For more information, refer to the correspondingsection.

102
Comfort





Rear view mirror
Adjustable mirror providing a central rearward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused b
y the sun, headlamps from other vehicles...


Manual day/night model

Ad
justment
)
Adjust the mirror so that the glass is
directed correctly in the "day" position.



As a safety measure, the mirrors should be adjusted to reduce the "blind spot".


In order to ensure optimum visibilityduring your manoeuvres, the mirror lightens automatically when reversegear is engaged.


Day / night position
)
Pull the lever to change to the "night" anti-dazzle position.)
Push the lever to change to the normal "day" position.


Automatic day/night model

By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
Automatic tilting in reverse gear
With the engine running, on engaging reversegear, the mirror glasses tilt downwards.
They return to their initial position:
-a few seconds after coming out of reverse gear, - once the speed of the vehicle exceeds6 mph (10 km/h),
- on switching off the engine.
S
ystem which provides a view of the ground
during parking manoeuvres in reverse gear.
Thi
s function can be deactivated in the"Driving assistance" menu, then " Vehicle
settings".

104
Comfort








Vent ilat ion
The air circulating in the passenger compartment
is filtered and originates either from the outside via
the
grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by thedriver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
Control panel
The controls of this system are accessible
in the " Air conditioning " menu of the touchscreen tablet A .
The demisting/defrosting controls for the
windscreen and rear screen are located on theleft of the touch screen tablet.
1.Windscreen demisting-defrosting vents.2. Front quar ter light demisting-defrosting
vents. 3. Front side window demisting/defrosting
v
ents.
Adjustable side air vents.
4. Central adjustable air vents.
5. Air outlets for the front footwells.
6.Side vents for the 2nd row.
7. Air outlets for 2 nd
row footwells.
8.Sunshine sensor.


Air distribution

105
3
Comfort

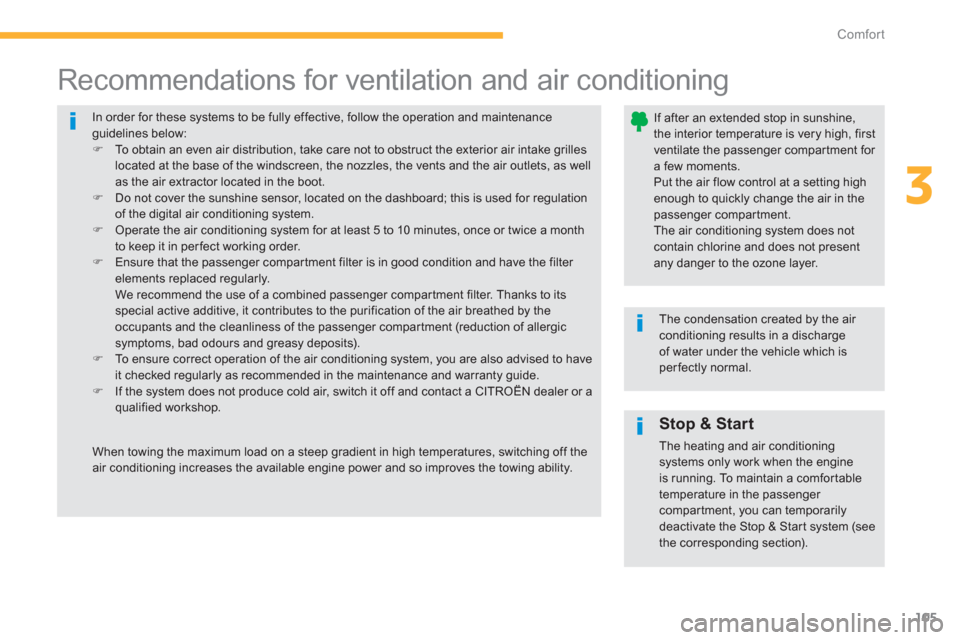

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in per fect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly. We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the maintenance and warranty guide. )
If the system does not produce cold air, switch it off and contact a CITRO
