Familiarisation
Interior


Panoramic sunroof

This glazed roof increases the light in thepassenger compar tment. It is fitted with anelectric blind.
89
220
2
6
90
141

Massage system

This system provides a lumbar massage for aperiod of about 60 minutes. The massage is
delivered in 6 cycles of 10 minutes each.

Electric leg rest

It provides additional comfort for the frontpassenger.


7-inch touch screen tablet

It provides access to the heating and air conditioning controls, to settings for vehicle
systems, to controls for the audio, navigation
and telematic systems and to the display configuration settings...
Electric parking brake
It combines the functions of automatic application on switching off the engine and automatic release when moving off.
The driver can inter vene at any time to apply
or release the parkin
g brake, by operating the control lever.

.
11
Familiarisation
1. Headlamp height adjustment. 2.Deactivation of volumetric alarmmonitoring, or
Ticket holder. 3.Lighting and direction indicator stalk4. Steering mounted controls (6-speedelectronic gearbox system/automatic
gearbox).
5
. Speed limiter / cruise control / active cruisecontrol controls.
6.Other steering mounted controls (depending on equipment). 7. Audio system, telephone and navigation (depending on equipment) steeringmounted controls.8.Gear selector lever (electronic gearboxsystem/automatic gearbox).9.
STA R T/STOP button (engine star ting).10.Wiper / screenwash / trip computer stalk.11.
Electronic key reader.12.
Instrument panel. 13.Hazard warning lamps.14 .To u c h screen tablet controls. 15.Deactivation of the DSC system. 16.
Electric parking brake control. 17.Central locking control.


Instruments and controls

.
23
Familiarisation
168, 171, 174

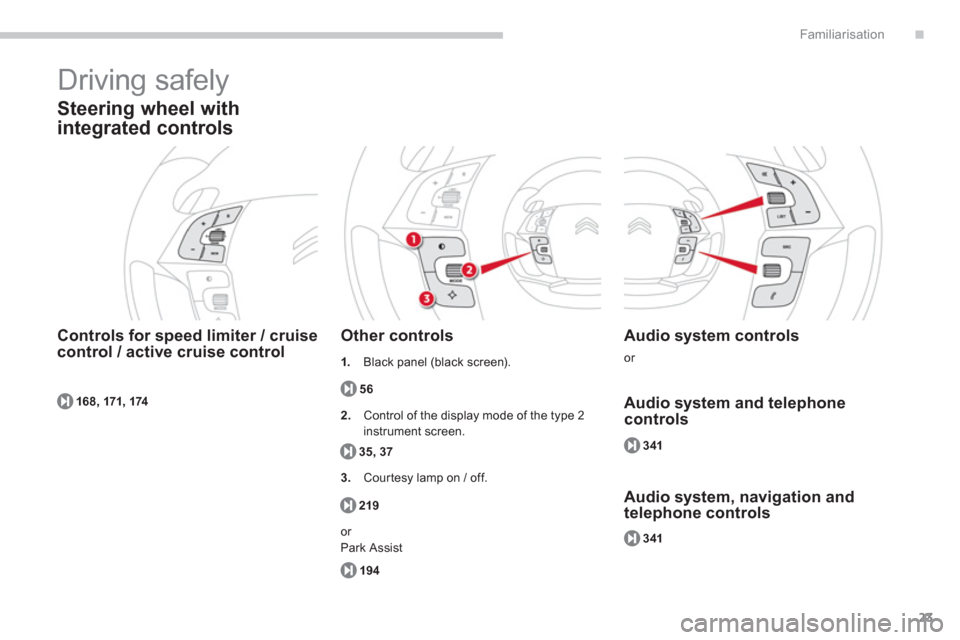

Driving safely


Steering wheel with
integrated controls


Controls for speed limiter / cruisecontrol / active cruise controlOther controls
56
Audio system controls
or



Audio system and telephonecontrols

Audio system, navigation and telephone controls
35, 37
21
9
194
341
341
1.Black panel (black screen).
2
. Control of the display mode of the type 2
in
strument screen.
3. Courtesy lamp on / off.
or
Park Assist

26
Monitoring
7-inch touch screen tablet
The 7-inch touch screen tablet gives access to:
- the heating/air conditioning controls,
- menus for adjusting settings for vehicle
functions and systems,
- audio and display configuration menus,
- audio system and telephone controls andthe display of associated information,
and, depending on equipment, allows:
- the displa
y of aler t messages and the
visual parking sensors information,
- access to the controls for the navigation
system and Internet ser vices, and the
display of associated information.
For reasons of safety, the driver should only carry out operationsthat require close attention, with the vehicle stationary. Some functions are not accessible when driving.

General operation


Recommendations

It is necessary to press firmly, par ticularly for "flick" gestures (scrolling through lists, moving
the map...).
A light wipe is not enough.
The tablet does not recognise pressing withmore than one finger.
This technology allows use at all temperatures
and when wearin
g gloves.
Do not use pointed objects on the touch screen
tablet.
Do not touch the tablet screen with wet hands.
Uses a soft clean cloth to clean the tablet touchscreen.
Use this button to go to the
secondary page.

Use this button to return to theprimary page.

Use this button
for access toadditional information and to thesettings for cer tain functions.

Use this button to confirm.

Use this button to quit.


Principles
Use the buttons on either side of the screen
for access to the menus, then press the vir tual
buttons in the touch screen.
Each menu is displayed over one or two pages(primary page and secondary page).


After a few moments with no action on the secondary page, the primary pageis displayed automatically.

1
27
Monitoring

State of indicator lamps

Some buttons contain an indicator lamp that
gives the state of the corresponding function.
Green indicator: you have switched on the corresponding function.
Orange indicator: you have switched off thecorresponding function.

1
.Access the the "Air conditioning" menu.
Allows adjustment of the various settings for temperature, air flow... See the sections
on "Heating", "Manual air conditioning" and"Digital air conditioning".
2. Access to the "Driving assistance" menu.
Allows certain functions to be switched on
and off and their settings adjusted. 3. Access to the "Media
" menu.See the Audio and telematics section.4.
Access to the "Navigation*
" menu.See the Audio and telematics section.
Touch screen tablet menus
5.Access to the "Configuration
" menu Allows configuration of the display and thesystem.
6. Access to the "Connected services*"menu.
See the Audio and telematics section. 7.Access to the " Telephone " menu.
See the Audio and telematics section.
8.
Adjustment of volume / mute.
See the Audio and telematics section.

*

Depending on equipment.

290
Practical information

Type 1 fuse tables
Fusebox 1


Dashboard fuses

The fusebox is located in the lower dashboard (left-hand side).
Access to the fuses
)Refer to the paragraph "Access to the tools".
Fuse N°RatingFunctions
F
85 A Steering mounted controls
F1
820 A Touch screen tablet, audio and navigation system, CD player,USB por ts and auxiliary sockets.
F1
615 A
Front 12V socket.
F1
515 A
Boot 12V socket.
F2
85 A STA R T/STOP button.
F3
015 A Rear wiper.
F27 15 A
Front screenwash pump, rear screenwash pump.
F2
615 A
Horn.
F20 5
A Airbags.
F215 A Instrument panel.
F1
95 A Rain and sunshine sensor.
F12 5
A Keyless starting unit.
F2 5
A Manual headlamp adjustment control.

308
Practical information
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.

Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle, breathalyzers and spare bulbs and fuses available in thevehicle.
"Multimedia":
Speakers, Hi-Fi module, Bluetooth hands-freesystem, head-up display screen, por tablesatellite navigation system, semi-integralsuppor t bracket for por table navigation system,
driving assistance systems, reversing camera, por table video screen, por table video carrier,
telephone carrier, two-screen video pack,
por table video player, CD player, solar USB charger, 230 V/50 Hz socket, 230 V/12 Vadaptor, iPhone/iPad charger, Wi-Fi on board...
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products (interior and exterior) - including ecologicalproducts in the "TECHNATURE" range, products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...

337
operate in your vehicle.
Touch screen tablet


01 General operation


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 First steps - Control panel

04 Media

05 Navigation

06 Configuration

07 Connected services

08 Telephone p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p.
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA AUDIO SYSTEM
BLUETOOTH TELEPHONE
8
340
358
342
378
388
390
400

03 Steering mounted controls p. 341

340
02


Volume adjustment (each source is
independent, including Traffi c announcements(TA) and navigation instructions).
Selectin
g the audio source (depending on version):
- "FM"
/ "AM" / "DAB" * radio wavebands.
- "USB" memor
y stick.
-
CD player (located in the glove box) *
.
- Jukebox
*
, after fi rst copying audio fi les to the internal memory of the touch screen tablet.
- Telephone connected by Bluetooth and Bluetooth audio streaming.
- Media pla
yer connected to the auxiliary socket (jack, cable not supplied).

The screen is of the "resistive" t
ype, it is necessary to press fi rmly, particularly for "fl ick" gestures (scrolling through a list, moving the map...).
A simple wipe will not be enough. pressing with more than one fi nger is not recognised.
The screen can be used when wearin
g gloves. This technology allows use at all temperatures.
FIRST STEPS

*
Depending on equipment. To clean the screen, use a so
ft non-abrasive cloth (spectacles cloth) without any additional product.
Do not use pointed ob
jects on the screen.
D
o not touch the screen with wet hands.
Following prolonged operation in
sunny conditions, the volume may be limited to protect the system. Thereturn to normal takes place when
the temperature in the passenger compartment drops.

365
05
Towards a recent destination
Towards a contact


Navigation towards a contact imported from a telephone is only
possible if the address entered is compatible with the system.
Select " Enter destination".
Select an address from the list offered.
Select "Enter destination ".

Select "Contacts".

Select a destination from the contacts in the listoffered.

Select "Navigate to".
Select the criteria then "Confi rm " to start guidance.

Select " Navigate to".
Select the criteria then "Confi rm " or press
"Show route on map
" to start guidance.
Pr
ess on Navigation
to display the primary
page then go to the secondary page.

Press on Navigation
to display the primary
page then go to the secondary page.
