FITTINGS
109

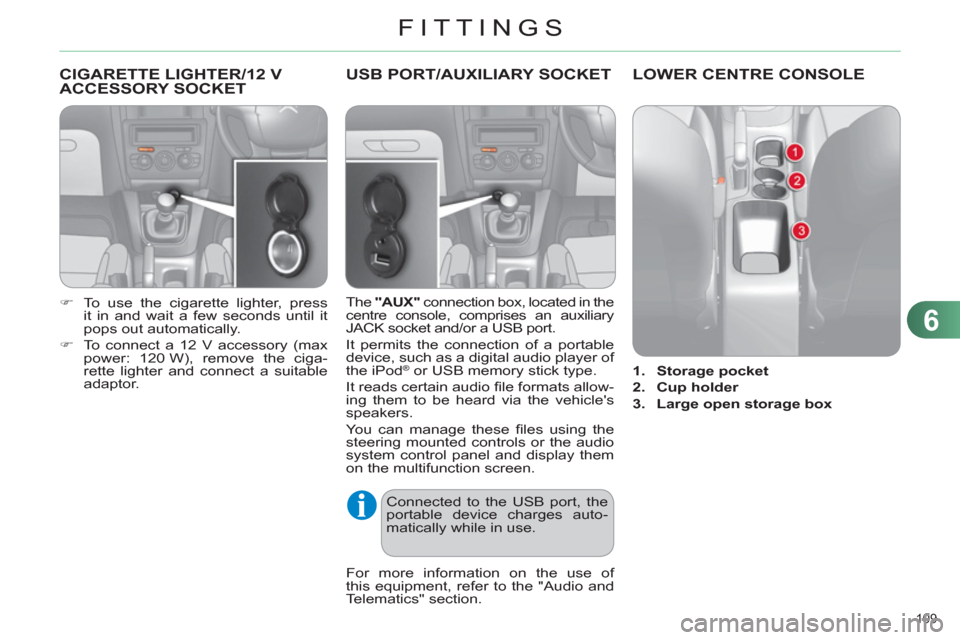

CIGARETTE LIGHTER/12 V
ACCESSORY SOCKET
)
To use the cigarette lighter, press
it in and wait a few seconds until it
pops out automatically.
)
To connect a 12 V accessory (max
power: 120 W), remove the ciga-
rette lighter and connect a suitable
adaptor.
USB PORT/AUXILIARY SOCKET
The "AUX"
connection box, located in the
centre console, comprises an auxiliary
JACK socket and/or a USB port.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® or USB memory stick type.
It reads certain audio fi le formats allow-
ing them to be heard via the vehicle's
speakers.
You can manage these fi les using the
steering mounted controls or the audio
system control panel and display them
on the multifunction screen.
For more information on the use of
this equipment, refer to the "Audio and
Telematics" section.
Connected to the USB port, the
portable device charges auto-
matically while in use.
LOWER CENTRE CONSOLE
1.
Storage pocket
2.
Cup holder
3.
Large open storage box
Page 112 of 316
6
FITTINGS
110

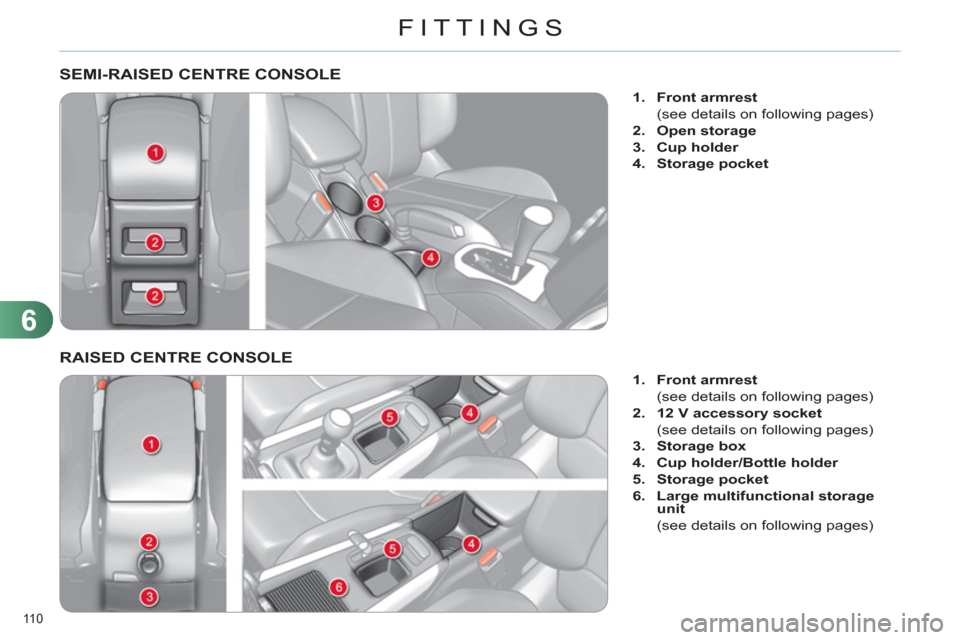

SEMI-RAISED CENTRE CONSOLE
1.
Front armrest
(see details on following pages)
2.
Open storage
3.
Cup holder
4.
Storage pocket
RAISED CENTRE CONSOLE
1.
Front armrest
(see details on following pages)
2.
12 V accessory socket
(see details on following pages)
3.
Storage box
4.
Cup holder/Bottle holder
5.
Storage pocket
6.
Large multifunctional storage
unit
(see details on following pages)
Page 113 of 316
6
FITTINGS
111
LARGE MULTIFUNCTIONAL STORAGE UNIT
This storage unit is closed by a sliding
shutter.
It contains:
- the USB port and 12 V/auxiliary
sockets 1
,
- a retractable support 2
to receive
your mobile phone or portable de-
vice,
- a space ventilated by a closeable
nozzle 3
, to keep food and drinks
fresh if the air conditioning is ope-
rating.
Comfort and storage system for the
driver and front passenger.
The height and length of the armrest
cover can be adjusted.
Height adjustment
)
Raise the cover to the required po-
sition (low, intermediate or high).
)
If you raise the cover slightly beyond
the high position, guide it when low-
ering it to the low position.
Longitudinal adjustment
)
Slide the cover fully forwards or
rearwards.
Storage
The storage space in the armrest can
hold up to 6 CDs.
)
Raise the lever.
)
Raise the cover fully.
It is illuminated only when the
sliding shutter is fully open.
The sliding shutter can be partly
closed up to the level of the re-
tractable support, so as to keep
the storage unit cool.
Page 114 of 316
6
FITTINGS
112
)
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.

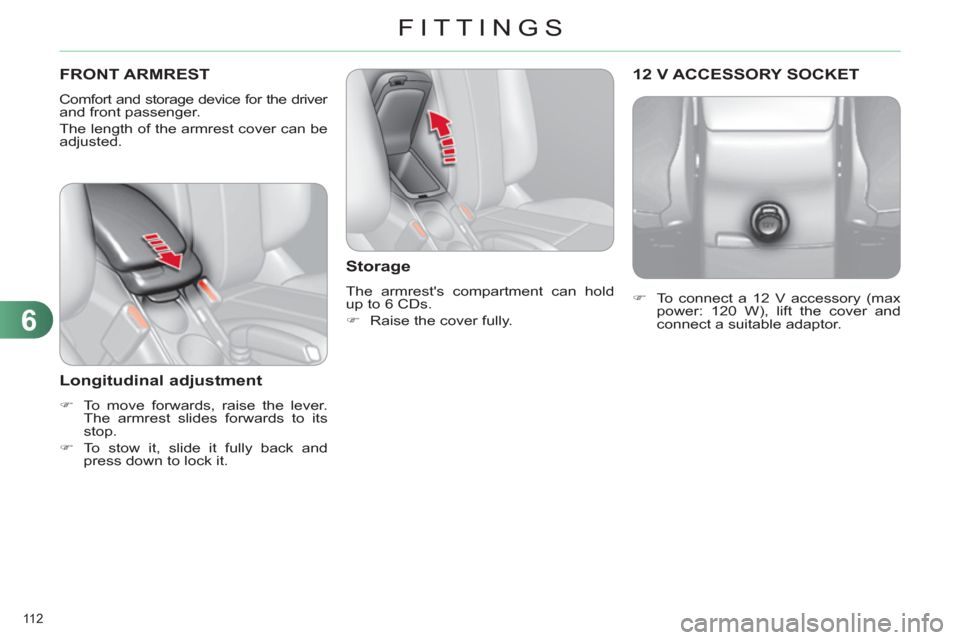

12 V ACCESSORY SOCKET FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
The length of the armrest cover can be
adjusted.
Longitudinal adjustment
)
To move forwards, raise the lever.
The armrest slides forwards to its
stop.
)
To stow it, slide it fully back and
press down to lock it.
Storage
The armrest's compartment can hold
up to 6 CDs.
)
Raise the cover fully.
Page 115 of 316
6
FITTINGS
11 3

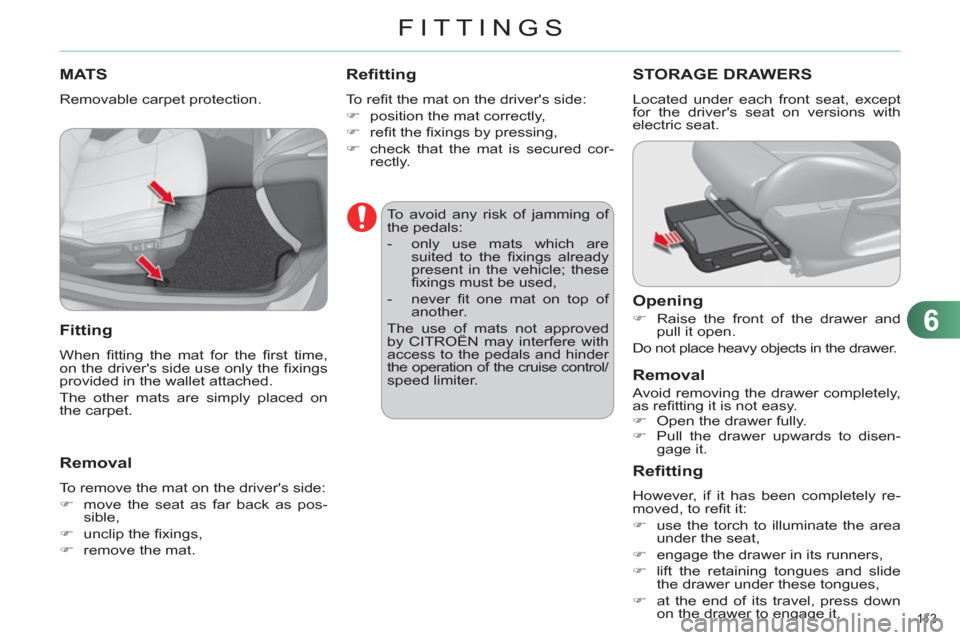

MATS
Removable carpet protection.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as pos-
sible,
)
unclip the fi xings,
)
remove the mat.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured cor-
rectly.
To avoid any risk of jamming of
the pedals:
- only use mats which are
suited to the fi xings already
present in the vehicle; these
fi xings must be used,
- never fi t one mat on top of
another.
The use of mats not approved
by CITROËN may interfere with
access to the pedals and hinder
the operation of the cruise control/
speed limiter.
STORAGE DRAWERS
Located under each front seat, except
for the driver's seat on versions with
electric seat.
Opening
)
Raise the front of the drawer and
pull it open.
Do not place heavy objects in the drawer.
Removal
Avoid removing the drawer completely,
as refi tting it is not easy.
)
Open the drawer fully.
)
Pull the drawer upwards to disen-
gage it.
Refitting
However, if it has been completely re-
moved, to refi t it:
)
use the torch to illuminate the area
under the seat,
)
engage the drawer in its runners,
)
lift the retaining tongues and slide
the drawer under these tongues,
)
at the end of its travel, press down
on the drawer to engage it.
Page 116 of 316
6
FITTINGS
114

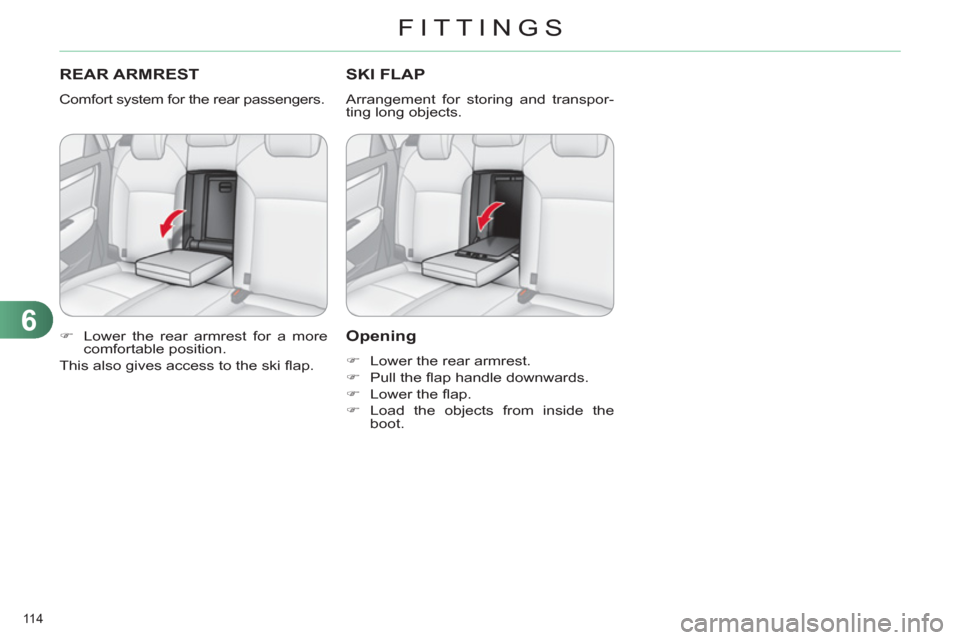

REAR ARMREST
Comfort system for the rear passengers.
)
Lower the rear armrest for a more
comfortable position.
This also gives access to the ski fl ap.
SKI FLAP
Arrangement for storing and transpor-
ting long objects.
Opening
)
Lower the rear armrest.
)
Pull the fl ap handle downwards.
)
Lower the fl ap.
)
Load the objects from inside the
boot.
Page 117 of 316
6
11 5

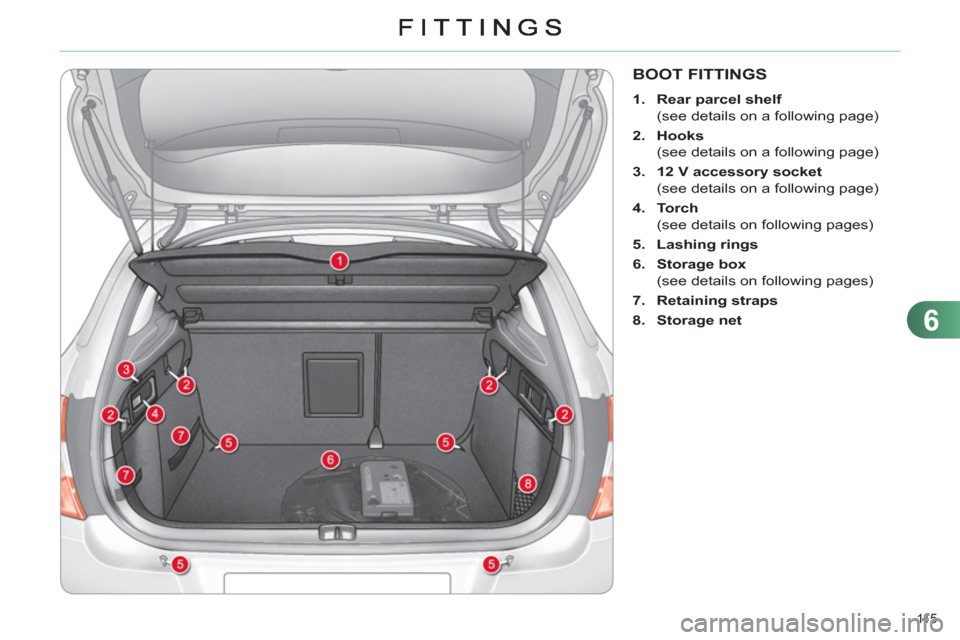

BOOT FITTINGS
1.
Rear parcel shelf
(see details on a following page)
2.
Hooks
(see details on a following page)
3.
12 V accessory socket
(see details on a following page)
4.
Torch
(see details on following pages)
5.
Lashing rings
6.
Storage box
(see details on following pages)
7.
Retaining straps
8.
Storage net
Page 118 of 316
6
FITTINGS
116

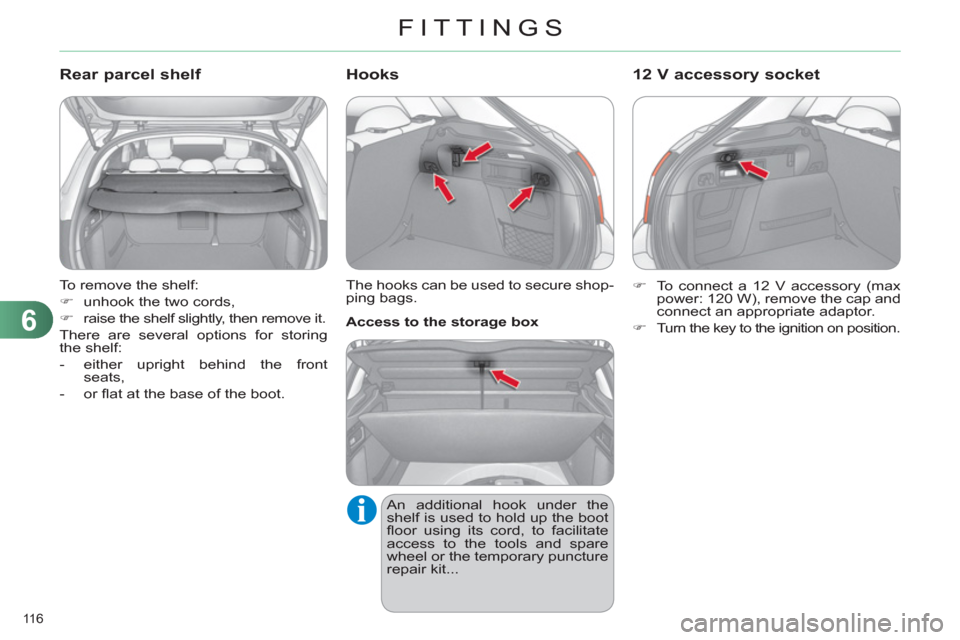

To remove the shelf:
)
unhook the two cords,
)
raise the shelf slightly, then remove it.
There are several options for storing
the shelf:
- either upright behind the front
seats,
- or fl at at the base of the boot.
Rear parcel shelf
The hooks can be used to secure shop-
ping bags.
Hooks
An additional hook under the
shelf is used to hold up the boot
fl oor using its cord, to facilitate
access to the tools and spare
wheel or the temporary puncture
repair kit...
Access to the storage box
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition on position.
12 V accessory socket
Page 119 of 316
6
FITTINGS
11 7

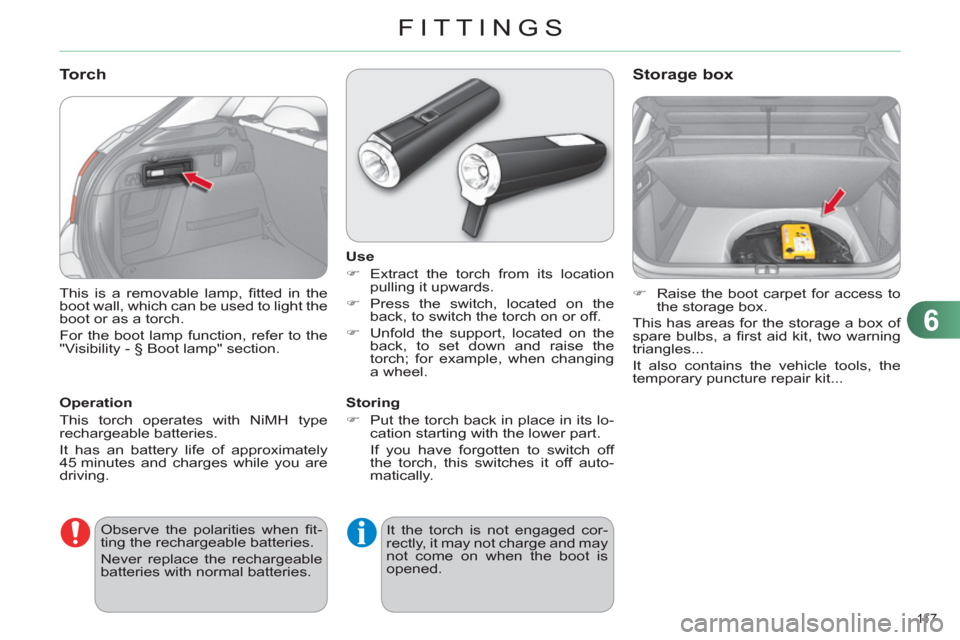

This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Torch
Operation
This torch operates with NiMH type
rechargeable batteries.
It has an battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling it upwards.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its lo-
cation starting with the lower part.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
)
Raise the boot carpet for access to
the storage box.
This has areas for the storage a box of
spare bulbs, a fi rst aid kit, two warning
triangles...
It also contains the vehicle tools, the
temporary puncture repair kit...
Storage box
Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the rechargeable
batteries with normal batteries. It the torch is not engaged cor-
rectly, it may not charge and may
not come on when the boot is
opened.
Page 120 of 316
7
CHILD SAFETY
118
*

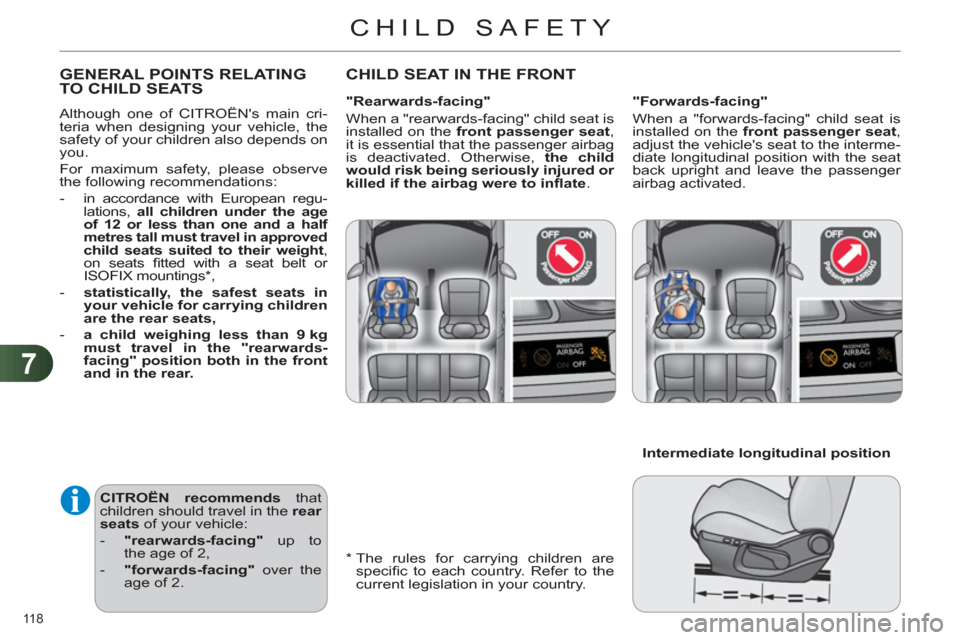

The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
GENERAL POINTS RELATING TO CHILD SEATS
Although one of CITROËN's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European regu-
lations, all children under the age
of 12 or less than one and a half
metres tall must travel in approved
child seats suited to their weight
,
on seats fi tted with a seat belt or
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
CITROËN recommends
that
children should travel in the rear
seats
of your vehicle:
- "rearwards-facing"
up to
the age of 2,
- "forwards-facing"
over the
age of 2.
CHILD SEAT IN THE FRONT
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
Intermediate longitudinal position
